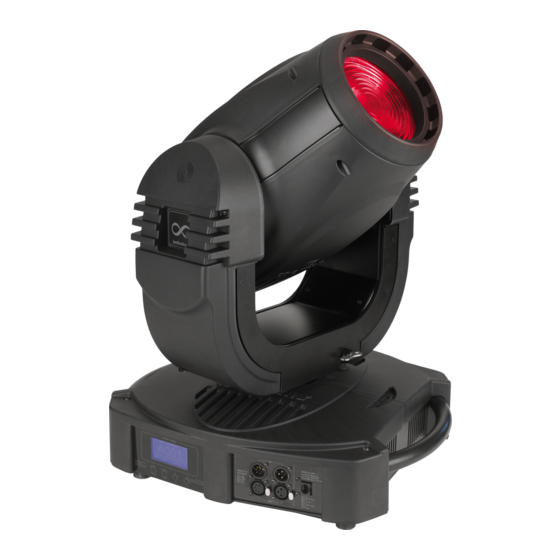

Infinity Wash M
instruction manual
manuale di istruzioni
Version .0
DIS128

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity Wash M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar Infinity Wash M

Summary of Contents for Coemar Infinity Wash M

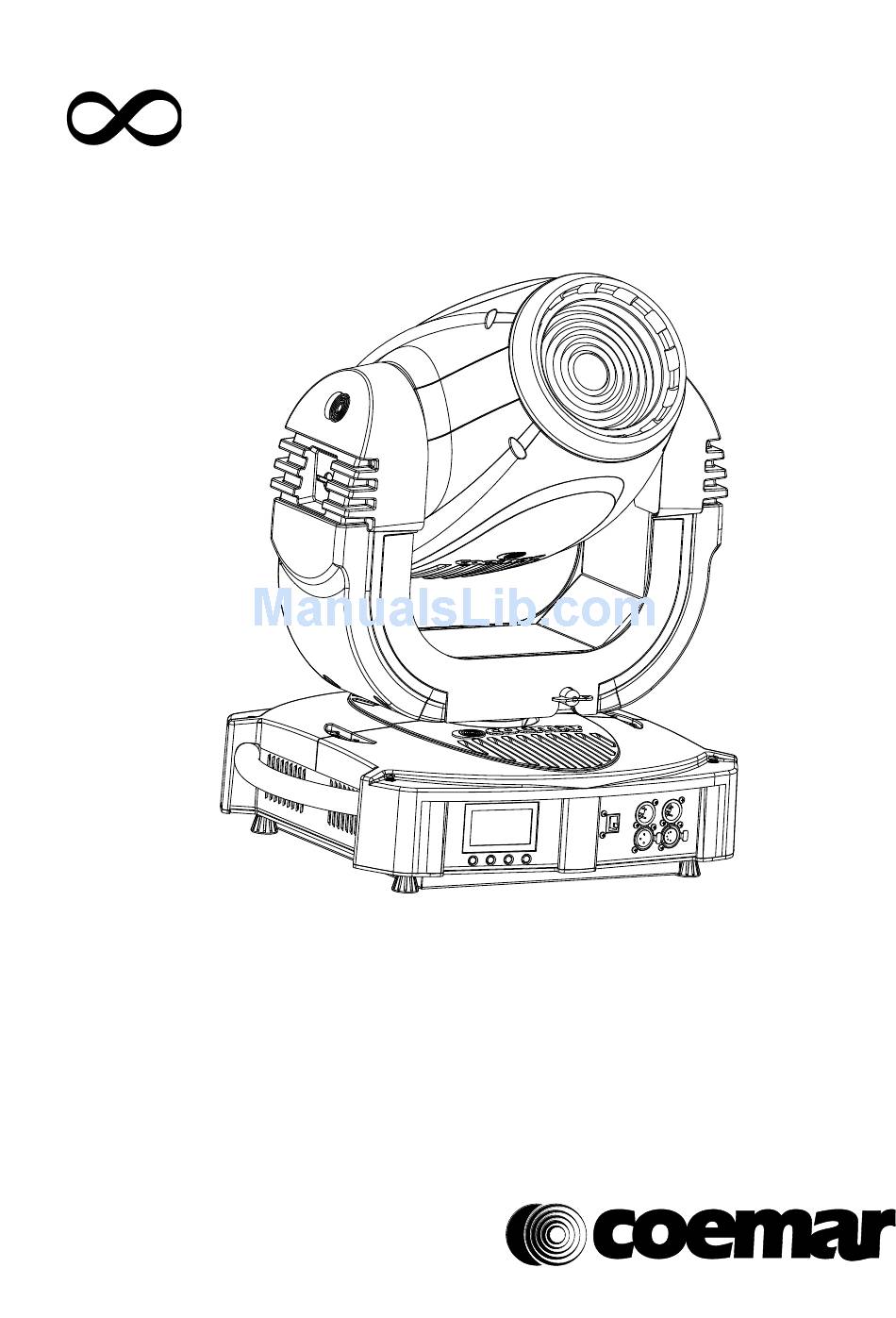

  • Page 1 Infinity Wash M instruction manual manuale di istruzioni Version .0 DIS128...
  • Page 3 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Infinity Wash M: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 5: Table Of Contents

    English Index 1.Packaging and transportation ....................................6 1.1 Packaging ......................................... 6 1.2 Trasportation ........................................6 2. General information ......................................6 2.1 Important safety information..................................... 6 2.2 Warranty conditions ......................................7 2.3 EC Norms ......................................... 7 3. Product specifications ......................................7 3.1 Technical characteristics ....................................

  • Page 6: Packaging And Transportation

    Fire prevention: 1.Infinity Wash M utilizes a Philips MSR 700 Gold Mini Fast Fit or a Philips MSR Gold 575 MiniFast Fit lamp, the use of any alternative lamp might be risky and will make the warranty of the fixture null and void.

  • Page 7: Warranty Conditions

    English 2.2 Warranty conditions 1. The fixture is guaranteed for a period of 12 months from the date of purchase against manufacturing or materials defects. 2. The warranty does not extend to damage caused by inappropriate usage, use by inexperienced operators or inadequate maintenance. 3.

  • Page 8: Projector Components

    4.1 Mechanical installation Infinity Wash M may be either floor or ceiling mounted. It may also be installed on a structure. The unit is provided with four rubber feet mounted on its base, allowing it to be placed on a flat surface. For installations on a reticular structure, Coemar provides a set of Cam-lock support brackets, which are included in the packaging.

  • Page 9: Safety Connection

    4.2 Safety connection If the Infinity Wash M is fixed to a structure, the use of a safety chain is recommended in order to meet the current relevant safety standards. The safety chain must pass through the holes “A” and then fixed to the structure itself.

  • Page 10: Control Signal Connections

    Infinity Wash M leaves the factory ready to be connected to an ArtNet network without any further settings. Just connect the projector by means of the specific RJ45 connector located on the side of the DMX connectors and the relative patch to a common HUB Ethernet which will be connected to an ArtNet controller.

  • Page 11: Turning On The Projector

    1 to 18 from your DMX 512 controller. A second unit must be addressed as A019, a third as A039 and so on. The operation must be carried out every Infinity Wash M which has an address different from A001.

  • Page 12: Dmx Functions

    English 7.2 DMX functions Note: the default setting is 16 bit/24 channels type of perc entag func tion effec t dec imal c hannel c ontrol X axis, base mov ement proportional proportional coarse control of the base motor movement - 255 0% - 100% (pan) c oarse...
  • Page 13 English step no effect - 10 0% - 4% proportional proportional indexing of the effect through 360° 11 - 127 4% - 50% continuous rotation of the effect in a clockwise direction with proportional 128 - 190 50% - 75% proportional control over decreasing speed indexing effec t rotation through 360°...

  • Page 14: Display Panel Functions

    English 8. Display panel functions By suitably using all the functions of Infinity Wash M, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described hereunder before carrying out any possible selection.

  • Page 15: Main Functions

    English 8.3 Main functions The projector gives the opportunity to change and customize some functional settings. MAIN FUNCTIONS See diagram in It allows the complete management of the horizontal and vertical at next page PAN/TILT movements.. -Standard It allows to choose an alternative colour insertion curve. CMY SETTING -Special -Tungsten...
  • Page 16 English The following diagram explains the sub menu for the management of pan eand tilt, regarding the pan/tilt menu item descrive in the diagram at previous page. It inverts the horizontal beam direction, from -Clockwise left to right or vice-versa by the same DMX PAN/TILT PAN DIRECTION -Counterclockwise...

  • Page 17: Measures

    NStsk: lamp’s strike attempts with countdown. 8.5 Display setup The display setup allows tot une the Infinity Wash M functions according to your needs. The following diagram shows the section features. DISPLAY SETUP It allows 180° rotation of the display graphics in case of -Standard upside-down installation of the fixture.

  • Page 18: Demo Mode

    The electronic tuning procedure is only possible when the DMX512 signal is on. The display panel of Infinity Wash M allows the electronic motor alignment of the projector motors in the optical system; this procedure is performed by Coemar at the factory during the testing: in order to obtain particular effects or in the case of internal components being replaced (motors, electronic boards, sensors, etc.) it may be necessary to change this setting.
  • Page 19 English SPECIAL MODE Pan movement alignment. MOTOR ADJUSTMENT Tilt movement alignment. TILT Dimmer alignment. DIMMER Shutter alignment. SHUTTER Zoom lens alignment. ZOOM 2nd zoom lens alignment. ZOOM LENS Effect wheel alignment. EFFECT WHEEL Radial alignment of the effects located on the EFFECT INDEX prism wheel..

  • Page 20: Lamp Installation And Alignment

    Infinity M utilizes a Philips MSR GOLD 700/2 Mini Fast Fit with PGJX28 base lamp.at maximum power of 700 W or a Philips MSR GOLD 575/2 Mini Fast Fit with adequate ballast setting.(menù MAIN FUNCTIONS/BALLAST SETTINGS). These lamps are available as a spare part at your Coemar’s distributor or service centre. Lamp...

  • Page 21: Aligning The Lamp In The Optical Path

    English 9.2 Aligning the lamp in the optical path Aligning the lamp in the optical system is achieved via the 3 adjusters at the rear of the projector. This procedure should be undertaken to maximize output, to avoid the possible overheating of the internal components due to the incorrect focusing of the beam onto components not predisposed to high temperature.

  • Page 22: Turning Back To Discharge Lamp (700W Or 575W)

    English WARNING ! • after the installation of this lamp and each time you replace it, we recommend the following operations. • realign the lamp in the optical system in order to avoid dichroic filters overheating and consequent effects. • reset the lamp odometer to obtain reliable information about the residual life of the lamp. 9.4 Turning back to discharge lamp (700W or 575W) This is a very important chapter if you are going to replace the halogen lamp for the 700W (OEM configuration) or 575 W lamp.

  • Page 23: Operating On Inside Groups

    English 10. Operating on inside groups The fixture allows the extraction of both gobos and colour changer assemblies in order to facilitate inspection, gobos replacing and clearing of colour filters and lenses. WARNING ! The following procedures should be undertaken by qualified and experienced technical personnel. Handle with extreme care ! Always disconnect al cables before proceeding and ensure that the unit is sufficiently cool.

  • Page 24: Standard Color Wheel Configuration

    English 10.3 Standard color wheel configuration 40mm. CODE POS. ROSCO STANDARD N° VT358 026 Bright red VT352 022 Dark Amber FC049 441 Full CT straw VT356 089 Moss green VT354 079 Just blue 10.4 How to replace filters 1. Facing the front side of the wheel, push up the filter to replace inserting your finger through the plate hole, then remove the filter. 2.Insert the new filter (facing the coated side downwards) making it slip under the spring until it locks;...

  • Page 25: Standard Effect Wheel Configuration

    English 10.5 Standard effect wheel configuration CODE/CODICE POS. DESCRIPRION N°PCS VT281 Beam shape LEPR25 Beam ‘O LEPR32 Moon flower 10.6 How to replace effects 1.Lift and gently extract from the wheel the support which contains the effect you are going to replace. 2.Slide the new support under the spring, making sure that it enters in place through the two pins on the back of the support.

  • Page 26: Maintenance

    12.1 Spare parts All the components of Infinity Wash M are available as replacement spares from your authorized Coemar service centre. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner.

  • Page 27: Error Messages

    English 13. Error messages If you have to check a malfunction, Infinity Wash M has an auto diagnostic system that visualizes in the lower part of the display one or more intermittent messages, preceded by “ERR”. The following table will help you to understand these messages correctly. If the problem persists despite carrying out the suggested procedure, contact your Coemar Customer Service Centre.

  • Page 28: Frequently Asked Questions

    English 14. Frequently asked questions Question Possible cause Suggested solution The projector is completely still. -Projector not powered up: Check that the mains power cable is The circuit breaker is switched off. connected to power. The protection fuse is blown. Set the circuit breaker to ON.
  • Page 29 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
