Reflection
FullSpectrum
instruction manual
manuale di istruzioni
Version 1.0
DIS132

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reflection FullSpectrum and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar Reflection FullSpectrum

Summary of Contents for Coemar Reflection FullSpectrum

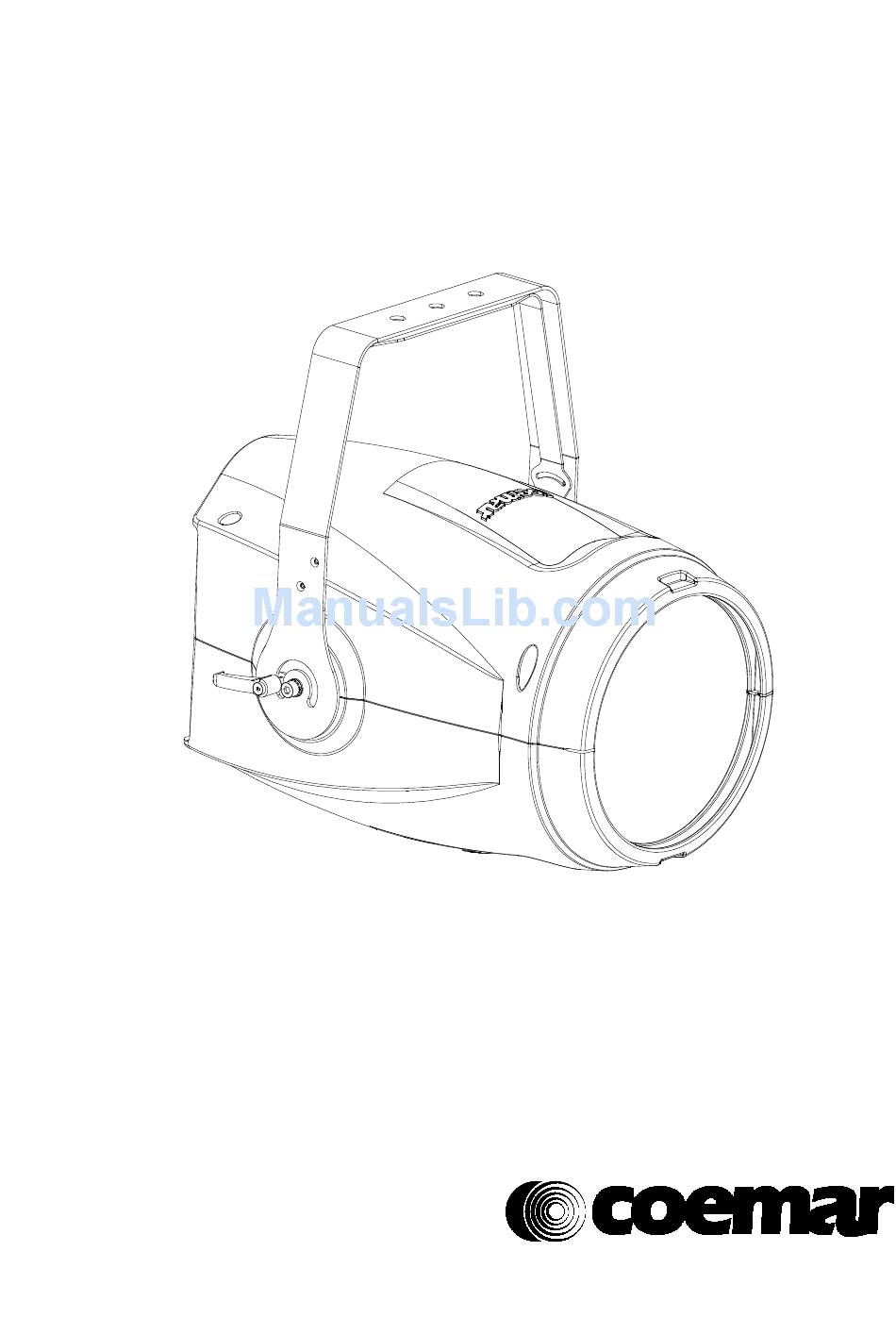

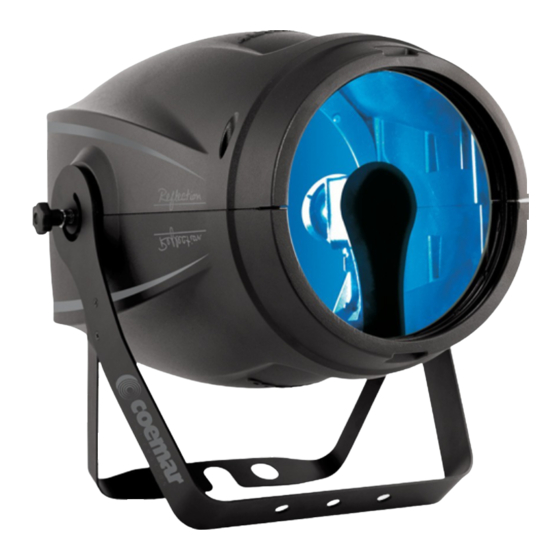

  • Page 1 Reflection FullSpectrum instruction manual manuale di istruzioni Version 1.0 DIS132...
  • Page 2 Reflection FullSpectrum Serial number/numero di serie Date of purchase/data di acquisto Retailer/fornitore Address/indirizzo Suburb/cap/città Capital city/provincial State/stato Tel./fax Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Reflection: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 3: Table Of Contents

    English Index 1.Packaging and transportation ............................... 5 1.1 Packaging ....................................5 1.2 Trasportation ..................................... 5 2. General information ..................................5 2.1 Important safety information..............................5 2.2 Warranty conditions.................................. 5 2.3 EC norms....................................5 3. Product specifications .................................. 6 3.1 Technical characteristics ................................

  • Page 4: Packaging And Transportation

    English Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in the componentry and in the technology used. We renew our invitation to you to complete the service information form on the previous page.

  • Page 5: Product Specifications

    English 3. Product specifications 3.1 Technical characteristics Power 90-250 Vac 50/60Hz Autosensing Maximum current 0,88 A @230 Vac, - 2,14 A @115Vac Cos ϕ = 0,94 Power factor Power 194 W Maximum room temperature 35°C/95°F Weight 12,5 Kg./27.5 lbs Grado di protezione IP20 The innovative core of Reflection consists of a reflection system with a source made of powerful leds in it which casts a compact beam in infinite colors combination without any defect that any other classic multi lens led projector gives.

  • Page 6: Unit's Main Components

    English 3.3 Unit’s main components Components description 1- Yoke 6- Light source 2- Upper casing 7- Polycarbonate screen 3- Rear header and electronic sector 8- Yoke lock handle 4- Cooling sector 9- Lower casing 5- Mirror 4. Installation 4.1 Mechanical installation Reflection may be floor mounted or hung from an appropriate structure in any position.

  • Page 7: Safety Chain

    When hanging Reflection we recommend the use of a safety chain affine to the body and to the suspension device. The safety chain should be either a metal rope or a metal chain, both suitably for the purpose. In the case that the chain used is not producted by Coemar, ensure that it can bear the weight of the whole unit.

  • Page 8: Adjusting Unit's Tilt

    Note: in case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3 X 1,5 ø external 10 mm, rated 300/500V, tested to 2 KV, operating temperature -40°C + 180°C, Coemar cod. CV5311). Connection to mains power Reflection is equipped with two power connectors, one as input and one as output, which can be used to connect more fixtures in series (no more than 16 units @ 230V or 8 units @ 115V.).

  • Page 9: Control Signal Connections

    English In the following figure you can see an example of series connection: WARNING! • The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. •Reflection should not be powered through a dimmer as this may damage the internal switching power supply. •...

  • Page 10: Turning On The Projector

    English WARNING ! Make sure that screening and conductors are not in contact one another or with the metal housing of the connector. Pin#1 and housing never must be connected to the power supply unit. 7. Turning on the projector After having followed the preceding steps described, proceed with the power supply and turn on the projector connecting it to the mains power.

  • Page 11: Dmx Functions

    English 7.2 DMX functions To set the configuration access the menu MAIN FUNCTIONS/DMX CHANNELS 12 channels configuration...
  • Page 12 English...
  • Page 13 English 8 channels configuration...

  • Page 14: Display Panel Functions

    Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller; therefore carefully read about the functions described here before carrying out any possible selection..

  • Page 15: Main Function Menu (Main Functions)

    English 8.3 Main function menu (Main functions) The projector gives the opportunity to change and customize some functional settings. MAIN FUNCTIONS -TUNGSTEN Dimmer behaviour, it simulates dimmer effect with tungsten -XENON lamp or Xenon lamp. DIMMER SETTING It allows to choose primary colors and emulate classic CMY filter system in a large range of tones without dmx signal.
  • Page 16 English REFLECTION REFLECTION REFLECTION A001 *Visualization examples A001 A001 WHITE 8000 K SCARLET RED LIGHT GREEN -RED TONE SCARLET RED 24 RED SALMON 40 DEEP SALMON 42 LIGHT RED 26 -GREEN TONE PRIMARY GREEN TURQUOISE 92 BLUE GREEN 93 LIGHT GREEN 88 -BLUE TONE PRIMARY BLUE 80 MEDIUM BLUE 83...

  • Page 17: Tests And Measures (Measures)

    English 8.4 Tests and measures (Measures) The internal microprocessor of Reflection allows for several diagnostic and output paramenter to be displayed. MEASURES It shows temperature measured by the sensors in the unit: TEMPERATURE Tboard, Tled, Tdriver, Tsens. It shows the values in Volt of the mains power, the fans and pump: Valim, VOLTAGE Vrad, Vfan, Vpump.

  • Page 18: Display Settings (Display Setup)

    English 8.5 Display settings (Display Setup) The fixture allows to set the display visualization preferences . DISPLAY SETUP It allows to turn 180° the reading of the display if the unit is hanged -Standard DISPLAY REVERSE upside down. -Reverse It allows visualization in negative or in positive of the display graphics. BACKGROUND -Standard -Reverse...

  • Page 19: Connecting Dr1 And Dr1 Plus

    8.8 Electronic alignment of the leds. The display panel of Reflection allows the electronic alignment of the leds, this procedure is performed by Coemar at the time of testing, this procedure may be useful for special effects or in case of replacement of internal components (PCBs, leds, etc..).
  • Page 20 English See the folowing diagram to enter in the function’s details.. WARNING! This function is available only with DMX signal connected and SPECIAL MODE by perform the reset while keep pressed ENTER and MENU buttons together for about 10 seconds. LED and MOTOR Red leds alignment at minimum intensity.

  • Page 21: Error Messages

    If a malfunction occurs, Reflection has a self-diagnostic system that will show the error message on the display. The following table will explain in detail the most common errors. If, despite of suggested intervention, the problem persists, call the Coemar Service center near you.

  • Page 22: How To Fix The Optional Accessories Holder

    English 10.1 How to fix the optional accessories holder 1 Open the upper casing of the unit by unscrewing the 4 screws, temporary remove the two side plates “A”. 2 Insert the gel frame holder in site as explained in the picture and fix again the two plates “A” . 3 Close the unit by repeating to the contrary the step 1 of this procedure.

  • Page 23: Fuses

    Reflection has an automatic fuse that in most cases does not need to be replaced. 12. F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by qualified personnel or just contact your Coemar service near you. Question Possible cause...
  • Page 26 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
