- Page 1 Stage Lite Led sc instruction manual manuale di istruzioni Version 1.0 DIS131...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Stage Lite Led sc: this information will assist us in providing spare parts, repairs or in answering any tecnica enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
English Index 1.Packaging and transportation ........................ 6 1.1 Packaging ............................6 1.2 Transportation ............................. 6 2. General information ..........................6 2.1 Important safety information........................ 6 2.2 Warranty conditions ..........................6 2.3 EC norms............................6 3. Product specifications ........................... 7 3.1 Technical characteristics ........................ -
Page 4: Packaging And Transportation
2. For the connection to the mains, adhere strictly to the guidelines outlined in this manual. 3. The level of technology of Stage Lite Led sc requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. -
Page 5: Product Specifications

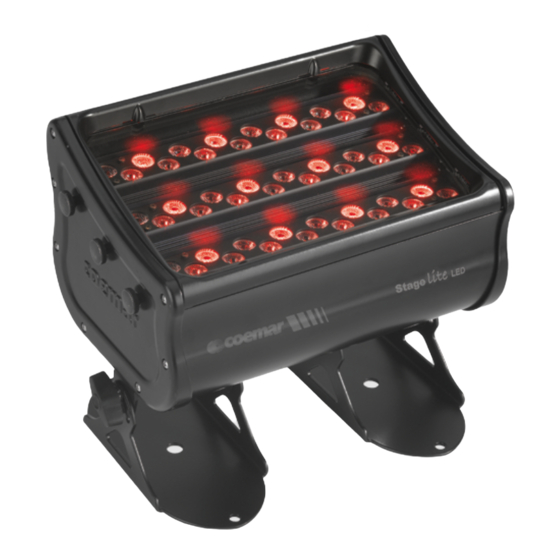

IP20 (standard version) – IP65 (IP version) The technological heart of Stage Lite Led sc is made of 48 powerful leds projecting infinite combinations of colors, mounted on three parallel, 180° manually orientating bars. In the following pages, for convention, these bars are called lines and are enumerated from the bottom line 1, line 2 and line 3. -
Page 6: Unit's Main Components
English Floor installation version. 3.3 Unit’s main components Components description 1- Top frame 7- Adjusting knobs 2- Polycarbonate screen 8- Unit housing 3- Internal led lines group 9- Left header 4- Right header 10- DMX IP20 panel 5- Led controller PCB 11- Display panel 6- Power supply unit 12- Gasket... -
Page 7: Installation
4.2 Safety chain When hanging Stage Lite Led sc we recommend the use of a safety chain affine to the body and to the suspension device. The safety chain should be either a metal rope or a metal chain, both suitably for the purpose. -
Page 8: Adjusting Unit Tilt
4.3 Adjusting unit tilt Stage Lite Led sc tilt, when floor mounted can be adjusted in a range of 120° as preferred. In order to adjust the tilt untight the “E” handles sited on the sides of the supports, adjust the tilt angle as preferred then tight again the handles. Move the knobs in order to orient the beams at the desired angle. -
Page 9: Powering Up
Connection to mains power Stage Lite Led sc is equipped with two power connectors, one as input and one as output, which can be used to connect more fixtures in series.The maximum current absorbed from Stage Lite Led sc is indicated in the chart below: -230/240V 0,5A amps constant current in normal operation. -
Page 10: Control Signal Connections
•The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. •Stage Lite Led sc should not be powered through a dimmer as this may damage the internal switching power supply. •Prior to connecting the device to mains power, ensure that the mains characteristics are within the recommended range for use with the Stage Lite Led sc. -
Page 11: Turning On The Projector
1 to 8 from your DMX 512 controller. A second unit must be addressed as A016, a third as A024 and so on. The operation must be carried out on every Stage Lite Led sc which has an address different from A001. -
Page 12: Dmx Functions
English 7.2 DMX functions... -
Page 13: Display Panel Functions
English 8. Display panel functions By suitably using all the functions of Stage Lite Led sc, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;... -
Page 14: Test And Measures (Meas)
English 8.4 Test and measures (MEAS) The internal microprocessor of Stage Lite Led sc allows for several diagnostic and output paramenter to be displayed. Reading of internal Eg: Numeric value in °C temperature. Reading of DMX value (0/255) received by each channel of Eg: DMX value DMX512 chain. -
Page 15: Connecting Dr1 And Dr1 Plus
8.7 Electronic led alignment. The display of Stage Lite Led sc enables the alignment of the leds; this procedure has been done by Coemar before leaving the factory. It may be needed to modify these settings in case of internal parts replacement. (PCBs , leds, etc..). -
Page 16: Error Messages
Nota: Simultaneously pressing + and – buttons will return the calibration value to 128 (default). UPLD Function (Upload) this function allows to upgrade the firmware of Stage Lite Led sc only by DR1 or DR1 Plus and a Personal Computer. Read DR1 or DR1 Plus manual for further information. -
Page 17: Spare Parts
10.Spare parts All the components of Stage Lite Led sc are available as spare parts from your Coemar dealer or Service. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner. -
Page 18: Faq And Answers
