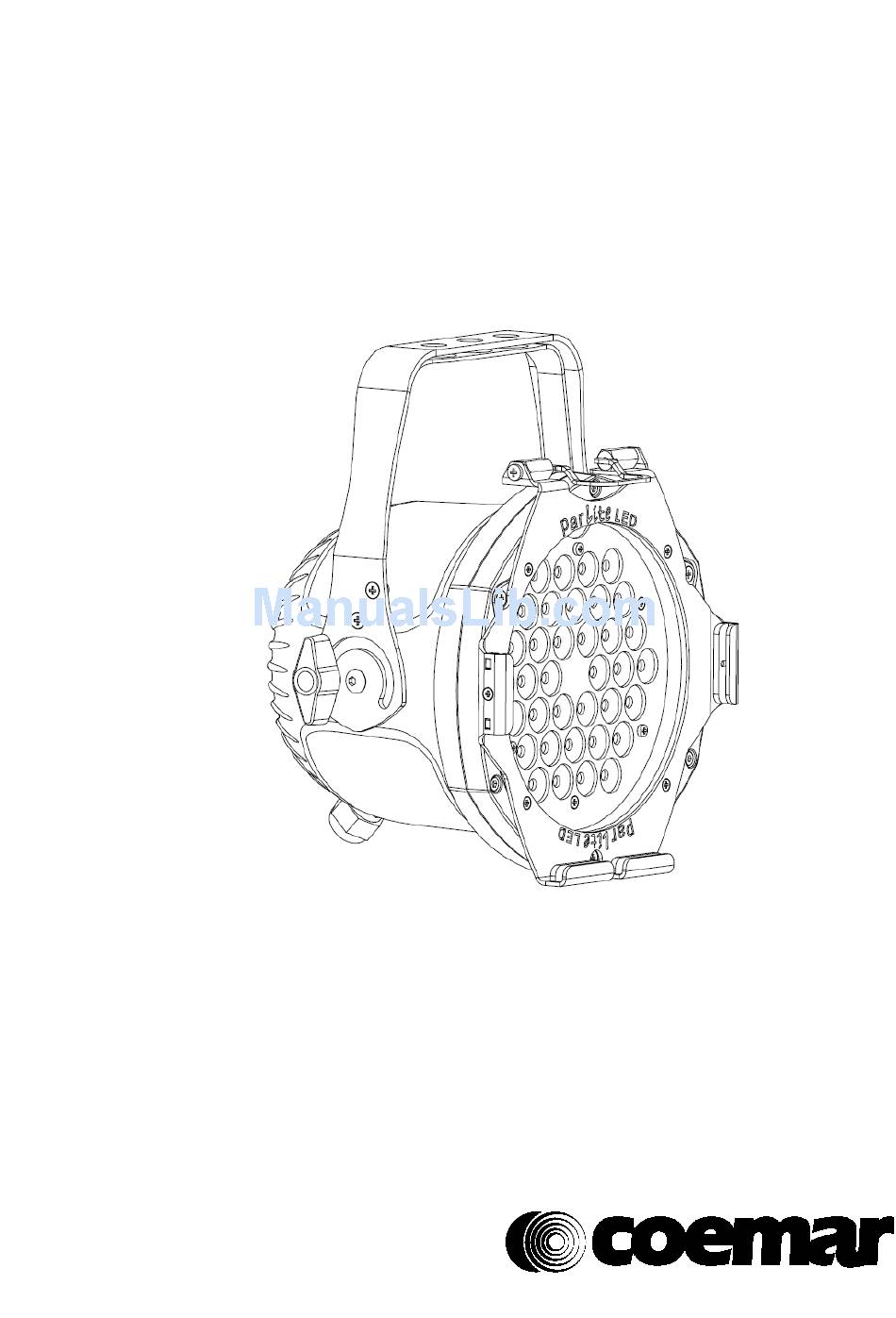

- Page 1 Par Lite Led VariWhite instruction manual manuale di istruzioni Version 1.0 DIS139...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Par Lite Led VariWhite: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
English Index 1. PACKAGING AND TRANSPORTATION ................................6 1.1 PACKAGING ........................................6 1.2 TRASPORTATION ....................................... 6 2. GENERAL INFORMATION ....................................6 2.1 IMPORTANT SAFETY INFORMATION ................................6 2.2 WARRANTY CONDITIONS ....................................6 2.3 EC NORMS .......................................... 6 3. PRODUCT SPECIFICATIONS ....................................7 3.1 TECHNICAL CHARACTERISTICS .................................. -
Page 4: Packaging And Transportation
2. For the connection to the mains, adhere strictly to the guidelines outlined in this manual. 3. The level of technology of Par Lite Led VariWhite requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. -
Page 5: Product Specifications
35°C / 95°F Weight: 3.6 Kg / 7.9 Lbs 3.2 Dimensions 3.3 Units main components The main components of Par Lite Led VariWhite are shown in the diagram below: Components description: 1. Rear panel 2. Projector body 3. Dip-switch panel 4. -
Page 6: Installation
English 4. Installazion 4.1 Mechanical installation Par Lite Led VariWhite may be floor mounted or hung from an appropriate structure in any position. Permanent installation Use the three holes “A” on the yoke of the fixture for robust, permanent installation. -
Page 7: Safety Chain
4.2 Safety chain When hanging Par Lite Led VariWhite we recommend the use of a safety chain affine to the body and to the suspension device. The safety chain should be either a metal rope or a metal chain, both suitably for the purpose. -
Page 8: Opening And Closing Up The Projector
4.5 Adjusting the beam angle Several optional optical groups are available for Par Lite Led VariWhite. They are used to vary the beam dimension and make it suitable for different lighting applications and specifically: a group of lenses for a large projection angle, a flood reflector and several filters that can be fitted either internally or externally to the unit. - Page 9 To vary the wideness of the beam without opening the unit it’s possible to install an external filter holder “S” (cod. CO9169/1) as shown in the following image. The following table details the range of beam angles and diffusion filters available for Par Lite Led VariWhite. Optical group...
-
Page 10: Powering Up
• The use of a thermal/magnetic circuit breaker for each fixture is recommended. Strict adherence to regulatory norms is strongly recommended. • Par Lite Led VariWhite VariWhite never must be powered through a dimmer as this may damage the internal switching power supply. -
Page 11: Dmx Signal Functions
English 6. DMX signal functions 6.1 Connecting DMX signal Control signal is digital and is transmitted via two pair screened cables, as required by international standards for the transmission of DMX512. Connection is in serial mode and it will be performed using the XLR3 sockets located on the rear panel of the unit.. Signal connection via the XLR3 connectors The connection meets international standards;... -
Page 12: Dmx Addressing
6.3 DMX Addressing Each Par Lite Led VariWhite uses 4 DMX channels for its control. The address can be set by dip-switch panel 1-256 simply by adding the values of each dip switch set as ON; for example: to set the unit to DMX address at 9 you should set to ON dip-switches marked 8 and 1 while to set the unit to DMX address at 12 you should put 4 and 8 switches to on. -
Page 13: Dip-Switch Functions Chart
DR1+ device ( cod. CO9709) allows to use and benefit of all capabilities of the unit from remote; by DR1+ it is possible to consult all the internal menu of Par Lite Led VariWhite, to sed DMX address, to change settings, read the diagnostics and upgrade the firmware. -
Page 14: Functional Settings ( Func )
English 8.1 Functional settings ( FUNC ) FUNC It restores all settings at default values, in exception of aligning, DFSE SURE address and life hour of the unit. 0 - 255 +10% It allows to vary the color temperature shade from 2700°K to 3500°K without DMX signal. -
Page 15: Disgnostics Functions (Meas)
English 8.2 Disgnostics functions (MEAS) MEAS Reading of the internal LED temperature of the leds in °C. TEMP Reading of the DMX value received by each channel used by D.MIN the unit in the DMX chain. Reading of the typical value of the DMX signal called “RATE” ( signal refresh frequency in milliseconds). -
Page 16: Special Functions
Turn the projector off and on again and if the error persists it means that the EEProm is either defective or absent; refer to your Coemar service center for the check or replacement of the component. DMX ADDRESS error ADER Teh projector is not receiving all the DMX channels necessary for its operation. -
Page 17: Diagnostics And Maintenance
9.5 Spare parts All components of the projector are available as spare parts at Coemar Service Centers. Please describe in detail the model of the projector you own, don’t forget to give the serial number and with the help of the exploded view, identify the right spare part. - Page 18 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
