Agora Models LAMBORGHINI MIURA Pack 01 Build Instructions

page of 494

/ 494
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Pack 01

B U I L D

I N S T R U C T I O N S

STAGE 1: LEFT DOOR LOCK & HANDLE

STAGE 4: INSTRUMENT DIALS

AND CONTROL LEVERS

STAGE 2: ASSEMBLING THE

WINDOW GLASS AND TYRE

STAGE 5: AT TACHING THE

LEFT DOOR PANEL

STAGE 3: BUILDING THE DASHBOARD

STAGE 6: FIT TING THE LEFT

DOOR CLADDING

The "Automobili Lamborghini" and "Automobili Lamborghini Bull and Shield" trademarks, copyrights,

designs and models are used under license from Automobile Lamborghini S.p.A, Italy.

Chapters

Table of Contents

Need help?

Do you have a question about the LAMBORGHINI MIURA Pack 01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Agora Models LAMBORGHINI MIURA Pack 01

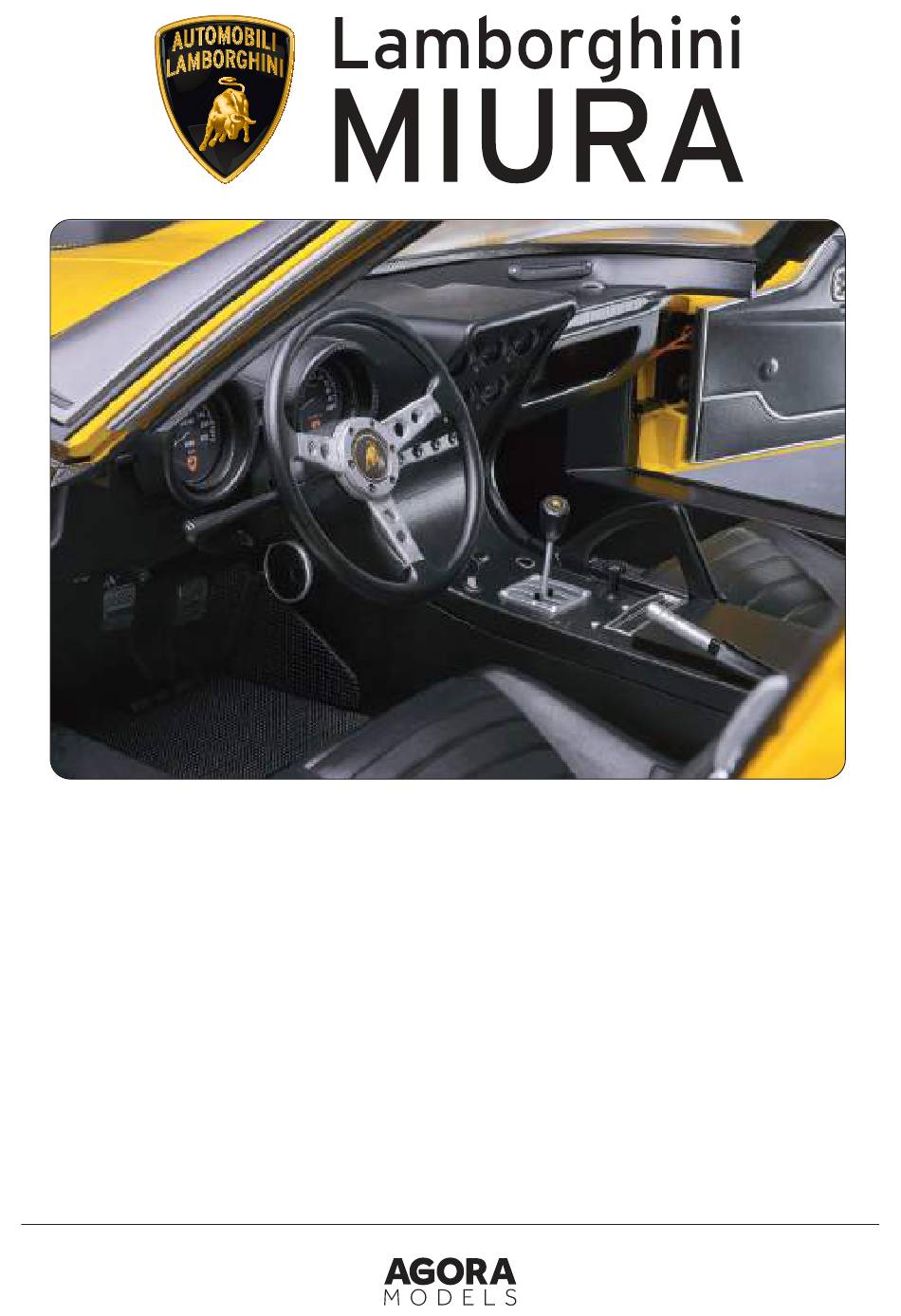

Page 1 Pack 01 B U I L D I N S T R U C T I O N S STAGE 1: LEFT DOOR LOCK & HANDLE STAGE 4: INSTRUMENT DIALS AND CONTROL LEVERS STAGE 2: ASSEMBLING THE WINDOW GLASS AND TYRE STAGE 5: AT TACHING THE LEFT DOOR PANEL STAGE 3: BUILDING THE DASHBOARD...
Page 2 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 3 Stage 01: Left Door Lock and Handle In the first stage for this Pack you’ll begin work on the left-hand side door by installing the door handle and lock. The steering wheel parts and logo transfer sheet will be used in a later stage, store these away safely for the moment.
Page 4 Stage 01: Left Door Lock and Handle Take the left door part. Note the three holes under the black fins of the Take the door lock and align it with the two small holes on the engine’s side air intake (circled). The door lock and door handle will be left door as shown.
Page 5 Stage 01: Left Door Lock and Handle This photo shows the edge of the door with the small notch into which Carefully slide the door handle into place. the second pin fits (right arrow) and a surface groove that guides the fitting of the handle (left arrow).
Page 6 Stage 01: Left Door Lock and Handle S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 7 Stage 02: Assembling the Window Glass and Tyre In this next stage, you’ll assemble the first wheel of the Lamborghini Miura and install the window on the left-hand door from the first stage. S T A G E 0 2 P A R T S L I S T Name Left window glass Wheel rim...
Page 8 Stage 02: Assembling the Window Glass and Tyre Align the Pirelli tyre and the wheel rim as shown. Holding the tyre in one hand and the rim in the other, squeeze the rim into the tyre. Once the rim is fitted inside, make sure the side walls of the tyre fit The internal side of the wheel should look like this.
Page 9 Stage 02: Assembling the Window Glass and Tyre Now take the left window glass and the chromed glass frame and Place the chromed frame onto the glass, pressing lightly until the align them as shown. The holes in the chromed frame fit over the lugs parts click together.
Page 10 Stage 02: Assembling the Window Glass and Tyre TYPE A Secure the parts together using 2x Type A screws supplied. The outside of the door should look like this once complete. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 11 Stage 03: Building the Dashboard In this third stage you’ll begin assembling the dashboard by fitting the air vents, speedometer and tachometer. S T A G E 0 3 P A R T S L I S T Name Dashboard top Seat Dashboard bottom Speedometer and tachometer...
Page 12 Stage 03: Building the Dashboard TYPE B Take the top and bottom parts of the dashboard and align them as Drive 1x Type B screw into the centre hole (circled). shown. Fit the dashboard bottom onto the dashboard top so that the screw holes line up (arrows).
Page 13 Stage 03: Building the Dashboard Turn the dashboard back around and locate the housing for the Now take the speedometer and tachometer body. To fit this into the speedometer and tachometer. Rest the speedometer and tachometer dashboard, insert the two pins on the rear of the body into the holes in its housing as shown, with the speedometer on the left and the on the dashboard (red arrows).
Page 14 Stage 03: Building the Dashboard Next take the two air vents and carefully press them into two recesses with pairs of holes on the top of the dashboard (arrows). Note: if the vent is proving difficult to fit, try cleaning a little paint from the holes with a cocktail stick. To insert the glass into the speedometer and tachometer, first remove Repeat the previous step to install the glass on the tachometer.
Page 15 Stage 03: Building the Dashboard S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 16 Stage 04: Instrument Dials and Control Levers In this next stage you’ll continue to build the dashboard, fitting the instrument dials and central console, along with the three control levers. S T A G E 0 4 P A R T S L I S T Name Central console Central instrument panel...
Page 17 Stage 04: Instrument Dials and Control Levers Take the central instrument panel and the six instrument glass pieces. The instrument glass pieces are protected by transparent layers of film. Before inserting the glass, remove the protective film using a pair of tweezers or a cocktail stick.
Page 18 Stage 04: Instrument Dials and Control Levers Insert the bulb end of the instrument panel LED into the notch on the Take the central console. Feed the loose end of the LED cable through back of the panel assembly. If necessary, you can open the hole out the opening in the central console as shown.
Page 19 Stage 04: Instrument Dials and Control Levers Next fit the three control levers into the dashboard. Using the photo Move to the central part of the dashboard and identify the holes for as a guide, carefully push the pieces into their respective slots located mounting the central console (circled).
Page 20 Stage 04: Instrument Dials and Control Levers S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 21 Stage 05: Attaching the Left Door Panel Returning to the left door, you’ll attach the interior panel and mount the switch to operate the lights on your model. S T A G E 0 5 P A R T S L I S T Name Left door panel Light switch...
Page 22 Stage 05: Attaching the Left Door Panel Take the left door assembled in stage 1 and lay it on your work surface Place the left door hinge into position as shown, so that the bar of the as shown. hinge sits in the housing on the door (arrow). TYPE C Now take the hinge bracket and fit it into the flat housing on the door Insert the cylindrical end of the light switch button into the hole in...
Page 23 Stage 05: Attaching the Left Door Panel TYPE A Use 1x Type A screw to secure the light switch button in place. Place the light switch housing into the square seat in the door, so that the small side opening in the housing faces the switch button (arrow). TYPE D Secure the light switch housing in place using 1x Type D screw.
Page 24 Stage 05: Attaching the Left Door Panel Feed the other end of the light switch through the opening in the Place the left door panel over the door, aligning the screw holes in the door hinge as shown. panel with the raised screw holes on the door (circled). TYPE A Fix the panel to the door using 4x Type A screws.
Page 25 Stage 05: Attaching the Left Door Panel S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 26 Stage 06: Fitting the Left Door Cladding In the final stage for this Pack, you’ll complete assembly of the left door by attaching the interior handle and safety lock, along with the cladding panels and armrest. S T A G E 0 6 P A R T S L I S T Name Left door armrest Cladding panel...
Page 27 Stage 06: Fitting the Left Door Cladding Place the cladding panel on your work surface. Prepare the door handle and safety lock which will be fitted in the positions shown (arrows). Push the safety lock lightly into the corresponding slot in the cladding Next push the door handle into its corresponding slot in the panel.
Page 28 Stage 06: Fitting the Left Door Cladding The cladding panel should look like this with the door handle and safety lock in place. Note the holes in the panel for the armrest (circled). TYPE B Fit the left door armrest into position as shown, pressing the pins on Turn the panel over and fix the armrest in place using 1x Type B screw.
Page 29 Stage 06: Fitting the Left Door Cladding Using tweezers, remove the protective film from the internal part of Take the door assembly from the previous stage and place it on your the panel to reveal the adhesive. work surface with the interior facing upwards. Align the cladding panel with the silver trim on the door before sticking it in place.
Page 30 Stage 06: Fitting the Left Door Cladding S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 31 Pack 02 B U I L D I N S T R U C T I O N S STAGE 07: BUILDING THE STAGE 11: LEFT CARBURETTOR (1) LEFT CYLINDER HEAD STAGE 12: LEFT CARBURETTOR (2) STAGE 08: INSTALLING COVER BOLTS STAGE 13: ATTACHING THE STAGE 09: BUILDING THE RIGHT CYLINDER SPARK PLUG CABLES...
Page 32 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 33 Advice from the experts The Lamborghini Miura features a transverse mid-mounted V12 engine, with the crankshaft axis perpendicular to the direction of travel. Some of the engine parts will be referred to as left and right in the build instructions, though the engine will be mounted transversely. The photo below shows the assembled parts which are labelled so that you can refer to it during your build.
Page 34 Stage 07: Building the Left Cylinder Head In this first stage for Pack 02, you’ll assemble the left cylinder head and install the covers onto it. The Lamborghini shield emblem supplied will not be used in this pack, so can be stored away safely. S T A G E 0 7 P A R T S L I S T Name Cylinder head (left)
Page 35 Stage 07: Building the Left Cylinder Head Carefully cut sixteen cover bolts from their sprue at the point shown in There are four spare bolts, which can be left on the sprue unless they the photo. are needed. Take the two cam shaft covers and lay them on your work surface as Using pliers or tweezers, carefully grasp a bolt and fit into one of the shown.
Page 36 Stage 07: Building the Left Cylinder Head Continue to press bolts into the other holes of the cover. Repeat for the remaining bolts in the other cam shaft cover until all sixteen have been fitted. AGORAMODELS LAMBORGHINI MIURA...
Page 37 Stage 07: Building the Left Cylinder Head Next take the cylinder head and align the cam shaft cover (right) with Firmly press the cam shaft cover into place, checking the fit is flush the slots for mounting as shown (arrows). around the edges.
Page 38 Stage 07: Building the Left Cylinder Head The left cylinder head should look like this with both covers and all of the bolts installed. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 39 Stage 08: Installing Cover Bolts Next you will install sixteen cover bolts into the next set of covers ready for the right cylinder head. S T A G E 0 8 P A R T S L I S T Name Cover bolt x20 Cam shaft cover (left)
Page 40 Stage 08: Installing Cover Bolts Carefully cut sixteen cover bolts from their sprue at the point shown in There are four spare bolts, which can be left on the sprue unless they the photo. are needed. Locate the sixteen holes on the cam shaft covers (circled). Using pliers or tweezers, carefully grasp a bolt by the ring around it and fit into one of the holes as shown.
Page 41 Stage 08: Installing Cover Bolts Continue to fit bolts to install all sixteen into the cam shaft covers. Use a small amount of super glue if necessary to keep the bolts in place. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 42 Stage 09: Building the Right Cylinder Head and Attaching Side Covers For this stage you’ll fit the covers onto the right cylinder head, then attach side covers to both of the cylinder heads. You’ll need the left cylinder head assembled in the first stage of this pack, as well as the cam shaft covers from the previous stage.
Page 43 Stage 09: Building the Right Cylinder Head and Attaching Side Covers Take the cylinder head (right) and one of the side covers. On the back Carefully press the pins of side cover into the two holes located on the of the cover, note the two mounting pins (inset). cylinder head (circled) so that the front of the cover faces outwards (inset).
Page 44 Stage 09: Building the Right Cylinder Head and Attaching Side Covers Take the right cam shaft cover from Stage 8 and align with the other Press the cover into place. The assembly should now look like this. side of the cylinder head. Take the left cylinder head assembly from Stage 6 and the remaining Fit the cover into the cylinder head as you did for step 2, pressing the side cover.
Page 45 Stage 09: Building the Right Cylinder Head and Attaching Side Covers Left cylinder head Right cylinder head assembly assembly The two cylinder heads should now look like this. By placing them as shown with the side covers (arrows) furthest away from each other, you can identify the right and left cylinder head for the next stage. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 46 Stage 10: Assembling the Right Air Filter Box and Fitting the Distributors In this stage you’ll assemble an air filter box and fit distributors onto the two cylinder heads. S T A G E 1 0 P A R T S L I S T Name Distributor (left) Distributor (right)
Page 47 Stage 10: Assembling the Right Air Filter Box and Fitting the Distributors Left Right The two distributors are marked with an ‘R’ and an ‘L’ to differentiate Take the two cylinder head assemblies from Stage 9 and pair them the right from the left (circled). Note the notch (arrows) on each part with the distributors.
Page 48 Stage 10: Assembling the Right Air Filter Box and Fitting the Distributors The two cylinder head assemblies should now look like this with the Align the air filter box cover with the air filter box as shown. Note the distributors attached. pins and their corresponding holes (arrows).
Page 49 Stage 10: Assembling the Right Air Filter Box and Fitting the Distributors The air filter screws should be flush with the filter box cover once they are in place. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 50 Stage 11: Left Carburettor (1) Next you’ll build the first of four carburettors for this pack. Take care when fitting the inlet manifolds as their orientation changes depending on which cylinder head the carburettor will be fitted onto. S T A G E 1 1 P A R T S L I S T Name Carburettor Velocity stack x3...
Page 51 Stage 11: Left Carburettor (1) Locate the two smaller holes on the carburettor (arrows), found Insert the two support pins into the two smaller holes of the between the three larger holes. carburettor as shown. Take the three inlet manifolds. One of them has only one recess Press the manifolds with two recesses into place on the carburettor (middle photo).
Page 52 Stage 11: Left Carburettor (1) Now install the manifold with one recess by fitting it onto the middle Take the three shim plates. Note the D-shaped hole (inset) that as shown. The recess houses the protruding golden pin (inset). corresponds with the D-shaped pins at the end of the manifolds. Next push one of the velocity stacks into a larger hole in the Fit the three shims onto the ends of the manifolds so that the nuts carburettor.
Page 53 Stage 11: Left Carburettor (1) Push the other two stacks into the remaining large holes. The carburettor should look like this with all parts in place. Note the curvature of the inlet manifolds. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 54 Stage 12: Left Carburettor (2) In this stage you’ll assemble the second carburettor, in the same manner as you did before. The inlet manifolds for this stage are mounted in the same direction as the previous ones. S T A G E 1 2 P A R T S L I S T Name Inlet manifold x3 Carburettor...
Page 55 Stage 12: Left Carburettor (2) Locate the two smaller holes on the carburettor (arrows), found Insert the two support pins into the two smaller holes of the between the three larger holes. carburettor as shown. Take the three inlet manifolds. One of them has only one recess Press the manifolds with two recesses into place on the carburettor (middle photo).
Page 56 Stage 12: Left Carburettor (2) Now install the manifold with one recess by fitting it onto the middle Take the three shim plates. Note the D-shaped hole (inset) that as shown. The recess houses the protruding golden pin (inset). corresponds with the D-shaped pins at the end of the manifolds. Fit the three shims onto the ends of the manifolds so that the nuts Next push the three velocity stacks into the larger holes in the (circled) face towards the carburettor as shown.
Page 57 Stage 12: Left Carburettor (2) S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 58 Stage 13: Attaching the Spark Plug Cables This stage returns to the cylinder heads, where you’ll fit caps onto the distributors and then connect the spark plugs up with their cables. You can fit the spark plug cables to both cylinder heads at the same time if preferred.
Page 59 Stage 13: Attaching the Spark Plug Cables Take the left cylinder head assembly from Stage 10 and one of the Press the two pins on the rear of the distributor cap into the holes of distributor caps supplied with this stage. the distributor.
Page 60 Stage 13: Attaching the Spark Plug Cables Fit one of the C cables into the next connector and spark plug in Then take one of the D cables and fit onto the indicated connector sequence (arrows). and spark plug (arrows). Align one of the distributor cap attachments with the cap as shown.
Page 61 Stage 13: Attaching the Spark Plug Cables Take one of the E cables and fit it to the topmost connector on the Finally, take one of the F cables and attach it to the remaining attachment (arrow) and the furthest spark plug (circled). connector and spark plug (arrows).
Page 62 Stage 13: Attaching the Spark Plug Cables S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 63 Stage 14: Right Carburettor (1) You’ll now build the third carburettor, with the inlet manifolds mounted in the opposite direction to the previous ones, before installing it onto the right cylinder head at the end of this stage. S T A G E 1 4 P A R T S L I S T Name Shim plate x3 Support pin x2...
Page 64 Stage 14: Right Carburettor (1) Take the support pins and locate the two smaller holes on the Fully insert the support pins into the two smaller holes of the carburettor (arrows). carburettor as shown. Take the three inlet manifolds. One of them has only one recess Press the manifolds with two recesses into place, so that the golden pins of the carburettor (circled) sit in the recesses.
Page 65 Stage 14: Right Carburettor (1) Now install the manifold with one recess by fitting it onto the middle Take the three shim plates. Note the D-shaped hole (inset) that as shown. The recess houses the protruding golden pin (circled). corresponds with the D-shaped pins at the end of the manifolds. Fit the three shims onto the ends of the manifolds so that the nuts Next push the velocity stacks into the larger holes in the carburettor, (circled) face towards the carburettor as shown.
Page 66 Stage 14: Right Carburettor (1) Now take the right cylinder head assembly from the previous stage Carefully fit the carburettor into the cylinder head ensuring that the and align it with the cylinder head as shown so that the three pins pins are pressed into the holes simultaneously.
Page 67 Stage 15: Right Carburettor (2) In the final stage for this pack, you’ll assemble the fourth carburettor and install it next to the previous one on the right cylinder head. S T A G E 1 5 P A R T S L I S T Name Support pin x2 Carburettor...
Page 68 Stage 15: Right Carburettor (2) Take the support pins and locate the two smaller holes on the Fully insert the support pins into the two smaller holes of the carburettor (arrows), found between the three larger holes. carburettor as shown. Take the three inlet manifolds.
Page 69 Stage 15: Right Carburettor (2) Now install the manifold with one recess by fitting it onto the middle Take the three shim plates. Note the D-shaped hole (inset) that as shown. The recess houses the protruding golden pin (circled). corresponds with the D-shaped pins at the end of the manifolds. Next push the velocity stacks into the larger holes in the carburettor, Fit the three shims onto the ends of the manifolds so that the nuts as you did before.
Page 70 Stage 15: Right Carburettor (2) Take the right cylinder head from the previous stage. The carburettor Fit the carburettor in place ensuring that the pins are pressed into the will be fitted into the three holes between the spark plugs (arrows). holes simultaneously and that it aligns with the other carburettor.
Page 71 Stage 15: Right Carburettor (2) S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 72 Pack 03 B U I L D I N S T R U C T I O N S STAGE 16: ASSEMBLING THE LEFT AIR FILTER STAGE 20: ATTACHING THE ALTERNATOR BOX AND FIT TING PETROL PIPES STAGE 21: INSTALLING THE CLUTCH STAGE 17: CONSTRUCTING THE ENGINE STAGE 22: FITTING ESSENTIAL ENGINE PARTS STAGE 18: ATTACHING THE TRANSMISSION...
Page 73 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 74 Stage 16: Assembling the Left Air Filter Box and Fitting Petrol Pipes In this stage you’ll assemble the left air filter box, then it’s time to fit the carburettors from the last pack with petrol pipes. S T A G E 1 6 P A R T S L I S T Name Air filter box Air filter box cover...
Page 75 Stage 16: Assembling the Left Air Filter Box and Fitting Petrol Pipes First take the air filter box cover and the three air filter box screws. Turn the box cover over, then align the air filter box with it as shown. Carefully push the screws into the holes in the cover (arrows).
Page 76 Stage 16: Assembling the Left Air Filter Box and Fitting Petrol Pipes Cut the petrol pipe fittings from their sprue using sprue cutters by Fit the petrol pipes onto the ends of the fittings as shown. We snipping at the points indicated by red arrows. recommend using a pair of tweezers to grip and twist the petrol pipe as you push it on.
Page 77 Stage 16: Assembling the Left Air Filter Box and Fitting Petrol Pipes Now take the two carburettors assembled in stages 11 and 12 along The carburettors should look like this once in place. with the left cylinder head from stage 13. Press the pins on the carburettors into the holes between the spark plugs simultaneously, as you did in stage 15 (arrows).
Page 78 Stage 16: Assembling the Left Air Filter Box and Fitting Petrol Pipes S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 79 Stage 17: Constructing the Engine Now the engine starts to take shape! After attaching the cylinder heads to the base, you’ll begin to add detail to the engine, starting with fitting the two air filter boxes over the velocity stacks. S T A G E 1 7 P A R T S L I S T Name Engine block...
Page 80 Stage 17: Constructing the Engine TYPE A First place the engine block on your work surface, then fit the left While holding everything in place, turn the assembly over and secure cylinder head onto the engine base as shown. the cylinder head to the engine block using 2x Type A screws. We recommend removing the carburettors from the cylinder head before driving the screws in to avoid damaging the velocity stacks.
Page 81 Stage 17: Constructing the Engine LEFT RIGHT Now take the two air filter boxes, one from the previous stage and the other from stage 10. Note the difference between the air filter boxes on the left and right air filters (arrows), as well as the ‘L’ and ‘R’ printed on the underside of them to help differentiate the two. Once you’ve identified the air filter boxes, align them with the engine Fit the left air filter box onto the left cylinder head using the support block as shown.
Page 82 Stage 17: Constructing the Engine Push the right air filter box onto the other side. The air filter boxes should look like this when in place. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 83 Stage 18: Attaching the Gearbox Next you’ll build the gearbox and install it on your engine, then cover the lower engine up by adding the crankcase closure. S T A G E 1 8 P A R T S L I S T Name Transmission/differential housing Lower engine crankcase closure...
Page 84 Stage 18: Attaching the Gearbox Take the housing cap and the left differential cover. Note the pins on Fit the cap into the cover so that the D-shaped holes in both parts the cap (circled) and the corresponding holes on the cover (arrows). align as shown.
Page 85 Stage 18: Attaching the Gearbox Now align the right differential cover with the assembly. Press the pins The differential assembly should now look like this. on the back of the right cover into the holes of the left cover (arrows). Take the transmission/differential housing and 2x Type B screws.
Page 86 Stage 18: Attaching the Gearbox TYPE B Secure in place using 2x Type B screws. Align the assembly with the engine block as shown. The two columns fit under the protruding tabs from the engine block (arrows). TYPE B TYPE B Push the assembly into place, then secure with 2x Type B screws.
Page 87 Stage 18: Attaching the Gearbox TYPE A Fit the cover onto the engine base, then drive 2x Type A screws through the holes to secure everything together. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 88 Stage 19: Fixing the Crankcase Cover and Oil Sump The impressive engine continues to take shape as you add the crankcase cover to the side and oil sump cover underneath. S T A G E 1 9 P A R T S L I S T Name Crankcase cover Oil sump...
Page 89 Stage 19: Fixing the Crankcase Cover and Oil Sump TYPE A Take the crankcase cover and two Type A screws. The cover fits over Press the cover onto the engine block as shown, then secure with the protruding screw holes on the engine block (arrows). 2x Type A screws.
Page 90 Stage 19: Fixing the Crankcase Cover and Oil Sump TYPE B Secure the oil sump using 2x Type B screws. Finally take the oil sump cover. Note the four pins on the cover and the corresponding holes (circled). Press the cover firmly onto the oil sump as shown, until the fit is flush all the way round the edges. AGORAMODELS LAMBORGHINI MIURA...
Page 91 Stage 19: Fixing the Crankcase Cover and Oil Sump S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 92 Stage 20: Attaching the Alternator This stage is all about the alternator, which converts mechanical energy into electrical energy to charge the car’s battery. Take care when assembling it as some of the parts can be fragile! S T A G E 2 0 P A R T S L I S T Name Alternator cover Alternator bracket...
Page 93 Stage 20: Attaching the Alternator TYPE A First take the alternator bracket and locate its mounting on the corner Fit the bracket in place and secure with 1x Type A screw. The inset of the engine block (arrow). shows the correct orientation for the bracket. Next fit the alternator cover and base together by pressing the pin into Align the alternator with the bracket on the engine block as shown.
Page 94 Stage 20: Attaching the Alternator Push the large pin in place (circled), then lower the alternator into Take the fan and drive belt. Fit the pin on the drive belt through the the bracket you fitted earlier. Gently spread the bracket’s arms apart fan, then press into place on the alternator (arrows).
Page 95 Stage 20: Attaching the Alternator S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 96 Stage 21: Installing the Clutch Next you’ll add the clutch onto your engine. The control spring in this stage can be difficult to attach, take your time to connect it! S T A G E 2 1 P A R T S L I S T Name Clutch bell Clutch bell cover...
Page 97 Stage 21: Installing the Clutch Align the holes on the clutch bell cover with the pins on the clutch bell Push the cover onto the clutch bell until the fit is flush. as shown (arrows). Place the engine assembly onto your work surface as shown, and Gently press the clutch bell onto the engine so that the cover is locate the pin for attaching the clutch bell (circled).
Page 98 Stage 21: Installing the Clutch Next take the clutch slave cylinder. The two pins on the cylinder (inset, Press the cylinder into the holes, orienting it as shown. arrows) will be inserted into the holes in the engine, next to the clutch bell (circled).
Page 99 Stage 21: Installing the Clutch The clutch spring has two hooks at each end, one faces up and the The clutch release mechanism cover has two protruding tabs (circled) other down. Using tweezers, first connect the end facing downwards which will be inserted into the rectangular holes on the clutch bell to the cylinder (red arrow).
Page 100 Stage 21: Installing the Clutch S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 101 Stage 22: Fitting Essential Engine Parts You’ll install various parts that feed the oil and petrol needed by the engine to operate, as well as the water pump which keeps it from overheating and the starter motor that ignites it. S T A G E 2 2 P A R T S L I S T Name Engine support...
Page 102 Stage 22: Fitting Essential Engine Parts First take the water pump which fits onto the side of the engine where Press the water pump into the engine block as shown. the alternator is located. Note the two holes for mounting the water pump (arrows).
Page 103 Stage 22: Fitting Essential Engine Parts Now turn the engine assembly around as shown. Take the engine oil Push the parts into place (circled). Note the orientation of the engine connector pipe, the engine support and the starter motor. Locate the support in the photo, with its cylinder close to the starter motor (inset).
Page 104 Stage 22: Fitting Essential Engine Parts Take the carburettor petrol pipe and the T-shaped connector. Fit the Then fit the connector onto the end of the longer petrol pipe fitted in pin of the connector into one end of the pipe as shown (arrow). stage 16 (circled).
Page 105 Stage 22: Fitting Essential Engine Parts S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 106 Stage 23: Oil Pump and Breather System Next you’ll install the oil pump and breather, along with the filler cap. The pump feeds fuel from the sump to the engine, while the oil breather system catches oil suspended in the gases and stops pressure building up.
Page 107 Stage 23: Oil Pump and Breather System Take the oil breather separator box along with the engine assembly. The oil breather separator box has a shaped pin that corresponds to Locate the shaped hole on the right cylinder head (circled). the hole on the cylinder head (inset).
Page 108 Stage 23: Oil Pump and Breather System Now take the oil filler cap, noting the shaped pin (inset). This fits Finally, take the oil breather pipe. Note that one end has a flange into the corresponding hole on the left cylinder head, next to the oil (circled), while the other has only a pin (arrow).
Page 109 Stage 23: Oil Pump and Breather System S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 110 Stage 24: The Rear Frame In the final stage for this pack, you’ll begin to prepare the rear frame which will be used for mounting the engine and the rear suspension. S T A G E 2 4 P A R T S L I S T Name Rear frame Front support for lower suspension...
Page 111 Stage 24: The Rear Frame The frame will support the engine, with the widest part facing towards Before attaching the supports to the frame, we recommend the front of the car and the narrowest part towards the rear. Note the driving the spare screw into the two holes indicated in the previous two screw holes indicated by arrows.
Page 112 Stage 24: The Rear Frame TYPE A Fix the supports in place using 2x Type A screws. Check that both supports are firmly affixed to the frame. If there is any wobble, take the screw out and apply oil to help drive the screw in securely. AGORAMODELS LAMBORGHINI MIURA...
Page 113 Stage 24: The Rear Frame S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 114 Pack 04 B U I L D I N S T R U C T I O N S STAGE 25: FIT TING THE REAR WISHBONES STAGE 30: CONNECTING THE EXHAUST MANIFOLDS STAGE 26: INSTALLING THE LEFT REAR SHOCK ABSORBER STAGE 31: FIT TING THE EXHAUST SILENCERS STAGE 27: INSTALLING THE RIGHT STAGE 32: AT TACHING THE UPPER FRAME...
Page 115 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 116 Stage 25: Fitting the Rear Wishbones For the first stage of this Pack, you’ll fit the wishbones onto the frame from stage 24. These will be used to hold the rear wheel hubs in place. S T A G E 2 5 P A R T S L I S T Name Rear arm brackets Right rear upper wishbone...
Page 117 Stage 25: Fitting the Rear Wishbones LEFT RIGHT The internal supports come packed in bags marked ‘R’ and ‘L’ to Take the left rear upper wishbone and place on your work surface with distinguish the right from the left one. You can also identify the left the four rivets facing upwards.
Page 118 Stage 25: Fitting the Rear Wishbones TYPE B RIGHT LEFT Turn the frame over and locate the screw hole for fixing the wishbone Take the two rear arm brackets and place them with the flat edges in place and drive 1x Type B screw through. (arrows) facing inwards as shown in the inset photo.
Page 119 Stage 25: Fitting the Rear Wishbones TYPE B Now the right wishbone will be fitted by repeating steps 2 to 8. Take Position the internal support and wishbone onto the rear frame then the right wishbone and internal support and fit the two parts together secure it using 1x Type B screw.
Page 120 Stage 25: Fitting the Rear Wishbones S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 121 Stage 26: Installing the Left Rear Shock Absorber Next you’ll install the left rear shock absorber. You can test it by pressing the two ends together. S T A G E 2 6 P A R T S L I S T Name Left rear shock absorber Left rear lower suspension arm...
Page 122 Stage 26: Installing the Left Rear Shock Absorber TYPE G Take the left rear lower suspension arm and align it with the Fit the parts together then secure them using 1x Type G screw. Make corresponding front support from stage 24 as shown. sure to drive the screw into the parts through the side that is opposite a fake rivet (arrow).
Page 123 Stage 26: Installing the Left Rear Shock Absorber TYPE G Move to the back of the frame and use 1x Type G screw to secure the Take the shock absorber and place the hole located on the end with other end of the suspension arm. the silver plate over the corresponding spot as shown (circled).
Page 124 Stage 26: Installing the Left Rear Shock Absorber TYPE E Fix the parts together using the 1x Type E screw. Note that the tie rod should be able to rotate so don’t overtighten the screw. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 125 Stage 27: Installing the Right Rear Shock Absorber For this stage you’ll follow the same steps as before to install the right rear shock absorber onto the frame. S T A G E 2 7 P A R T S L I S T Name Right rear shock absorber Right rear lower suspension arm...
Page 126 Stage 27: Installing the Right Rear Shock Absorber TYPE G Take the right rear lower suspension arm and align it with the Fit the parts together then secure them using 1x Type G screw. Make corresponding front support from stage 24 as shown. sure to drive the screw into the parts through the side that is opposite a fake rivet (arrow).
Page 127 Stage 27: Installing the Right Rear Shock Absorber TYPE A TYPE G Move to the back of the frame and use 1x Type G screw to secure the Next fit the shock absorber in place as you did in step 6 from stage 26. other end of the suspension arm.
Page 128 Stage 27: Installing the Right Rear Shock Absorber S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 129 Stage 28: Mounting the Engine and Fitting Drive Shafts and Wheel Hubs With the rear shock absorbers installed you’ll now mount the engine of your Lamboghini Miura onto the rear frame, then fit the rear drive shafts and wheel hubs. S T A G E 2 8 P A R T S L I S T Name Right rear drive shaft...
Page 130 Stage 28: Mounting the Engine and Fitting Drive Shafts and Wheel Hubs Place the engine assembly from stage 23 upside down on your work surface as shown. We recommend using a protective surface to avoid damaging the paint on the air filter boxes. Note the four screw holes (arrows) on the assembly.
Page 131 Stage 28: Mounting the Engine and Fitting Drive Shafts and Wheel Hubs TYPE B TYPE A Drive 2x Type A screws into the holes located towards the wider end of Then fasten 2x Type B screws into the holes towards the narrower end the rear frame.
Page 132 Stage 28: Mounting the Engine and Fitting Drive Shafts and Wheel Hubs TYPE A Take the left rear wheel hub (note the two pins, circled) and align it Fit the wheel hub onto the bar of the suspension arm then push the with the left suspension arm as shown.
Page 133 Stage 28: Mounting the Engine and Fitting Drive Shafts and Wheel Hubs TYPE A Fit the right drive shaft into the other side of the gearbox (circled) so As you did in step 7 and 8, fit the wheel hub onto the bar of the that it mirrors the left drive shaft.
Page 134 Stage 28: Mounting the Engine and Fitting Drive Shafts and Wheel Hubs S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 135 Stage 29: Attaching the Exhaust Manifolds In this stage you’ll fit the exhaust manifolds onto the engine and make preparations to the rear frame for the next stage. S T A G E 2 9 P A R T S L I S T Name Silencer support plate Rear exhaust manifolds...
Page 136 Stage 29: Attaching the Exhaust Manifolds Take the rear frame assembly and place it on your work surface. Note the six holes for inserting the exhaust manifold (arrows). Push the pins on the exhaust manifold into the six holes. The two curved ends of the manifold should be facing downwards as shown (circled).
Page 137 Stage 29: Attaching the Exhaust Manifolds There are three holes in the rear frame below the exhaust manifold (circled) where the silencers will be installed in a future stage. We recommend preparing these three holes at this stage. Start by driving a Type A screw into one of the holes then unscrew and The image shows the holes after the screw has been drilled into each retighten carefully (arrow).
Page 138 Stage 29: Attaching the Exhaust Manifolds S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 139 Stage 30: Connecting the Exhaust Manifolds Next the exhaust support plate will be fitted to the rear frame, then the exhaust pipes will be connected. S T A G E 3 0 P A R T S L I S T Name Left front exhaust manifold Exhaust pipe...
Page 140 Stage 30: Connecting the Exhaust Manifolds Place the rear frame assembly on your work surface in the orientation Push the manifolds into the holes. The ends of each one will lead shown and align the left and right front manifolds. There are six holes towards the bottom of the rear frame assembly (inset, arrow).
Page 141 Stage 30: Connecting the Exhaust Manifolds Carefully turn the rear frame assembly upside down then align the Fit the support plate in place. Make sure the connection pipes are silencer support plate in place as shown. The red arrows show the above the suspension arms (circled).
Page 142 Stage 30: Connecting the Exhaust Manifolds The assembly should now look like this. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 143 Stage 31: Fitting the Exhaust Silencers To complete installing the exhausts on your Lamborghini Miura, the silencers are installed onto the support plate. S T A G E 3 1 P A R T S L I S T Name Right silencer (lower part) Exhaust pipe Left silencer (lower part)
Page 144 Stage 31: Fitting the Exhaust Silencers Place the rear frame assembly upside down on your work surface Lift the end of the exhaust pipe fitted in stage 30 and fit it into the as shown. Note the support points for the right silencer (upper part) right silencer (circled) before placing the silencer onto the support indicated by the arrows.
Page 145 Stage 31: Fitting the Exhaust Silencers Place the left silencer (upper part) onto its support points as shown. Fit the notched end of the exhaust pipe provided in this stage into the Note the connection ends from the manifolds fitted in step 2 of stage recess of the left silencer (arrow).
Page 146 Stage 31: Fitting the Exhaust Silencers S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 147 Stage 32: Attaching the Upper Frame and Fuel Filter You’ll now install the upper frame which will help to reinforce the rear of the car. The fuel filter, which is attached to the upper frame, will also be fitted in this stage. S T A G E 3 2 P A R T S L I S T Name Upper frame...
Page 148 Stage 32: Attaching the Upper Frame and Fuel Filter Place the rear frame assembly on your work surface. Carefully fit the The upper frame should look like this. upper frame over the rear frame by starting above the wishbones and move diagonally towards the rear of the engine (arrow).
Page 149 Stage 32: Attaching the Upper Frame and Fuel Filter TYPE A Fix the upper frame to the rear frame using 4x Type A screws. We Take the fuel filter and its support bracket. Note that the bracket has recommend starting with the two upper screws (arrows). two pins (circled) for fitting onto the frame and two holes (arrows) at the top to accomodate the pins of the fuel filter.
Page 150 Stage 32: Attaching the Upper Frame and Fuel Filter Take the loose end of the petrol pipe fitted in stage 22 and attach it to the pin on the fuel filter (arrow). You may wish to trim off some of the excess pipe length. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 151 Stage 33: Fitting the Left Rear Brake Disc In the last stage for this Pack you’ll fit the first of the brake discs onto the wheel hubs, starting with the left rear one. Take care with the parts, as there is a fragile metal pin on the inner brake caliper.
Page 152 Stage 33: Fitting the Left Rear Brake Disc OUTER INNER The left rear brake disc is made up of two sides. The inner side will Take the inner disc and insert it into the outer disc as shown. Squeeze face towards the model while the outer will face away from it. You can both parts together firmly all the way around to ensure a good fit.
Page 153 Stage 33: Fitting the Left Rear Brake Disc Place the rear frame assembly on your work surface. The inner part of Orient the inner caliper as shown and press it onto the two pins the caliper will fit onto the two pins located next to the left rear wheel (arrows).
Page 154 Stage 33: Fitting the Left Rear Brake Disc Carefully fit the outer caliper onto the inner caliper and lightly press the parts together. Check the alignment of the two halves is correct as shown in the inset image. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 155 Pack 05 B U I L D I N S T R U C T I O N S STAGE 34: FIT TING THE RIGHT STAGE 39: FIT TING THE PASSENGER REAR BRAKE DISC FOOTREST AND MAT TO THE COCKPIT FLOOR STAGE 35: INSTALLING THE STAGE 40: ADDING THE SIDE COVER AND AIR COOLANT AUXILIARY RESERVOIR...
Page 156 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 157 Stage 34: Fitting the Right Rear Brake Disc For the first stage of this Pack, you’ll fit the right rear brake discs onto its wheel hub. Take care with their parts, as there is a fragile metal pin on the inner brake caliper. S T A G E 3 4 P A R T S L I S T Name Right rear brake disc (inner)
Page 158 Stage 34: Fitting the Right Rear Brake Disc INNER OUTER The right rear brake disc is made up of two sides. The inner side will Take the inner disc and insert it into the outer disc as shown. Squeeze face towards the model while the outer will face away from it. You can both parts together firmly all the way around until the fit is flush.
Page 159 Stage 34: Fitting the Right Rear Brake Disc Place the rear frame assembly on your work surface. The inner part of Orient the inner caliper as shown and press it onto the two pins the caliper will fit onto the two pins located next to the left rear wheel (arrows).
Page 160 Stage 34: Fitting the Right Rear Brake Disc Carefully fit the outer caliper onto the inner caliper and lightly press the parts together. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 161 Stage 35: Installing the Coolant Auxiliary Reservoir In this stage you’ll install the coolant auxiliary reservoir, which stores the liquid pumped into the engine blocks and keeps them cool. S T A G E 3 5 P A R T S L I S T Name Coolant auxiliary reservoir (back) Coolant auxiliary reservoir (front)
Page 162 Stage 35: Installing the Coolant Auxiliary Reservoir INNER OUTER The coolant auxiliary reservoir has a front piece with two posts Align the two pieces of the coolant reservoir as shown, then press (top image) and a back piece with two corresponding holes (bottom them firmly together.
Page 163 Stage 35: Installing the Coolant Auxiliary Reservoir Turn the frame assembly around to the rear end, then locate the three Fit the coolant auxiliary reservoir onto the rear frame by pressing its mounting holes for the coolant auxiliary reservoir (arrows). pins firmly into the holes indicated in the previous step.
Page 164 Stage 35: Installing the Coolant Auxiliary Reservoir On the right rear corner of the frame there is a hole (circled). Take the vertical tube and push the thicker end of it hard into the hole. The perforated plate of the pipe should be oriented as shown (arrow). S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 165 Stage 36: Attaching the Anti-roll Bar Next the anti-roll bar will be fitted by attaching it to the tie rods on the suspension. S T A G E 3 6 P A R T S L I S T Name Left tie rod Right tie rod Anti-roll bar brackets...
Page 166 Stage 36: Attaching the Anti-roll Bar Place the rear frame assembly on the work surface as shown, with the Fit the end of the right tie rod into the recess (arrow) then push the right-hand side facing you. Locate the two holes (circled) on the edge two pins at the other end of the rod into the holes highlighted in the of the frame and the U-shaped recess (arrow) for mounting the right previous step.
Page 167 Stage 36: Attaching the Anti-roll Bar Next you’ll attach the anti-roll bar. The bracket ends of the bar fit over the two eyelets from the tie rods installed in stages 26 and 27 (circled). Firmly press each bracket end of the anti-roll bar over the eyelets of Both sides of the bar’s brackets should snap into the holes of the the tie rods as shown (arrows).
Page 168 Stage 36: Attaching the Anti-roll Bar Rotate the anti-roll bar so that it is resting on the frame as shown. The Press the two anti-roll bar brackets into the holes in the frame and thick sections should sit between the pair of holes on top of the frame over the thick sections of the bar to hold it in place.
Page 169 Stage 37: Assembling a Rear Tyre This stage involves fitting together the rim and tyre of one of the rear wheels. There’s also an optional step for painting the screws for the horizontal pipe fitted in the previous stage. S T A G E 3 7 P A R T S L I S T Name Pirelli tyre Wheel rim...
Page 170 Stage 37: Assembling a Rear Tyre OUTER INNER The wheel rim accurately replicates the Campagnolo rim from the Place the tyre in a bowl of warm water for a few minutes to soften the Miura S. There are two sides: the inner and outer face, which are rubber, which will help with fitting it onto the rim.
Page 171 Stage 37: Assembling a Rear Tyre Begin to flatten the rim as it is pushed in. Squeeze the tyre so that the lip fits into the recess around the rim. Once it is in place around the rim, both sides of the tyre should look To add some more detail to your model, we recommend using some like this.
Page 172 Stage 37: Assembling a Rear Tyre S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 173 Stage 38: Preparing the Transmission Tunnel Rear Panel For this stage you will assemble the rear panel of the transmission tunnel by fitting the air vents into it. The passenger mat and footrest will be used in a later stage and can be stored away for now.
Page 174 Stage 38: Preparing the Transmission Tunnel Rear Panel Take the two air vents and lay them on your work surface. Note the In the transmission tunnel rear panel there are two matching patterned area on the face of the vents (arrows). The back of the vents D-shaped holes for fitting the air vents.
Page 175 Stage 38: Preparing the Transmission Tunnel Rear Panel To add more detail to your model, you can pick out the screws on both sides of the anti-roll bar brackets using chrome silver paint. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 176 Stage 39: Fitting the Passenger Footrest and Mat to the Cockpit Floor This stage contains the cockpit floor for your Lamborghini Miura. You’ll need the passenger mat and footrest supplied with the previous stage to fit them in the cockpit. S T A G E 3 9 P A R T S L I S T Name Cockpit floor...
Page 177 Stage 39: Fitting the Passenger Footrest and Mat to the Cockpit Floor At the front of the cockpit floor there is a recess in the passenger Take the passenger mat from stage 38. This has corresponding footwell, along with two thin rectangular holes (arrows). Check for and rectangular holes (arrows).
Page 178 Stage 39: Fitting the Passenger Footrest and Mat to the Cockpit Floor Use the adhesive to stick the mat into the recess in the passenger footwell, making sure that the rectangular holes align. Now take the passenger footrest from stage 38. This has two tabs at Orient the footrest as shown and firmly press its tabs into the the bottom which fit into the rectangular holes (arrows).
Page 179 Stage 39: Fitting the Passenger Footrest and Mat to the Cockpit Floor S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 180 Stage 40: Adding the Side Cover and Air Vents to the Transmission Tunnel Next you’ll prepare the transmission tunnel with the some details: the air vents and a protective cover for the driver’s side. S T A G E 4 0 P A R T S L I S T Name Transmission tunnel Side cover...
Page 181 Stage 40: Adding the Side Cover and Air Vents to the Transmission Tunnel Take the air vents. On the back there are D-shaped fittings, as with the These fit into the corresponding holes in the transmission tunnel previous ones from stage 38. (circled).
Page 182 Stage 40: Adding the Side Cover and Air Vents to the Transmission Tunnel Press the remaining air vent in place. The shaped fittings ensure that Next take the side cover. One side has backing paper that covers an the patterned sections of the vents are oriented correctly. adhesive layer (bottom image).
Page 183 Stage 40: Adding the Side Cover and Air Vents to the Transmission Tunnel S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 184 Stage 41: Fitting the Headrests and the Driver’s Side Details Returning to the cockpit floor, this stage involves adding the rear bonnet lever to the driver’s side along with the footwell mat. You’ll also install the headrests for both the driver and passenger. S T A G E 4 1 P A R T S L I S T Name Driver and passenger headrests...
Page 185 Stage 41: Fitting the Headrests and the Driver’s Side Details Take the rear bonnet lever and its knob. There is a small pin (top Take the driver mat. One side has backing paper that covers an image, circled) for fitting the knob in place. Press the parts together as adhesive layer (bottom image).
Page 186 Stage 41: Fitting the Headrests and the Driver’s Side Details Locate the small rectangular hole on the driver’s side of the cockpit Align the driver and passenger headrests with the cockpit floor as floor (circled). Take the rear bonnet lever assembled in step 2 and shown, noting the indent for the rear bonnet lever (blue arrow).
Page 187 Stage 41: Fitting the Headrests and the Driver’s Side Details Turn the cockpit floor upright. For fitting the transmission tunnel, there are two large holes at the front and back of the floor (arrows) and two small rectangular holes in the middle (circled). Take the transmission tunnel from stage 40 and press it into the holes highlighted in the previous step.
Page 188 Stage 41: Fitting the Headrests and the Driver’s Side Details TYPE B TYPE B Turn the cockpit floor over and locate the screw posts at the front and rear (circled). As shown in the images on the right, use a Type B screw in each hole to secure the transmission tunnel to the cockpit floor. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 189 Stage 42: Installing the Central Console and Rear Panel In the last stage for this pack, the central console will have the engine sound switch installed before being fitted onto the transmission tunnel. You’ll also fit the rear panel assembled in stage 38. S T A G E 4 2 P A R T S L I S T Name Engine sound switch...
Page 190 Stage 42: Installing the Central Console and Rear Panel First take the central console and the wiper knob. The knob fits into a Turn the central console over and locate the housing for the engine small hole on the central console (circled). Press it in place as shown in sound switch (arrow).
Page 191 Stage 42: Installing the Central Console and Rear Panel Orient the rear panel as shown and press it into the rectangular holes Next take the central console and thread the end of the engine sound indicated in the previous step. switch’s wire through the gap in the transmission tunnel.
Page 192 Stage 42: Installing the Central Console and Rear Panel TYPE B Locate the two screw holes and attach the central console to the The key fits in the slot of the central console as shown. You may wish transmission tunnel using 2x Type B screws. to keep it in a safe place for now until the build is complete! S T A G E C O M P L E T E AGORAMODELS...
Page 193 Pack 06 B U I L D I N S T R U C T I O N S STAGE 43: FIT TING DETAILS TO STAGE 48: FIT TING FRAMES TO THE CENTRAL THE CENTRAL CONSOLE BODYWORK AND INSTALLING THE STEERING WHEEL COLUMN STAGE 44: INSTALLING THE PEDALS STAGE 49: ADDING DETAILS TO THE...
Page 194 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 195 Stage 43: Fitting Details to the Central Console In this first stage of Pack 6, you’ll add more details to the central console by fitting the gear lever, the handbrake, a passenger handle and an ashtray. S T A G E 4 3 P A R T S L I S T Name Gear lever Gear selector grid...
Page 196 Stage 43: Fitting Details to the Central Console On the ashtray there is an opening handle in the form of a raised ridge. Retrieve the cockpit floor assembly and firmly press the ashtray into Locate this ridge, as shown by the arrow in the image. its housing on the central console.
Page 197 Stage 43: Fitting Details to the Central Console The last detail to fit this stage is the gear lever. Start by taking the The shaft of the gear lever is not straight. Insert the gear lever into gear selector grid and locate the marking on one edge (inset, circled). the D-shaped hole located under the grid so that it is slightly inclined Gently insert the grid into the central console so that the marking is towards the driver’s side (inset).
Page 198 Stage 44: Installing the Pedals In this stage you’ll fit the driver’s pedals into their housing and fix them in place on the cockpit floor. The cigarette lighter and footrest are not needed for this stage, they can be set aside for now. S T A G E 4 4 P A R T S L I S T Name Brake switch...
Page 199 Stage 44: Installing the Pedals Start by taking the three pedals and the housing and place them First fit the accelerator pedal into the housing by pressing it into the on your work surface as shown. Note that the brake and accelerator recess (arrow), then move the lever’s column into the hole (inset).
Page 200 Stage 44: Installing the Pedals TYPE K Take the pedal housing cover and press it into the housing so that the Now fit the clutch pedal by pressing its pin into the hole indicated by large and small holes align (arrows). Secure the plate to the housing the arrow.
Page 201 Stage 44: Installing the Pedals Align the notches of the housing with the fittings on each side of the rectangular hole, then apply equal pressure to press the housing in place (arrows). S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 202 Stage 45: Fitting the Seats After adding a few more details to the cockpit, you’ll add the seats for both the driver and passenger. You’ll need the seat supplied with stage 3. S T A G E 4 5 P A R T S L I S T Name Seat Type J screws x5...
Page 203 Stage 45: Fitting the Seats Take the cigarette lighter supplied with stage 44. Check the silver Carefully push the cigarette lighter into the hole next to the gear lever, section for excess paint and carefully use a file to remove any before as shown by the arrow.
Page 204 Stage 45: Fitting the Seats TYPE K Turn the cockpit floor assembly over and secure the footrest using the Take the seat supplied with this stage along with the seat that was Type K screw supplied with stage 44. supplied with stage 3 (there is no difference between the two). Note the screw columns on the bottom of the seats and the corresponding holes in the cockpit floor assembly (arrows).
Page 205 Stage 45: Fitting the Seats TYPE J Repeat for the other seat, pressing it into place as before. Secure the seat using 2x Type J screws. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 206 Stage 46: Building the Steering Wheel Column In this stage you’ll begin to assemble the steering wheel column by building the cover which contains the mechanism for operating the indicators and horn of your model. The steering column and the Type B and D screws will be used in a later stage.
Page 207 Stage 46: Building the Steering Wheel Column Indicator switch Dashboard LED Horn switch Take the three wires provided with this stage and lay them on your work surface. It’s important to tell them apart from each other. The wire with the black and yellow plug is the indicator switch; the wire with the white and yellow plug is the LED for the dashboard;...
Page 208 Stage 46: Building the Steering Wheel Column Now take the horn switch, which fits into the housing located next to Insert the button end of the horn switch into the housing so that it the previous one (arrow). faces outwards as shown. Run the wires to the opening in the same manner as those for the indicator switch.
Page 209 Stage 46: Building the Steering Wheel Column TYPE H Fit the column bottom cover over the top to enclose the wires and Secure the top and bottom column covers together using 2x Type H buttons inside. Make sure the wires do not get caught between the screws.
Page 210 Stage 47: Starting Work on the Interior Roof Panel In this stage you’re supplied with the interior roof panel. After fitting the switch console to the panel, you’ll return to assembling the steering wheel column. S T A G E 4 7 P A R T S L I S T Name Left glass frame Right glass frame...
Page 211 Stage 47: Starting Work on the Interior Roof Panel Place the interior roof panel on your work surface as shown. Note the Take the switch console, which fits into the recessed area highlighted recessed area with six rectangular holes in it (circled). in the previous step.
Page 212 Stage 47: Starting Work on the Interior Roof Panel Insert the steering column into the assembly as shown, taking care to Next take the steering wheel which was supplied in stage 1. avoid the wires inside. The steering wheel has a semicircular joint (arrow) which fits over the Press the steering wheel joint into the end of the column covers and corresponding end of the steering column.
Page 213 Stage 47: Starting Work on the Interior Roof Panel TYPE D Secure the steering wheel to the steering column using a Type D Now take the steering wheel emblem from stage 1. Using the three screw (provided in the previous stage). pins on the emblem as a guide, press it into the three corresponding holes in the steering wheel.
Page 214 Stage 48: Fitting Frames to the Central Bodywork and Installing the Steering Wheel Column After carefully unpacking the impressive central bodywork, you’ll fit the glass frames from the previous stage to it. You’ll also need the dashboard assembly from stage 4 to install the steering wheel column to it.
Page 215 Stage 48: Fitting Frames to the Central Bodywork and Installing the Steering Wheel Column Right Left Take the two glass frames provided in stage 47 and place them on your work surface as shown. Each frame has three mounting tabs on it (arrows), with two tabs on top and one tab at the end. Place the central bodywork on your work surface (use a protective Check that the mounting tabs on the roof edge have correctly entered cover to avoid scratching the paint).
Page 216 Stage 48: Fitting Frames to the Central Bodywork and Installing the Steering Wheel Column Repeat for the right glass frame and press it firmly into place. Retrieve the dashboard assembly from stage 4. Place the dashboard upside down as shown, then pass the two plugs protruding from the steering wheel column assembly through the larger gap in the dashboard located between the speedometer and tachometer (arrow).
Page 217 Stage 48: Fitting Frames to the Central Bodywork and Installing the Steering Wheel Column Retrieve the dashboard LED from stage 46. Push the bulb of the LED into the hole highlighted in step 7. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 218 Stage 49: Adding Details to the Interior Roof Panel You’ll be adding the details to the roof panel in this stage, starting with the air vent knob and the interior mirrors. The LED, left sun visor, interior ceiling light and Type D screws can be kept aside for now.
Page 219 Stage 49: Adding Details to the Interior Roof Panel Press the air vent knob into the hole next to the six vents in the interior Turn the roof panel over and fit the interior ceiling light in place in the roof panel.
Page 220 Stage 49: Adding Details to the Interior Roof Panel To assemble the rearview mirror, remove the sticker from the backing Using a pair of fine tweezers, carefully remove the blue protective film to reveal the adhesive and press it into the recess (arrow). from the face of the sticker.
Page 221 Stage 49: Adding Details to the Interior Roof Panel The right sun visor has a recess for the vanity mirror. As you did for the rearview mirror, remove the backing from the vanity mirror sticker and press the adhesive side into the recess. Once in place, peel the blue protective film off.
Page 222 Stage 50: Fitting the Interior Roof Panel, Right Door Lock, Handle and Hinge In this stage you’ll attach the sun visors to the interior roof panel then fit it into the central bodywork. You’ll also begin assembly of the right door by adding the door lock, handle and the hinge.
Page 223 Stage 50: Fitting the Interior Roof Panel, Right Door Lock, Handle and Hinge Take the visor support brackets from the previous stage and cut Place the interior roof panel assembly on your work surface. Press them out from their sprue. Two of them have thin pins on the outside one of the brackets with a shorter pin (marked ‘2’) into the two holes (bottom, marked ‘2’...
Page 224 Stage 50: Fitting the Interior Roof Panel, Right Door Lock, Handle and Hinge TYPE D Fit the sun visor into the holes of the bracket, then fit the final bracket Place the central bodywork onto a protective surface and fit the (marked ‘1’...
Page 225 Stage 50: Fitting the Interior Roof Panel and the Right Door Lock, Door Handle and Hinge TYPE C Turn the door over and place the bar of the right door hinge into the Fit the hinge bracket over the top of the bar and secure it in place recess as shown.
Page 226 Pack 07 B U I L D I N S T R U C T I O N S STAGE 51: FIXING THE RIGHT DOOR STAGE 55: FIT TING THE REAR WINDOW WINDOW GLASS SUPPORT TO THE CROSS FRAME AND INTO THE CENTRAL BODY STAGE 52: ATTACHING THE RIGHT DOOR PANEL...
Page 227 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 228 Stage 51: Fixing the Right Door Window Glass For the first stage of Pack 7 you’ll attach the right door glass frame and fix the glass in place. The light button for the right door is installed ready for the switch in the next stage. S T A G E 5 1 P A R T S L I S T Name Light switch button...
Page 229 Stage 51: Fixing the Right Door Window Glass Retrieve the right door assembled in Stage 50. Lay it on your work Take the chromed glass frame and align it with the right door as surface with the inside facing up as shown in the bottom image. shown in the top image (arrows).
Page 230 Stage 51: Fixing the Right Door Window Glass Now take the light switch button and align it with the door as shown. TYPE A Fix the switch in place using a Type A screw. Fit the cylindrical end of the light switch button through the hole in the side of the door (arrow) and fit the perforated end of the button over the raised screw hole inside the door (circled).
Page 231 Stage 51: Fixing the Right Door Window Glass S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 232 Stage 52: Attaching the Right Door Panel In this stage the light switch is installed then the right door panel is fitted. The cladding panel can be put aside for now, it will be attached in the next stage. S T A G E 5 2 P A R T S L I S T Name Cladding panel Right door panel...
Page 233 Stage 52: Attaching the Right Door Panel Take the right door assembly from the previous stage and lay it on The light switch housing has an opening on the side to accomodate your work surface. Note the space for seating the housing indicated by the light switch button (inset, arrow).
Page 234 Stage 52: Attaching the Right Door Panel Pass the connector underneath the bar of the silver switch. Then thread the connector through the door hinge. Fit the button end of the light switch into its housing so that the Fit the right door panel in place as shown. Note the location of the four button makes contact with the silver bar (arrow).
Page 235 Stage 52: Attaching the Right Door Panel TYPE A TYPE A Use 4x Type A screws to fit the panel to the door at the locations Then drive another Type A screw into the top-left hole of the panel. indicated in the previous step. We recommend starting with the screw at the bottom-left of the panel shown in the image above.
Page 236 Stage 52: Attaching the Right Door Panel S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 237 Stage 53: Fitting the Right Door Cladding You’ll use the safety lock, door handle, cladding panel trim, armrest and a Type B screw supplied this stage, along with the cladding panel from the last stage, to fit the final components to the right door.
Page 238 Stage 53: Fitting the Right Door Cladding Take the cladding panel supplied in Stage 52 and align the right door Push the armrest in place. armrest with it as shown. The armrest fits into the small and large holes in the panel (arrows). TYPE B Turn the panel over and secure the armrest using a Type B screw.
Page 239 Stage 53: Fitting the Right Door Cladding Next take the door handle and align it with the panel as shown. There Push the pin of the handle through the hole and fit it in place. is a shaped recess with a small hole (arrow) for fitting the handle. Turn the panel over and locate the small piece of sticky tape (arrow).
Page 240 Stage 53: Fitting the Right Door Cladding Firmly press the cladding panel into the silver trim on the door. Be Finally, take the cladding panel trim and press it into place by pushing sure to carefully line the upper right part with the adhesive tape and its columns into the corresponding holes (arrows).
Page 241 Stage 54: Working on the Interior Roof Panel and Rear Window Using parts supplied in the previous stage, you’ll stick covers over the visible screws of the interior roof panel and then begin to assemble the rear window. The parts supplied with this stage can be stored away until they are needed later.
Page 242 Stage 54: Working on the Interior Roof Panel and Rear Window Take the central body assembly and place it on your work surface as Using tweezers, peel one of the screw cover stickers (supplied in the shown. Note the four screws fixing the roof panel (circled). previous stage) from its backing.
Page 243 Stage 54: Working on the Interior Roof Panel and Rear Window Next take the rear window support and double-sided tape (supplied with the previous stage). Lay the support with the recessed area facing upwards (note the appearance of the corner, inset). The double-sided tape sheet has six straight pieces and two curved pieces (arrows).
Page 244 Stage 54: Working on the Interior Roof Panel and Rear Window The rear window (supplied in the previous stage) has a slight Remove the white backing from the double-sided tape strips. Press curvature that matches the curve of the support. Carefully peel the the window into the support, starting with one corner.
Page 245 Stage 55: Fitting the Rear Window Support to the Cross Frame and into the Central Body In this stage you’ll fit the rear window together then fix it into the central body. You can store the parts supplied with this stage until they are needed later.
Page 246 Stage 55: Fitting the Rear Window Support to the Cross Frame and into the Central Body TYPE D Retrieve the cross frame firewall supplied with Stage 53. Align the rear Fit the holes in the support over the corresponding columns, then window assembly from the previous stage with it as shown.
Page 247 Stage 55: Fitting the Rear Window Support to the Cross Frame and into the Central Body Carefully push the window so that it fits into the recess and is flush with the body (arrow). Note the inner light cable protruding from the notch (circled). TYPE M TYPE M Use 2x Type M screws to secure the frame to the body.
Page 248 Stage 55: Fitting the Rear Window Support to the Cross Frame and into the Central Body Turn the body assembly upright. There is a hole (arrow) on the left Using tweezers, grasp the connector and push the inner light cable hand side of the cross frame for passing the inner light cable through.
Page 249 Stage 55: Fitting the Rear Window Support to the Cross Frame and into the Central Body S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 250 Stage 56: Assembling the Battery and Fitting it to the Front Frame Cover The front frame and screws supplied here will be used in the next stage. First, you’ll need to assemble the battery and fit it to the front frame cover. S T A G E 5 6 P A R T S L I S T Name Front frame...
Page 251 Stage 56: Assembling the Battery and Fitting it to the Front Frame Cover Take the battery body and cover supplied with Stage 54. There are two Fit the parts together by pressing the pins of the cover into the columns in the body (arrows) that correspond with the two pins of the columns of the body.
Page 252 Stage 56: Assembling the Battery and Fitting it to the Front Frame Cover Fit the two cables (supplied with Stage 54) over the thin pins The battery handles (supplied with Stage 54) have small trapezoid protruding from each post as shown. You may wish to use a small protrusions at the ends (circled).
Page 253 Stage 56: Assembling the Battery and Fitting it to the Front Frame Cover Now retrieve the front frame cover (supplied with Stage 55). There are Fit the battery onto the front frame cover so that the terminal posts two protruding columns underneath the battery body that fit into the are facing the cover in the orientation shown.
Page 254 Stage 56: Assembling the Battery and Fitting it to the Front Frame Cover TYPE B Fit the steering column (supplied with Stage 55) into the rectangular Take the bracket (supplied with Stage 55) and fit it over the structure of the front frame cover so that the two circular latches are rectangular structure then secure in place using a Type B screw on the outside (arrows).
Page 255 Stage 57: Fixing the Front Frame Cover For this stage the front frame cover assembled in the previous stage is fixed in place. The parts supplied here will be used in the next stage. S T A G E 5 7 P A R T S L I S T Name Steering rack Left steering arm...
Page 256 Stage 57: Fixing the Front Frame Cover Take the front frame (supplied with Stage 56) and lay it on your work surface as shown. Note the fixing points (coloured arrows) for fitting the front frame cover. Take the front frame cover which was assembled in the previous There is a column underneath the battery (arrow) which fits into the stage.
Page 257 Stage 57: Fixing the Front Frame Cover Fit the frame cover into place as shown. Check that the highlighted fixing points from the previous steps are aligned correctly. TYPE A Use 2x Type A screws to secure the left and right fixing points. AGORAMODELS LAMBORGHINI MIURA...
Page 258 Stage 57: Fixing the Front Frame Cover TYPE B Turn the assembly over and use a Type B screw (supplied with Stage 56) to secure the point underneath the battery to the front frame. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 259 Stage 58: Installing the Steering Rack, Damper, and Arms The last stage for this pack involves assembling the steering rack and damper then fitting them in place on the front frame assembly. Once installed, you’ll attach the left and right steering arm to the rack. The parts supplied with this stage can be stored away for now.
Page 260 Stage 58: Installing the Steering Rack, Damper, and Arms Take the steering rack and steering damper (supplied with Stage 57) Push the pins of the damper into the holes of the rack. Take care to and lay them on your work surface as shown. There is a small and large push the damper in the correct side of the rack –...
Page 261 Stage 58: Installing the Steering Rack, Damper, and Arms TYPE A with washer Take a pair of washers along with 2x Type A screws (supplied with Turn the steering column left and right to check that the screws and Stage 57, see inset). Fit the screws through the washers then drive washers are not too tight –...
Page 262 Stage 58: Installing the Steering Rack, Damper, and Arms TYPE N Now take the left steering arm. Rotate the steering column until its Fit the left steering arm into the fork and secure using a Type N screw fork is outside of the frame (arrow). (supplied with Stage 57).
Page 263 Pack 08 B U I L D I N S T R U C T I O N S STAGE 59: ASSEMBLING AND STAGE 63: FITTING THE FRONT LEFT UPPER FITTING THE HORNS WISHBONE ARM AND TORSION BAR STAGE 60: ATTACHING THE STAGE 64: FITTING THE FRONT RIGHT UPPER REINFORCEMENT CROSSBAR WISHBONE ARM AND TORSION BAR...
Page 264 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 265 Stage 59: Assembling and Fitting the Horns In this stage you’ll build the horns for the Lamborghini Miura and fit them into the front frame. The parts supplied with this stage will be used later and can be stored away for now. S T A G E 5 9 P A R T S L I S T Name Reinforcement crossbar...
Page 266 Stage 59: Assembling and Fitting the Horns Horn A Horn B Retrieve the two horns supplied with Stage 58. When placing them on First take horn (A) and one of the horn rear caps (also supplied with the work surface as shown, you can see they are different: horn (A) has Stage 58).
Page 267 Stage 59: Assembling and Fitting the Horns Start by pressing the fixing pin of horn (A) into the recess furthest Press horn (B) into the other recess in the same orientation. If away from the pins (arrow) in the orientation shown. Apply an equal necessary, you can secure the horns in place using a small drop of amount of pressure on the horn from either side of the recess to push super glue on the fixing pins.
Page 268 Stage 59: Assembling and Fitting the Horns S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 269 Stage 60: Attaching the Reinforcement Crossbar Using the parts supplied in Stage 59, you’ll attach the horn actuator and windscreen washer reservoir onto the reinforcement crossbar then fit the bar in place on the front frame. S T A G E 6 0 P A R T S L I S T Name Front shock absorber Front left lower wishbone arm...
Page 270 Stage 60: Attaching the Reinforcement Crossbar Take the horn actuator body and cover supplied with Stage 59. Press Now take the reinforcement crossbar from Stage 59 and locate the the cover into the upper hole of the actuator body. two holes for mounting the actuator (circled). Press the pins of the actuator body into the holes of the crossbar as shown.
Page 271 Stage 60: Attaching the Reinforcement Crossbar Fit the crossbar in place as shown, with the actuator and reservoir facing towards the battery. TYPE A TYPE A Fix one side of the crossbar to the frame using a Type A screw Use another Type A screw (supplied with Stage 59) to secure the (supplied with Stage 59).
Page 272 Stage 60: Attaching the Reinforcement Crossbar S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 273 Stage 61: Assembling and Fixing the Front Left Lower Wishbone Arm For this section you’ll use the parts supplied with Stage 60 to assemble and fix the front left wishbone arm to the front frame. S T A G E 6 1 P A R T S L I S T Name Front right lower wishbone arm Wishbone arm bracket x2...
Page 274 Stage 61: Assembling and Fixing the Front Left Lower Wishbone Arm Take the front left lower wishbone arm and front shock absorber First you will need to test the attachment points for the wishbone arm supplied with Stage 60, along with one of the pieces of sandpaper and shock absorber pictured above.
Page 275 Stage 61: Assembling and Fixing the Front Left Lower Wishbone Arm Take the wishbone arm along with the brackets and two of the Type G Fit the brackets onto the ends of the wishbone arm so that the screws, all supplied with Stage 60. Ensure that the parts are aligned as protruding sections (circled) are facing the same direction.
Page 276 Stage 61: Assembling and Fixing the Front Left Lower Wishbone Arm TYPE G Take the front shock absorber and place the lower attachment point Secure the shock absorber to the wishbone arm using a Type G screw (without the coloured plate) in the appropriate housing located on the supplied with Stage 60.
Page 277 Stage 61: Assembling and Fixing the Front Left Lower Wishbone Arm TYPE A Using 2x Type A screws from Stage 60, secure both wishbone arm brackets to the frame. Once fixed, the two screws should not protrude above the face of the frame. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 278 Stage 62: Assembling and Fixing the Front Right Lower Wishbone Arm In this stage you’ll assemble and fix the front right wishbone arm to the front frame using the parts supplied with Stage 61. S T A G E 6 2 P A R T S L I S T Name Front left upper wishbone arm Left torsion bar...
Page 279 Stage 62: Assembling and Fixing the Front Right Lower Wishbone Arm As you did in the previous stage, start by testing the fit of the brackets Remove excess paint from the shock absorber using a flat file or the and shock absorber with the lower wishbone arm (both supplied with sandpaper supplied with Stage 61 if necessary.
Page 280 Stage 62: Assembling and Fixing the Front Right Lower Wishbone Arm TYPE G TYPE G Fit the bracket onto the end of the wishbone arm as shown then Fit the remaining bracket onto the other end and secure using a secure it using a Type G screw.
Page 281 Stage 62: Assembling and Fixing the Front Right Lower Wishbone Arm In the same manner as before, fit the wishbone arm brackets into the Carefully turn the assembly over while keeping the wishbone arm and two square-shaped holes located at the base of the left-hand side of shock absorber in place.
Page 282 Stage 62: Assembling and Fixing the Front Right Lower Wishbone Arm TYPE P TYPE P Using a Type P screw (supplied with Stage 60), fix the shock absorber Repeat for the shock absorber on the other side using another Type P to the crossbar.
Page 283 Stage 63: Fitting the Front Left Upper Wishbone Arm and Torsion Bar Now you’ll fit the left upper wishbone arm and torsion bar onto the front frame of the Miura. You’ll need the parts supplied in the previous stage for this. S T A G E 6 3 P A R T S L I S T Name Front right upper wishbone arm...
Page 284 Stage 63: Fitting the Front Left Upper Wishbone Arm and Torsion Bar Take the front frame assembly and locate the seats for the ends of the Take the front left upper wishbone arm from Stage 62 and position it front left upper wishbone arm next to the shock absorber (arrows) on in place.
Page 285 Stage 63: Fitting the Front Left Upper Wishbone Arm and Torsion Bar TYPE D Position support A in the housing to the right of the shock absorber. Fix the supports in place using 2x Type D screws. Then insert support B to the left of the shock absorber as shown. We recommend using a pair of tweezers to push the supports in place.
Page 286 Stage 63: Fitting the Front Left Upper Wishbone Arm and Torsion Bar Slightly rotate the torsion bar and fit it onto the pin located on the square section of the front lower wishbone arm (circled). S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 287 Stage 64: Fitting the Front Right Upper Wishbone Arm and Torsion Bar Next you’ll fit the right upper wishbone arm and torsion bar in the same manner as before using the parts supplied with Stage 63. S T A G E 6 4 P A R T S L I S T Name Front left brake disc (inner) Front left brake disc (outer)
Page 288 Stage 64: Fitting the Front Right Upper Wishbone Arm and Torsion Bar Take the front frame assembly and locate the seats for the ends of the Take the front right upper wishbone arm from Stage 63 and position it front right upper wishbone arm next to the shock absorber (arrows) on in place in the same manner as before.
Page 289 Stage 64: Fitting the Front Right Upper Wishbone Arm and Torsion Bar TYPE D Fix the supports in place using 2x Type D screws. On the lower edge of the frame, to the left of the lower wishbone arm, find the hole (circled) into which the torsion bar will fit. Then take the torsion bar from Stage 63 and insert the pin located on Slightly rotate the torsion bar and fit it onto the pin located on the the curved end of the piece into the hole identified in step 6.
Page 290 Stage 64: Fitting the Front Right Upper Wishbone Arm and Torsion Bar S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 291 Stage 65: Assembling the Wheel Hubs and the Front Left Brake Disc In this stage you’ll fit the two halves of the front left brake disc together and prepare the front wheels hubs for fitting to the suspension. S T A G E 6 5 P A R T S L I S T Name Angle drive (right) Front right wheel hub...
Page 292 Stage 65: Assembling the Wheel Hubs and the Front Left Brake Disc Take the outer half of the front left brake disc supplied with Stage 64 The inner half of the front left brake disc (Stage 64) has a flat surface and place it on the work surface.
Page 293 Stage 65: Assembling the Wheel Hubs and the Front Left Brake Disc The brake caliper comes in two halves, which will be used in a later Now take the wheel hub components supplied with this stage. The stage. Keep them stored away safely for now. You may wish to use the front right wheel hub components are contained in bags marked with bag marked with the letter L that contains the front left wheel hub the letter R (right), those of the front left wheel in bags with the letter...
Page 294 Stage 65: Assembling the Wheel Hubs and the Front Left Brake Disc Now take the right wheel hub and face it towards you as shown. Press the right angle drive into the centre in the orientation shown. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 295 Stage 66: Fitting the Front Wheel Hubs In the final stage of this pack, you’ll fit the front wheel hubs to the suspension and connect them to the steering rack. You can store the parts supplied until they are needed in a later stage. S T A G E 6 6 P A R T S L I S T Name Front right brake disc (outer)
Page 296 Stage 66: Fitting the Front Wheel Hubs LEFT RIGHT Take the two front wheel hubs from the previous stage. Place them Retrieve the front frame assembly and place it on the work surface on the work surface as shown and identify the left from the right hub. with the right-hand side facing you.
Page 297 Stage 66: Fitting the Front Wheel Hubs TYPE F Lower the upper wishbone onto the top of the wheel hub (arrow). Drive a type F screw (supplied with Stage 65) into the hole at the top of the wheel hub. Don’t overtighten the screw as the hub needs to move freely for the steering to function.
Page 298 Stage 66: Fitting the Front Wheel Hubs TYPE F Insert the wheel hub in place in the same manner as you did before, Fix the top of the wheel hub using a type F screw (Stage 65). then connect the steering arm to the wheel hub (circled). TYPE F Then turn the assembly over and fix the bottom of the wheel hub using another type F screw (stage 65).
Page 299 Stage 66: Fitting the Front Wheel Hubs S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 300 Pack 09 B U I L D I N S T R U C T I O N S STAGE 67: FIT TING THE FRONT STAGE 71: FITTING THE RADIATOR PIPES BRAKE DISCS AND CALIPERS AND TIE RODS STAGE 68: AT TACHING THE FRONT CROSSBAR STAGE 72: ADDING ESSENTIAL PARTS TO THE FRAME (1) STAGE 69: INSTALLING THE TANK TUBE...
Page 301 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 302 Stage 67: Fitting the Front Brake Discs and Calipers In the first stage of this pack, you’ll assemble the front right brake disc, then fit both brake discs to the wheel hubs. The parts supplied with this stage will be used later, they can be stored away safely for now.
Page 303 Stage 67: Fitting the Front Brake Discs and Calipers Take the two halves of the front right brake disc that were supplied in Press the pins into the holes which were highlighted in the previous Stage 66. The external part has three pins (circled) while the internal step.
Page 304 Stage 67: Fitting the Front Brake Discs and Calipers TYPE F On the other side of the assembly, use another Type F screw (supplied Take the front left brake caliper (inner) supplied with Stage 64. The with Stage 61) to fix the right steering arm to the wheel hub in the two holes on the brake caliper (circled) fit over the two pins found on same manner.
Page 305 Stage 67: Fitting the Front Brake Discs and Calipers Now take the front left brake caliper (outer) supplied in Stage 64 and Next you’ll repeat steps 6 to 9 for the right side. First fit the front right firmly press it onto the silver pins of the inner half. brake caliper (inner) supplied with Stage 66 onto the front right wheel hub in the same manner as before.
Page 306 Stage 67: Fitting the Front Brake Discs and Calipers S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 307 Stage 68: Attaching the Front Crossbar For this stage you’ll assemble and fit the front crossbar onto the frame assembly. You’ll also thread the battery cables through to the underside of the frame. The parts supplied with this stage can be stored away until they are needed later.
Page 308 Stage 68: Attaching the Front Crossbar Take the fuse box along with the front crossbar supplied with Stage Firmly press the fuse box onto the crossbar – note the orientation of 67. The fuse box has a rectangular hole which fits onto the small the fuse box.
Page 309 Stage 68: Attaching the Front Crossbar Next take the battery disconnect switch supplied with Stage 67. There Press the battery disconnect switch into the D-shaped hole of the is a D-shaped hole (arrow) on the crossbar for fitting this in place. crossbar as shown.
Page 310 Stage 68: Attaching the Front Crossbar The cable fits between the side of the battery and the V-shaped Carefully turn the assembly over and guide the ends of the cables to section of the frame. the openings between the frame and the cover (arrows). Push the ends of the cables through the openings.
Page 311 Stage 68: Attaching the Front Crossbar TYPE A TYPE A Secure the front crossbar to the frame using 2x Type A screws (supplied with Stage 67). S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 312 Stage 69: Installing the Tank Tube and Fitting the Brake and Clutch Master Cylinders After assembling the tank tube, you’ll fit it onto the front frame assembly. You’ll also build then attach the brake and clutch master cylinders to the frame. The parts supplied will be used in the next stage, you can store them away safely for now.
Page 313 Stage 69: Installing the Tank Tube and Fitting the Brake and Clutch Master Cylinders Place the front frame assembly on your work surface and take the Place one of the cap covers over the screw of the crossbar in the two cap covers supplied with Stage 68.
Page 314 Stage 69: Installing the Tank Tube and Fitting the Brake and Clutch Master Cylinders TYPE B Align the tube with the support as shown. Fit the tube into the Fasten the parts together using the Type B screw. support by positioning the screw hole of the tank tube onto the corresponding column of the support (arrow).
Page 315 Stage 69: Installing the Tank Tube and Fitting the Brake and Clutch Master Cylinders Fit the tank tube by passing it under the middle crossbar and pushing Take the two master cylinder parts supplied with Stage 68. The the large pin of the tube into the hole of the frame cover (arrow). Press brake cylinder has a rectangular tooth (circled) which fits into the the small pins of the tank tube support into the three corresponding rectangular hole of the clutch cylinder (arrow).
Page 316 Stage 69: Installing the Tank Tube and Fitting the Brake and Clutch Master Cylinders S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 317 Stage 70: Assembling and Fixing the Radiator Panel In this stage you’ll assemble the radiator panel and fit it in place on the front frame assembly. S T A G E 7 0 P A R T S L I S T Name Upper radiator panel Fan support grille...
Page 318 Stage 70: Assembling and Fixing the Radiator Panel Take the cooling fans (one supplied with this stage and the other with Place the upper radiator panel on your work surface and mount the Stage 69). Note that the blades have a sharp corner (red arrow) and a two fans onto it.
Page 319 Stage 70: Assembling and Fixing the Radiator Panel Take the lower radiator panel (supplied with Stage 69) and align it with Press the pins of the lower panel into the holes of the upper panel. the upper panel as shown. There are six pins (circled) on the lower panel that correspond with six holes (arrows) on the upper panel.
Page 320 Stage 70: Assembling and Fixing the Radiator Panel TYPE S TYPE S The left side of the radiator secured with a Type S screw. The right side of the radiator secured with a Type S screw. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 321 Stage 71: Fitting the Radiator Pipes and Tie Rods In this stage you’ll connect the radiator pipes and secure the panel by fitting tie rods. S T A G E 7 1 P A R T S L I S T Name Left radiator pipe Radiator tie rod x2...
Page 322 Stage 71: Fitting the Radiator Pipes and Tie Rods First take the right radiator pipe. Note that it has two fixing plates Take the front frame assembly and locate the hole on the lower right (arrows) as well as a pin at one end (circled). corner of the radiator (circled) for inserting the right radiator pipe pin.
Page 323 Stage 71: Fitting the Radiator Pipes and Tie Rods Once the pin is in place, turn the assembly over and fit the fixing Next take the left radiator pipe, which has two fixing plates (arrows) plates of the pipe over the pins highlighted in step 3 (arrows). Take care and a pin at one end (circled).
Page 324 Stage 71: Fitting the Radiator Pipes and Tie Rods The two radiator pipes should look like this once installed. Turn the assembly back over and locate the four holes for fitting the radiator tie rods (arrows). Take one of the tie rods and press the pin at the angled end into the Fit the remaining tie rod on the other side in the same manner.
Page 325 Stage 71: Fitting the Radiator Pipes and Tie Rods S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 326 Stage 72: Adding Essential Parts to the Frame (1) In this stage you’ll install the reservoirs for the clutch and brake fluid to the frame, along with the left relay box, the indicator intermittence system, and the wiper motor. S T A G E 7 2 P A R T S L I S T Name Reservoir plate Clutch/brake liquid reservoir...
Page 327 Stage 72: Adding Essential Parts to the Frame (1) First identify the relay box, which has two pins on a raised plate (arrow). Place the frame assembly on your work surface and fit the relay box into two holes on the back left side of the frame (arrow). The raised plate should be oriented upwards (inset).
Page 328 Stage 72: Adding Essential Parts to the Frame (1) Press the two pins on the reservoir plate into the two corresponding Take the indicator intermittence system and note the writing on the holes located in front of the relay box. Note the orientation of the lip on face of the part.
Page 329 Stage 72: Adding Essential Parts to the Frame (1) Press the wiper motor into the hole on the left side of the frame, next to the reservoirs, as shown. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 330 Stage 73: Adding Essential Parts to the Frame (2) Next you’ll add the right relay box and the voltage regulator to the frame along with the bonnet hooks and support buffers. S T A G E 7 3 P A R T S L I S T Name Bonnet support buffer Relay box...
Page 331 Stage 73: Adding Essential Parts to the Frame (2) The two bonnet hooks are supplied in bags marked ‘R’ (right) and ‘L’ Take the right bonnet hook and insert it in the two holes located on (left) to help differentiate them from each other. Note that the detailed the right-hand side of the frame as shown.
Page 332 Stage 73: Adding Essential Parts to the Frame (2) On the left-hand side of the frame, there are two pins (arrow) for Press one of the support buffers onto the pins so that the circular hole mounting the support buffer. (arrow) is facing upwards as shown.
Page 333 Stage 73: Adding Essential Parts to the Frame (2) Next press the voltage regulator into the two vertical holes next to Take the relay box and press it into the two horizontal holes next to the the bonnet hook on the right-hand side of the frame. Note that the voltage regulator as shown.
Page 334 Stage 74: Assembling and Fitting the Spare Wheel In the final stage for this pack, the spare wheel is assembled and fitted into its housing. S T A G E 74 P A R T S L I S T Name Wheel rim Pirelli tyre...
Page 335 Stage 74: Assembling and Fitting the Spare Wheel The spare tyre is slightly different to the other tyres supplied with the Similarly, the inner part of the rim is finished differently from the model – this is softer and should not require heating in order to fit it others supplied.
Page 336 Stage 74: Assembling and Fitting the Spare Wheel Check the other side of the tyre and adjust so that the fit is flush on Now take the frame assembly and place it on your work surface. There both sides. are two raised columns inside the spare wheel housing (circled) for mounting the spare wheel support.
Page 337 Stage 74: Assembling and Fitting the Spare Wheel To fit the wheel onto the support, press it onto the pin of the support until it snaps into place. Be careful not to put pressure on the housing, which is made of plastic and could break. Instead, apply pressure on the frame, which is made of metal and is much more resistant.
Page 338 Pack 10 B U I L D I N S T R U C T I O N S STAGE 75: INSTALLING THE FUEL PUMPS AND STAGE 79: AT TACHING THE LEFT THE FRONT FRAME REINFORCEMENT PLATES AND RIGHT DOORS STAGE 76: FIT TING THE DASHBOARD STAGE 80: BUILDING THE BONNET AND FRONT FRAME INTO THE BODY AND...
Page 339 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 340 Stage 75: Installing the Fuel Pumps and the Front Frame Reinforcement Plates In this stage you’ll fit the front reinforcement plates onto the frame, then construct and install the fuel pumps. S T A G E 7 5 P A R T S L I S T Name Fuel pump (1) Fuel pump bracket...
Page 341 Stage 75: Installing the Fuel Pumps and the Front Frame Reinforcement Plates Left Right Take the two front frame reinforcement plates and lay them on your Take the front frame assembly. On the left-hand side, next to the spare work surface as shown. To distinguish the left plate from the right, wheel, there are two rectangular holes (red arrows) as well as a small note the number of holes –...
Page 342 Stage 75: Installing the Fuel Pumps and the Front Frame Reinforcement Plates Next take the two fittings along with the long and short tubes and lay To get a good fit, try twisting the tubes between your thumb and them on your work surface oriented as shown. Fit the long tubes onto finger as you press them onto the fitting.
Page 343 Stage 75: Installing the Fuel Pumps and the Front Frame Reinforcement Plates On the frame, below the two pumps, there are two holes into which Insert the end of the upper long tube into the other hole as shown. the ends of the long pipes are inserted. Insert the loose end of the lower long tube into the hole highlighted in the photo with an arrow.
Page 344 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board You’ll need the dashboard and the central body assemblies for this stage. After fitting the dashboard in place, you’ll fix the circuit board for the model’s electronics.
Page 345 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board For this stage you will need the central body and dashboard assembled previously. Turn the the body upside down. Inside the front, under the Turn the dashboard upside down.
Page 346 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board TYPE A Take the dashboard and position it inside the central part of the body, Use a Type A screw to secure the left-hand side of the dashboard. You taking care to match up the drilled columns and the fixing slots may wish to leave the screw slightly loose until the other side (step 6) highlighted in steps 2 and 3 (arrows).
Page 347 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board Next take the circuit board. Make sure to handle the circuit board carefully as you install it, holding it by the edges when necessary. Remove all the protective caps from the connectors as shown. Retrieve the front frame assembly and place it upside down on your Place the circuit board in the recess inside the front frame assembly.
Page 348 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board TYPE B TYPE B Fix the circuit board to the assembly using 4x Type B screws. Next locate the four connection points on the front frame assembly (arrows) which are used to secure it to the body.
Page 349 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board Make sure that the holes in the base of the door hinge housings Also check that the front frame assembly is properly seated by (arrow) line up on both sides of the components.
Page 350 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board TYPE A TYPE A Continue to fix the assemblies together with a third Type A screw in Finish fixing the front frame with the fourth Type A screw in the outer the outer hole at the base of the driver’s side door hinge housing.
Page 351 Stage 76: Fitting the Dashboard and Front Frame into the Body and Installing the Circuit Board TYPE Q Fit the steering joint over the other pin of the steering column (arrow), then secure it in place using a Type Q screw. Test the steering by turning the wheel – if the steering doesn’t engage, try tightening the screws in the silver washers, or loosen them if the wheels don’t move.
Page 352 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body With the circuit board in place, you’ll start to connect up the electronic wiring for the model. You’ll also need the cockpit assembly, which will be fixed in place and its wires connected up.
Page 353 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body CONNECTION SCHEME Connection Function Plug Pad Print Supplied in Number Colour Colour Stage N° Indicator switch Black Yellow Horn switch Black Blue Accelerator switch Black White Engine switch Black Instrument panel LEDs White Dashboard LED...
Page 354 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body Take the horn switch (black plug, blue panel) coming from the Plug the horn switch into connection 2 (arrow). steering wheel column and pass it under the crossmember in the same way.
Page 355 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body Take the dashboard LED wire (white plug, yellow panel) and route it Plug the dashboard LED into connection 8 (arrow). under the crossmember. Retrieve the cockpit assembly and place it on your work surface. There At the rear of the cockpit, below the headrests, there are two more are two holes on the front for fixing it to the body (arrows).
Page 356 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body Orient the body assembly on your work surface as shown and locate Align the cockpit with the body as shown. Insert the holes below the the four connection points for fitting the cockpit (arrows). headrests highlighted in step 10 underneath cross frame firewall and over the two connection points highlighted by the blue arrows in step 11.
Page 357 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body TYPE B TYPE A Fix the cockpit in place at the rear using 2x Type B screws (supplied Use a Type A screw (supplied with Stage 76) to secure the left-hand with Stage 76).
Page 358 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body Plug the accelerator switch into connection 3 (arrow). Next take the brake switch (black plug, green panel). Plug the brake switch into connection 13 (arrow). Now take the engine switch (black plug). AGORAMODELS LAMBORGHINI MIURA...
Page 359 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body Plug the engine switch into connection 6 (arrow). Finally, take the interior light switch (white plug, red panel). Route the cable under the crossmember if not done so already. Plug the interior light into connection 16 (arrow).
Page 360 Stage 77: Connecting the Wiring and Fitting the Cockpit into the Body S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 361 Stage 78: Fitting the Rear Frame and Installing the Upper Tie Rods You’ll now fix the rear frame assembly to the body, then attach the upper tie rods which were supplied in Stage 76. The parts supplied with this stage can be kept aside until they are needed later in this Pack.
Page 362 Stage 78: Fitting the Rear Frame and Installing the Upper Tie Rods The first part of this stage will be fitting the rear frame into the body. Take the rear frame assembly and locate the corresponding fixing Take the body assembly and locate the four fixing points: the two points for fitting it into the body, highlighted by the circled areas trapezoid-shaped protrusions along the cross frame firewall (circled) and arrows.
Page 363 Stage 78: Fitting the Rear Frame and Installing the Upper Tie Rods To fix the rear frame, take 4x Type A screws (supplied with Stage 76). Holding everything in place, carefully turn the body and the rear frame assembly upside down. Hold the the rear frame up so that it rests on the cradle of the cockpit and the fixing points fit into their respective seats.
Page 364 Stage 78: Fitting the Rear Frame and Installing the Upper Tie Rods TYPE A TYPE A Returning to the driver’s side, fasten the outermost connection point Finish securing the rear frame by fastening the outermost connection with a Type A screw. You may need to apply some pressure to the point on the passenger’s side with a Type A screw.
Page 365 Stage 78: Fitting the Rear Frame and Installing the Upper Tie Rods Left Right Now take the two upper tie rods supplied with Stage 76 and lay them Take the rods and test fit them. Insert the pins of the curved ends on your work surface as shown.
Page 366 Stage 78: Fitting the Rear Frame and Installing the Upper Tie Rods S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 367 Stage 79: Attaching the Left and Right Doors With the front and rear frames installed into the body, you can now fix the left and right doors onto the main assembly. Then you’ll connect the switches from the doors to the circuit board.
Page 368 Stage 79: Attaching the Left and Right Doors Place the main assembly on your work surface and retrieve the left Starting with the right-hand side, locate the square hole in the and right doors assembled in Stages 6 and 53. housing for the door hinge (arrow).
Page 369 Stage 79: Attaching the Left and Right Doors Ensure that the door is closed and well aligned with the body (dashed Take the left door and thread the plug through the square hole (arrow) lines), then tighten the Type B screws. on the left-hand side in the same manner as before.
Page 370 Stage 79: Attaching the Left and Right Doors First take the right door switch with a white plug and blue panel. Plug the right door switch into connection 15 (arrow). Take the plug of the left door switch, which is white (no panel colour). Plug the left door switch into connection 14 (arrow).
Page 371 Stage 79: Attaching the Left and Right Doors S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 372 Stage 80: Building the Bonnet Reinforcement Structure (1) In this stage you are supplied with the beautiful front of the Miura’s body. This will be fitted onto the model in a later stage, so store it away safely for now. You’ll need the parts supplied with Stage 77 to begin building the reinforcement structure for...
Page 373 Stage 80: Building the Bonnet Reinforcement Structure (1) Take the bonnet inner bulkhead supplied with Stage 77. Note the The bonnet central crossbar (supplied with Stage 77) has two pins at large hole in the bulkhead for the plug of the tank. either end (circled) and a central recess (arrow).
Page 374 Stage 80: Building the Bonnet Reinforcement Structure (1) TYPE B Drive a Type B screw (supplied with Stage 77) through the side Press the pins of the central crossbar into the corresponding holes in crossbar and into the large column of the inner bulkhead. the side crossbar (arrow).
Page 375 Stage 80: Building the Bonnet Reinforcement Structure (1) TYPE B Drive a Type B screw into the column of the inner bulkhead to fix the parts together. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 376: Table Of Contents
Stage 81: Building the Bonnet Reinforcement Structure (2) You’ll continue to assemble the reinforcement structure using the parts supplied with Stage 78. The bag of parts supplied with this stage can be kept in a safe place until they are needed in a later stage. S T A G E 8 1 P A R T S L I S T Name Bonnet support bracket x2...
Page 377 Stage 81: Building the Bonnet Reinforcement Structure (2) Take the bonnet reinforcement frame (supplied with Stage 78) and Take the left support (supplied with Stage 78) and align it with the place it on your work surface with the screw columns (circled) facing frame as shown.
Page 378 Stage 81: Building the Bonnet Reinforcement Structure (2) TYPE B Retrieve the first part of the reinforcement structure assembled in Fit the two parts of the structure together using the points indentified Stage 80. Align the two parts as shown and identify the fixing points in the previous step.
Page 379 Stage 81: Building the Bonnet Reinforcement Structure (2) Lay the structure assembly on your work surface as shown. The pin of Press the pin of the plates into the inner bulkhead as shown. the perforated plates fits into the rectangular hole in the middle of the inner bulkhead (arrow).
Page 380: The Bag Of Parts Supplied With This
Stage 82: Assembling the Headlights For the last stage of this Pack, you’ll assemble the headlights for your model using the pieces supplied with Stage 79. The bag of parts supplied with this stage can be kept in a safe place until they are needed in a later stage.
Page 381 Stage 82: Assembling the Headlights Take the headlight lenses and bodies (supplied with Stage 79) and Press one of the lenses into the headlight housings as shown. Note the place them on your work surface as shown. The lenses have two plugs orientation of the pattern on the lens (arrow).
Page 382 Stage 82: Assembling the Headlights Place the headlight support (supplied with Stage 79) on your work Each end of the support has a bracket with a small and large hole surface, then align the two headlights with it as shown. (arrows) for mounting the headlight.
Page 383 Stage 82: Assembling the Headlights S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 384 Pack 11 B U I L D I N S T R U C T I O N S STAGE 83: FITTING THE HEADLIGHTS STAGE 88: INSTALLING THE TO THE FRONT BODY HEADLIGHT EYELASHES AND BONNET REINFORCEMENT STRUCTURE STAGE 84: AT TACHING THE BONNET HINGES STAGE 89: FIT TING THE STAGE 85: ADDING THE LEFT INDICATOR FRONT BODY WHEEL ARCHES...
Page 385 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 386 Stage 83: Fitting the Headlights to the Front Body For the first stage of this pack, you’ll mount the headlights into the front body assembly and fit the hook for holding the bonnet grille in place. The parts supplied with this stage can be stored away until they are needed later.
Page 387 Stage 83: Fitting the Headlights to the Front Body Retrieve the front body supplied with Stage 80 and carefully place it Locate the two slotted supports (arrows) towards the front which will upside down on your work surface as shown. You may wish to cover be used for positioning the headlight support.
Page 388 Stage 83: Fitting the Headlights to the Front Body TYPE Q Take one of the support plates supplied with Stage 79 and place it over Secure the support plate in place using a Type Q screw (supplied with one of the slots highlighted in step 2. Stage 80).
Page 389 Stage 83: Fitting the Headlights to the Front Body TYPE S The headlights should look like this once fitted. Note that they should Now take the bonnet grille support and a Type S screw which were be able to tilt. supplied with Stage 81 (inset).
Page 390 Stage 83: Fitting the Headlights to the Front Body S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 391 Stage 84: Attaching the Bonnet Hinges In this stage you’ll attach the hinges for the front and rear of the body. You’ll also add a small detail to the bonnet reinforcement structure for holding the bonnet grille in place. The parts supplied with this stage can be stored away until they are needed later.
Page 392 Stage 84: Attaching the Front and Rear Hinges TYPE A Take the front body and place it upside down on your work surface. Take the left bonnet support bracket and fit it into the rectangular Inside the front part, along the lower edge, there are two rectangular recess.
Page 393 Stage 84: Attaching the Front and Rear Hinges Next take the front bonnet reinforcement structure assembled in Press the detail into the structure so that the curved recess (arrow) is Stage 81. The internal frame detail (supplied with Stage 81) fits into oriented as shown.
Page 394 Stage 84: Attaching the Front and Rear Hinges TYPE G TYPE G While gripping the hinge tightly, secure each one in place by driving a Type G screw from the outside towards the inside. The hinges should be able to move freely once secured. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 395 Stage 85: Adding the Left Indicator and Fog Light Next you’ll assemble and install the left fog light and indicator into the front body assembly. The parts supplied with this stage can be stored away until they are needed later. S T A G E 8 5 P A R T S L I S T Name Bonnet upper grille...
Page 396 Stage 85: Adding the Left Indicator and Fog Light Take the fog light body and lens which were supplied with Stage 82. The body of the light has two protrusions (top image, arrows) for fitting into the two recesses of the lens (inset, arrows). Align the protrusions and recesses then press the parts together.
Page 397 Stage 85: Adding the Left Indicator and Fog Light Press the long end of the indicator into the hole on the front body. The Turn the front body over and locate the hole (top image, arrow) for indicator is angled to fit flush with the body, inserting it partially and inserting the fog light.
Page 398 Stage 86: Adding the Right Indicator and Fog Light Now you’ll install the right fog light and indicator in the same way as the previous stage. The parts supplied with this stage can be stored away until they are needed later. S T A G E 8 6 P A R T S L I S T Name Wheel rim...
Page 399 Stage 86: Adding the Right Indicator and Fog Light Take the fog light body and lens which were supplied with Stage 83. Push the protrusions firmly into the recesses. As with the previous stage, there are two protrusions and two recesses for fitting the parts together.
Page 400 Stage 86: Adding the Right Indicator and Fog Light S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 401 Stage 87: Installing the Front Body Grilles For this stage you’ll fit the front grilles into the body assembly. Take care when handling the front grille as there are sharp edges! The parts supplied with this stage can be stored away until they are needed later.
Page 402 Stage 87: Installing the Front Body Grilles The front grille that you received with Stage 84 has some sharp edges: The holes highlighted in step 1 correspond with the seven pins (circled) to avoid possible injury, handle it with the care. Note the seven fixing on the support.
Page 403 Stage 87: Installing the Front Body Grilles Carefully press the pins of the support into the holes of the front body. Do not put pressure on the grille to avoid damaging it. Once in place, the support will not be flush with the profile of the bonnet, but will protrude slightly.
Page 404 Stage 87: Installing the Front Body Grilles Align the grille with the right-hand opening and press the bar into Check that the grille can be lifted up as shown. the hook (circled). The rectangular recess (arrow) should face upwards which will allow you to lift the grille up. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 405 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure In this stage you receive the beautiful rear body section for your Miura. Store it away for now, as you’ll finish working on the grilles for the front body assembly. The parts supplied with this stage can be stored away until they are needed later.
Page 406 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure Take the remaining upper grille and the fixing spring (both supplied Orient the grille as shown (note the shape of the edge, arrow) and fit with Stage 85) and arrange them on the work surface as shown. The the loops of the spring into the centre of the grille from underneath.
Page 407 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure Turn the front body upright and place it on your work surface. Retrieve Firmly press the pins of the headlight eyelashes into the holes. the left and right headlight eyelashes supplied with Stage 85. Align each pair with the appropriate headlight, noting the difference in the position of the pins for the top and bottom eyelashes (arrows).
Page 408 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure TYPE A TYPE A Start by fixing one side of the structure using a Type A screw (supplied Use another Type A screw (supplied with Stage 85) to secure the other with Stage 85).
Page 409: Type A Screws X3
Stage 89: Fitting the Front Body Wheel Arches Next you’ll fix the wheel arches into the front body, then assemble the final wheel for your model. The parts supplied with this stage can be stored away until they are needed later. S T A G E 8 9 P A R T S L I S T Name Right body bulkhead...
Page 410 Stage 89: Fitting the Front Body Wheel Arches Retrieve the left and right front wheel arches which were supplied in Stages 82 and 83. Place the front body assembly on your work surface and align the two wheel arches with it as shown. Note the holes in the front body assembly for mounting the bulkheads (arrows).
Page 411 Stage 89: Fitting the Front Body Wheel Arches TYPE A TYPE B TYPE B TYPE A To fix the wheel arches in place, you’ll need the Type A and Type B Use another Type A and Type B screw to secure the rear of the left screws supplied with Stage 85.
Page 412 Stage 89: Fitting the Front Body Wheel Arches With the wheel arches secure, the front body assembly should look Take the tyre and rim which were supplied with Stage 86. like this. You can store it away safely for now. As you did with the previous wheels, insert the rim into the tyre and Check that the rim is seated correctly on both sides of the tyre.
Page 413 Stage 89: Fitting the Front Body Wheel Arches S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 414 Stage 90: Fixing the Boot Lid In this stage you’ll attach the boot lid to the rear body using the hinges and brackets supplied in Stage 87. S T A G E 9 0 P A R T S L I S T Name Boot lock Right rear light reflector...
Page 415 Stage 90: Fixing the Boot Lid Take the rear body (supplied with Stage 88) and place it upside down on your work surface. To avoid scratching it, you may wish to place it on a cotton or microfiber cloth. Note the two recesses for fitting the hinges (arrows).
Page 416 Stage 90: Fixing the Boot Lid TYPE T TYPE T Fit one of the hinge brackets over the rectangular protrusion in the Using a Type T screw, fix the bracket in place. Repeat for the right- orientation shown in the image. hand (passenger’s) side with the remaining hinge, bracket and Type T screw (right image).
Page 417 Stage 90: Fixing the Boot Lid Install the boot lid in the space provided on the rear body. To stop Carefully turn the rear body over again with the boot lid in position. Fit it from falling during the next steps, secure it with two pieces of the pin in the right hinge into the hole of the boot lid so that the screw masking tape as shown.
Page 418 Stage 90: Fixing the Boot Lid S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 419 Stage 91: Installing the Bulkheads and Preparing the Rear Lights In the final stage for this pack, you’ll fit the bulkheads into place on the rear body of your model. You’ll also prepare the rear lights by fitting their reflectors into the housings. The parts supplied with this stage can be stored away until they are needed in the final pack.
Page 420 Stage 91: Installing the Bulkheads and Preparing the Rear Lights Retrieve the left rear light reflector and housing which were supplied Take the rear body supplied with Stage 88, along with the left with Stage 89 and align them as shown. Fit the reflector into place bulkhead and a Type A screw supplied with Stage 89.
Page 421 Stage 91: Installing the Bulkheads and Preparing the Rear Lights TYPE A Using the Type A screw, secure the bulkhead in place. Now take the right bulkhead and another Type A screw, supplied with Stage 89. Align the bulkhead with the rear body in the same way as before.
Page 422 Stage 91: Installing the Bulkheads and Preparing the Rear Lights Once the bulkheads have been fixed in place, the rear body should Finally, take the right rear light reflector and housing supplied with look like this. Stage 90. Fit the reflector into the housing, making sure the holes are aligned as before (inset).
Page 423 Pack 12 B U I L D I N S T R U C T I O N S STAGE 92: FIT TING THE REAR STAGE 96: AT TACHING THE STAGE 99: PREPARING THE LICENCE PLATE AND GRILLE WHEELS AND ADDING THE WINDSCREEN BERTONE LOGO STAGE 93: ASSEMBLING THE...
Page 424 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 425 Stage 92: Fitting the Rear Licence Plate and Grille In this stage, you’ll assemble the rear licence plate and fit it, along with the grille and licence plate lights, to the rear body. The parts supplied will be used in the next stage and can be kept aside for now.
Page 426 Stage 92: Fitting the Rear Licence Plate and Grille Take the licence plate lights and the licence plate glasses (supplied Press the pins of the glasses into the holes of the lights. Test fit the with Stage 90). The glasses have two pins (inset, arrows) which press glasses in as one edge is flatter than the other –...
Page 427 Stage 92: Fitting the Rear Licence Plate and Grille TYPE B With the lights in place, secure them using 2x Type B screws from Next take the boot lock (supplied with Stage 90, inset). This has a inside the body. shaped end for fitting into the hole (arrow) in the rear body located between the licence plate lights.
Page 428 Stage 92: Fitting the Rear Licence Plate and Grille Fit the plate by pressing its pins into the inner holes of the frame as Set the licence plate aside for now. Take the rear grille (supplied with shown in the top image, then press the frame trim into the outer Stage 91) along with the rear body assembly.
Page 429 Stage 92: Fitting the Rear Licence Plate and Grille TYPE D Using 4x Type D screws (supplied with Stage 91) secure the rear grille by driving the screws into the fixing points highlighted in the previous step. TYPE B Once the rear grille has been fixed, push the raised screw holes of the Turn the body around and secure the licence plate using 2x Type B licence plate into the two remaining holes in the rear body, between screws (supplied with Stage 91).
Page 430 Stage 92: Fitting the Rear Licence Plate and Grille S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 431 Stage 93: Assembling the Boot Compartment and Installing the Taillights You’ll now assemble the boot compartment, which houses the speaker for your model, using the parts provided and those from the previous stage. You’ll also fit the taillights into the rear body. S T A G E 9 3 P A R T S L I S T Name Boot compartment cover...
Page 432 Stage 93: Assembling the Boot Compartment and Installing the Taillights First you’ll assemble the boot compartment. Retrieve the boot Peel the backing paper from the adhesive cover as shown. compartment and adhesive cover (supplied with Stage 92). Note there is a square recess in the compartment (circled). Stick the adhesive cover into the recess of the compartment.
Page 433 Stage 93: Assembling the Boot Compartment and Installing the Taillights Press the black pins of the reverse light support into the holes located Turn the compartment over and place it on your work surface. by the adhesive cover in the compartment, so that the glass is facing Align the boot profile (supplied with Stage 92) with it as shown.
Page 434 Stage 93: Assembling the Boot Compartment and Installing the Taillights Set the boot compartment aside until it is needed in the next stage. Fit the taillight housings into the corresponding left and right holes in Take the taillight lenses (supplied with Stage 92), the taillight housings the rear body as shown by the arrows.
Page 435 Stage 93: Assembling the Boot Compartment and Installing the Taillights Take one of the taillight LEDs (supplied with Stage 89 and 90) and Push the other taillight LED into the hole on the right-hand side in the push the bulb end through the hole next to the raised screw hole on same way.
Page 436 Stage 93: Assembling the Boot Compartment and Installing the Taillights Check that the lenses are fully inserted into the housings so that they are aligned correctly. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 437 Stage 94: Fitting the Speaker, the Window Grille and the Boot Compartment Next you’ll fit the speaker into the boot compartment and then install it in the rear body. Afterwards, you’ll attach the prominent rear window grille of your Lamborghini Miura. S T A G E 9 4 P A R T S L I S T Name Rear reinforcement structure...
Page 438 Stage 94: Fitting the Speaker, the Window Grille and the Boot Compartment Take the boot compartment assembled in Stage 93 and place it on Position the speaker (supplied with Stage 93) in the circular recess your work surface as shown. Note there is a circular recess for fitting inside the boot, so that the wiring leads to your left (arrow), as shown the speaker (circled).
Page 439 Stage 94: Fitting the Speaker, the Window Grille and the Boot Compartment TYPE B TYPE B Secure the speaker in place by driving 2x Type B screws (supplied with Now take the boot compartment cover (supplied with Stage 93) and Stage 93) through the holes of the support.
Page 440 Stage 94: Fitting the Speaker, the Window Grille and the Boot Compartment Fit the pins of the hinge into the holes of the compartment Press firmly on the hinge until it sits flush with the raised holes. You (highlighted in steps 7 and 8), so that it is inclined towards the reverse can see that it is inclined towards the reverse light.
Page 441 Stage 94: Fitting the Speaker, the Window Grille and the Boot Compartment TYPE B Now take the rear reinforcement structure. Starting with the wide Fix the right-hand side of structure to the right body bulkhead using a ends, push the structure against the compartment (arrows), then Type B screw.
Page 442 Stage 94: Fitting the Speaker, the Window Grille and the Boot Compartment S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 443: Rear Body
Stage 95: Fitting the Rear Wheel Arches and Fixing the Rear Body The last step for constructing the rear body is to fix the wheel arches. Once that’s done, you’ll mount it onto the main assembly. S T A G E 9 5 P A R T S L I S T Name Left rear wheel arch Right rear wheel arch...
Page 444 Stage 95: Fitting the Rear Wheel Arches and Fixing the Rear Body Take the rear body assembly and place it on your work surface upside down, along with the left and right wheel arches as shown. Locate the fixing points: three screw holes (arrows) and a rectangular recess (inset) located underneath the lip of the body (circled) on either side. Note the protruding tabs on the arches (blue arrows) that fit into the rectangular recesses.
Page 445 Stage 95: Fitting the Rear Wheel Arches and Fixing the Rear Body TYPE S TYPE B Take a second Type B screw and use it to secure the wheel arch to the Finally, use a Type S screw to fix the wheel arch to the rear body. Check body bulkhead.
Page 446 Stage 95: Fitting the Rear Wheel Arches and Fixing the Rear Body Now you’ll attach the rear body to the main assembly. Place the assembly as shown on your work surface, noting the hinges at the rear that were fitted in Stage 84 (arrows). Lay the rear body on top of the central body, starting at the rear and fitting it flush with the roof and B-pillars.
Page 447 Stage 95: Fitting the Rear Wheel Arches and Fixing the Rear Body Holding the bodies together, carefully flip the model upside down. Insert the two hinges highlighted in step 8 into the corresponding holes of the boot compartment (inset, circled), as indicated by the arrows. TYPE B TYPE B Secure the right-hand side hinge using a Type B screw.
Page 448 Stage 95: Fitting the Rear Wheel Arches and Fixing the Rear Body Check the rear body opens and closes smoothly and that the fit is If it is necessary to adjust the closure, you must detach the rear part of flush between the two parts.
Page 449 Stage 96: Attaching the Wheels and Adding the Bertone Logo In this stage you’ll fit the four wheels of your model to the wheel hubs and add the beautifully detailed Bertone logo and script to the left-hand side of the body. S T A G E 9 6 P A R T S L I S T Name Wheel rim...
Page 450 Stage 96: Attaching the Wheels and Adding the Bertone Logo Take the wheel rim and insert it into the tyre as shown. Push the rim fully into the tyre and work the edges until the lip of the tyre is flush with the rim on both sides. Take the main body assembly and place it on your work surface.
Page 451 Stage 96: Attaching the Wheels and Adding the Bertone Logo Retrieve the other three tyres assembled previously, along with 4x Type I screws (inset). On the inside of the wheel rims are two notches (arrows). The notches correspond with the two lugs on each of the outer brake pads (arrows).
Page 452 Stage 96: Attaching the Wheels and Adding the Bertone Logo TYPE I Fit one of the wheels onto the front left brake pad, aligning the Use one of the Type I screws to fix the wheel in place. Tighten the notches with the lugs.
Page 453 Stage 96: Attaching the Wheels and Adding the Bertone Logo TYPE I TYPE I On the other side of the model, fix the last two wheels in place using 2x Type I screws. Now take the Bertone logo and script. The script has two small silver On the left-hand side of the model, locate the two holes in the central pins on the back.
Page 454 Stage 96: Attaching the Wheels and Adding the Bertone Logo S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 455 Stage 97: Adding the Battery Compartment and the Shield Emblem For this stage you’ll work on the bottom floor panel by adding the battery compartment and fixing the switch in place. You’ll also fix the shield emblem onto the front body. S T A G E 9 7 P A R T S L I S T Name Bottom floor panel...
Page 456 Stage 97: Adding the Battery Compartment and the Shield Emblem Take the front body and place it on your work surface. Note the two Retrieve the emblem (supplied in Stage 7). There are two pins on the holes on the nose for fitting the emblem (circled). back of the emblem (inset, arrows).
Page 457 Stage 97: Adding the Battery Compartment and the Shield Emblem Next take the battery compartment with a switch. There are two Fit the battery compartment into the shaped hole in the bottom floor mounting points on the side (arrows). panel, aligning the mounting points with the raised screw holes. TYPE B TYPE B Start to secure the compartment in place by driving a Type B screw...
Page 458 Stage 97: Adding the Battery Compartment and the Shield Emblem TYPE O Next take the switch and fit it into the rectangular recess in the middle Secure the switch in place using 2x Type O screws. of the floor panel as shown. Ensure it is oriented correctly, with the two wire connections closer to the battery compartment (arrows).
Page 459 Stage 97: Adding the Battery Compartment and the Shield Emblem Turn the battery compartment cover upside down and fit the washer Turn the bottom floor panel over and locate the two slots by the over the shaft of the screw (arrow). battery compartment for inserting the cover (arrows).
Page 460 Stage 97: Adding the Battery Compartment and the Shield Emblem S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 461 Stage 98: Fitting the Tailpipes and Connecting the Electrics As well as fitting the tailpipes to the rear body, you’ll now connect up the wires coming from the rear body of your model to the circuit board. The side skirts supplied will be used in the final stage and can be kept aside for now.
Page 462 Stage 98: Fitting the Tailpipes and Connecting the Electrics Retrieve the main assembly and place it upside down on your work The tailpipes are supplied in bags marked ‘R’ for right and ‘L’ for left. surface with the rear end facing you. There are two pairs of holes on They have two silver pins (arrows) for fitting into the holes in the rear the rear body (arrows) for mounting the tailpipes.
Page 463 Stage 98: Fitting the Tailpipes and Connecting the Electrics Locate the wire plugged into connection 7 (arrow) of the circuit board. Gently remove the plug in connection 7. Take the extension cable (supplied in Stage 97) and plug the male end Pass the female end of the extension cable under the crossbar and into connection 7 as shown.
Page 464 Stage 98: Fitting the Tailpipes and Connecting the Electrics You’ll now connect the wires from the rear body. Start with the right Continue to thread the wire by passing it under the rear lower taillight (white plug, black panel) and pass it under the exhaust pipe, suspension arm (arrow).
Page 465 Stage 98: Fitting the Tailpipes and Connecting the Electrics Guide the wire along the shaft and under the crossbar (arrow). Plug the right taillight wire into connection 12 (arrow). For the left taillight (white plug, black panel), take the end of the wire Lead the wire underneath the lower suspension arm (arrow).
Page 466 Stage 98: Fitting the Tailpipes and Connecting the Electrics Guide the wire under the frame and through into the central shaft Pass the wire under the crossbar, then plug into connection 11 (arrow). (arrow) and lead it towards the circuit board. Finally, take the speaker wire (white plug, brown panel) and guide it along the same path as the right taillight wire.
Page 467 Stage 98: Fitting the Tailpipes and Connecting the Electrics S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 468 Stage 99: Preparing the Windscreen After fitting the wheel hubs onto the rims, you’ll prepare the windscreen by fixing the glass into the trim. You’ll then place the “In rodaggio” sticker onto the glass, ready for the windscreen to be installed in the final stage.
Page 469 Stage 99: Preparing the Windscreen Place the main assembly onto your work surface. The outer rims of the wheel have a raised circle around the screws which will be used for fitting the wheel hubs (inset, arrow). Retrieve the four hub caps (supplied with Stage 96). Check the edges Fit one of the hubs caps over the raised circle of one of the wheels as for excess paint and remove using a hobby knife if necessary.
Page 470 Stage 99: Preparing the Windscreen Fit the remaining hub caps to the other wheels in the same way. Now take the windscreen trim and lay it on your work surface as shown. The double-sided adhesive tape for fixing the windscreen must be applied to the lip on the inside (concave) part of the windscreen trim, as indicated by the arrows.
Page 471 Stage 99: Preparing the Windscreen Take the double-sided adhesive tape for fitting the windscreen and place it on your work surface in the orientation shown. There are two of each piece supplied so that if one gets damaged you can use the spare one. Arrange the double-sided adhesive around the trim as shown in the photo, paying attention to the numbering of the individual pieces shown in the left image.
Page 472 Stage 99: Preparing the Windscreen Now take the windshield, which is covered with protective films: one Press the side of the windscreen without the protective film into the transparent and one green. Remove the transparent protective sheet. trim. Start with the top corners (arrows), then press the screen into Be sure to handle the windscreen by holding it by the outer edges to the lip, working around the trim slowly so that the screen fits into the avoid leaving fingerprints on the unprotected surface.
Page 473 Stage 99: Preparing the Windscreen Take the sticker and carefully remove its backing paper. Hold the Place the sticker as shown in the windscreen’s upper corner on the sticker with tweezers to avoid damaging it once removed. passenger side. Make sure the area is clean of any dust or fingerprints before sticking.
Page 474 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details The final stage of your Lamborghini Miura build is to attach the front body and connect up the wiring. You’ll then fit the bottom floor panel and side skirts, add some final details around the model, then finish by applying the logo stickers...
Page 475 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details To begin the final stage of your build, retrieve the front body assembly. Place the main assembly nearby on your work surface and ensure the rear body is secured by masking tape (arrows).
Page 476 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Use masking tape to hold the front body in place, applying pieces Carefully turn the assembly over then fit the two mounting brackets around all sections that align with the central body. onto the screw holes in the frame (circled).
Page 477 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details To connect the headlights, first locate the plug from the left headlight Carefully lift up the radiator pipe and fit the plug through it (arrow). and pass it under the suspension arm (arrow)..
Page 478 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Next retrieve the bottom floor panel. The switch has a loose plug Guide the wire under the crossbar as before and plug the switch into (arrow) to connect to the circuit board before fitting the panel.
Page 479 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details TYPE K TYPE K Fix the right-hand side using a Type K screw. Use a Type K screw to secure the left-hand side in the same way. TYPE B TYPE B Drive 2x Type B screws (supplied with Stage 97) into the raised screw holes either side of the floor panel.
Page 480 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details TYPE A Finish fixing the floor panel using 2x Type A screws (supplied with Stage 97) in the holes located either side of the battery compartment. Retrieve the two side skirts (supplied with Stage 98).
Page 481 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Before fitting them, note the fixing points for the skirts: on the lower Place the assembly upright on your work surface and open the driver’s edge there are two holes to be coupled to the floor pins (circled);...
Page 482 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Takle the chassis and engine number plate (inset) and remove the Take the front license plate and its support. Check the license plate backing paper. Open the front hood and position the plate on the for any excess paint and remove if necessary.
Page 483 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details LOGO SCRIPT Apply the template to the right-hand side of the model, placing it Now take the double-sided adhesive tape for the Bertone logo and between the door and the rear of the body as shown.
Page 484 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Next take one of the pieces of adhesive tape for the Bertone logo and With the aid of the template, position the logo above the script. remove it from its backing.
Page 485 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Take the two door stop shims and the double-sided adhesive tape (top Next you’ll mount the windscreen. Place the main assembly on your image). Remove one of the circles of tape from its backing and stick it work surface with the front facing you.
Page 486 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Once the tape is in place, peel the paper off each piece to reveal the adhesive as shown. Press the pins highlighted in step 40 into the holes highlighted in step 39 to fit the windscreen. Push down firmly on the sections with double-sided tape to adhere the windscreen in place.
Page 487 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Using tweezers, take the two washer nozzles (inset) and push firmly Fit the remaining washer nozzle into the left-hand side hole in the to fit one of them into the right-hand side hole highlighted in the same way.
Page 488 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details The last few steps are to apply the logos to the rear of the model. First, take the rear logo templates and separate them from their backing. Apply them to the rear body as shown, using the taillights as a guide for fitting them in place (arrows).
Page 489 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details Press firmly down on the two stickers to ensure they have adhered, then slowly remove the transparent film that protects the stickers using a pair of tweezers. You may wish to have a cocktail stick to hand in order to gently press the sticker back if any part of it begins to peel away with the film.
Page 490 Stage 100: Attaching the Front Body, the Side Skirts, the Licence Plate and Adding Details S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
Page 491 Installing the Batteries and Operating the Electrics ELECTRONIC FUNCTIONS Button Location Function Engine ignition sound. Note that all functions below Ignition key require the key to be inserted to operate. Indicator/horn lever Headlights and taillights lights (pull) Indicator/horn lever Horn sound (push) Accelerator pedal Accelerator sound...
Page 492 Installing the Batteries and Operating the Electrics To insert the batteries, turn the model over and remove the battery Insert three AAA batteries, orienting them as indicated by the compartment cover. To do this, you have to loosen the cover screw markings inside the battery compartment.
Page 493 Installing the Batteries and Operating the Electrics While either or both of the doors are open, the interior light on the roof Pressing the accelerator pedal (red arrow) will activate the acceleration will illuminate. sound. By pressing on the brake pedal (blue arrow), the taillights will illuminate (inset).
Page 494 Build Complete! Build Complete! We hope you have enjoyed building your Lamborghini Miura P400 S. Don’t forget, when you choose your next model the first Pack is absolutely free! Go to agoramodels.com for more details. Warning: to keep your model in pristine condition please keep out of direct sunlight. AGORAMODELS LAMBORGHINI MIURA...

Agora Models LAMBORGHINI MIURA Pack 01 Build Instructions

Stage 81: Building the Bonnet Reinforcement Structure (2)

Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agora Models LAMBORGHINI MIURA Pack 01

Summary of Contents for Agora Models LAMBORGHINI MIURA Pack 01

Page 376: Table Of Contents

Page 380: The Bag Of Parts Supplied With This

Page 409: Type A Screws X3

Page 443: Rear Body

Table of Contents
