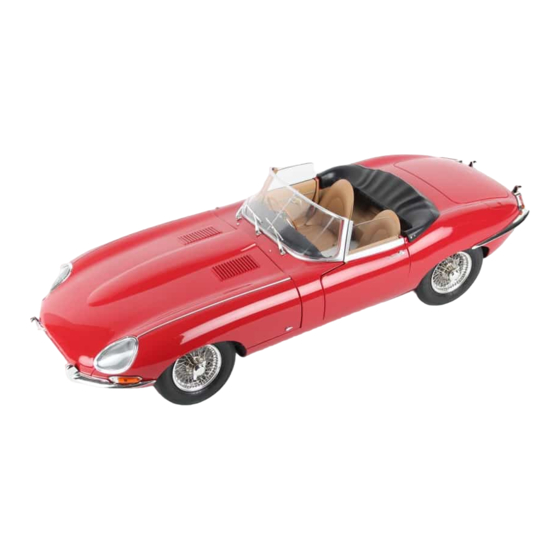

Summary of Contents for Agora Models Jaguar E-Type Pack 10
Page 1
Pack 10 B U I L D I N S T R U C T I O N S STAGE 74: RIGHT-HAND HEADLIGHT COVER STAGE 79: REAR LEFT WHEEL – AND VALANCE FIT TING THE INNER SPOKES STAGE 75: LEFT-HAND HEADLIGHT COVER STAGE 80: REAR LEFT WHEEL –...
Page 2
Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
Page 3
Stage 74: Right-hand Headlight Cover and Valance In this first stage of Pack 10 you’ll fit the valance, which reinforces and improves airflow of the bonnet, as well as assembling and attaching the cover for the right headlight. The bonnet grille and catch are also fitted in this stage.
Page 4
Stage 74: Right-hand Headlight Cover and Valance AM09 Take the bonnet assembly from Stage 73. Align the bonnet grille and Fit the bonnet grille and catch into place, then secure in place with 2x catch with the two holes on the underside of the bonnet as shown. AM09 screws.
Page 5
Stage 74: Right-hand Headlight Cover and Valance When happy with the fit, apply a small amount of PVA glue to the Now take the right headlight surround and glass cover. Note the three lugs (arrows) and tabs (circled) for fitting the parts together. We surround.
Page 6
Stage 74: Right-hand Headlight Cover and Valance The cover should look like this once it has been fitted onto the bonnet Align the headlight cover with the right-hand headlight as shown. Take care to fit the notch (inset) into place first, then press the cover over the headlight.
Page 7
Stage 75: Left-hand Headlight Cover and Valance The next stage is to fit the left-hand valance to the bonnet, which features the air intake for the heaters. You’ll assemble and attach the left headlight cover as well. S T A G E 7 5 P A R T S L I S T Name Left-hand valance Heater air intake...
Page 8
Stage 75: Left-hand Headlight Cover and Valance Take the heater air intake and align it with the left-hand valance as Firmly press the heater air intake onto the valance. shown. Note the indent in the valance to accommodate the heater air intake (arrow).
Page 9
Stage 75: Left-hand Headlight Cover and Valance Now take the left headlight surround and glass cover. Apply a small amount of PVA glue to the surround. Firmly press the two parts together so that the fit is flush and allow the Fit the headlight cover in place, taking care to fit the notch (inset) into glue time to dry.
Page 10
Stage 75: Left-hand Headlight Cover and Valance S T A G E C O M P L E T E AGORAMODELS JAGUAR E-TYPE...
Page 11
Stage 76: Attaching the Stone Guard In this stage you’ll assemble and attach the stone guard to the bonnet. S T A G E 7 6 P A R T S L I S T Name Stone guard frame Stone guard mesh Screws type AG01 x5 Screws type AM10 x3 Stone guard frame...
Page 12
Stage 76: Attaching the Stone Guard AG01 Place the stone guard mesh into the recessed area of the stone guard Secure the mesh in place using 4x AG01 screws. frame as shown. Take the stone guard and align it with the underside of the bonnet The stone guard should look like this once in place.
Page 13
Stage 76: Attaching the Stone Guard AM10 Fix the stone guard to the bonnet using 2x AM10 screws. S T A G E C O M P L E T E AGORAMODELS JAGUAR E-TYPE...
Page 14
Stage 77: The Front Underpanel Next the front underpanel is put in place to reinforce the bonnet further. S T A G E 7 7 P A R T S L I S T Name Front underpanel Screws type AM11 x3 Screws type AM15 x3 Front underpanel AM11 x3...
Page 15
Stage 77: The Front Underpanel Before fitting the front underpanel, ensure that the wires from the Take the front underpanel. Note that on each end, there is a small plug sidelights are tucked into the openings for them provided by the that corresponds to a small hole in the bonnet (arrow).
Page 16
Stage 77: The Front Underpanel AM11 This image shows the plugs properly located in the holes after the On the other side of the underpanel, drive 2x AM11 screws into the screw holes located next to the small plugs. As you do, make sure the AM11 screws have been driven in.
Page 17
Stage 78: Rear Left Wheel Outer Rim There is no assembly in this stage, unpack the wheel components and move straight to Stage 79. S T A G E 7 8 P A R T S L I S T Name Inner spokes x24 Wheel rim (outer)
Page 18
Stage 79: Rear Left Wheel – Fitting the Inner Spokes In this stage you’ll begin assembling the rear left wheel. The process for this final wheel is exactly the same as for the previous wheels. S T A G E 7 9 P A R T S L I S T Name Spoke retainer ring Wheel centre...
Page 19
Stage 79: Rear Left Wheel – Fitting the Inner Spokes S T E P 1 Take the wheel centre and note that there is a small notch that aligns Fit the wheel centre onto the jig. with a corresponding tab on the jig (arrows). The jig is used here to assist with building the wheel and will be removed towards the end of the wheel-build.
Page 20
Stage 79: Rear Left Wheel – Fitting the Inner Spokes Outer row Inner row Angled tip Narrow tooth Flat head Wide tooth Before you begin, note that the inner edge of the spoke retainer Pull the spoke through the hole and hook the tip around the nearest ring has a series of ‘teeth’, alternating in size (see picture 6).
Page 21
Stage 79: Rear Left Wheel – Fitting the Inner Spokes This is how your wheel should look after fitting the first row of spokes. Check that all the spokes have been fitted to the innermost row of the wheel centre. Next, you will fit spokes to the uppermost row. Start in the same way, threading the tip of a spoke through a hole in The spoke tips will now face in the opposite direction to those fitted the uppermost row.
Page 22
Stage 79: Rear Left Wheel – Fitting the Inner Spokes Repeat steps 11 & 12 to fit the second spoke in a hole adjacent to the Continue to fit all the spokes in the same way, all the way round the first spoke on the upper row.
Page 23
Stage 79: Rear Left Wheel – Fitting the Inner Spokes Hold the retainer in position so that the spokes are secured as you fit Keep holding everything together as you fit the remaining an AG02 screw. 3 x AG02 screws. AG02 AG02 All four screws have been fitted and the spokes are now held securely...
Page 24
Stage 79: Rear Left Wheel – Fitting the Inner Spokes S T A G E C O M P L E T E AGORAMODELS JAGUAR E-TYPE...
Page 25
Stage 80: Rear Left Wheel – Fitting More Spokes In this next stage you’ll continue to lace more spokes. The tyre will be supplied in the next stage. S T A G E 8 0 P A R T S L I S T Name Spacer ring Wheel rim (inner)
Page 26
Stage 80: Rear Left Wheel – Fitting More Spokes S T E P 1 Take the spacer ring and align it over the wheel from Stage 79. There is Lower the ring onto the wheel and press firmly until it clicks into place. a hole on the ring with a corresponding peg on the wheel (arrows) to ensure the correct fit.
Page 27
Stage 80: Rear Left Wheel – Fitting More Spokes Wide tooth Turn the wheel over and check that the tip will hook onto a wide tooth Once you are happy that the first spoke is fitted correctly, thread the on the opposite side. If it doesn’t fit a wide tooth, start again, threading next spoke through an adjacent hole in the lower row, but this time, the spoke through the next diamond-shaped hole along.
Page 28
Stage 80: Rear Left Wheel – Fitting More Spokes The 12 spokes should poke out on the opposite side of the wheel like Fit the type B spokes to the outer row of the wheel centre, just above this. Leave them all loose for now. the type A spokes.
Page 29
Stage 80: Rear Left Wheel – Fitting More Spokes Continue to thread the type B spokes all the way around the outer row, Use a piece of cotton wool or kitchen paper to hold the pin ends of the pushing the spoke through alternate diamond-shaped openings. This spokes in place in the inner and outer rows of the wheel centre.
Page 30
Stage 80: Rear Left Wheel – Fitting More Spokes Spokes A and B are correctly hooked in place around the teeth. Take the inner wheel rim and align the four screw holes, and the pin with its corresponding hole (arrows). Prepare 4 x AG03 screws and a screwdriver.
Page 31
Stage 80: Rear Left Wheel – Fitting More Spokes S T A G E C O M P L E T E AGORAMODELS JAGUAR E-TYPE...
Page 32
Stage 81: Rear Left Wheel – Fitting the Tyre Now you’ll fit the tyre onto the rear left wheel and attach it to the subframe assembly. After this stage, your Jaguar will have all its wheels in place! S T A G E 8 1 P A R T S L I S T Name Tyre Washer...
Page 33
Stage 81: Rear Left Wheel – Fitting the Tyre S T E P 1 Take the completed wheel from Stage 80. Prepare a hot water bath by Carefully remove the tyre from the water bath using tongs or tweezers filling a small bowl with boiling water. Soak the tyre in the water for 2 - the tyre will be very hot! Shake off any excess water and dab on minutes.
Page 34
Stage 81: Rear Left Wheel – Fitting the Tyre The tyre has now been fully fitted to the wheel and is now ready to fix Prepare the front subframe assembly and rear left wheel. to the front subframe assembly from Stage 48. Lift the left-hand hub carrier and insert the universal joint fully into the Holding the wheel as shown, align the two lugs on the wheel centre hub carrier.
Page 35
Stage 81: Rear Left Wheel – Fitting the Tyre AM07 Take the washer and place it into the wheel centre. Secure the washer and wheel in place using a type AM07 screw. S T A G E C O M P L E T E AGORAMODELS JAGUAR E-TYPE...
Page 36
Stage 82: The Boot Cover In this final stage for Pack 10, you’ll assemble the boot cover by attaching the hinges and catch. The mounting plates will be used in a later stage and can be stored away safely for now. S T A G E 8 2 P A R T S L I S T Name Boot lid...
Page 37
Stage 82: The Boot Cover Differentiate the left boot hinge from the right using the ‘L’ and ‘R’ Take the left boot hinge and position it on the underside of the boot (circled) printed on the parts. lid as shown (arrow) so that the two sets of screw holes align. AM18 AM18 Secure the hinge in place using 2x AM18 screws.
Page 38
Stage 82: The Boot Cover AM09 Secure the catch to the lid using 2x AM09 screws. Now take the boot lid catch and align it with the four holes on the underside of the lid as shown. Press into place so that the two lugs on the catch fit into the corresponding holes (arrows).
