B U I L D
STAGE 83: FITTING THE HEADLIGHTS
TO THE FRONT BODY
STAGE 84: AT TACHING THE BONNET HINGES
STAGE 85: ADDING THE LEFT INDICATOR
AND FOG LIGHT
STAGE 86: ADDING THE RIGHT INDICATOR
AND FOG LIGHT
STAGE 87: INSTALLING THE
FRONT BODY GRILLES
The "Automobili Lamborghini" and "Automobili Lamborghini Bull and Shield" trademarks, copyrights,
Pack 11
I N S T R U C T I O N S
designs and models are used under license from Automobile Lamborghini S.p.A, Italy.
STAGE 88: INSTALLING THE
HEADLIGHT EYELASHES AND BONNET
REINFORCEMENT STRUCTURE
STAGE 89: FIT TING THE
FRONT BODY WHEEL ARCHES
STAGE 90: FIXING THE BOOT LID
STAGE 91: INSTALLING THE BULKHEADS
AND PREPARING THE BRAKE LIGHTS
Advertisement
Related Manuals for Agora Models Lamborghini MIURA Pack 11
Summary of Contents for Agora Models Lamborghini MIURA Pack 11

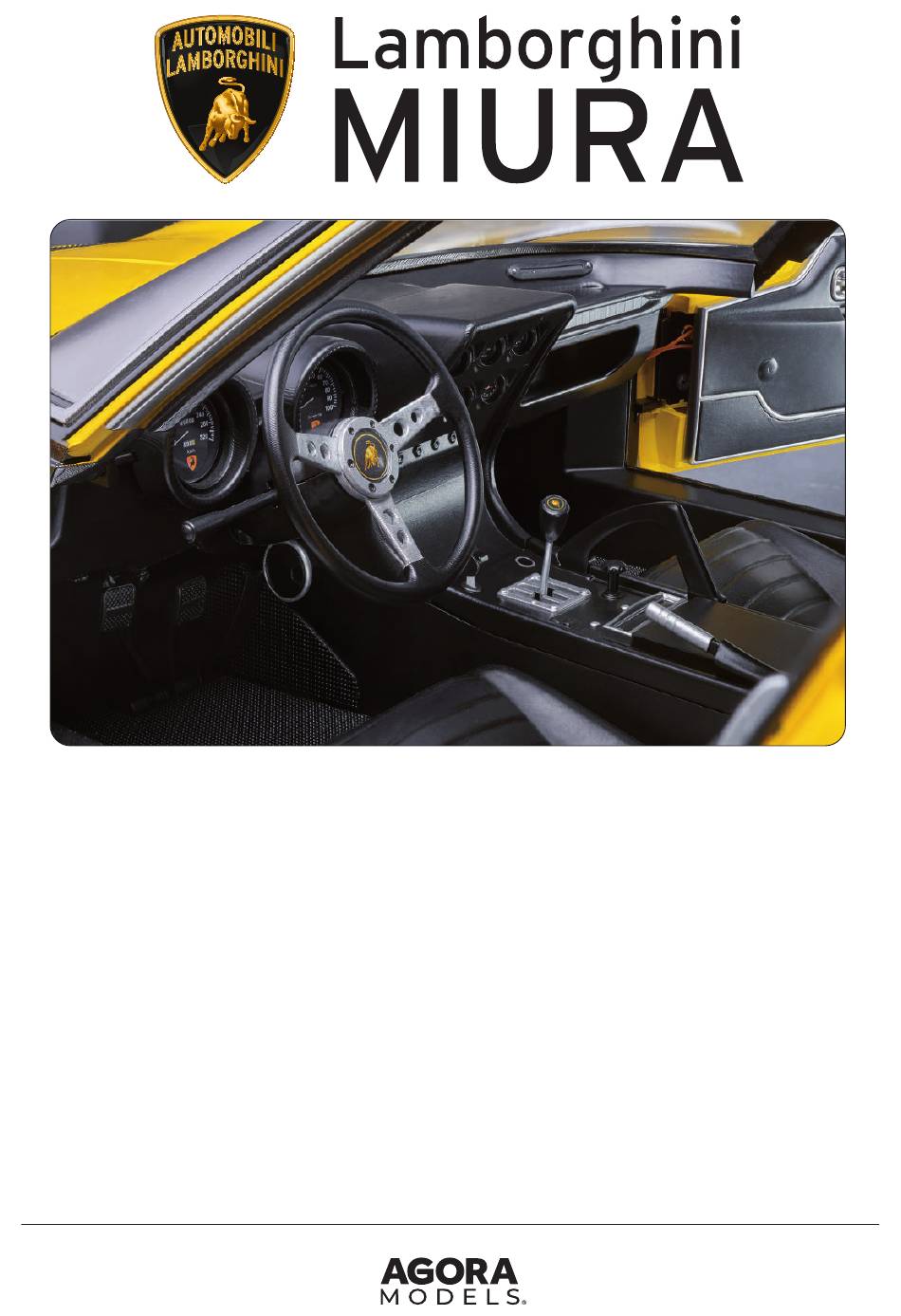

- Page 1 Pack 11 B U I L D I N S T R U C T I O N S STAGE 83: FITTING THE HEADLIGHTS STAGE 88: INSTALLING THE TO THE FRONT BODY HEADLIGHT EYELASHES AND BONNET REINFORCEMENT STRUCTURE STAGE 84: AT TACHING THE BONNET HINGES STAGE 89: FIT TING THE STAGE 85: ADDING THE LEFT INDICATOR FRONT BODY WHEEL ARCHES...
- Page 2 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
- Page 3 Stage 83: Fitting the Headlights to the Front Body For the first stage of this pack, you’ll mount the headlights into the front body assembly and fit the hook for holding the bonnet grille in place. The parts supplied with this stage can be stored away until they are needed later.
- Page 4 Stage 83: Fitting the Headlights to the Front Body Retrieve the front body supplied with Stage 80 and carefully place it Locate the two slotted supports (arrows) towards the front which will upside down on your work surface as shown. You may wish to cover be used for positioning the headlight support.
- Page 5 Stage 83: Fitting the Headlights to the Front Body TYPE Q Take one of the support plates supplied with Stage 79 and place it over Secure the support plate in place using a Type Q screw (supplied with one of the slots highlighted in step 2. Stage 80).
- Page 6 Stage 83: Fitting the Headlights to the Front Body TYPE S The headlights should look like this once fitted. Note that they should Now take the bonnet grille support and a Type S screw which were be able to tilt. supplied with Stage 81 (inset).
- Page 7 Stage 83: Fitting the Headlights to the Front Body S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
- Page 8 Stage 84: Attaching the Bonnet Hinges In this stage you’ll attach the hinges for the front and rear of the body. You’ll also add a small detail to the bonnet reinforcement structure for holding the bonnet grille in place. The parts supplied with this stage can be stored away until they are needed later.
- Page 9 Stage 84: Attaching the Front and Rear Hinges TYPE A Take the front body and place it upside down on your work surface. Take the left bonnet support bracket and fit it into the rectangular Inside the front part, along the lower edge, there are two rectangular recess.
- Page 10 Stage 84: Attaching the Front and Rear Hinges Next take the front bonnet reinforcement structure assembled in Press the detail into the structure so that the curved recess (arrow) is Stage 81. The internal frame detail (supplied with Stage 81) fits into oriented as shown.
- Page 11 Stage 84: Attaching the Front and Rear Hinges TYPE G TYPE G While gripping the hinge tightly, secure each one in place by driving a Type G screw from the outside towards the inside. The hinges should be able to move freely once secured. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
- Page 12 Stage 85: Adding the Left Indicator and Fog Light Next you’ll assemble and install the left fog light and indicator into the front body assembly. The parts supplied with this stage can be stored away until they are needed later. S T A G E 8 5 P A R T S L I S T Name Bonnet upper grille...
- Page 13 Stage 85: Adding the Left Indicator and Fog Light Take the fog light body and lens which were supplied with Stage 82. The body of the light has two protrusions (top image, arrows) for fitting into the two recesses of the lens (inset, arrows). Align the protrusions and recesses then press the parts together.
- Page 14 Stage 85: Adding the Left Indicator and Fog Light Press the long end of the indicator into the hole on the front body. The Turn the front body over and locate the hole (top image, arrow) for indicator is angled to fit flush with the body, inserting it partially and inserting the fog light.
- Page 15 Stage 86: Adding the Right Indicator and Fog Light Now you’ll install the right fog light and indicator in the same way as the previous stage. The parts supplied with this stage can be stored away until they are needed later. S T A G E 8 6 P A R T S L I S T Name Wheel rim...
- Page 16 Stage 86: Adding the Right Indicator and Fog Light Take the fog light body and lens which were supplied with Stage 83. Push the protrusions firmly into the recesses. As with the previous stage, there are two protrusions and two recesses for fitting the parts together.
- Page 17 Stage 86: Adding the Right Indicator and Fog Light S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
- Page 18 Stage 87: Installing the Front Body Grilles For this stage you’ll fit the front grilles into the body assembly. Take care when handling the front grille as there are sharp edges! The parts supplied with this stage can be stored away until they are needed later.
- Page 19 Stage 87: Installing the Front Body Grilles The front grille that you received with Stage 84 has some sharp edges: The holes highlighted in step 1 correspond with the seven pins (circled) to avoid possible injury, handle it with the care. Note the seven fixing on the support.
- Page 20 Stage 87: Installing the Front Body Grilles Carefully press the pins of the support into the holes of the front body. Do not put pressure on the grille to avoid damaging it. Once in place, the support will not be flush with the profile of the bonnet, but will protrude slightly.
- Page 21 Stage 87: Installing the Front Body Grilles Align the grille with the right-hand opening and press the bar into Check that the grille can be lifted up as shown. the hook (circled). The rectangular recess (arrow) should face upwards which will allow you to lift the grille up. S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
- Page 22 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure In this stage you receive the beautiful rear body section for your Miura. Store it away for now, as you’ll finish working on the grilles for the front body assembly. The parts supplied with this stage can be stored away until they are needed later.
- Page 23 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure Take the remaining upper grille and the fixing spring (both supplied Orient the grille as shown (note the shape of the edge, arrow) and fit with Stage 85) and arrange them on the work surface as shown. The the loops of the spring into the centre of the grille from underneath.
- Page 24 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure Turn the front body upright and place it on your work surface. Retrieve Firmly press the pins of the headlight eyelashes into the holes. the left and right headlight eyelashes supplied with Stage 85. Align each pair with the appropriate headlight, noting the difference in the position of the pins for the top and bottom eyelashes (arrows).
- Page 25 Stage 88: Installing the Headlight Eyelashes and Bonnet Reinforcement Structure TYPE A TYPE A Start by fixing one side of the structure using a Type A screw (supplied Use another Type A screw (supplied with Stage 85) to secure the other with Stage 85).
- Page 26 Stage 89: Fitting the Front Body Wheel Arches Next you’ll fix the wheel arches into the front body, then assemble the final wheel for your model. The parts supplied with this stage can be stored away until they are needed later. S T A G E 8 9 P A R T S L I S T Name Right body bulkhead...
- Page 27 Stage 89: Fitting the Front Body Wheel Arches Retrieve the left and right front wheel arches which were supplied in Stages 82 and 83. Place the front body assembly on your work surface and align the two wheel arches with it as shown. Note the holes in the front body assembly for mounting the bulkheads (arrows).
- Page 28 Stage 89: Fitting the Front Body Wheel Arches TYPE A TYPE B TYPE B TYPE A To fix the wheel arches in place, you’ll need the Type A and Type B Use another Type A and Type B screw to secure the rear of the left screws supplied with Stage 85.
- Page 29 Stage 89: Fitting the Front Body Wheel Arches With the wheel arches secure, the front body assembly should look Take the tyre and rim which were supplied with Stage 86. like this. You can store it away safely for now. As you did with the previous wheels, insert the rim into the tyre and Check that the rim is seated correctly on both sides of the tyre.
- Page 30 Stage 89: Fitting the Front Body Wheel Arches S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
- Page 31 Stage 90: Fixing the Boot Lid In this stage you’ll attach the boot lid to the rear body using the hinges and brackets supplied in Stage 87. S T A G E 9 0 P A R T S L I S T Name Boot lock Right brake light reflector...
- Page 32 Stage 90: Fixing the Boot Lid Take the rear body (supplied with Stage 88) and place it upside down on your work surface. To avoid scratching it, you may wish to place it on a cotton or microfiber cloth. Note the two recesses for fitting the hinges (arrows).
- Page 33 Stage 90: Fixing the Boot Lid TYPE T TYPE T Fit one of the hinge brackets over the rectangular protrusion in the Using a Type T screw, fix the bracket in place. Repeat for the right- orientation shown in the image. hand (passenger’s) side with the remaining hinge, bracket and Type T screw (right image).
- Page 34 Stage 90: Fixing the Boot Lid Install the boot lid in the space provided on the rear body. To stop Carefully turn the rear body over again with the boot lid in position. Fit it from falling during the next steps, secure it with two pieces of the pin in the right hinge into the hole of the boot lid so that the screw masking tape as shown.
- Page 35 Stage 90: Fixing the Boot Lid S T A G E C O M P L E T E AGORAMODELS LAMBORGHINI MIURA...
- Page 36 Stage 91: Installing the Bulkheads and Preparing the Brake Lights In the final stage for this pack, you’ll fit the bulkheads into place on the rear body of your model. You’ll also prepare the brake lights by fitting their reflectors into the housings. The parts supplied with this stage can be stored away until they are needed in the final pack.
- Page 37 Stage 91: Installing the Bulkheads and Preparing the Brake Lights Retrieve the left brake light reflector and housing which were supplied Take the rear body supplied with Stage 88, along with the left with Stage 89 and align them as shown. Fit the reflector into place bulkhead and a Type A screw supplied with Stage 89.
- Page 38 Stage 91: Installing the Bulkheads and Preparing the Brake Lights TYPE A Using the Type A screw, secure the bulkhead in place. Now take the right bulkhead and another Type A screw, supplied with Stage 89. Align the bulkhead with the rear body in the same way as before.
- Page 39 Stage 91: Installing the Bulkheads and Preparing the Brake Lights Once the bulkheads have been fixed in place, the rear body should Finally, take the right brake light reflector and housing supplied with look like this. Stage 90. Fit the reflector into the housing, making sure the holes are aligned as before (inset).
