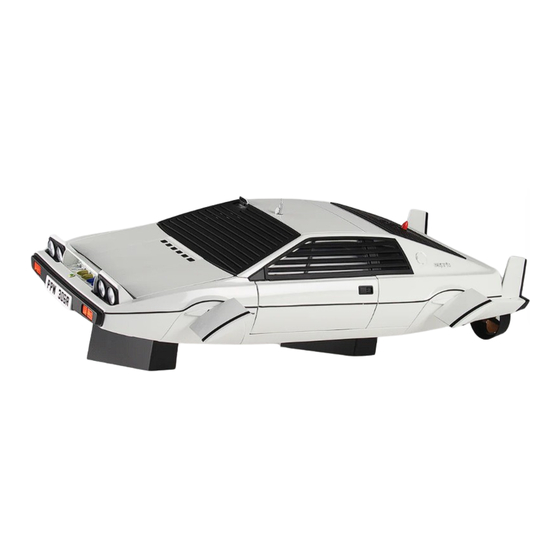

Agora Models LOTUS esprit Build Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Pack 01
B U I L D
I N S T R U C T I O N S
STAGE 001: ASSEMBLING THE BONNET
STAGE 004: FIT TING THE RIGHT DOOR
HANDLE, LOCK MECHANISM, HINGE ,
STAGE 002: BUILDING THE FRONT WINGS
AND WINDOW
AND BUMPER
STAGE 005: BUILDING THE RIGHT DOOR
STAGE 003: CONSTRUCTING THE ENGINE
INTERIOR PANEL
CYLINDER HEAD
STAGE 006: ASSEMBLING THE RIGHT DOOR
THE SPY WHO LOVED ME © Danjaq, LLC and Metro-Goldwyn-Mayer Studios Inc. THE SPY WHO LOVED ME,
and related James Bond Indicia © 1962-2024 Danjaq, LLC
and Metro-Goldwyn-Mayer Studios Inc. THE SPY WHO LOVED ME,
and related James Bond Trademarks are trademarks of Danjaq, LLC. All Rights Reserved.
Produced under licence from Group Lotus LTD. LOTUS, the Lotus Roundel, car names and all associated logos and distinctive designs
are trade marks of Group Lotus LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOTUS esprit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agora Models LOTUS esprit

Summary of Contents for Agora Models LOTUS esprit

  • Page 1 Pack 01 B U I L D I N S T R U C T I O N S STAGE 001: ASSEMBLING THE BONNET STAGE 004: FIT TING THE RIGHT DOOR HANDLE, LOCK MECHANISM, HINGE , STAGE 002: BUILDING THE FRONT WINGS AND WINDOW AND BUMPER STAGE 005: BUILDING THE RIGHT DOOR...
  • Page 2 Left and Right! When building your The Spy Who Loved Me Lotus Esprit, the left- or right-hand side refers to that side as if you are sitting in the car.
  • Page 3 S T A G E 0 0 1 P A R T S L I S T Name 1-A Bonnet 1-B Bonnet subframe 1-C Air intake grille 1-D Bonnet strut bracket DS20 screws x5 Screwdriver Screwdriver DS20 x5 AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 4 Take the bonnet subframe (1-B) and fit the strut bracket (1-D) onto the two pins as shown. Lay the bonnet (1-A) face down then position the air intake grille (1-C) into the recess as shown. The grille can be fitted either way up. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 5 Stage 001: Assembling the Bonnet Align the subframe with the bonnet as shown and fit into place. DS20 DS20 Secure the parts together using 4x DS20 screws. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 6 Stage 001: Assembling the Bonnet S T A G E C O M P L E T E AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 7 S T A G E 0 0 2 P A R T S L I S T Name 2-A Front wings 2-E Front left reflector 2-B Front bumper panel 2-F Front left lens 2-C Front right reflector PS02 screws x7 2-D Front right lens PS02 x7 AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 8 (2-B). The lens and the panel are marked with ‘R’ (circled). PS02 Fit the front right reflector (2-C), marked with Secure the reflector with 2x PS02 screws. an ‘R’ (circled), over the screw posts. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 9 Fit the left lens (2-F) into the left side of the panel Fit the left reflector then fix with 2x PS02 screws. (marked ‘L’). Align the panel with the front wings (2-A) using the pins and screw posts as a guide. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 10 Stage 002: Building the Front Wings and Bumper Fit the panel in place. PS02 Drive 2x PS02 screws from inside the bumper to secure together. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 11 Stage 002: Building the Front Wings and Bumper S T A G E C O M P L E T E AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 12 3-I Cam cover cap x2 3-D Left cam cover bottom PS01 screws x3 3-E Right cam cover bottom PS02 screws x12 3-F Gear x2 3-F x2 3-I x2 3-G x4 PS01 x3 PS02 x12 AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 13 Press the cap in place. of a cam cover bottom as shown. PS01 Secure the cap with a PS01 screw. Fit one of the gears (3-F) into the opposite end of the cam cover. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 14 PS01 and PS02 screw as shown. PS02 Fit the oil cap (3-H) into the shaped recess on the Secure using a PS02 screw. right cam cover top (3-B). AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 15 Fit the top onto the bottom. shown. Both parts are marked with ‘R’ (circled). PS02 Secure together with 2x PS02 screws. Align the left cam cover top and bottom (both marked with ‘L’) as shown. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 16 Take a spark plug (3-G) and push the thicker end Fit the remaining spark plugs into the engine (inset) into one of the holes in the engine cylinder cylinder head as shown. head (3-A). AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 17 The position of the black pin means there is only one way the parts can fit together. PS02 Secure with 2x PS02 screws. Align the left cam cover and the cylinder head. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 18 Stage 003: Constructing the Engine Cylinder Head PS02 Fit the cover in place then secure using 2x PS02 screws. S T A G E C O M P L E T E AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 19 4-C Door hinge plate 4-I Door lock bracket (thin) 4-D Door hinge mount PS02 screws x2 4-E Right door handle DS05 screws x4 4-F Door lock DS23 screws x5 PS02 x2 DS05 x4 DS23 x5 AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 20 Stage 004: Fitting the Right Door Handle, Lock Mechanism, Hinge, and Window Take the right door (4-A) and fit the handle (4-E) into the recess. PS02 Secure with a PS02 screw. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 21 Stage 004: Fitting the Right Door Handle, Lock Mechanism, Hinge, and Window Fit the thin door lock bracket (4-I, circled) in place as shown. DS23 Secure with 2x DS23 screws. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 22 Stage 004: Fitting the Right Door Handle, Lock Mechanism, Hinge, and Window Fit the spring (4-G) onto the thicker end of the door lock (4-F). Fit the ball end of the lock through the thin bracket. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 23 Fit the door hinge mount (4-D) into the recess as shown. Make sure the mount is oriented as shown in the inset image. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 24 Stage 004: Fitting the Right Door Handle, Lock Mechanism, Hinge, and Window DS05 Fit the door hinge plate over the mount then secure in place using a DS05 screw. Align the right window with the assembly as shown. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 25 Stage 004: Fitting the Right Door Handle, Lock Mechanism, Hinge, and Window DS05 Fit the window and secure using 2x DS05 screws. S T A G E C O M P L E T E AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 26 5-A Right interior panel 5-E Right door pull handle 5-B Right trim panel PS05 screws x4 5-C Right door handle PS09 screws x2 5-D Right door handle frame PS05 x4 PS09 x2 AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 27 Stage 005: Building the Right Door Interior Panel Take the right interior panel (5-A) and fit the right trim panel (5-B) in place. PS05 Secure with 2x PS05 screws. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 28 Fit the right door handle (5-C) and frame (5-D) together by pushing the pins into the holes. Press firmly until the frame is flush inside the recess. Fit the door handle into the interior panel as shown. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 29 Stage 005: Building the Right Door Interior Panel PS05 Secure using a PS05 screw. Fit the right pull handle (5-E) in place using its shaped plug (circled) as a guide. AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 30 Stage 005: Building the Right Door Interior Panel PS09 Secure using a PS09 screw. S T A G E C O M P L E T E AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 31 S T A G E 0 0 6 P A R T S L I S T Name 6-A Right door interior frame 6-B Right door lock PS01 screws x2 DS02 screws x5 PS01 x2 DS02 x5 AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 32 Position the right door lock (6-B) in place, Secure using a PS01 screw. pressing its pins into the holes. At the same time, fit the U-shaped opening under the protruding pin (circled). AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
  • Page 33 Attach the interior panel (stage 005) to the frame by fitting the tabs into the slots then pressing firmly on the opposite end until it clicks in place. S T A G E C O M P L E T E AGORAMODELS THE SPY WHO LOVED ME LOTUS ESPRIT...
