Agora Models RM 857 Build Instructions

London transport routemaster bus
Hide thumbs Also See for RM 857:

Advertisement

Quick Links

Download this manual
B U I L D
STAGE 91: FRAMEWORK AND WINDOWS FOR THE
LOWER DECK
STAGE 92: FRAMEWORK AND WINDOWS FOR THE
LOWER DECK
STAGE 93: FIT TING THE DRIVER'S DOOR AND A
LIGHT FOR ONE OF THE BUS BLINDS
STAGE 94: FITTING THE RIGHT WALL FRAMEWORK
STAGE 95: FITTING THE RIGHT WALL FRAMEWORK
Pack 10
I N S T R U C T I O N S
STAGE 98: ORGANISING THE WIRING AND FIT TING
STAGE 96: FITTING THE CEILING ASSEMBLY TO
THE UPPER DECK
STAGE 97: FITTING THE FIRST ROOF PANEL AND
RAIN SHIELDS
A ROOF PANEL
STAGE 99: ROOF PANEL AND SIDE STRIPS
STAGE 100: FRONT WINDOW TRIM
AND FINISHING STRIPS

Advertisement

loading
Need help?

Need help?

Do you have a question about the RM 857 and is the answer not in the manual?

Questions and answers

Related Manuals for Agora Models RM 857

Summary of Contents for Agora Models RM 857

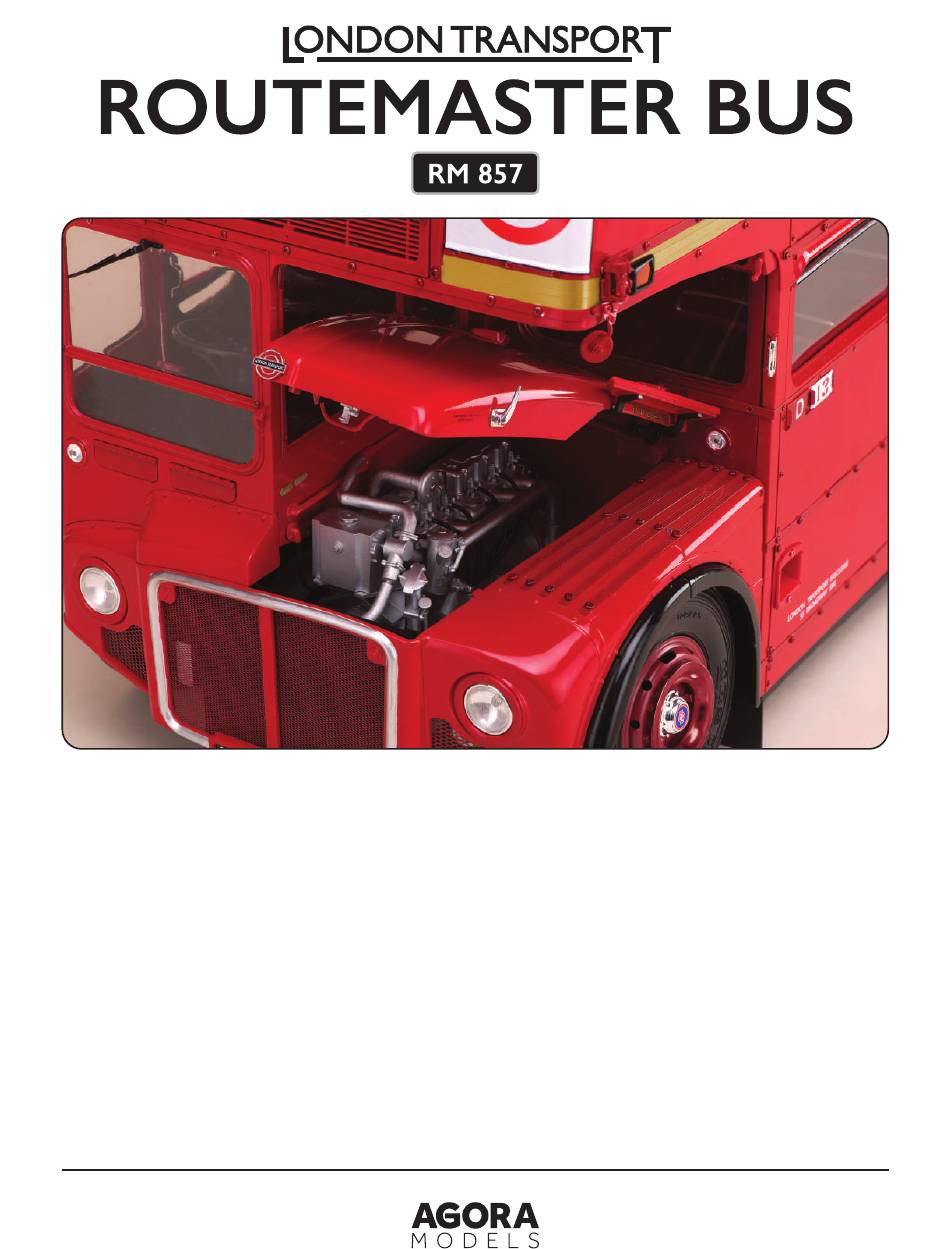

  • Page 1 Pack 10 B U I L D I N S T R U C T I O N S STAGE 91: FRAMEWORK AND WINDOWS FOR THE STAGE 96: FITTING THE CEILING ASSEMBLY TO LOWER DECK THE UPPER DECK STAGE 92: FRAMEWORK AND WINDOWS FOR THE STAGE 97: FITTING THE FIRST ROOF PANEL AND LOWER DECK RAIN SHIELDS...
