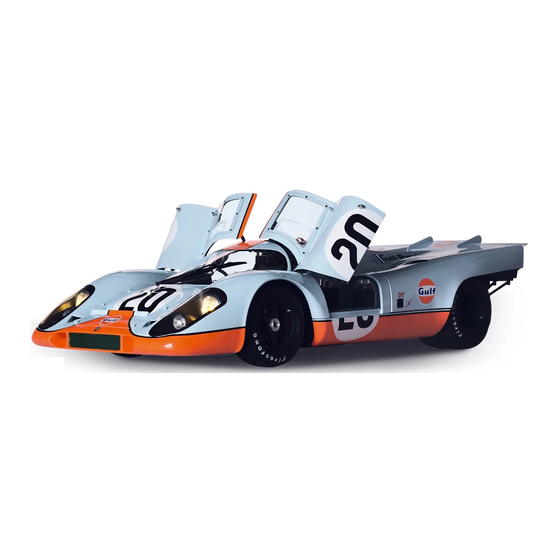

Agora Models Steve McQueen's Iconic Porsche 917KH Pack 01 Build Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
B U I L D
STAGE 02: STEERING WHEEL AND FRONT TYRE
STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC
STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT
STAGE 05: UNDERSIDE OF GEABOX AND STARTING SYSTEM
Porsche, the Porsche shield and the distinctive design of Porsche cars are trademarks and trade dress of Porsche AG. Permission granted.
Porsche, the Porsche shield and the distinctive design of Porsche cars are trademarks and trade dress of Porsche AG. Permission granted.
Personality rights of Steve McQueen are used with permission of Chadwick McQueen and The Terry McQueen Testamentary Trust.
Personality rights of Steve McQueen are used with permission of Chadwick McQueen and The Terry McQueen Testamentary Trust.
Pack 01
I N S T R U C T I O N S
STAGE 01: LEFT HEADLIGHT
Represented exclusively by Greenlight.
Represented exclusively by Greenlight.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Steve McQueen's Iconic Porsche 917KH Pack 01 and is the answer not in the manual?

Questions and answers

Related Manuals for Agora Models Steve McQueen's Iconic Porsche 917KH Pack 01

Summary of Contents for Agora Models Steve McQueen's Iconic Porsche 917KH Pack 01

  • Page 1 Pack 01 B U I L D I N S T R U C T I O N S STAGE 01: LEFT HEADLIGHT STAGE 02: STEERING WHEEL AND FRONT TYRE STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT STAGE 05: UNDERSIDE OF GEABOX AND STARTING SYSTEM Porsche, the Porsche shield and the distinctive design of Porsche cars are trademarks and trade dress of Porsche AG.
  • Page 2 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly.
  • Page 3 STAGE 01: LEFT HEADLIGHT Left door Left headlight lens Hood cover with radiator air intake Left indicator housing Left headlight screen Left indicator lens Left headlight housing Screw 1.7 x 4mm (x2) Left headlight bezel Screw 1.7 x 4 x 5mm (x2) Left headlight reflector Note: Some parts differ...
  • Page 4 STAGE 01: LEFT HEADLIGHT S T E P 1 Press the left indicator lens (1I) into the left indicator housing (1H). Find the holes of the left headlight housing (1D) that align with the left indicator housing (1H) and fit into place. Secure it with a BP screw.
  • Page 5 STAGE 01: LEFT HEADLIGHT S T E P 2 Press the left headlight bezel (1E) into position on the left headlight housing (1D). Tip: Push the middle tab (orange arrow) in place first, then squeeze the two other tabs into the recesses.
  • Page 6 STAGE 01: LEFT HEADLIGHT S T E P 3 Align the left headlight assembly (1F and 1G) with the left headlight housing (1D). Carefully push into place, so that the screw holes (orange arrows) are aligned. Secure the assembly in place with an AP screw as shown.
  • Page 7 STAGE 01: LEFT HEADLIGHT S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 8 STAGE 02: STEERING WHEEL AND FRONT TYRE Steering wheel Hub cap Steering column Screw 1.7 x 3mm (x2) Steering wheel badge Screw 2.0 x 4mm (x4) Front wheel tyre Front wheel outer rim Front wheel inner rim ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 9 STAGE 02: STEERING WHEEL AND FRONT TYRE S T E P 1 Fit the steering wheel (2A) on the steering column (2B) and secure it with an AM screw. Press the steering wheel badge (2C) into Take care to align the raised black area the centre of the steering wheel (2A).
  • Page 10 STAGE 02: STEERING WHEEL AND FRONT TYRE S T E P 2 Steering wheel assembly Firmly press the front wheel outer rim (2E) into the front wheel tyre (2D). Note: The two sides of the tyre are not the same. If the outer rim does not fit in the tyre firmly, fit it in the other side.
  • Page 11 STAGE 02: STEERING WHEEL AND FRONT TYRE S T E P 3 Position the front wheel inner rim (2F) on the front wheel as shown and secure it to the outer rim (2E) with three BM screws. S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 12 STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC Upper control arm Brake disc outer surface (blue arrows Shock absorber upper bracket (marked ‘1’) indicate direction of the ventilation holes) Shock absorber piston Brake disc outer surface (blue arrows Shock absorber spring indicate direction of the ventilation holes) Shock absorber cylinder Brake disc rotor (inner half)
  • Page 13 STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC ASSEMBLY DIAGRAM S T E P 1 Insert a hub carrier joint (3K) into the upper control arm (3A) and fix it with a DM screw by passing it through the hole marked with a red arrow.
  • Page 14 STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC S T E P 3 Fit the shock absorber lower bracket (3F) on the lower control arm (3I) and secure it firmly in place with a BM screw. Place a hub carrier joint (3K) onto the lower control arm (3I) and fix it with a DM screw by...
  • Page 15 STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC S T E P 6 Align the inner brake disc rotor (3N) and outer brake disc rotor (3O) as shown. Fit them together and secure with two CP screws. S T E P 7 Peel the paper backing (red arrow) from the brake disc outer surface (3L) and stick to the outer brake disc rotor (3O) using the...
  • Page 16 STAGE 03: LEFT FRONT SUSPENSION AND BRAKE DISC S T E P 8 Peel the paper backing (red arrow) from the other brake disc outer surface (3M) and stick it to the outer brake disc rotor (3N) using the adhesive side. Take note of the direction of the ventilation holes (blue arrow).
  • Page 17 STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT Right gearbox housing Flex disc (outer) Right-side mounting bracket Cardan socket Transmission seal Screw 2.0 x 4mm (x2) Crosspiece Screw 2.0 x 3 x 5mm (x2) Transmission flexible joint Screw 1.7 x 4mm (x6) Flex disc (inner) Screw 1.7 x 5mm (x5) ASSEMBLY DIAGRAM...
  • Page 18 STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT S T E P 1 Hold the right-side mounting bracket (4B) on the right gearbox housing (4A). Secure firmly in place with a BM screw. Take the crosspiece (4D) and fit it into the transmission flexible joint (4E) as shown.
  • Page 19 STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT S T E P 2 Align the transmission seal (4C) with the crosspiece (4D) and secure it with two FM screws. Don’t over tighten the FM screws as the joint should be free to move.
  • Page 20 STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT S T E P 3 Fit the outer flex disc (4G) onto the inner flex disc (4F) and secure it in place with two GM screws. Note the false ‘screw’ (orange arrow) on the outer disc.
  • Page 21 STAGE 04: RIGHT-SIDE OF GEARBOX AND TRANSMISSION JOINT S T E P 4 Take the assembly and fit it onto the right gearbox housing (4A). Secure it in place with a CM screw. Do not over tighten the CM screw as this drive shaft should be free to rotate.
  • Page 22 STAGE 05: UNDERSIDE OF GEARBOX AND STARTING SYSTEM Gearbox underside Exhaust pipe bracket Internal support Starter solenoid Gearbox support lever Starter housing Support bracket Starter coil Stabilizing rod Screw 2.0 x 4mm (x4) Gearbox rear cover Screw 2.0 x 5mm (x5) Rear crankcase cover Screw 1.7 x 4 x 6mm (x2) Gearbox rear pump...
  • Page 23 STAGE 05: UNDERSIDE OF GEARBOX AND STARTING SYSTEM S T E P 1 Tip: Scrape some paint off the pins if they are difficult to insert. Carefully fit the support bracket (5D) into the gearbox support lever (5C), then insert the thicker pin of the stabilizing rod (5E) into the support bracket (5D).
  • Page 24 STAGE 05: UNDERSIDE OF GEARBOX AND STARTING SYSTEM S T E P 3 This image shows the internal support positioned inside the right gearbox housing. Push the starter coil (5L) and the starter solenoid (5J) onto the starter housing (5K). Note: look carefully at the alignment of the ends of the coil and solenoid in...
  • Page 25 STAGE 05: UNDERSIDE OF GEARBOX AND STARTING SYSTEM S T E P 5 The starter system should look like this when installed on the gearbox underside. Align the gearbox underside (5A) with the internal support (5B) as shown and secure it with three BM screws.
  • Page 26 STAGE 05: UNDERSIDE OF GEARBOX AND STARTING SYSTEM S T E P 6 Press the rear crankcase cover (5G) and gearbox rear pump (5H) into place on the gearbox rear cover (5F). S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
