Savaria M2Lift Owner's Manual

Vertical platform lift
Hide thumbs Also See for M2Lift:
Table of Contents

Advertisement

Quick Links

Download this manual

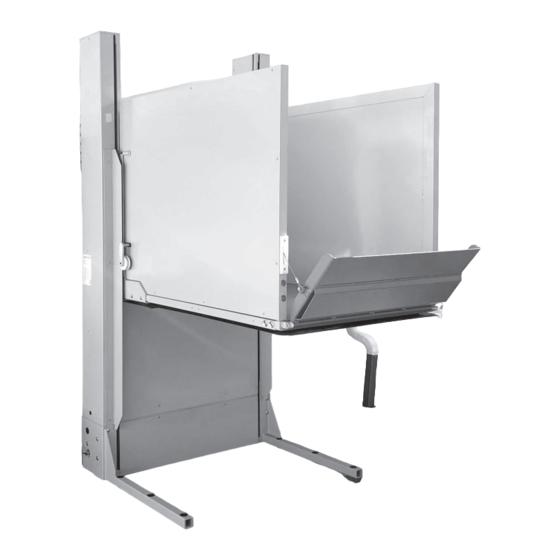

M2Lift
Vertical
Platform Lift
Owner's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2Lift and is the answer not in the manual?

Questions and answers

Related Manuals for Savaria M2Lift

Summary of Contents for Savaria M2Lift

  • Page 1 M2Lift Vertical Platform Lift Owner’s Manual...
  • Page 2 Failure to follow this warning can result in safety system compromises or defeat; this can result in serious injury or death. Savaria accepts no liability for property damage, warranty claims or personal injury, including death, in this circumstance.

  • Page 3: Table Of Contents

    WARRANTY Ensure your Savaria Dealer provides you with a copy of the manufacturer’s limited parts warranty and documentation relating to any Dealer labour warranty. ------------------------------------------------------------------------------------------------- CONTENTS 1. SAFETY INSTRUCTIONS ..........4 To Ensure Safety .

  • Page 4: Safety Instructions

    Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual.

  • Page 5: Description

    2. DESCRIPTION Exterior View Figure 1 shows the exterior components of the M2LIFT. Figure 1 Car operating Tower rail cap panel (COP) Landing gate side wall Tower Landing sill Opposite side wall Access ramp Fascia Non-skid platform panel Motor cover...

  • Page 6: Safety Underpan

    The safety underpan (shown in Figure 4) is located under the platform. The underpan has sensors that detect any obstacles and stop the downward travel of the lift. This is optional on enclosed units and required on open hoistways. Figure 2 Safety Underpan M2LIFT Owner’s Manual Part No. 001103, 30-m01-2024...

  • Page 7: Gate Lock

    (call/send) stations. Be sure to pull the Emergency Stop button out to return the lift to normal operation. Battery Lowering In the event of a power failure, press the DOWN button to bring the lift to the lower level. Part No. 001103, 30-m01-2024 M2LIFT Owner’s Manual...

  • Page 8: Specifications

    3. SPECIFICATIONS Load capacity 750 lb (340 kg) M2LIFT-40: 42” (1067 mm) Maximum travel M2LIFT-60: 62” (1575 mm) M2LIFT-75: 77” (1956 mm) Minimum travel 15.5” (394 mm) Levels serviced Nominal speed 9 ft/min (0.046 m/s) Normal: 10 Heavy: 25 Daily cycle...

  • Page 9: Using The Device

    If the lift is enclosed, the lift can be operated from the upper landing provided the operator has a view of the rider at all times. • During attendant operation, the car directional controls must not be operational. Part No. 001103, 30-m01-2024 M2LIFT Owner’s Manual...

  • Page 10: Operating From The Cop Controls

    Pull the Emergency Stop out to return the lift to normal operation. 6 If the gate is locked at a landing for more than 10 seconds, you can press the Up button to unlock the gate. M2LIFT Owner’s Manual Part No. 001103, 30-m01-2024...

  • Page 11: Operating From The Landing Station Controls

    Up button again to unlock the door. 4 To prevent unauthorized use of the lift, take the key out when the unit is not in operation. Part No. 001103, 30-m01-2024 M2LIFT Owner’s Manual...

  • Page 12: Troubleshooting

    Only qualified technicians are authorized to perform repairs and maintenance. DO NOT manipulate, modify or remove any safety feature of the lift. If any issues persist, please contact your authorized Savaria Dealer Potential Problem Possible Solution Check the underpan sensors. Pull down on the...

  • Page 13: Maintenance

    M2 Lift is subject to wear and tear from use. You must perform the checks and actions in the following tables to ensure safety and proper operation. IMPORTANT Savaria products are only to be installed, adjusted, serviced, or maintained by Savaria licensed dealers and technicians. Your Savaria product will have the warranty voided if a non-Savaria approved technician performs work on the Savaria product.

  • Page 14: Maintenance Schedule (General)

    Confirm doors or gates are all self-closing. months Every Year Excessive: Every 6 months Normal: Every Year Heavy: Every 6 Check that the Stop button works correctly months Every Year Excessive: Every 6 months M2LIFT Owner’s Manual Part No. 001103, 30-m01-2024...
  • Page 15 Use a multimeter to verify that every N.O. Excessive: contact is open when the relays are not Every 6 months being activated. Normal: Every Year Heavy: Every 6 Check the safety brake. months Every Year Excessive: Every 6 months Part No. 001103, 30-m01-2024 M2LIFT Owner’s Manual...
  • Page 16 Every 6 months Normal: Every Year Ensure that all filler panels (aluminum, Plexiglas Heavy: Every 6 or glass) are securely fastened in the enclosure, months Every Year doors and gates. Excessive: Every 6 months M2LIFT Owner’s Manual Part No. 001103, 30-m01-2024...

  • Page 17: Maintenance Schedule (Adjusted)

    Maintenance Schedule (Adjusted) Some Jurisdictions have their own state, county or local code that deviate from national code. Please fill out the below information with the requirements of your region: Savaria Job Number: ______________________ Installation Address: ______________________ Verification Adjusted For units with an interlock, the lift should not move if any door is not closed and locked.
  • Page 18 N.O. contact is open when the relays are not being activated. Check the safety brake. Check for oil leaks. Check the rollers. Ensure that all filler panels (aluminum, Plexiglas or glass) are securely fastened in the enclosure, doors and gates. M2LIFT Owner’s Manual Part No. 001103, 30-m01-2024...

  • Page 19: Maintenance Record

    Maintenance Record Date Time Reason for call Comments Dealer...
  • Page 20 Owner’s Manual For service or questions about this product, please contact your installing dealer. Dealer Name: Dealer Phone: Authorized Savaria Dealer Savaria Concord Lifts, Inc. savaria.com 2 Walker Drive Brampton ON L6T 5E1 Canada Part No. 001103 ©202 Savaria Corporation...
