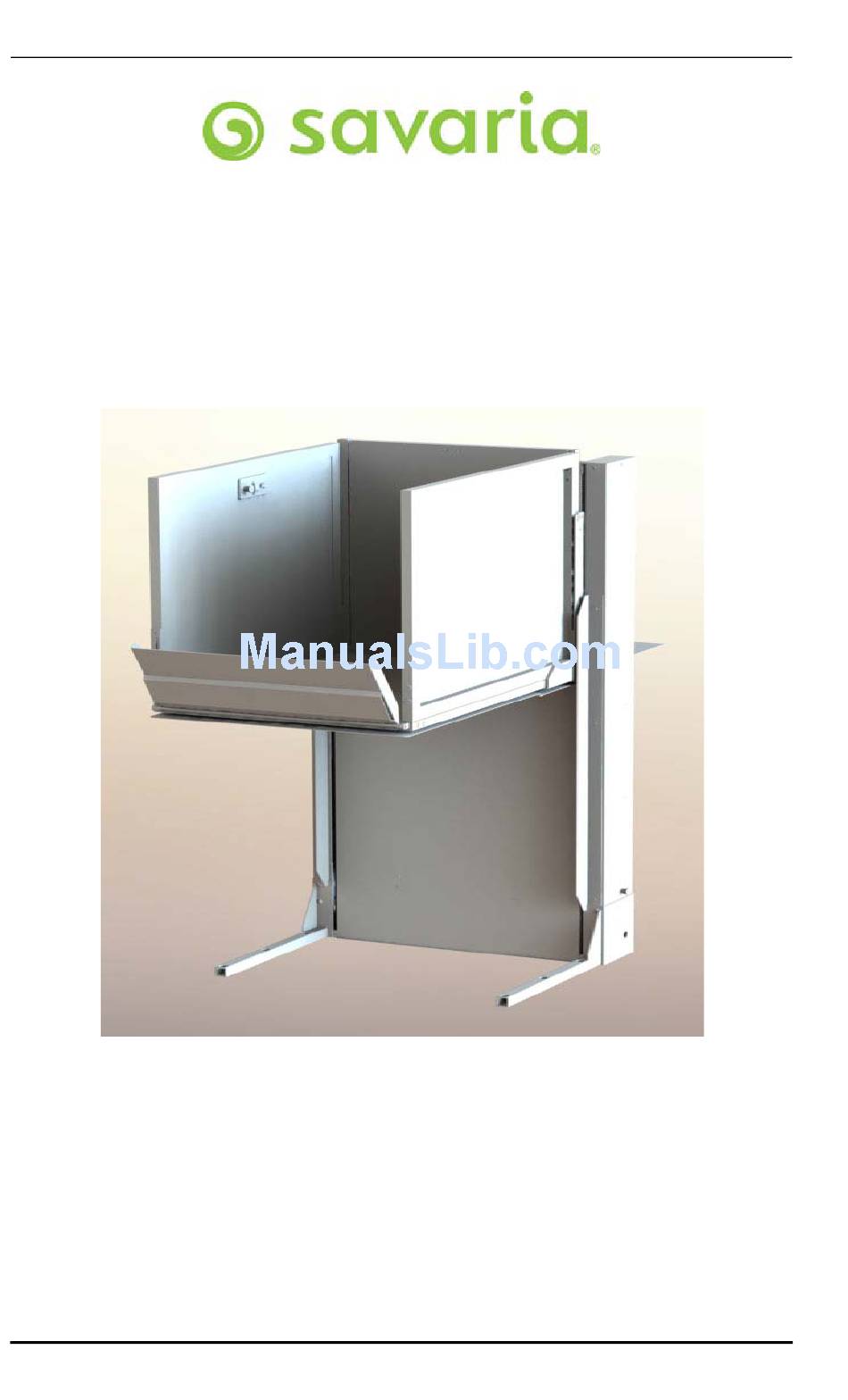

- Page 1 M2LIFT Vertical Platform Lift OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 001103 28-m08-2018...
- Page 2 IMPORTANT Ensure that only an authorized Savaria Dealer installs and services the M2LIFT. Under no circumstances is anyone other than a dealer with Savaria training and authorization to install, adjust, service or modify any mechanical or electrical device on this equipment. Failure to follow this warning can result in safety system compromises or defeat;...
-
Page 3: Table Of Contents
Table of Contents TO ENSURE SAFE OPERATION ..........4 1. -
Page 4: To Ensure Safe Operation
Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual. -
Page 5: Description
1. DESCRIPTION Figure 1 shows the exterior components of the M2LIFT. Figure 1 Car operating Tower rail cap panel (COP) Landing gate side wall Tower Landing sill Opposite side wall Access ramp Fascia Non-skid platform panel Motor cover Pit switch Safety underpan Base support legs Part No. -
Page 6: General Specifications
2. GENERAL SPECIFICATIONS Load capacity 750 lb (340 kg) M2LIFT-40: 42” (1067 mm) Maximum travel M2LIFT-60: 62” (1575 mm) M2LIFT-75: 77” (1956 mm) Levels serviced Travel speed 9 ft/min (0.046 m/s) Normal: 10 Heavy: 25 Daily cycle Excessive: 40 Maximum starts in 1 hour on standard installation: 5 Platform size 37 1/8”... -
Page 7: Operation
3. OPERATION Attendant Operation • The attendant shall only operate the lift from the call station located at the lower landing if the lift is unenclosed. • The attendant shall have full view of the floor area under the lift and of the rider at all times. -
Page 8: Operating From The Landing Station Controls
5 Pressing the Emergency Stop button during travel will stop the lift immediately and activate the alarm. The Emergency Stop overrides the landing station controls. Pull the Emergency Stop out to return the lift to normal operation. 6 If the gate is locked at a landing for more than 10 seconds, you can press the Up button to unlock the gate. -
Page 9: Additional Features
4. ADDITIONAL FEATURES Safety Underpan The safety underpan (shown in Figure 4) is located under the platform. The underpan has sensors that detect any obstacles and stop the downward travel of the lift. This is optional on enclosed units and required on open hoistways. Figure 4 Safety Underpan Part No. -
Page 10: Gate Lock
Gate Locks The WR-500 gate lock keeps the gate locked when the platform is moving and not at a landing. NOTE Keys are for emergency use only and should always be kept in a safe place for use by trained personnel only. After use of any emergency function (access key or manual lowering device), ensure that all doors/gates are secure and locked. -
Page 11: Maintenance
5. MAINTENANCE NOTE The owner can perform the 2-month inspections, but the 6-month inspections must be performed by a Qualified Technician. Contact your Authorized Dealer to schedule maintenance. Note that units installed in adverse environments will require additional maintenance on a monthly basis. DANGER Technicians must always use the shoring pin when working under the lift (see below for pin location). -
Page 12: Maintenance Schedule
Maintenance Schedule Verification by owner Frequency Verify general operation of the lift Every 2 months Verify correct operation of the safety devices: • Underpan sensors • Emergency stop Every 2 months • Gate lock (the lift should not run unless the gate is closed and locked) Verification by technician ONLY Frequency... -
Page 13: Maintenance Record
Maintenance Record Date Time Reason for Call Comments Dealer Part No. 001103, 28-m08-2018 M2LIFT Owner’s Manual... -
Page 14: Operator Troubleshooting
Operator Troubleshooting The following table lists potential problems and their possible solutions. If the problem persists, contact your Authorized Dealer. Potential Problem Possible Solution Check the underpan sensors. Pull down on the Platform goes up but does not underpan to ensure the pan is not stuck in the come down activated position. - Page 16 Authorized Savaria Dealer M2LIFT OWNER’S MANUAL Part No. 001103 Copyright 2018 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer. DEALER NAME: _________________________________________________ DEALER PHONE: _________________________________________________...
