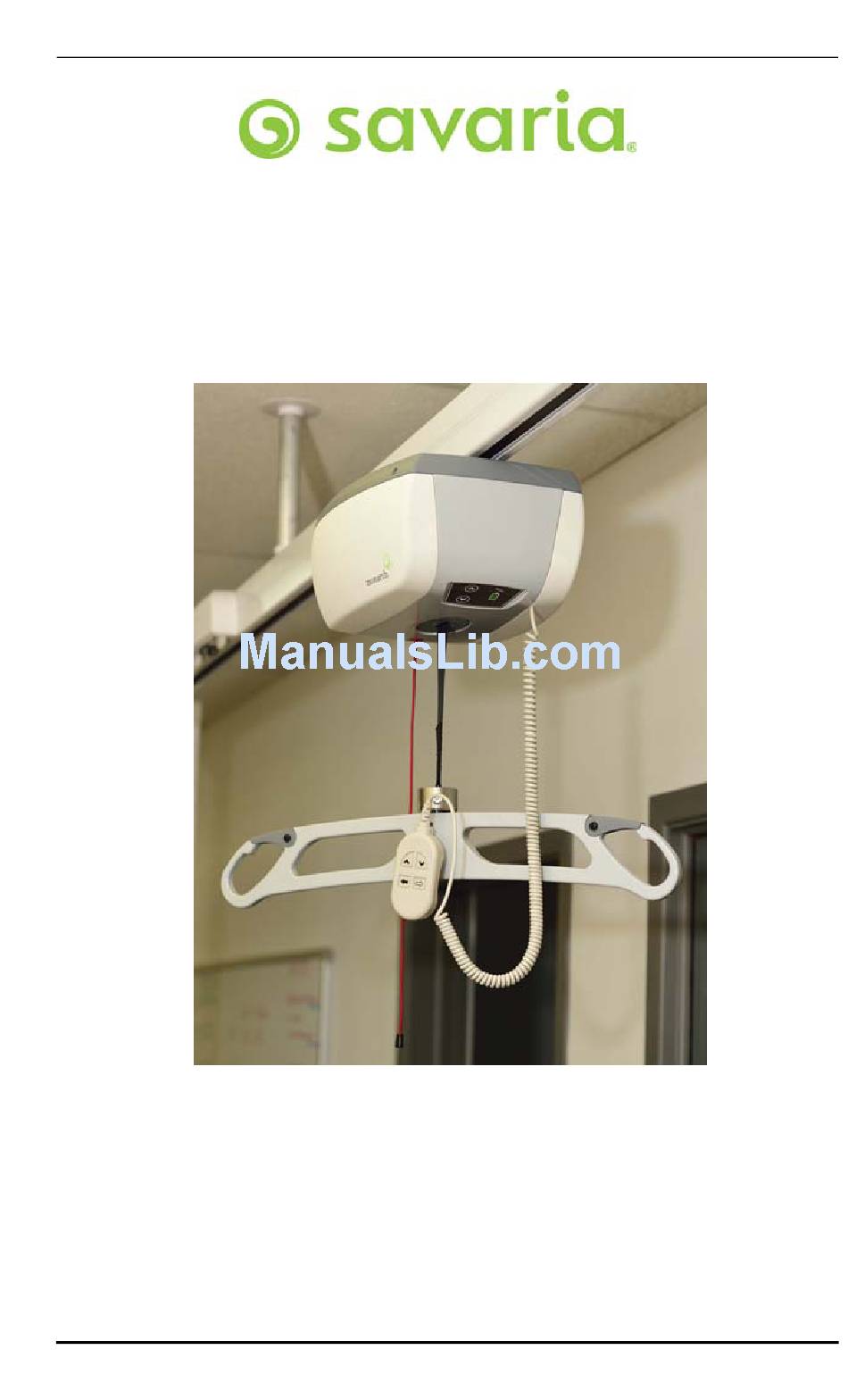

- Page 1 Monarch Fixed Ceiling Lift OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 001108-EN, Rev. 001 21-m09-2017...
- Page 2 IMPORTANT Be sure to read this entire manual before using the Monarch Fixed Ceiling Lift. The information in this manual is important for the safety of the person being transferred and the operator, and for the proper use and maintenance of the lift.
- Page 3 All note messages include the signal word NOTE in capitalized white lettering on a blue background. Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
-
Page 4: Table Of Contents
Electromagnetic Immunity ......... . .42 Monarch Fixed Ceiling Lift Owner’s Manual... -
Page 5: Overview
1. OVERVIEW Intended Use The Monarch Fixed Ceiling Lift is designed for use by caregivers and health care professionals to lift and transfer a person in a homecare, assisted-living or hospital environment. Transfer must be performed by a qualified operator as described in this manual. -
Page 6: Safety Instructions
The lift must be installed by an Authorized Savaria Dealer. • Ensure the lift is used only with a Savaria ceiling track system. If the track system is not from Savaria, ensure the track system is properly assessed by a competent authority for fit, function, and safety. -
Page 7: Battery And Charger Safety
Battery and Charger Safety WARNING Contact your Authorized Savaria Dealer if you are unsure of any of the safety instructions provided below. • Do NOT expose the battery or charger to water or any other liquid. • To avoid injury, do NOT alter the battery in any way. Stop using the battery if any damage is noted. -
Page 8: Shock Prevention
• Do NOT attempt any repairs to the lift, battery or charger. Always contact your Authorized Savaria Dealer for service. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017... -
Page 9: Description
3. DESCRIPTION Exterior Views Figure 1 Front view Bottom view Side view Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual... -
Page 10: Lift Controls
NOTE The lift will automatically go into sleep mode after a few seconds of inactivity and the display will turn off. Pressing any button will wake up the lift. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017... -
Page 11: Hand Control
There is a magnet on the back of the handset which allows you to attach it to the carry bar metallic tube when not in use. Figure 4 Magnet Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual... -
Page 12: Charger
Figure 5 LED Description Solid green: power on but not charging. Solid yellow: charging batteries. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017... -
Page 13: Slings
The following chart illustrates the different types of slings. Note that each model is offered in various sizes, and comes in mesh or solid material. Universal with adjustable head support Hygienic Walking Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual... - Page 14 Size Height Weight Small (S) <5 ft < 125 lb Medium (M) 5 to 6 ft 125 to 250 lb Large (L) 6 to 7 ft 250 - 600 lb Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
-
Page 15: Symbols
93/42/EEC Indicates the product was certified by third-party "QPS" Indicates the product complies with the directive 2011/65/EC (RoHS) Indicates "separate collection" for all batteries and accumulators per the WEEE directive Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual... - Page 16 Indicates the range of humidity to which the medical device can be safely exposed Indicates the range of atmospheric pressure to which the medical device can be safely exposed Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
- Page 17 Symbols on lift Indicates the "Stop" button on the product Indicates heat warning when the yellow light turns on solid Indicates the location of the emergency lowering system on the product Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
-
Page 18: Specifications
0 to 93%, non-condensing Atmospheric Pressure 70 kPa to 106 kPA WARNING: This equipment is not suitable in the presence of flammable anesthetic mixtures with air or oxygen, or with nitrous oxide. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017... - Page 19 IEC 60601-1:2005 A1:2012 (Medical Electrical Equipment) IEC 60601-1-11:2015 (Homecare) ISO 10535:2006 (Patient Lift) CAN/CSA Z10535.1:15 (Patient Lift) Compliance CE Marking per 93/42/EEC (Medical Device) 2006/42/EC (Machinery Directive) 2011/65/EU (ROHS - 100% of components) 2002/96/EC (WEEE) Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
-
Page 20: Dimensions
Dimensions 30cm 11 3/4" 33cm 13" 58cm 22 3/4" 64.3cm 25 1/4" Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017... -
Page 21: Using The Lift
2 To turn on power to the lift, push the red plunger. If it’s out of reach, you can use a broom handle (or something similar) to push the plunger. Figure 7 Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual... - Page 22 CAUTION We recommend that you grab the carry bar to avoid unexpected movement or impact with the patient that may cause injuries. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
- Page 23 5 Move the lift over the person to be transferred by pressing the LEFT or RIGHT lateral arrow buttons on the hand control. If the lift doesn’t have a motorized trolley, drag the lift along the track using the carry bar. Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
- Page 24 • Note: The green middle loops are used for intermediate positions. Figure 10 Grey loop Green loop Black loop Fully seated position Fully reclined position Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
- Page 25 7 The universal sling has a head support system consisting of two adjustable straps. Tighten the straps as needed for full head support and release them for less support as shown below. Figure 11 Straps released Straps tightened (full support) Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
- Page 26 8 The photos below show the two methods that can be used for the leg loops of the universal sling (regular or crossed). Figure 12 Leg loops regular position Leg loops crossed position Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
- Page 27 (see the photo below). The second photo below illustrates the position for transfer using the hygienic sling. Figure 13 Installing the hygienic sling Position for transfer using hygienic sling Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
- Page 28 (see the photos below). The bottom photo below illustrates the position for transfer using the walking sling. Figure 14 Installing the walking sling Position for transfer using walking sling Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
- Page 29 Do NOT attempt a transfer if the support hook safety latches are not completely closed. The sling strap MUST be trapped inside the support hook to prevent the person from falling and sustaining possible injuries. Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
- Page 30 16 When the person is above the desired point of transfer, press the DOWN button on the hand control to lower the person. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017...
- Page 31 Note that the lift will not charge if the red Emergency Stop cord is pulled. WARNING Use ONLY the charger #M920001 provided with the lift. Using any other charger may result in permanent damage to the batteries or cause fire, explosion, or injuries. Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
-
Page 32: Emergency Lowering
Once the person is lowered safely into the wheelchair or bed, remove the Allen key from the access opening. 5 Call your Authorized Savaria Dealer to service the lift. Figure 18 Monarch Fixed Ceiling Lift Owner’s Manual... -
Page 33: Emergency Brake
Do NOT attempt to use the emergency lowering device either as injuries could occur. Contact your Authorized Savaria Dealer to arrange for the unit to be replaced. Part No. 001108-EN, 21-m09-2017... -
Page 34: Charging The Battery
Charge the battery at least every month to maximize the life span. NOTE The lift must be in the “ON” position to charge the battery. If the red Emergency Stop cord is pulled, the lift will not charge. Monarch Fixed Ceiling Lift Owner’s Manual Part No. 001108-EN, 21-m09-2017... - Page 35 Figure 19 When the battery is fully charged, the lightning bolt symbol will turn off and the green full battery symbol will come on. Figure 20 Part No. 001108-EN, 21-m09-2017 Monarch Fixed Ceiling Lift Owner’s Manual...
-
Page 36: Maintenance
The ceiling lift is subject to wear and tear from use. You must perform the checks and actions in the following tables to ensure safety and proper operation. WARNING Contact your Authorized Savaria Dealer to perform the Dealer Checks/Actions. Safety-related maintenance and service must be performed by an Authorized Savaria Dealer. -
Page 37: Operator Maintenance Schedule
Operator Maintenance Schedule Perform the following checks/actions as indicated. If any of the checks fail, contact your Authorized Savaria Dealer for service or replacement of parts. Operator Check/Action Frequency Charge the battery Before every use Check the lift strap for wear... -
Page 38: Dealer Maintenance Schedule
Every 2 years Lubricate the transmission spool gear Every 2 years DANGER To avoid potential injury, use ONLY Savaria parts when replacing parts. To prevent the person from falling (or objects from falling) that may cause injuries to the person, the operator or other persons, always reinstall the track end stops if they were removed for servicing. -
Page 39: Inspection And Cleaning
Inspection and Cleaning To clean the Monarch Ceiling Lift, wipe down the casing with a damp cloth using warm water and a cleaner. You can also use wipes that have a 70% v/v solution of isopropyl alcohol. Do not use phenol, chlorine or any other type of solvent that may damage the finish. -
Page 40: Troubleshooting
7. TROUBLESHOOTING WARNING Do NOT open the lift casing. Only an Authorized Savaria Dealer is qualified to open it. Modifications made to the lift by someone other than a qualified technician may cause serious injury. Problem Action The unit starts and stops If the load is greater that the Safe Working Load of repeatedly. -
Page 41: Electromagnetic Compatibility
Otherwise, degradation of the performance of this equipment could result. Guidance and Manufacturer’s Declaration - Electromagnetic Emissions - For All Equipment and Systems The Monarch Ceiling Lift is intended for use in the electromagnetic environment specified below. Emissions test Compliance Electromagnetic environment - guidance... -
Page 42: Electromagnetic Immunity
Electromagnetic Immunity Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For All Equipment and Systems The Monarch Ceiling Lift is intended for use in the electromagnetic environment specified below. Immunity test IEC 60601 test Compliance Electromagnetic level level environment - guidance... - Page 43 Electromagnetic Immunity (continued) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For All Equipment and Systems The Monarch Ceiling Lift is intended for use in the electromagnetic environment specified below. Immunity test IEC 60601 test Compliance Electromagnetic level level environment - guidance...
- Page 44 Recommended separation distances between portable and mobile RF communications equipment and the Monarch Ceiling Lift. The Monarch Ceiling Lift is intended for use in electromagnetic environments in which radiated RF disturbances are controlled. The customer or the user of the lift can help prevent...
- Page 46 Authorized Savaria Dealer Monarch Fixed Ceiling Lift OWNER’S MANUAL Part No. 001108-EN Copyright2017 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer. DEALER NAME:...
