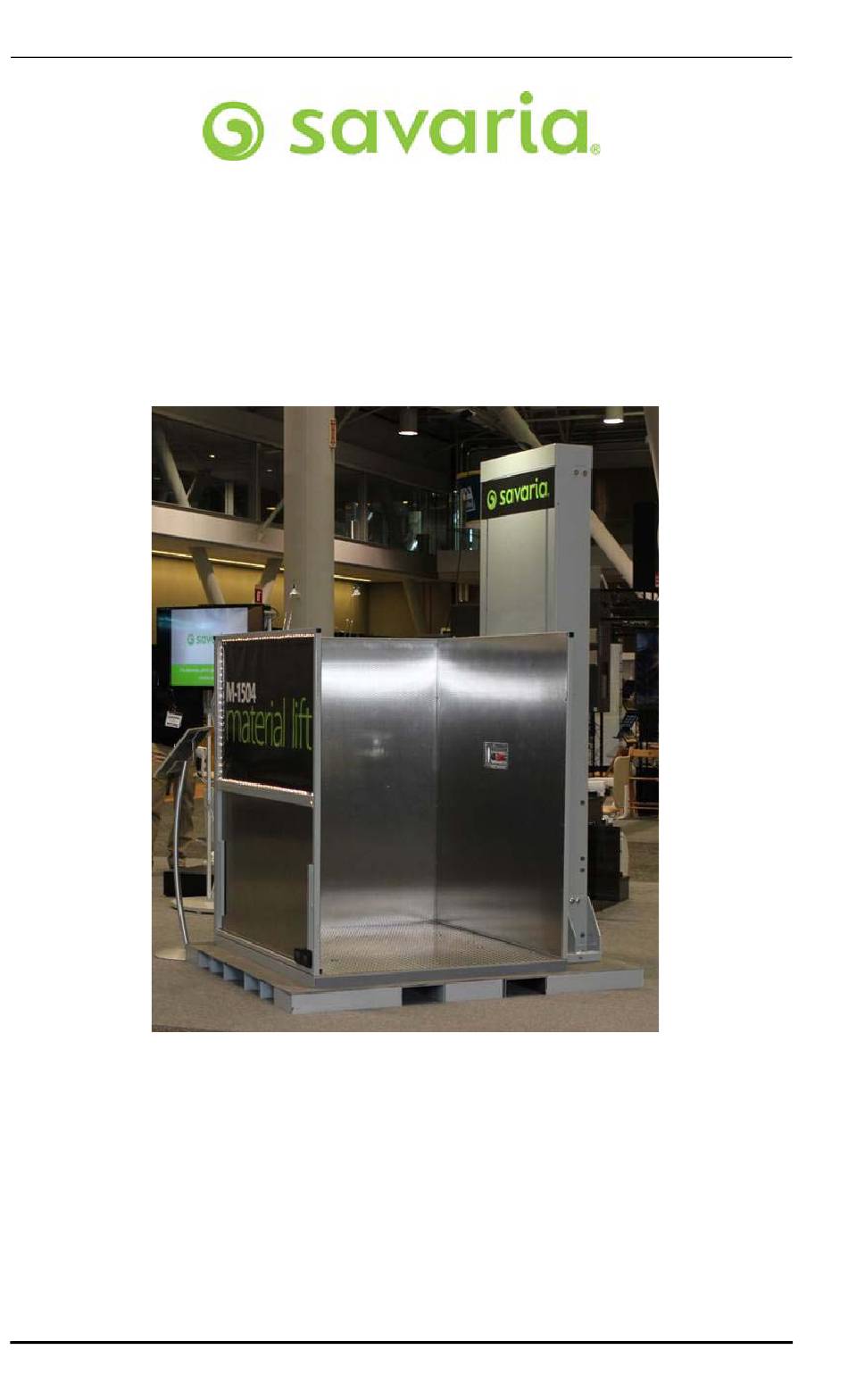

M-1504
Material Lift
OWNER'S MANUAL
(To Be Retained by Owner After Installation
by Authorized Savaria Dealer)
Part No. 001051
02-m10-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-1504 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Savaria M-1504

  • Page 1 M-1504 Material Lift OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 001051 02-m10-2018...
  • Page 2 IMPORTANT Ensure that only an authorized Savaria Dealer installs and services the M-1504 Material Lift. Under no circumstances is anyone other than a dealer with Savaria training and authorization to install, adjust, service or modify any mechanical or electrical device on this equipment. Failure to follow this warning can result in safety system compromises or defeat;...
  • Page 3: Table Of Contents

    Operator Troubleshooting ........17 Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual...
  • Page 4: To Ensure Safe Operation

    Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual.
  • Page 5: Description

    1. DESCRIPTION Figure 1 shows the exterior components of a M-1504 (with a Type 1 cab and without an enclosure). Figure 1 Tower cap Tower Tower service panels Car operating panel (COP) Manual Type 1 cab lowering device Pit swtich...
  • Page 6: General Specifications

    Modular 8 ft (2.4 m) base guide rail assembly Tower Roller guide support 3” (76.2 mm) Pit depth requirement 8” (203.2 mm) with habitable space underneath Grey electrostatic power coat paint on frame Finish Stainless steel on walls M-1504 Owner’s Manual Part No. 001051, 02-m10-2018...
  • Page 7 M-1504 Specifications (continued) 115 VAC operation (115 VAC up direction; 24VDC battery down direction) Call/send stations at landings Continuous-pressure type buttons Operating control buttons on platform Automatic battery recharging system (115 VAC) Standard features Remote manual lowering device Low-voltage controls...
  • Page 8: Operation

    Figure 2 shows the different types of landing stations (hall calls). Figure 2 Landing buttons Key switch Flush Mount Surface Mount In Frame Figure 3 shows the car operating panel (COP). Figure 3 Emergency Light Door Open Button Emergency Stop Button M-1504 Owner’s Manual Part No. 001051, 02-m10-2018...
  • Page 9 2 Press the appropriate button to move the lift in the required direction. Note that the M-1504 will not move if one of the doors is open. 3 When the lift reaches the landing, the door will unlock automatically.
  • Page 10: Safety Features

    4. SAFETY FEATURES Optional Scissor Gate The scissor gate (shown in Figure 4) prevents the load from falling off the platform. This is an optional feature if required by code. Figure 4 M-1504 Owner’s Manual Part No. 001051, 02-m10-2018...
  • Page 11: Door Lock

    After use of any emergency function (access key or manual lowering device), ensure that all doors/gates are secure and locked. While the emergency function is in use, DO NOT leave the area unattended. Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual...
  • Page 12: Safety Brake

    If a chain failure occurs, the brake mechanism comes down (Figure 6) and the brake cam stops the platform. Figure 6 Safety brake in operating position Safety brake in down position Safety brake mechanism Tower track Safety brake mechanism Brake cam Right roller guide shoe M-1504 Owner’s Manual Part No. 001051, 02-m10-2018...
  • Page 13: Manual Lowering And Battery Lowering System

    For units with a 120 VAC pump, the manual lowering box (Figure 7) is located on the side of the M-1504. When you pull on the steel cable located inside the manual lowering box, the platform descends to ground level.
  • Page 14: Maintenance

    DANGER Always use the shoring pins when working under the lift. For lower travel heights, insert the pins into the lower holes (at 600 mm). Figure 8 Shoring pin hole Shoring pin M-1504 Owner’s Manual Part No. 001051, 02-m10-2018...
  • Page 15: Maintenance Schedule

    Use a multimeter to verify that every N.O. contact is open when the relays are not being activated. Check the safety brake. Every 6 months Check for oil leaks. Every 6 months Check the rollers. Every 6 months Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual...
  • Page 16: Maintenance Record

    Maintenance Record Date Time Reason for Call Comments Dealer M-1504 Owner’s Manual Part No. 001051, 02-m10-2018...
  • Page 17: Operator Troubleshooting

    Check that the key is ON (if applicable). Lift does not move Check that the doors are closed. Check to see if the Emergency Stop is pushed in; it should be pulled out for normal operation. Part No. 001051, 02-m10-2018 M-1504 Owner’s Manual...
  • Page 18 Authorized Savaria Dealer M-1504 Material Lift OWNER’S MANUAL Part No. 001051 Copyright 2018 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer. DEALER NAME:...
