K2 Plus
Stairlift
Owner's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K2 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Savaria K2 Plus

Summary of Contents for Savaria K2 Plus

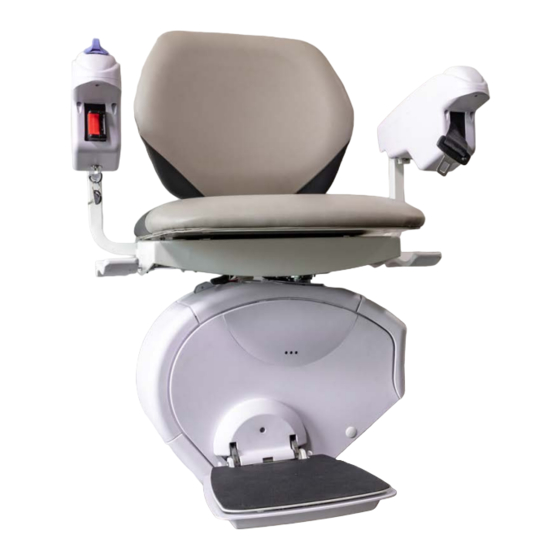

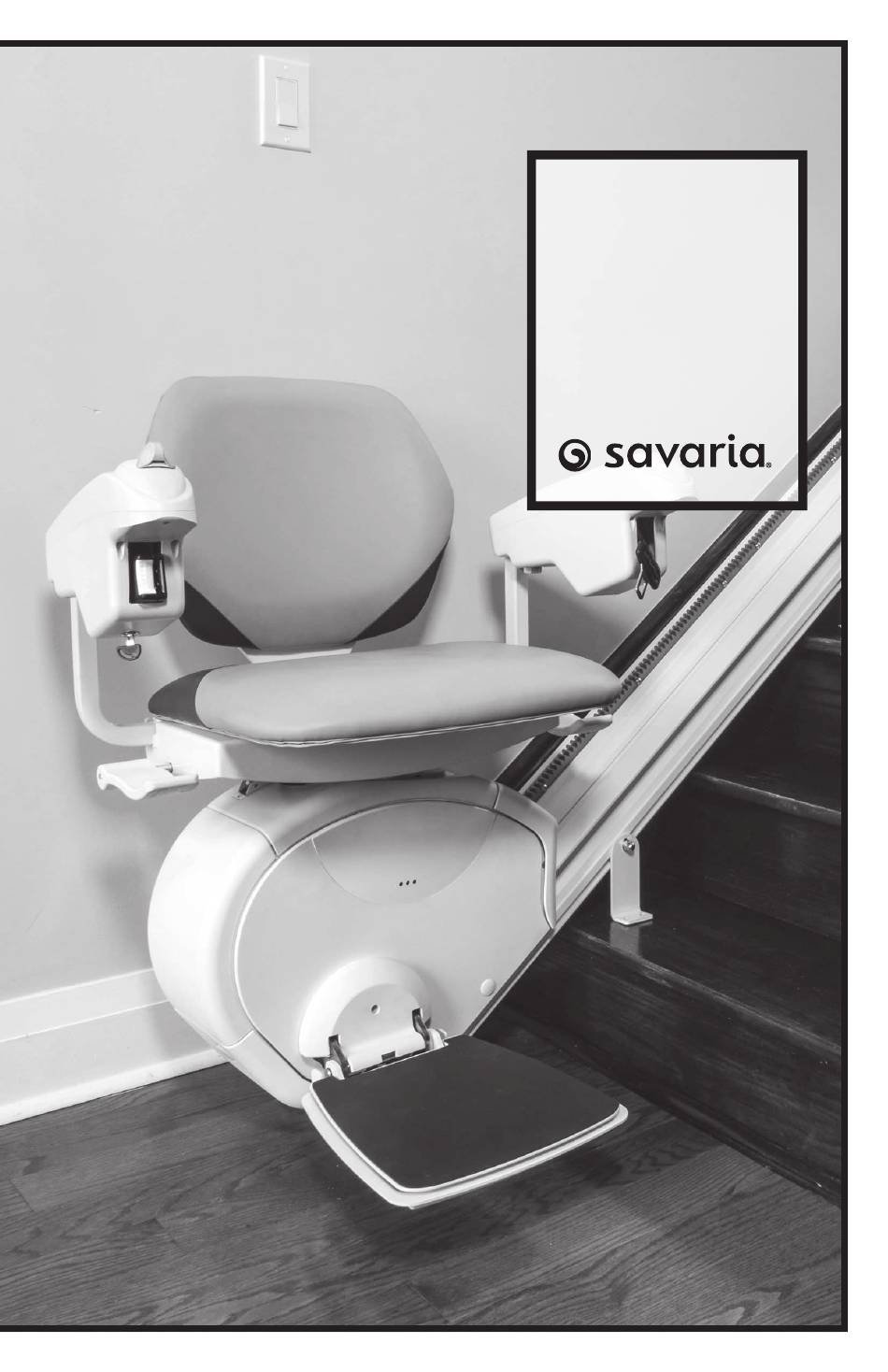

  • Page 1 K2 Plus Stairlift Owner’s Manual...
  • Page 2 Failure to follow this warning can result in safety system compromises or defeat; this can result in serious injury or death. Savaria accepts no liability for property damage, warranty claims or personal injury, including death, in this circumstance.

  • Page 3: Table Of Contents

    WARRANTY Ensure your Savaria Dealer provides you with a copy of the manufacturer’s limited parts warranty and documentation relating to any Dealer labour warranty. ------------------------------------------------------------------------------------------------- CONTENTS 1. SAFETY INSTRUCTIONS ..........4 To Ensure Safety .

  • Page 4: Safety Instructions

    Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual.

  • Page 5: Description

    2. DESCRIPTION Exterior View Figure 1 shows the exterior components of the K2 Plus Stairlift. Figure 1 NOTE: Plus-seat shown here. L-seat also available. Backrest Folding seat UP/DOWN toggle switch Folding Key switch armrests Retractable (under arm) seat belt Emergency...

  • Page 6: Seating Features

    There is an emergency stop button located on the left arm. Pressing this button will stop the unit immediately. Overspeed Brake There is an overspeed brake that will engage and stop the lift if the normal downward travel speed is exceeded. K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 7: Key Switch And Power Switch

    Do NOT turn off the power switch after each trip. Turning off the power switch stops the batteries from charging and this action will eventually drain the batteries. Figure 2 NOTE: Plus-seat shown here. L-seat also available. Key switch Power switch Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...

  • Page 8: Specifications

    Aluminum extrusion Charging Charges on standard household power (110 VAC) Full up and down travel on power interruption (full Emergency operation battery backup) Options Savaria Link remote monitoring Warranty 36 months K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 9: Using The Device

    Ensure to keep the flip-up hinge clear while unfolding. 2 Lower the flip-up rail until the rubber pad touches the floor. 3 Check that the flip-up rail rack is meshing properly before stairlift operation. Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...

  • Page 10: Operating The Stairlift

    Emergency Stop button for all CSA B613 (as per section 8.5.2 - Emergency Stop Device) and all Commercial applications. Optional only for Residential applications in some regions. K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 11: Emergency Manual Operation

    6 When movement of the carriage is complete, call your Authorized Dealer for service assistance. DO NOT turn the main power back on. Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...

  • Page 12: Troubleshooting

    Stairlift stops and won’t - If the stairlift runs to either end of the stairway and restart then stops and won’t restart, this means that the battery charge is low. Charge the stairlift. K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 13: Diagnostic Leds

    Middle and left LEDs on Right-hand obstruction (or ready to run left) Middle LED on Obstruction, both right-hand and left-hand All LEDS off Safety circuit fault All LEDs on Ready to run left or right Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...

  • Page 14: Maintenance

    6. MAINTENANCE The K2 Plus is subject to wear and tear from use. You must perform the checks and actions in the following tables to ensure safety and proper operation. IMPORTANT Savaria products are only to be installed, adjusted, serviced, or maintained by Savaria licensed dealers and technicians.
  • Page 15 Ensure the unit stops at the Heavy: presence of top required position at the Every 6 Every Year and bottom final top and bottom of the months Excessive: limits. staircase. Every 6 months Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...
  • Page 16 Every Year Heavy: Check copper Ensure free from any dents Every 6 busline strip for and dirt. Replace the strip Every Year months Excessive: any damages. is needed. Every 6 months K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...
  • Page 17 The flip-up rail should stay Every Year upright when folded. Heavy: Check flip-up rail Every 6 Replace the gas spring if gas spring Every Year months required. Excessive: function. Every 6 months Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...

  • Page 18: Carriage

    Normal: Every Year Heavy: Check the For Instructions refer to Every 6 operation of the Savaria Technical bulletin Every Year months Excessive: Overspeed brake. Part number: 001277. Every 6 months K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...
  • Page 19 Every Year Check the screws Heavy: holding the seat Tighten and reapply Every 6 Every Year swivel plate to the Loctite if required. months Excessive: seat post assembly. Every 6 months Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...
  • Page 20 -10°C to 40°C. Every 6 months Normal: Every Year Heavy: Check for excessive Every 6 motor, gear, or Replace parts if necessary. Every Year months Excessive: roller noise. Every 6 months K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...
  • Page 21 Every Year Check the push rod Heavy: Tighten screws holding mechanism is Every 6 the bracket, reapply Every Year months firmly attached to Excessive: Loctite if needed. the motor. Every 6 months Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...
  • Page 22 Lubricate the Push Rod Every 6 pushing against mechanism with clear Every Year months the roller and make Excessive: synthetic grease. sure it retracts back Every 6 months when the force is released. K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 23: Seat/Chair

    If required tighten the Heavy: Check that the bolts holding the seat belt Every 6 seatbelt connects Every Year assembly to the seat months Excessive: and holds securely. frame. Every 6 months Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...
  • Page 24 Every 6 months Normal: Every Year Heavy: Check the seat is Adjust the seat post Every 6 Every Year leveled. assembly to level the seat. months Excessive: Every 6 months K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 25: Remotes/Hall Call

    Hall call). compatible 9V model. Every 6 months Normal: Every Year Check the remote Heavy: holding brackets Every 6 Every Year are securely months Excessive: attached to the wall. Every 6 months Part No. 001188, 30-m01-2024 K2 Plus Stairlift Owner’s Manual...
  • Page 26 THIS PAGE WAS LEFT INTENTIONALLY BLANK K2 Plus Stairlift Owner’s Manual Part No. 001188, 30-m01-2024...

  • Page 27: Maintenance Record

    Maintenance Record Date Time Reason for call Comments Dealer...
  • Page 28 Owner’s Manual For service or questions about this product, please contact your installing dealer. Dealer Name: Dealer Phone: Authorized Savaria Dealer Savaria Concord Lifts, Inc. savaria.com 2 Walker Drive Brampton ON L6T 5E1 Canada Part No. 001188 ©202 Savaria Corporation...
