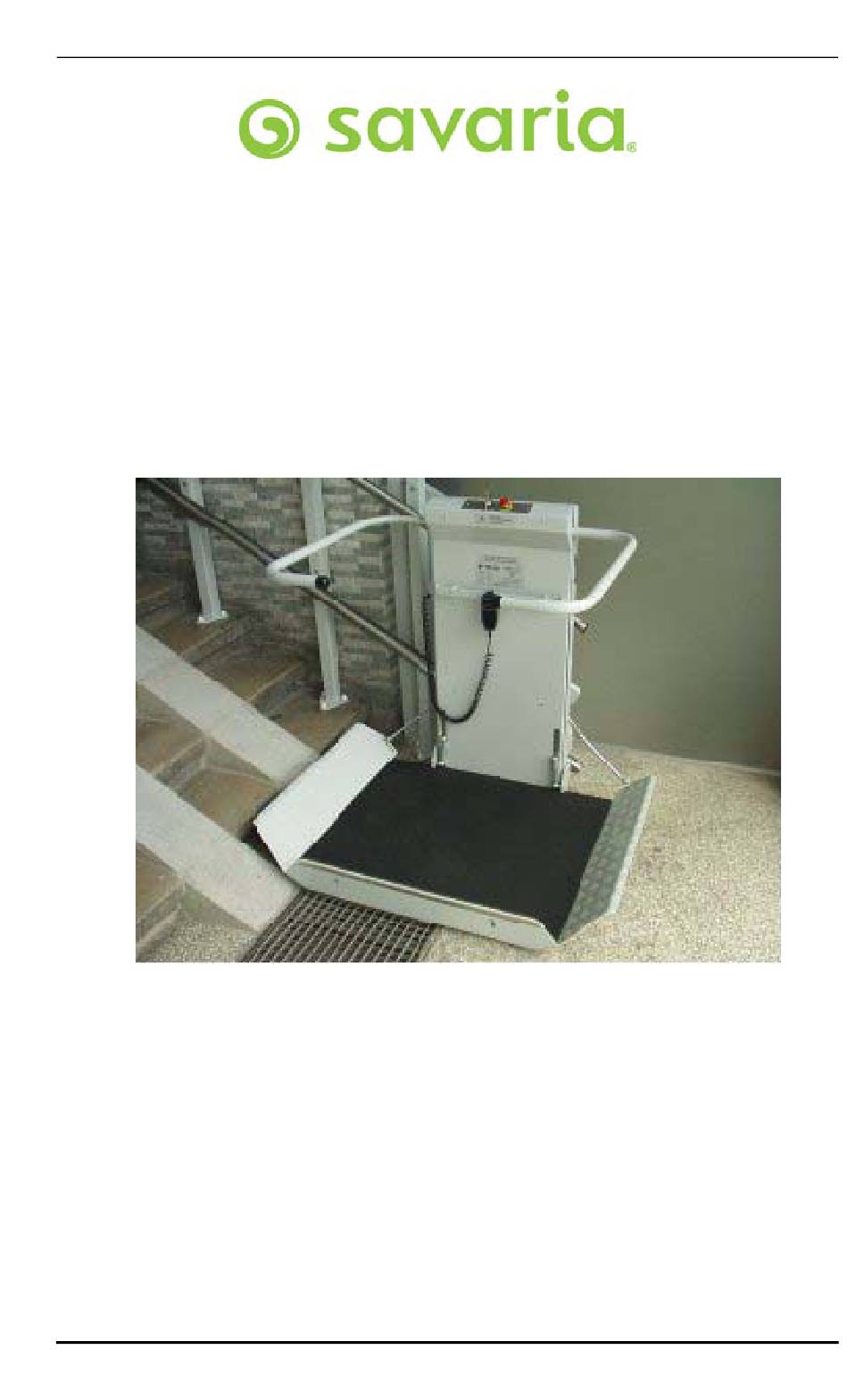

- Page 1 DELTA Straight Inclined Platform Lift OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 000820 29-m08-2018...
- Page 2 IMPORTANT Ensure that only an authorized Savaria Dealer installs and services the DELTA Straight Incline Platform Lift. Under no circumstances is anyone other than a Dealer with Savaria training and authorization to install, adjust, service or modify any mechanical or electrical device on this equipment. Failure to follow this warning can result in safety system compromises or defeat;...
-
Page 3: Table Of Contents
Maintenance Record ..........23 Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... -
Page 4: To Ensure Safe Operation
Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual. -
Page 5: Description
Platform access ramps • Main power switch Figure 1 Emergency STOP button Green lamp Key switch Safety arms Pendant control Carriage (behind cover) Platform access ramps Open cap and plug in pendant Main power switch Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... - Page 6 STOP button to stop the lift in an emergency. When not in use, hang the pendant control on the safety arm using the hook at the back of the control. Figure 3 DELTA Owner’s Manual Part No. 000820, 29-m08-2018...
- Page 7 WARNING Check the emergency STOP button operation weekly. If the lift does not stop when the button is pressed, DO NOT use the lift. Contact your authorized dealer. Part No. 000820, 29-m08-2018 DELTA Owner’s Manual...
-
Page 8: Guide Rails
In the case of weak batteries, the control system is programmed so the lift is always able to reach the lower stop position with the remaining battery charge. DELTA Owner’s Manual Part No. 000820, 29-m08-2018... -
Page 9: Safety Features
There is an audio visual alarm to indicate that the unit is running. This includes a buzzer and a red running light on the platform control panel that flashes when the unit is in use. See Figure 4 on page 7. Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... -
Page 10: Specifications
Platform control panel Emergency STOP button to bring the lift to an immediate stop Key switch to enable controls Alarm button to signal for help Running light that flashes to indicate the unit is in DELTA Owner’s Manual Part No. 000820, 29-m08-2018... -
Page 11: Proper And Improper Use
3. PROPER AND IMPROPER USE Proper Use The DELTA lift is an accessibility device used to provide access over straight-run stairs with a constant gradient. The lift will transport a passenger either sitting in a wheelchair or on the optional manual folding seat. The lift is designed for use by a self-sufficient person with knowledge of the unit’s operation and... -
Page 12: Operation
Never use the lift unless a trained person is available to operate it in manual mode in an emergency situation. • Never place your hands or any objects close to the rails or the platform while the lift is in motion. DELTA Owner’s Manual Part No. 000820, 29-m08-2018... -
Page 13: Operation
For lifts with an optional automatic platform, press and hold the UNFOLD button on the call station to lower the platform and raise the safety arm. The access ramp will lower automatically. Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... - Page 14 If you need to stop the lift along the travel route for any reason, release the drive button. If this does not work, press the red emergency STOP button on the platform control panel or the handheld pendant. DELTA Owner’s Manual Part No. 000820, 29-m08-2018...
- Page 15 19 When the lift is not in use, be sure to switch if off with the platform key and keep the key in a safe place to avoid unauthorized use. Part No. 000820, 29-m08-2018 DELTA Owner’s Manual...
-
Page 16: Manual Operation In An Emergency
3 Tighten the brake lever to release the motor brake and turn the handwheel until the closest landing has been reached. This process is very slow. Figure 12 Brake lever Handwheel Location of handwheel and brake release lever DELTA Owner’s Manual Part No. 000820, 29-m08-2018... - Page 17 Note that this is the same for a left- or a right-hand unit. WARNING Be very careful not to release the downside safety arm and put the passenger in danger. 2 While pressing and holding the appropriate lever, release the safety arm by pulling abruptly. Part No. 000820, 29-m08-2018 DELTA Owner’s Manual...
- Page 18 Figure 13 SIDE VIEW Arm release levers at back of platform TOP VIEW EXPLODED VIEW Upper lever for left arm Lower lever for right arm DELTA Owner’s Manual Part No. 000820, 29-m08-2018...
-
Page 19: Troubleshooting
Check that there are no blown fuses in the building power distribution box. • Check that all emergency STOP buttons are released. • Check for obstacles underneath the access ramps and platform. If the problem persists, contact your authorized dealer for assistance. Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... -
Page 20: Diagnostic Leds
All 3 LEDS off Safety circuit fault All 3 LEDs on Ready to run left or right 2 LED Panel Meaning Platform folded LED on Platform is folded up Platform unfolded LED on Platform is unfolded DELTA Owner’s Manual Part No. 000820, 29-m08-2018... -
Page 21: Maintenance
Verify that the lift stops immediately if an obstacle is Monthly detected underneath the platform. Use a dry clean cloth to clean the outside of the rail tubes. As required Ensure clear access to the drive and main power switch. As required Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... - Page 22 Check the condition of all cables. Check the grounding. Check condition of battery and charger. Every 6 months NOTE Units installed in adverse environments will require additional maintenance on a monthly basis. DELTA Owner’s Manual Part No. 000820, 29-m08-2018...
-
Page 23: Maintenance Record
Maintenance Record Date and time Reason for call (other comments) Dealer Part No. 000820, 29-m08-2018 DELTA Owner’s Manual... - Page 24 Authorized Savaria Dealer DELTA Straight Inclined Platform Lift OWNER’S MANUAL Part No. 000820 Copyright2018 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer. DEALER NAME:...
