M2Lift
Vertical
Platform Lift
Owner's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2Lift and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savaria M2Lift

Summary of Contents for Savaria M2Lift

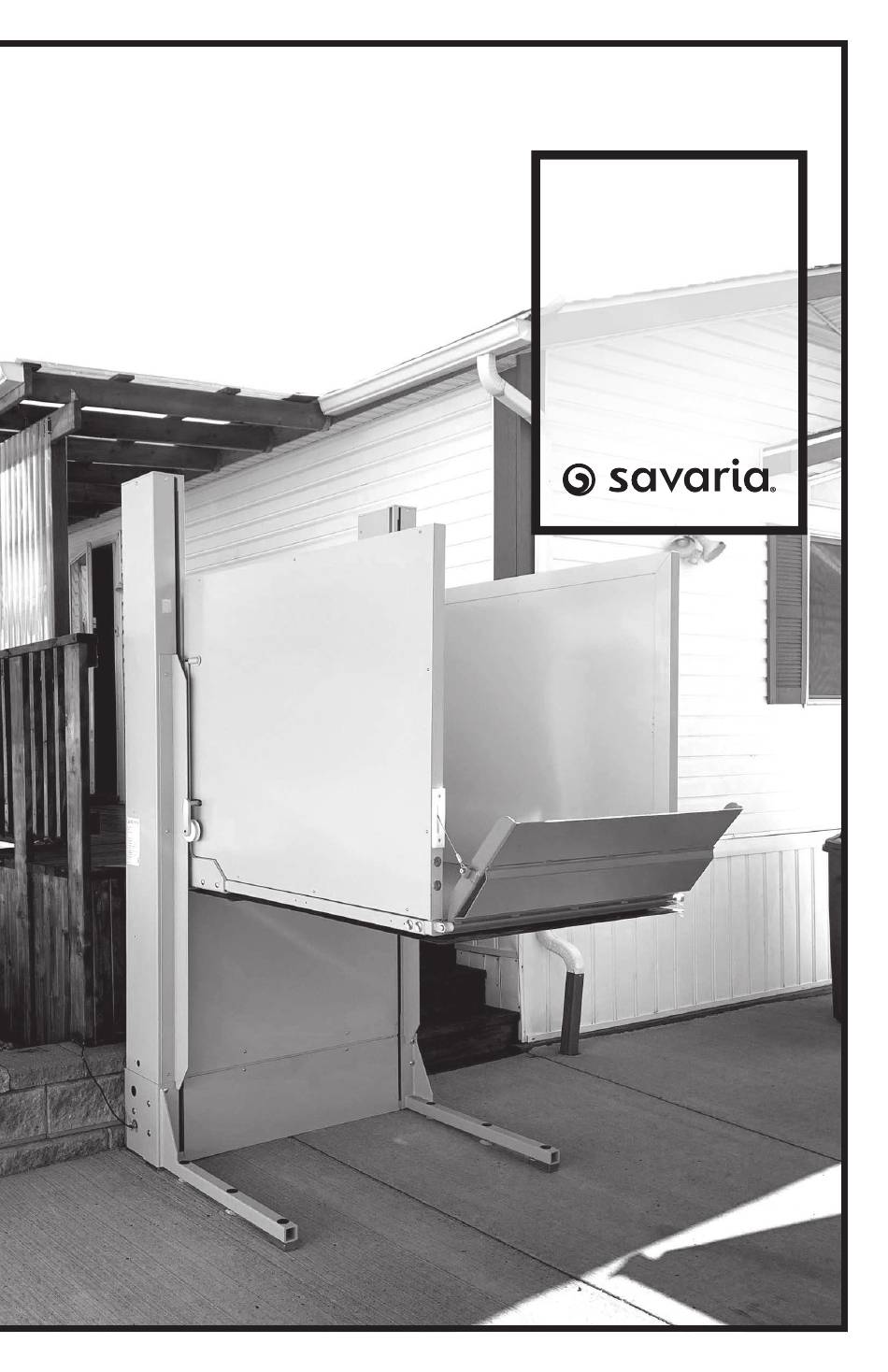

  • Page 1 M2Lift Vertical Platform Lift Owner’s Manual...
  • Page 2 Failure to follow this warning can result in safety system compromises or defeat; this can result in serious injury or death. Savaria accepts no liability for property damage, warranty claims or personal injury, including death, in this circumstance.

  • Page 3: Table Of Contents

    WARRANTY Ensure your Savaria Dealer provides you with a copy of the manufacturer’s limited parts warranty and documentation relating to any Dealer labour warranty. ------------------------------------------------------------------------------------------------- CONTENTS TO ENSURE SAFE OPERATION ..........4 1.

  • Page 4: To Ensure Safe Operation

    Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual.

  • Page 5: Description

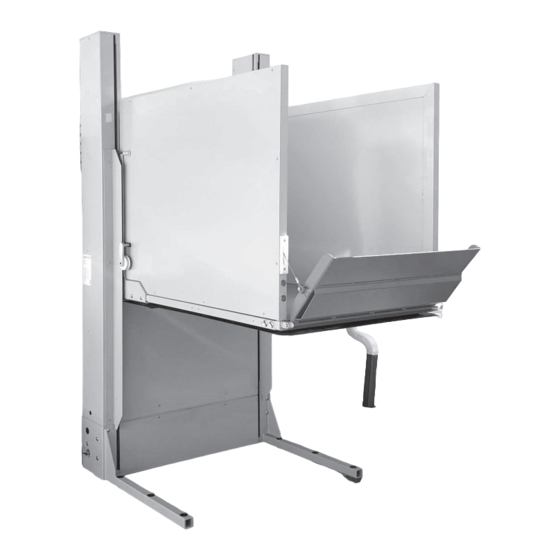

    1. DESCRIPTION Figure 1 shows the exterior components of the M2LIFT. Figure 1 Car operating Tower rail cap panel (COP) Landing gate side wall Tower Landing sill Opposite side wall Access ramp Fascia Non-skid platform panel Motor cover Pit switch...

  • Page 6: General Specifications

    2. GENERAL SPECIFICATIONS Load capacity 750 lb (340 kg) M2LIFT-40: 42” (1067 mm) Maximum travel M2LIFT-60: 62” (1575 mm) M2LIFT-75: 77” (1956 mm) Minimum travel 15.5” (394 mm) Levels serviced Nominal speed 9 ft/min (0.046 m/s) Normal: 10 Heavy: 25...

  • Page 7: Operation

    During attendant operation, the car directional controls must not be operational. Operating from the COP Controls Figure 2 shows the car operating panel (COP). Figure 2 Emergency Stop Key Switch Up/Down To operate the lift from the COP controls: Part No. 001103, 10-m08-2021 M2LIFT Owner’s Manual...

  • Page 8: Operating From The Landing Station Controls

    Key switch Surface Mount To operate the lift from the landing (call/send) station controls: 1 Insert the key into the key switch and turn it to the ON position to activate the operating buttons. M2LIFT Owner’s Manual Part No. 001103, 10-m08-2021...
  • Page 9 Up button again to unlock the door. 4 To prevent unauthorized use of the lift, take the key out when the unit is not in operation. Part No. 001103, 10-m08-2021 M2LIFT Owner’s Manual...

  • Page 10: Additional Features

    The safety underpan (shown in Figure 4) is located under the platform. The underpan has sensors that detect any obstacles and stop the downward travel of the lift. This is optional on enclosed units and required on open hoistways. Figure 4 Safety Underpan M2LIFT Owner’s Manual Part No. 001103, 10-m08-2021...

  • Page 11: Gate Lock

    (call/send) stations. Be sure to pull the Emergency Stop button out to return the lift to normal operation. Battery Lowering In the event of a power failure, press the DOWN button to bring the lift to the lower level. Part No. 001103, 10-m08-2021 M2LIFT Owner’s Manual...

  • Page 12: Maintenance

    5. MAINTENANCE NOTE Regular maintenance (performed by your Authorized Savaria Dealer) will keep your unit in proper operating condition. As the owner of this unit, you are responsible for making sure that maintenance and upkeep are done on a regularly scheduled basis.
  • Page 13 Every 6 months Check the safety brake. Every 6 months Check the rollers (function and wear). Every 6 months Ensure that all filler panels are securely fastened in the gate. Every 6 months Part No. 001103, 10-m08-2021 M2LIFT Owner’s Manual...

  • Page 14: Operator Troubleshooting

    COP and tower) are pushed in; they must be Platform does not move pulled out for normal operation. If the platform is at the top landing, check the underpan sensors as described above. Check that the power cord is plugged in. M2LIFT Owner’s Manual Part No. 001103, 10-m08-2021...

  • Page 15: Maintenance Record

    Maintenance Record Date Time Reason for call Comments Dealer...
  • Page 16 Owner’s Manual For service or questions about this product, please contact your installing dealer. Dealer Name: Dealer Phone: Authorized Savaria Dealer Savaria Concord Lifts, Inc. savaria.com 2 Walker Drive Brampton ON L6T 5E1 Canada Part No. 001103 ©2021 Savaria Corporation...
