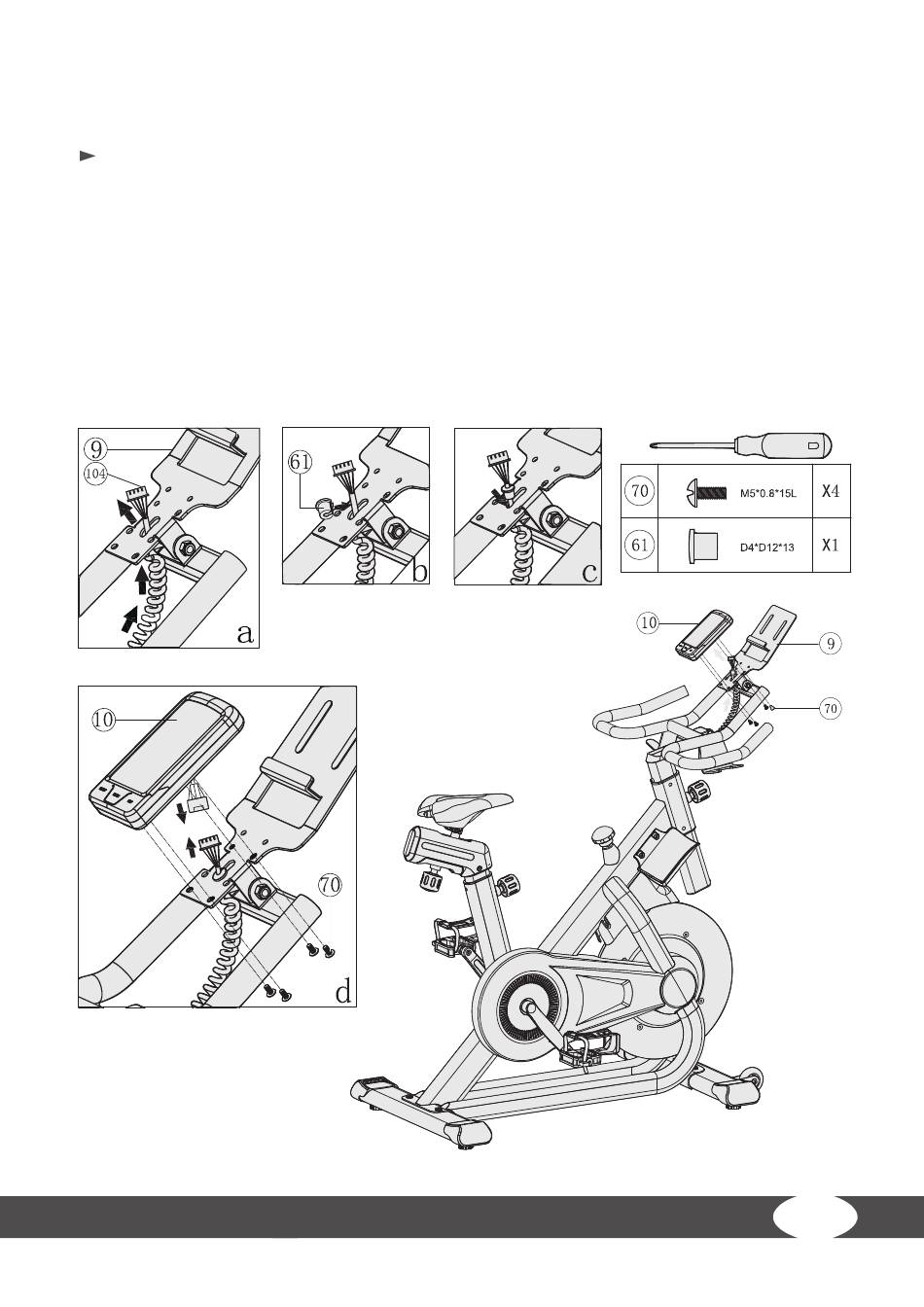

Step 4: Assembly of the Computer
1. Remove the four pre-assembled screws (70) from the rear side of the computer (10).
ATTENTION
Make sure not to pinch the cables when performing the following steps.
2. Pull the upper computer cable (104) through the hole of the computer fi xing plate (9) like shown
in Fig. A.
3. Attach a wire plug (61) to the upper computer cable (104) like shown in fi gure b and c.
4. Connect the upper computer cable (104) with the cable of the computer (10).
5. Attach the computer (10) to the computer fi xing plate (9) with the previously removed screws
(70) like shown in Fig. D.
6. Tighten the screws with the tool.
