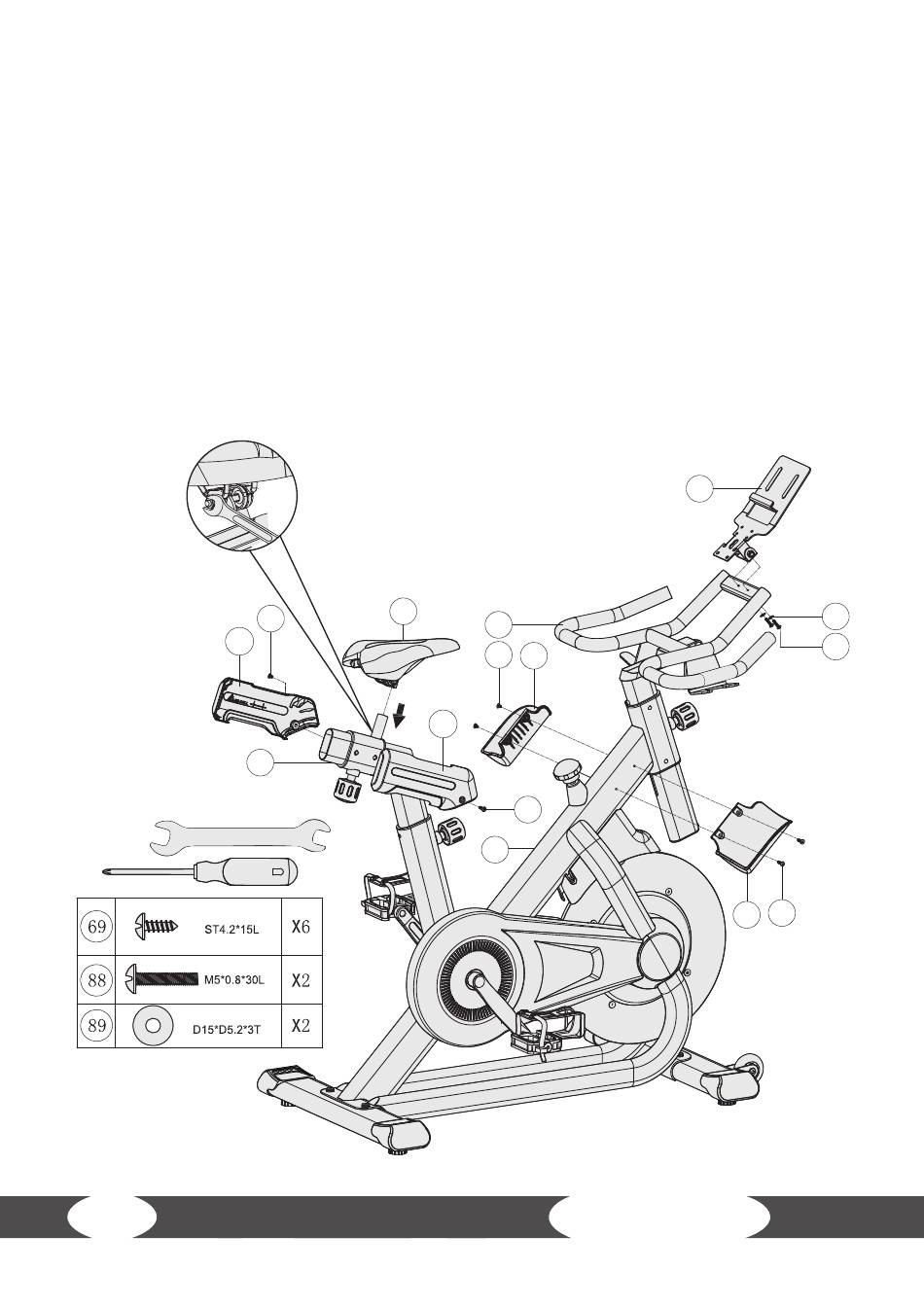

Step 3: Assembly of the Computer Fixing Plate, Bottle Holders, Seat and Protective Covers
1. Attach the computer fi xing plate (9) to the handlebar (6) with two bolts (88) and two fl at washers
(89).
2. Attach the left and right bottle holders (82L & 82R) to the main frame (1) with two screws (69)
each.
3. Slightly loosen the bolt connection underneath the seat (60).
4. Attach the seat (60) to the seat post (4) and retighten the bolt connection with the wrench.
5. Attach the left and right seat protective covers (12L & 12R) to the seat post (4) with one screw
(69) each.
6. Tighten the bolts and screws with the tools.
12L
16
60
69
12R
4
6
69
82L
69
1
IC70 Smart
9
89
88
69
82R
