Teknik
www.teknikoffice.co.uk

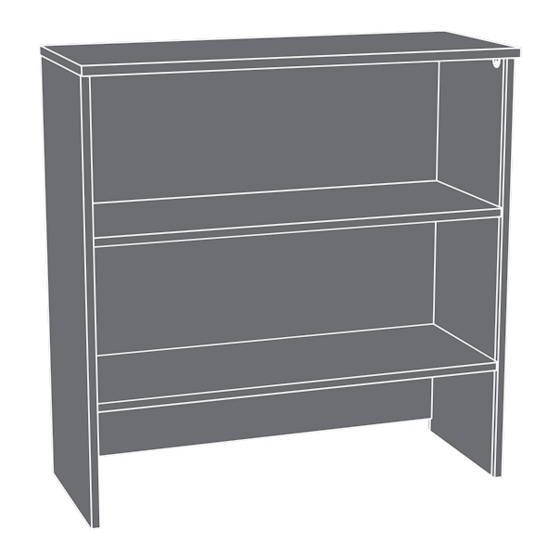

Hutch for storage units
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS
IMPORTANT SAFETY
INFORMATION.
Hudson Elm finish | Model 5427430
PLEASE READ AND KEEP
FOR FUTURE REFERENCE.
English pg 1-18
Français pg 19-21
Español pg 22-24
Lot # 573391
11/12/21
Purchased:
__________________
Advertisement
Related Manuals for Teknik 5427430
Summary of Contents for Teknik 5427430
- Page 1 Teknik www.teknikoffice.co.uk Hutch for storage units NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Hudson Elm finish | Model 5427430 PLEASE READ AND KEEP FOR FUTURE REFERENCE. English pg 1-18 Français pg 19-21 Español pg 22-24 Lot # 573391 11/12/21...
- Page 2 Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Hardware Identification Tip Shown Actual Size Hardware Usage Guide Assembly Steps 7-18 Hammer Not actual size Français 19-21 Español 22-24 Safety 25-26 Tape Measure Warranty Page 2...
- Page 3 Now you know Part Identification our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. RIGHT END (1) LEFT END (1) TOP (1)
- Page 4 Hardware Identification å Screws are shown actual size. You may receive extra hardware with your unit. 42F WOOD DOWEL - 2 HIDDEN CAM - 18 CAM DOWEL - 18 TAPE CARD/ TWIST-LOCK® 10M TOUCH-UP PEN - 1 125P 182M PREP PAD KIT - 1 FASTENER COVER - 12 FURNITURE TIPPING 129P...
- Page 5 Hardware Usage Guide HOW TO USE A TWIST-LOCK FASTENER ® Push a TWIST-LOCK® FASTENER 1. Insert the dowel end of the FASTENER into the into the large hole in the part. hole of the adjoining part. NOTE: The dowel end of the FASTENER must remain fully inserted in the hole of the adjoining part while locking the FASTENER.
- Page 6 Step 1 å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor. å Push eighteen HIDDEN CAMS (1F) into the BACKS (E and F). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM in the long edges of the BACKS.
- Page 7 Step 2 å Fasten one of the SHELVES (D) to one of the BACKS (F). Use three BLACK 1-15/16" FLAT HEAD SCREWS (113S). Some assembly å NOTE: You should start each SCREW a few turns before (and snacks) required. completely tightening any of them. S u r f a c i t h...
- Page 8 Step 3 å Push the remaining BACK (F) onto the SHELF (D). Do not tighten the HIDDEN CAMS. S u r f a c i t h I S T - L O ® F A S T E N E R Page 9...
- Page 9 Step 4 å Fasten the remaining SHELF (D) to the BACK (F). Use three BLACK 1-15/16" FLAT HEAD SCREWS (113S). å NOTE: You should start each SCREW a few turns before completely tightening any of them. å Push the LOWER BACK (E) onto the SHELF (D). Do not tighten the HIDDEN CAMS.
- Page 10 Step 5 å Insert the plastic end of a CAM DOWEL (2F) into the holes shown in the LEFT END (B). å Fasten the LEFT END (B) to the SHELVES (D). Tighten four TWIST-LOCK® FASTENERS. å NOTE: Be sure the CAM DOWELS in the LEFT END insert into the HIDDEN CAMS in the BACKS.
- Page 11 Step 6 å Insert the plastic end of a CAM DOWEL (2F) into the holes shown in the RIGHT END (A). å Fasten the RIGHT END (A) to the SHELVES (D). Tighten four TWIST-LOCK® FASTENERS. å NOTE: Be sure the CAM DOWELS in the RIGHT END insert into the HIDDEN CAMS in the BACKS.
- Page 12 Step 7 å Carefully stand your unit upright. å Insert two WOOD DOWELS (42F) into the ENDS (A and B). å NOTE: You may need to gently tap the WOOD DOWEL in with your hammer. å Fasten the TOP (C) to the ENDS (A and B). Tighten four TWIST-LOCK® FASTENERS. å...
- Page 13 Step 8 å Open the FURNITURE TIPPING RESTRAINT KIT (97) and fasten the SAFETY STRAP to the TOP (C). There is no Almost time to pre-drilled hole. Use extra force when turning the provided celebrate! With a nap. short screw into your desired location in the TOP. å...
- Page 14 Step 9 å Carefully lay your unit onto its back edges. å Open the TAPE CARD/PREP PAD KIT (182M). Peel four double stick strips from the TAPE CARD and stick them onto the bottom edges of the ENDS (A and B) as shown in the upper diagram.
- Page 15 Step 10 å IMPORTANT: The Hutch cannot be moved after it is set in place. Pre-plan the Hutch placement, then place it completely on the attaching surface. å With the help of another person, carefully center the Hutch onto your 427871/427409 Lateral File or 427412 Storage Cabinet.
- Page 16 Step 11 å Position your unit in its final location against a wall. We recommend using the SAFETY STRAP for added stability. å NOTE: Do not turn the SAFETY DRYWALL ANCHOR into a wall stud. If you prefer to fasten the SAFETY STRAP to a wall stud, go to your local hardware store for proper hardware.
- Page 17 Step 12 å For long-term care and maintenance of your unit, you may touch up the edges with the TOUCH-UP PEN (10M). å Using your hammer, gently tap a CAM COVER (129P) onto each visible HIDDEN CAM. å Using your hammer, gently tap a TWIST-LOCK® FASTENER COVER (125P) onto each visible TWIST-LOCK® FASTENER. å...
