Teldat S.A.
Chapter 3 Components and Power Supply
The following chapter provides comprehensive information about the chassis and components of the Teldat
5Ge-Rail router, including details about:
• Front and rear panel components.
• Assembly procedures.
• Power supply.
• RESET button.
• Data connection.
• SIM card installation.
3.1 Components
3.1.1 Front panel

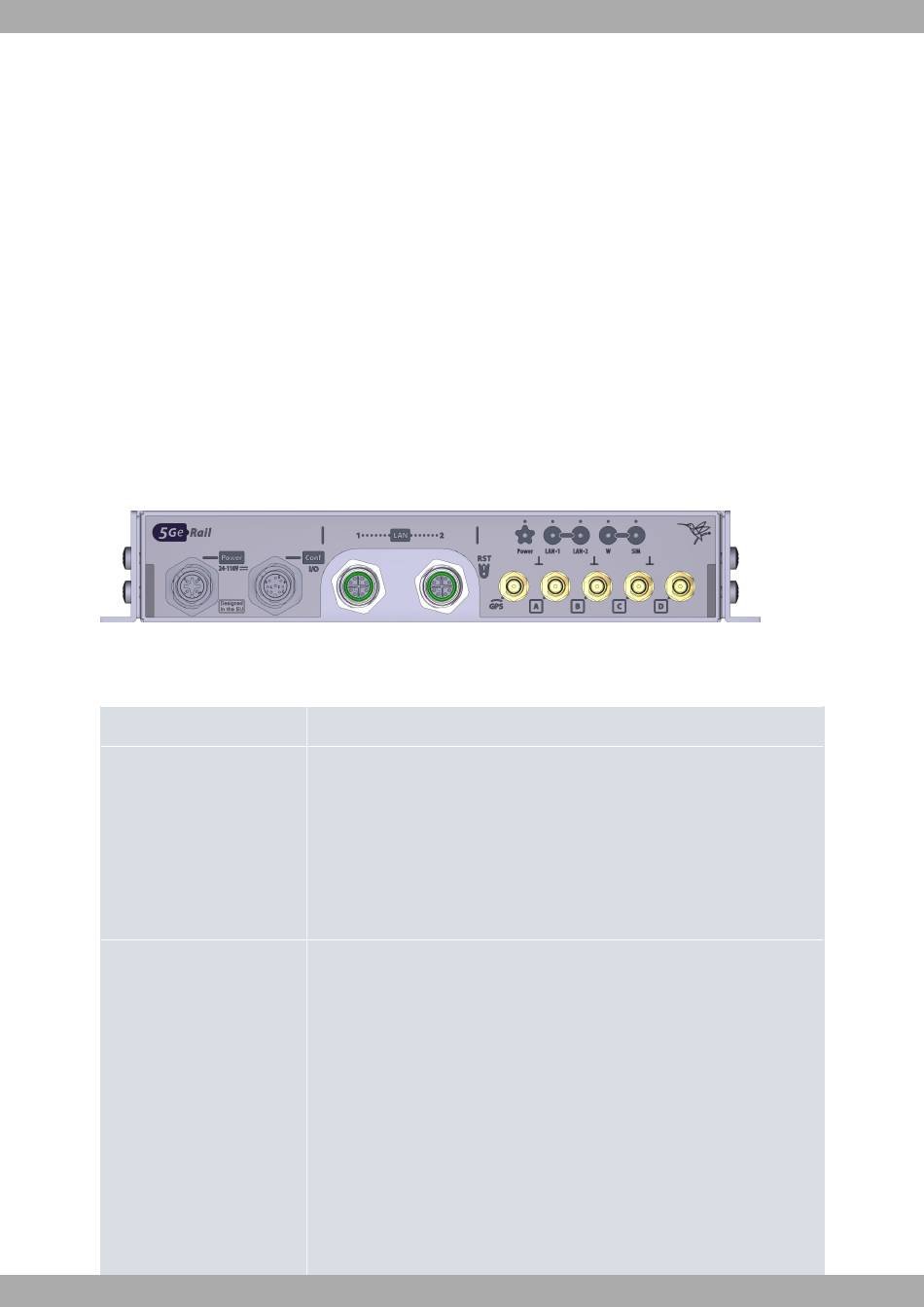

The following figure shows the front panel of the device.
Front Panel
Fig. 1:
The table below presents detailed information and descriptions for each connector:
Front panel components
Item
Power
Conf I/O
Teldat 5Ge-Rail
Description
Power source connection.
To obtain more details about Power Connection, please consult the following sec-
tions:
-
Connecting the power supply
-
POWER connector
on page 25
-
Electrical specifications
on page 32
Multipurpose connector for Configuration Console and Digital I/O signals.
Configuration Console
To find out more about the Configuration connection, please refer to the following
sections:
-
Configuration connection
on page 15
-
Conf I/O connector
on page 26
-
Configuration interface
on page 31
Digital I/O
For additional information on the Digital Input/Output connection, please see the
following sections:
-
Connecting the I/O signals
on page 9
on page 16
3 Components and Power Supply
5
