• 5G enabler: If the device has a 5G enabler license (5Ge), it will have a special configuration. For detailed informa-
tion on accessing the device and its configuration, please refer to the Teldat Dm1030-I - Teldat 5Ge-Rail User
Manual.
To determine which license is installed on the device, you can execute a ping to the IP address 192.168.1.1. Ensure
that the device has been previously configured with the default settings and is connected using an Ethernet cable.
The device will respond to the ping, indicating whether it is functioning as a router or a 5Ge-R.
Note
Some devices may have customized settings, which could result in a different default configuration than
the one mentioned above.
3.5 Connecting Data
The Teldat 5Ge-Rail offers the following data connections.
3.5.1 LAN connection
The Teldat 5Ge-Rail features two Gigabit Ethernet 10/100/1000/2500 BaseT ports with automatic MDI/MDIX.
Ethernet Ports

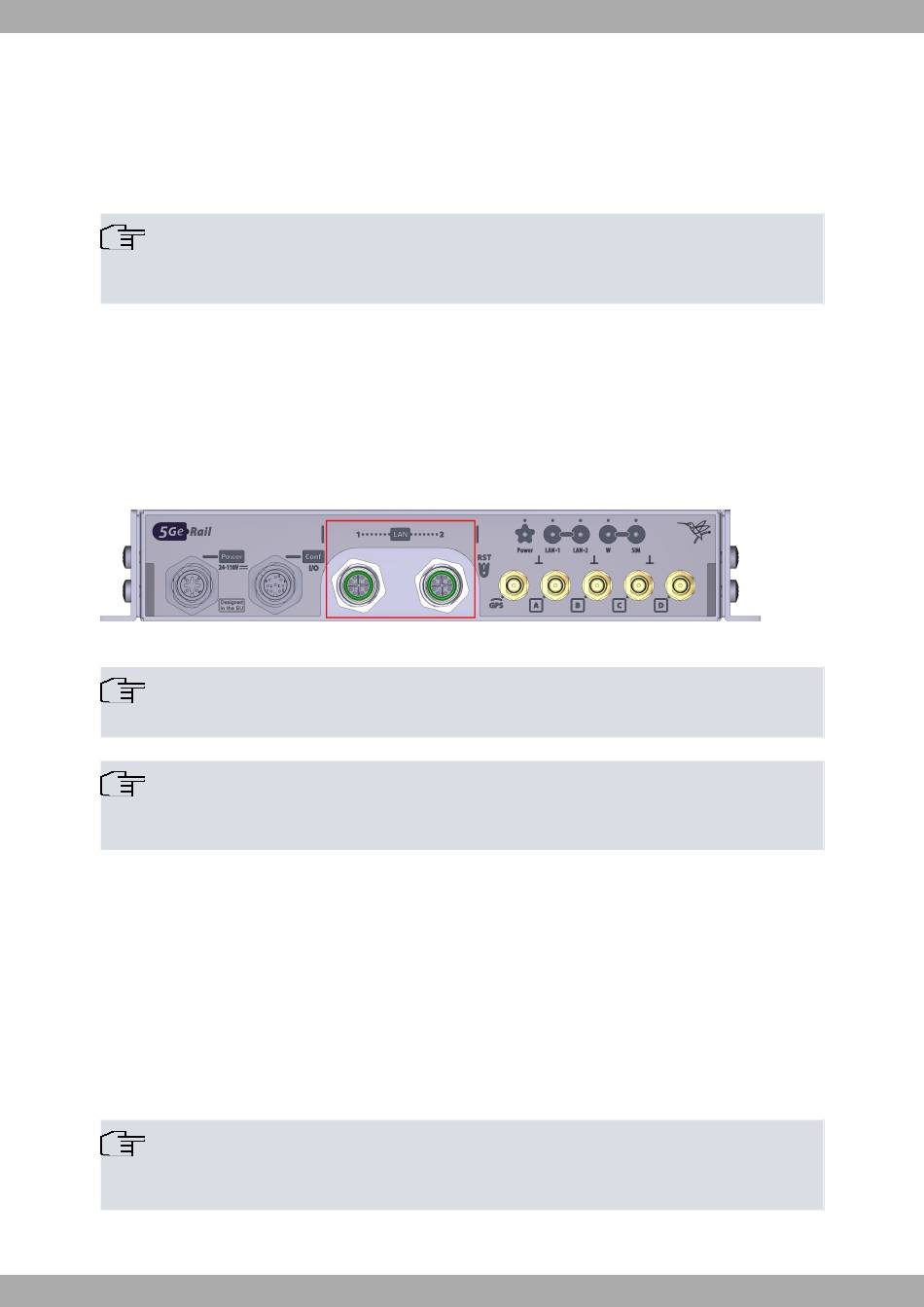

Fig. 9:
Note
During booting and in BIOS mode, only the LAN1 connector is available.
Note
To enable the second LAN (LAN2) interface to function properly, it is necessary to install the appropri-
ate software license.
3.5.2 Connecting the WWAN antennas
The Teldat 5Ge-Rail has four connectors for WWAN antennas on the front panel.
You can easily assemble or disassemble the antennas by plugging or unplugging them into the connectors located
on the router's front panel.
To learn more about the antenna connectors and supported RF bands, please refer to
bands
on page 29.
Installing these antennas in the Teldat 5Ge-Rail is essential to improve the quality of the signal received and trans-
mitted by the cellular model.
Note
It is crucial to install WWAN antennas in the Teldat 5Ge-Rail router in order to enhance the signal qual-
ity received and transmitted by the cellular module.
Some cellular telephony technologies utilize antenna diversity to enhance signal quality. The Teldat 5Ge-Rail router
Teldat 5Ge-Rail
3 Components and Power Supply
Antenna connectors and
13
