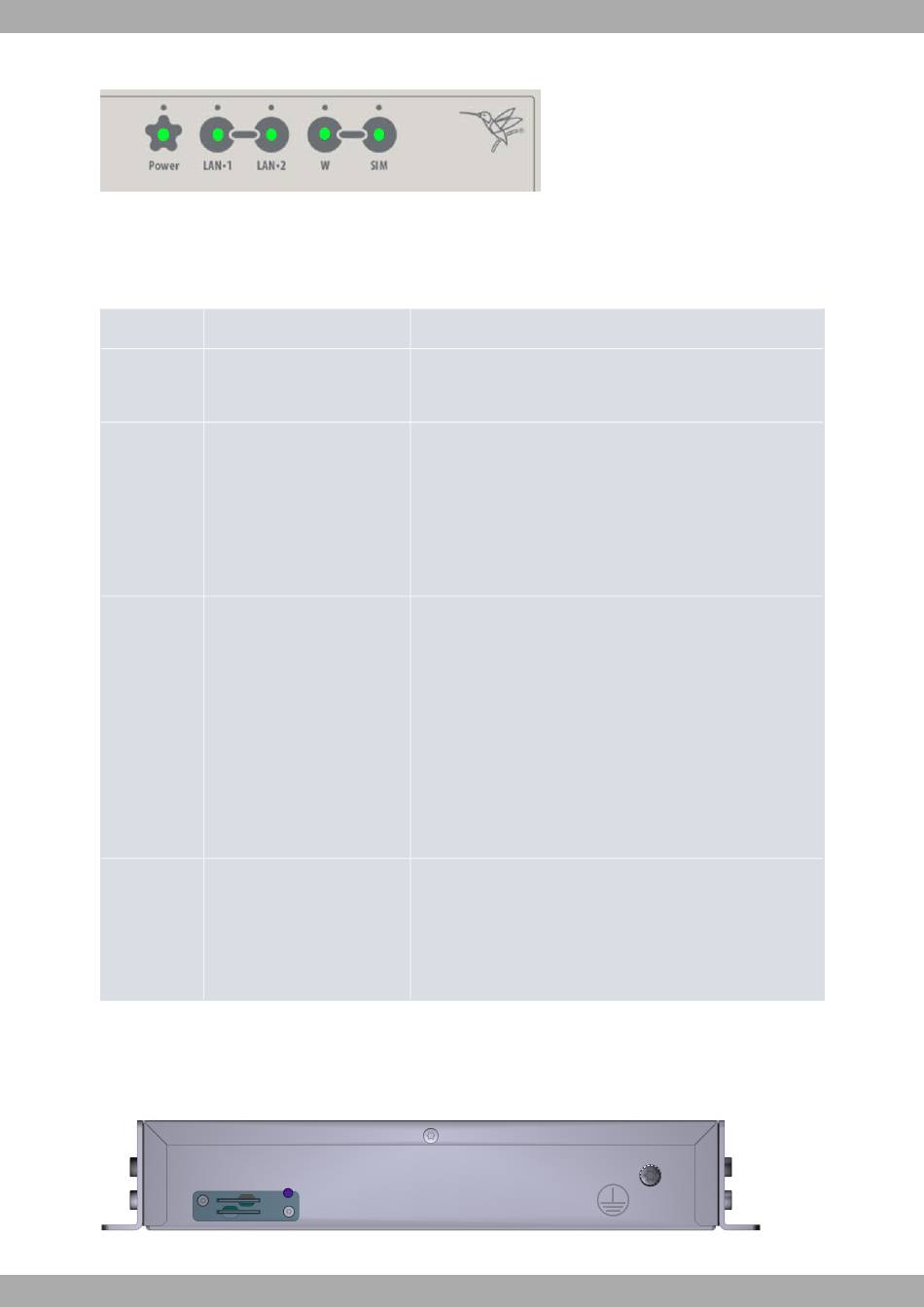

LEDs Panel
Fig. 2:
The LED panel provides information on the status of the components (indicating whether they are active or not) and
on network activity.
LEDs
LED
PWR
LAN1 / LAN2
W
SIM
3.1.2 Rear panel
Moving on to the rear panel, as illustrated in the following figure, the Teldat 5Ge-Rail SIM card slots can be found
here.
Rear Panel
Fig. 3:
Teldat 5Ge-Rail
Status
Tricolor
Tricolor
Tricolor
Tricolor
Description
Green -> Device powered.
Red -> Heater active.
Green -> A link has been established.
Blinking: Connection data activity.
Amber -> Test in progress.
Red -> Disconnected state.
Off -> Interface off.
Off -> System stopped.
Red -> Interface is unavailable, either because it is currently in-
stalling, disabled (shutdown), or due to an auto-test failure.
Amber -> Idle:
• Rapid blinking. The device has not registered in the network, or
the network quality is insufficient.
• Slow blinking. WCDMA connection.
• Steady. LTE/5G connection.
Green -> Connected state. Blinking: Connection data activity.
Off -> System stopped.
Red -> No SIM Selected.
Amber -> SIM2 Selected.
Green -> SIM1 Selected.
3 Components and Power Supply
