Teknik 5431916 Manual

Teknik 5431916 Manual

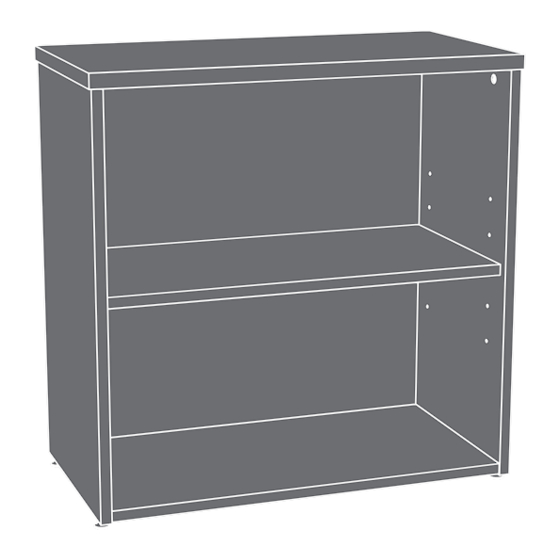

2-shelf bookcase hudson elm finish

Advertisement

Quick Links

Teknik
www.teknikoffice.co.uk
2-Shelf Bookcase
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
Hudson Elm finish | Model 5431916
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-16
Français pg 17-18
Español pg 19-20
Lot # 573596
11/23/21
Purchased: __________________

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5431916 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teknik 5431916

  • Page 1 Teknik www.teknikoffice.co.uk 2-Shelf Bookcase NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Hudson Elm finish | Model 5431916 PLEASE READ AND KEEP FOR FUTURE REFERENCE. English pg 1-16 Français pg 17-18 Español pg 19-20 Lot # 573596 11/23/21 Purchased: __________________...
  • Page 2 Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Hardware Identification Tip Shown Actual Size Hardware Usage Guide Assembly Steps 5-16 Hammer Not actual size Français 17-18 Español 19-20 Safety 21-22 Warranty Page 2...
  • Page 3 Now you know Part Identification our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. RIGHT END (1) LEFT END (1) TOP (1)
  • Page 4 Hardware Identification å Screws are shown actual size. You may receive extra hardware with your unit. 46E LEVELER - 4 HIDDEN CAM - 16 42F WOOD DOWEL - 4 CAM DOWEL - 16 9M TOUCH-UP PEN - 1 129P COVER - 12 RUBBER METAL PIN - 4 SLEEVE - 4...
  • Page 5 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM DOWEL Insert the metal end of the CAM DOWEL into the HIDDEN CAM. Cam Dowel Arrow Hole Push a HIDDEN CAM into Metal end the part. The arrow in the HIDDEN CAM must point toward the hole in the edge Hidden Cam...
  • Page 6 Step 2 å Using your hammer, gently tap two LEVELERS (46E) completely into the holes in the LEFT END (B). Just think. The sooner you do this, the sooner å NOTE: Adjustments to the LEVELERS will be made later in you do something else.
  • Page 7 Step 3 å Push eight HIDDEN CAMS (1F) into the BACKS (E). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. Do not tighten the HIDDEN CAMS in this step. Arrow Metal end Arrow Metal end Page 7...
  • Page 8 Step 4 å Fasten the BACKS (E) to the LEFT END (B). Caution Tighten four HIDDEN CAMS. Do not stand the unit upright without the BACKS fastened. The unit may collapse. D E N H I D i t h f a c S u r D E N...
  • Page 9 Step 5 å Insert two WOOD DOWELS (42F) into the BOTTOM (D). å NOTE: You may need to gently tap the WOOD DOWELS in with your hammer. Page 9...
  • Page 10 Step 6 å Push four HIDDEN CAMS (1F) into the BOTTOM (D). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. Arrow Do not tighten the HIDDEN CAMS in this step. Metal end Arrow Metal end Page 10...
  • Page 11 Step 7 å Fasten the BOTTOM (D) to the LEFT END (B). Tighten two HIDDEN CAMS. Now might be a good time to refresh å NOTE: Be sure the WOOD DOWEL in the BOTTOM your drink. inserts into the LEFT END. This HIDDEN CAM is closer to this edge.
  • Page 12 Step 8 å Push two HIDDEN CAMS (1F) into the RIGHT END (A). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. Arrow Do not tighten the HIDDEN CAMS in this step. Metal end Page 12...
  • Page 13 Step 9 å Using your hammer, gently tap two LEVELERS (46E) completely into the holes in the RIGHT END (A). å NOTE: Adjustments to the LEVELERS will be made later in assembly once your unit is standing upright. Page 13...
  • Page 14 Step 10 å Fasten the RIGHT END (A) to the BOTTOM (D) and BACKS (E). Tighten six HIDDEN CAMS. å NOTE: Be sure the WOOD DOWEL in the BOTTOM inserts into the RIGHT END. Page 14...
  • Page 15 Step 11 å Carefully stand your unit upright. Pro Tip: Lift with your å Insert two WOOD DOWELS (42F) into the ENDS (A and B). legs. And, you know, your arms. å NOTE: You may need to gently tap the WOOD DOWELS in with your hammer.
  • Page 16 Step 12 å Push a RUBBER SLEEVE (2R) over one end of each METAL PIN (1R). Insert the METAL PINS into the hole locations of your choice in the ENDS (A and B). Set the ADJUSTABLE SHELF (F) onto the METAL PINS. å...
