Teknik 5431262 Assembly Instructions Manual

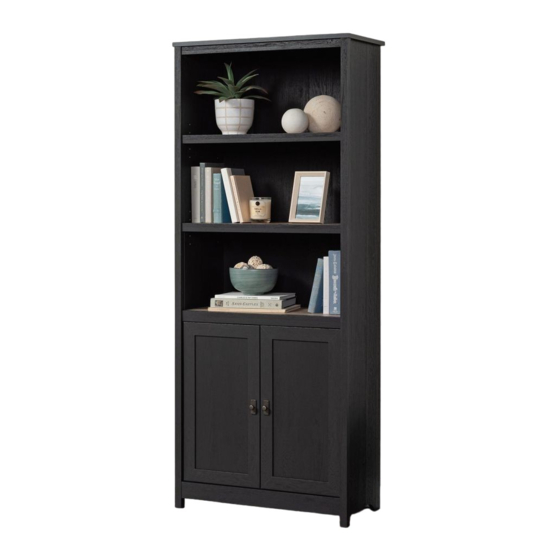

Bookcase with doors raven oak
Hide thumbs

Advertisement

Quick Links

Download this manual
Shaker Style Bookcase with Doors Raven Oak
5
Model
431262
Teknik
www.teknikoffice.co.uk
Here's one for
the books.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5431262 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknik 5431262

Summary of Contents for Teknik 5431262

  • Page 1 Teknik www.teknikoffice.co.uk Here's one for the books. Shaker Style Bookcase with Doors Raven Oak NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Model 431262 PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Hardware Identification Tip Shown Actual Size Hardware Usage Guide 5, 7 Assembly Steps 5-22 Hammer Not actual size Français 23-25 Español 26-28 Safety 29-30 Warranty Page 2...

  • Page 3: Part Identification

    Now you know Part Identification our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. RIGHT END (1) LEFT END (1) C2 TOP (1)

  • Page 4: Hardware Identification

    Hardware Identification å Screws are shown actual size. You may receive extra hardware with your unit. HIDDEN CAM - 20 CAM DOWEL - 12 CAM SCREW - 8 METAL BRACKET - 8 14H HINGE - 4 136K KNOB SET - 2 NAIL - 60 DOOR STOP - 2 FURNITURE TIPPING...

  • Page 5: Hardware Usage Guide

    Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM SCREW Cam Screw Arrow Turn the CAM SCREW until the shoulder is against the surface of the part. Hidden Cam Push a HIDDEN CAM into Insert the CAM SCREW into the HIDDEN CAM. the part.
  • Page 6 Step 2 å Push six HIDDEN CAMS (1F) into the LEFT END (B). å Fasten the LEFT LEG (K) to the LEFT END (B). Tighten Some assembly four HIDDEN CAMS. (and snacks) required. Arrow Arrow Edge with HIDDEN CAMS i t h f a c S u r These surfaces...
  • Page 7 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM DOWEL Insert the metal end of the CAM DOWEL into the HIDDEN CAM. Cam Dowel Arrow Hole Push a HIDDEN CAM into Metal end the part. The arrow in the HIDDEN CAM must point toward the hole in the Hidden Cam...
  • Page 8 Step 4 å Fasten the SHELF (E) to the LEFT END (B). Tighten two Caution HIDDEN CAMS. Do not stand the unit upright without the å Slide the SHELF MOLDING* (N) onto the notched edge of BACK fastened. The unit may collapse. the SHELF (E).
  • Page 9 Step 5 å Turn four CAM SCREWS (8F) into the RIGHT LEG (J). Arrow å Push six HIDDEN CAMS (1F) into the RIGHT END (A). å Fasten the RIGHT LEG (J) to the RIGHT END (A). Tighten four HIDDEN CAMS. Arrow Edge with HIDDEN CAMS...
  • Page 10 Step 6 å Push four HIDDEN CAMS (1F) into the BOTTOM (D). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. Arrow å Fasten the BOTTOM (D) to the LEFT END (B). Tighten two HIDDEN CAMS. å...
  • Page 11 Step 7 å Insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM in the ENDS (A and B). å Fasten the TOP (C2) to the ENDS (A and B). Tighten four HIDDEN CAMS. Metal end These holes must be here. (4 used) Page 11...
  • Page 12 Step 8 å Fasten three METAL BRACKETS (4G) to the TOP MOLDING (M). Use three BLACK 9/16" LARGE HEAD SCREWS (1S). Don't worry. It isn't Rome. This can be built å NOTE: Be sure the BRACKETS are even with the edge of the in a day.
  • Page 13 Step 9 å Fasten the TOP MOLDING (M) to the TOP (C2). Use three BLACK 9/16" LARGE HEAD SCREWS (1S) through the METAL BRACKETS on the TOP MOLDING and into the TOP. BLACK 9/16" LARGE HEAD SCREW (3 used in this step) Page 13...
  • Page 14 Step 10 å Fasten the SPACER (P) to the SHELF (E). Use two BROWN 1-1/2" FLAT HEAD SCREWS (14S). å Then, insert two DOOR STOPS (4I) into the center holes in the SPACER (P). å Fasten five METAL BRACKETS (4G) to the ENDS (A and B) and BOTTOM (D). Use five BLACK 9/16"...
  • Page 15 Step 11 å Carefully turn your unit over onto its front edges. å Fasten the BASE (L) to the ENDS (A and B) and BOTTOM (D). Use five BLACK 9/16" LARGE HEAD SCREWS (1S) through the METAL BRACKETS on the ENDS and BOTTOM and into the BASE.
  • Page 16 Step 12 å Open the FURNITURE TIPPING RESTRAINT KIT (97), Caution and fasten the SAFETY STRAP to the TOP (C2). Use the Do not stand the unit upright without the provided SHORT SCREW. BACK fastened. The unit may collapse. å NOTE: Position the SAFETY STRAP exactly as shown.
  • Page 17 Step 13 å IMPORTANT: The unit must be placed against a wall. å Carefully stand your unit upright in its final location against a wall. We recommend using the SAFETY STRAP for added stability. å NOTE: Do not turn the SAFETY DRYWALL ANCHOR into a wall stud. If you prefer to fasten the SAFETY STRAP to a wall stud, go to your local hardware store for proper hardware.
  • Page 18 Step 14 å Fasten four HINGES (14H) to the DOORS (G). Use eight BLACK 1/2" FLAT HEAD SCREWS (11S). BLACK 1/2" FLAT HEAD SCREW (8 used in this step) Page 18...
  • Page 19 Step 15 å Before fastening the DOOR to your unit, be sure the mounting screw is against the stops as shown in the right Stop diagram. If it isn't, loosen the mounting screw to slide it against the stops. Then tighten the mounting screw. å...
  • Page 20 Step 16 å Refer to the enlarged diagram to identify the parts on the HINGES. å The DOORS may need some adjustments. Follow the text below to make needed adjustments. å DOOR ADJUSTMENTS: To adjust the DOORS from side to side (horizontal), turn the adjusting screw in or out.
  • Page 21 Step 17 å Slide an ADJUSTABLE SHELF MOLDING* (O) onto the notched edge of an ADJUSTABLE SHELF (H). å Repeat this step for the other ADJUSTABLE SHELF (H). å *U.S. Patent No. 5,499,886 Notched edge Slide the ADJUSTABLE SHELF MOLDING (O) onto the notched edge. These surfaces should be even.
  • Page 22 Step 18 å Push the RUBBER SLEEVES (2R) over the METAL PINS (1R). Insert the METAL PINS into the hole locations of your choice in the ENDS (A and B). Set the ADJUSTABLE SHELVES (H and I) onto the METAL PINS. å...

  • Page 23: Français

    WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves. •...
