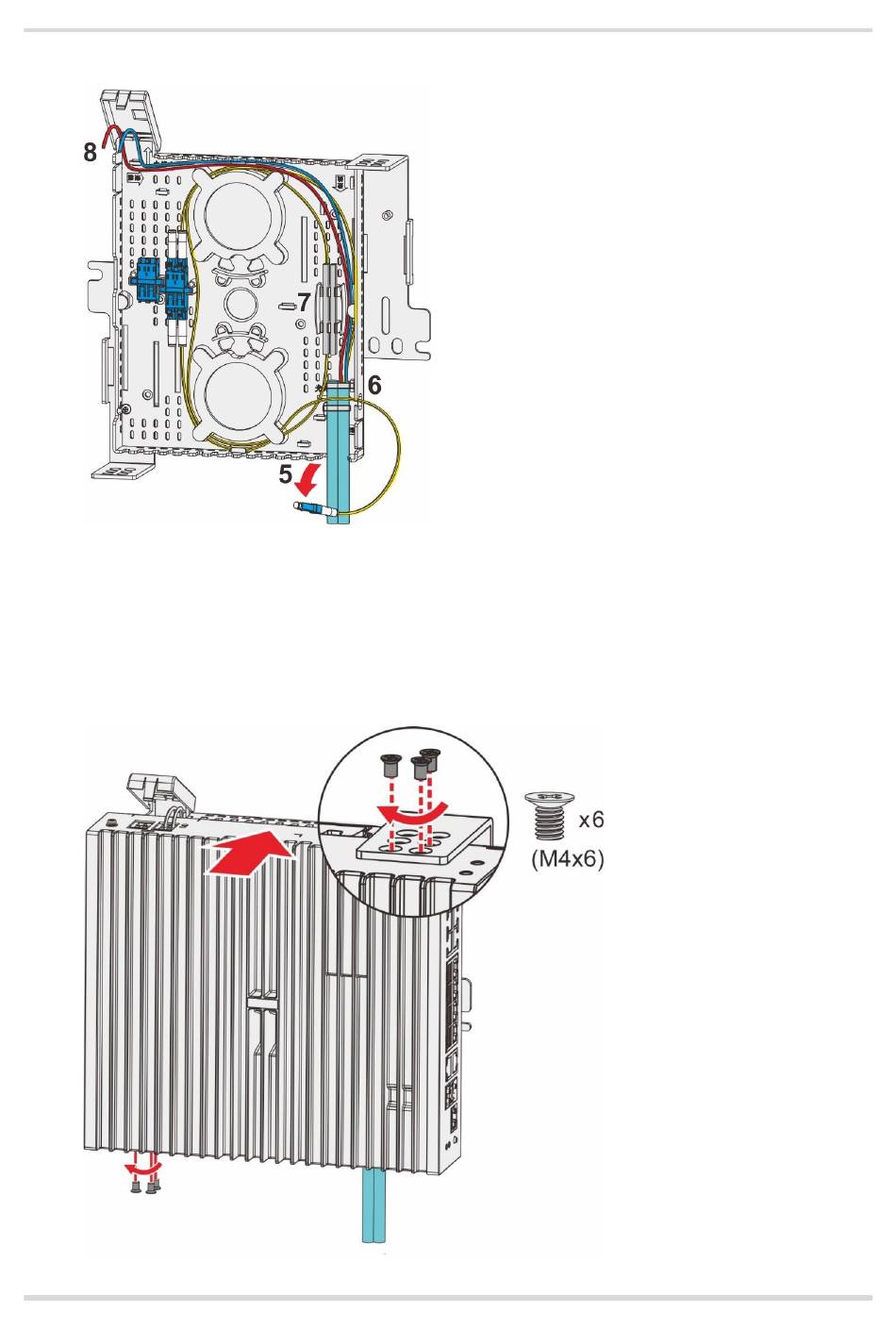

Figure 3-5
Using the Hybrid Cable
(10)
Align the switch with mounting holes in the brackets and edges of the fiber splice tray.
a
Secure the switch to the two mounting brackets using three M4 x 6 mm screws.
b
Screws used: 120-degree countersunk machine screws, M4 x 6 mm
Figure 3-6
Installing the Switch
23
Installing the Switch
