UG_ULK-1616P2-M2P6
4.1.3 ULK-1616P2-M2P6 Dimension

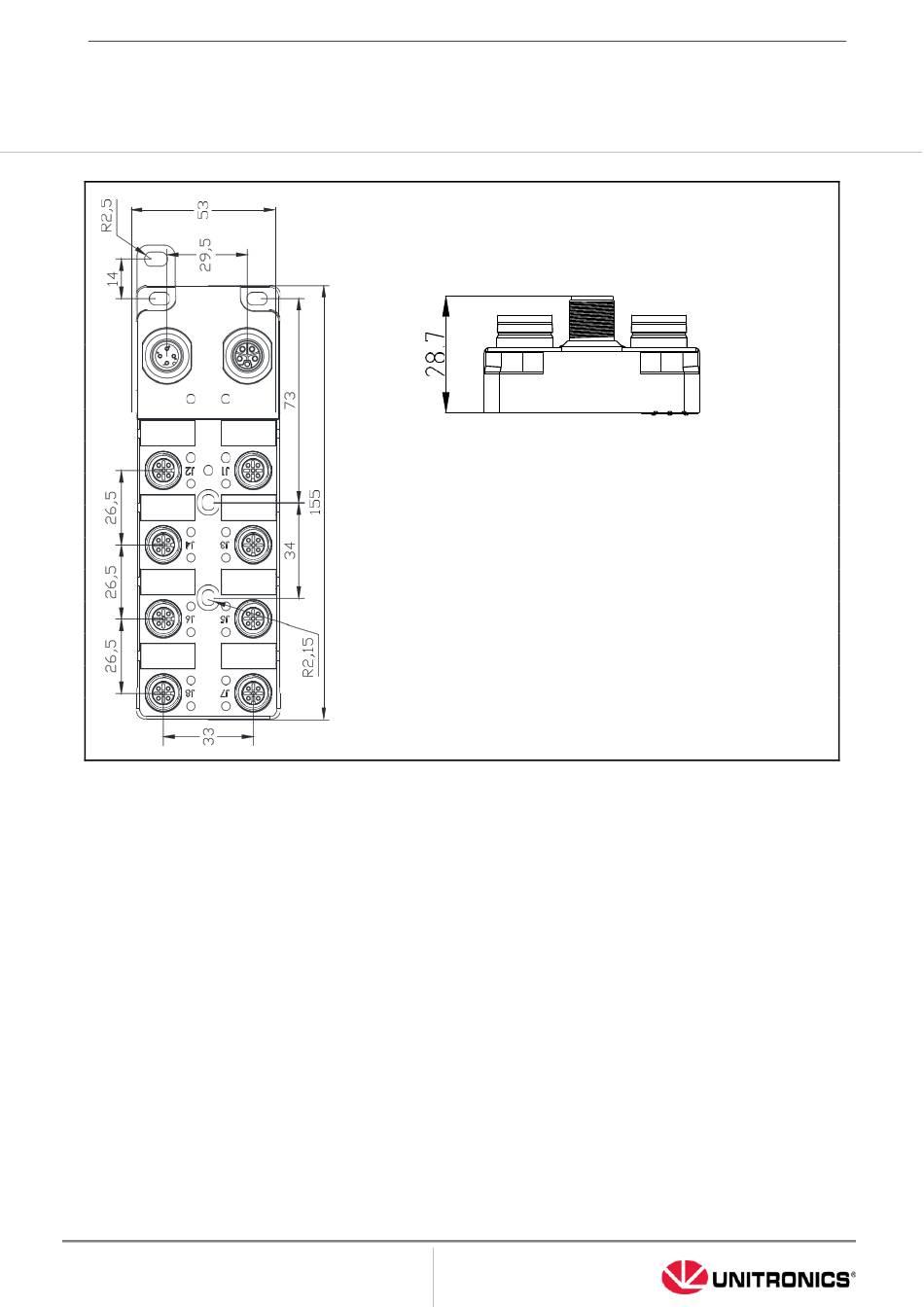

The size of the ULK-1616P2-M2P6 is 155mm × 53mm × 28.7mm, including 4 mounting holes of Φ4.3mm, and the
depth of the mounting holes is 10mm, as shown in the figure below:
10
