User Guide
UNITRONICS
UG_ULK-1616P2-M2P6
IO-LINK
(IO-Link HUB,16I/O,PN,2A,M12,IP67)
User Manual
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG-ULK-1616P2-M2P6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitronics UG-ULK-1616P2-M2P6

  • Page 1 ® User Guide UNITRONICS UG_ULK-1616P2-M2P6 IO-LINK (IO-Link HUB,16I/O,PN,2A,M12,IP67) User Manual User Manual...
  • Page 2: Table Of Contents

    UG_ULK-1616P2-M2P6 Content 1. INTRODUCTION ........................2 1.1 A ........................3 GREEMENT 1.2 P ..........................3 URPOSE 1.3 V ........................3 ALID COPE 1.4 D .................... 3 ECLARATION OF ONFORMITY 2. SAFETY INSTRUCTIONS ..................... 4 2.1 S ....................... 4 AFETY YMBOLS 2.2 G .......................
  • Page 3: Agreement

    UG_ULK-0808P-M8P6 1. Description 1.1 Agreement The following terms/abbreviations are used synonymously in this document: IOL: IO-Link. LSB: least significant bit. MSB: most significant bit. This device: equivalent to "this product", refers to the product model or series described in this manual. 1.2 Purpose This manual contains all the information required to use the device correctly, including information on necessary functions, performance, usage, etc.
  • Page 4: Safety Instructions

    UG_ULK-1616P2-M2P6 2. Safety Instructions 2.1 Safety Symbols Read these instructions carefully and inspect the equipment before attempting to install, operate, repair, or maintain it. The following special messages may appear throughout this document or on the equipment to indicate status information or to warn of potential hazards.
  • Page 5: General Safety

    UG_ULK-0808P-M8P6 2.2 General Safety This equipment should only be installed, operated, serviced and maintained by qualified personnel. Qualified person is a person who has skills and knowledge concerning the construction and operation of electrical equipment, and its installation, and has received safety training to recognize and avoid the hazards involved. There shall be a statement in the instructions that if the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
  • Page 6: Product Overview

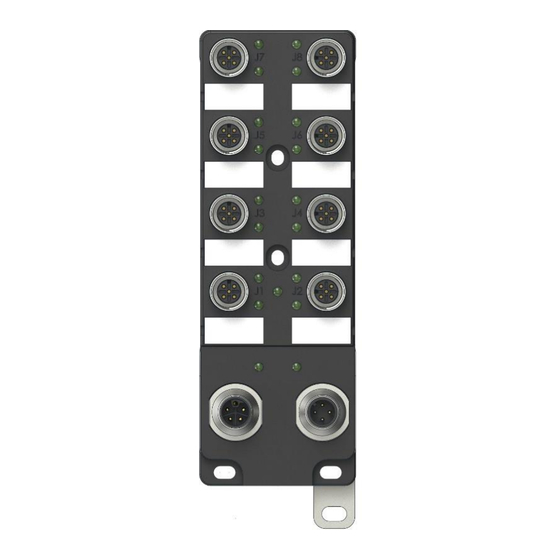

    UG_ULK-1616P2-M2P6 3. Product Overview The IO-Link master establishes the connection between the IO-Link device and the automation system. As an integral part of the I/O system, the IO-Link master station is either installed in the control cabinet, or directly installed on site as a remote I/O, and its encapsulation level is IP65/67.
  • Page 7: Technical Parameters

    UG_ULK-0808P-M8P6 4. Technical Parameters 4.1 ULK-1616P2-M2P6 4.1.1 ULK-1616P2-M2P6 Specification technical specifications of are as follows: ULK-1616P2-M2P6...
  • Page 8 UG_ULK-1616P2-M2P6...
  • Page 9: Ulk-0808P-M8P6 Led Definition

    UG_ULK-0808P-M8P6 4.1.2 ULK-1616P2-M2P6 Series LED Definition ULK-1616P2-M2P6 LED is shown in the below figure. Status Solution Green: Power OK Off: Module power disconnected Check power wiring Green: Auxiliary power is OK Red: The auxiliary power supply Check the wiring of the auxiliary is reversed power port Off: Auxiliary power disconnected...
  • Page 10: Ulk-0808P-M8P6 Dimension

    UG_ULK-1616P2-M2P6 4.1.3 ULK-1616P2-M2P6 Dimension The size of the ULK-1616P2-M2P6 is 155mm × 53mm × 28.7mm, including 4 mounting holes of Φ4.3mm, and the depth of the mounting holes is 10mm, as shown in the figure below:...
  • Page 11: Product Installation

    UG_ULK-0808P-M8P6 5. Product Installation 5.1 Installation Precautions To prevent product malfunction, malfunction, or negative impact on performance and equipment, please observe the following items. 5.1.1 Installation Site Please avoid installing near devices with high heat dissipation (heaters, transformers, large-capacity resistors, etc.) Please avoid installing it near equipment with serious electromagnetic interference (large motors, transformers, transceivers,...
  • Page 12: Hardware Interface

    UG_ULK-1616P2-M2P6 5.2 Hardware Interface 5.2.1 ULK-1616P2-M2P6 Interface Definition Power Port Definition ULK-1616P2-M2P6 Port Definition Power Port Pin Definition Connection Type M12, 5 pins, A-code Male Male Allowable Input Voltage 18...30 VDC(type.24VDC) Port Maximum Current Static Working Current Ic ≤80mA Power Reverse Polarity Protection y es Tightening Torque (power port) M12:0.5Nm...
  • Page 13: Ulk-0808P-M8P6 Wiring Diagram

    The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.
