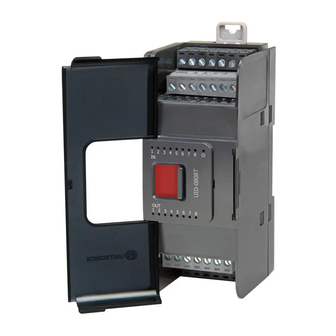

Uni-I/O™ Modules
Uni-I/O™ is a family of Input/Output modules that are compatible with the UniStream™ control platform.
This guide provides basic installation information for the UIS-08TC module.
Technical specifications may be downloaded from the Unitronics website.

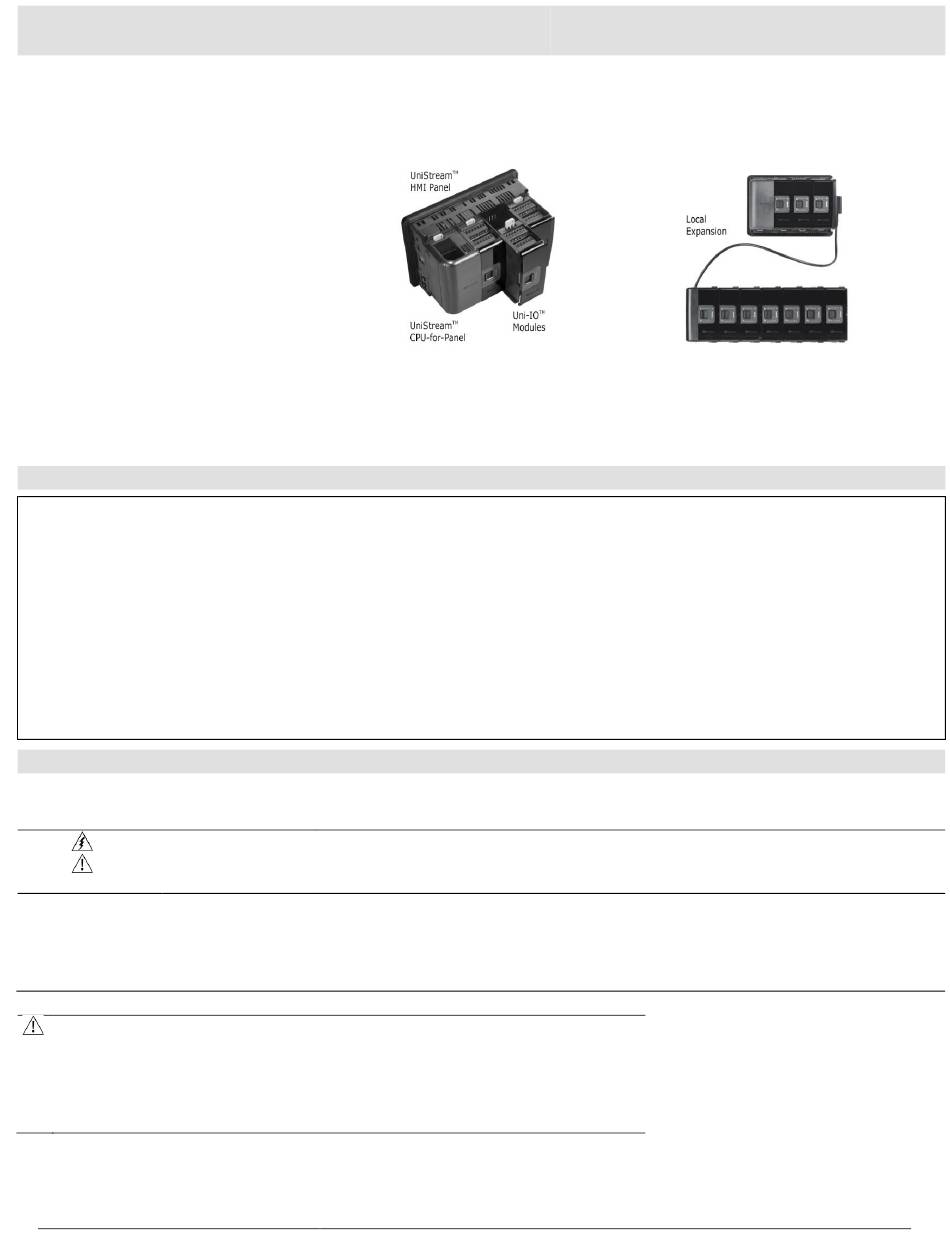

The UniStream™ platform comprises
CPU controllers, HMI panels, and local
I/O modules
that snap together to form an
all-in-one Programmable Logic
Controller (PLC).
Install Uni-I/O™ modules:
▪ Onto the back of any UniStream™ HMI
Panel comprising a CPU-for-Panel.
▪ Onto a DIN-rail, using a
Local Expansion Kit.
The maximum number of Uni-I/O™ modules that can be connected to a single CPU controller is limited. For
details, please refer to the specification sheets of the UniStream™ CPU or any of the relevant Local
Expansion Kits.
Before You Begin
Before installing the device, the installer must:
▪ Read and understand this document.
▪ Verify the Kit Contents.
Installation option requirements
If you are installing a Uni-I/O™ module onto:
▪ A UniStream™ HMI Panel; the Panel must comprise a CPU-for-Panel, installed according to the CPU-for-
Panel installation guide.
▪ A DIN-rail; you must use a Local Expansion Kit, available by separate order, to integrate the Uni-I/O™
modules on the DIN-rail into a UniStream™ control system.
Alert Symbols and General Restrictions
When any of the following symbols appear, read the associated information carefully.
Symbol
Meaning
Danger
Warning
Caution
Caution
▪ All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics
accepts no responsibility for actual use of this product based on these examples.
▪ Please dispose of this product according to local and national standards and regulations.
▪ This product should be installed only by qualified personnel.
▪ Failure to comply with appropriate safety guidelines can cause
severe injury or property damage.
▪ Do not attempt to use this device with parameters that exceed
permissible levels.
▪ Do not connect/disconnect the device when power is on.
Unitronics
Description
The identified danger causes physical and property damage.
The identified danger could cause physical and property damage.
Use caution.
Installation Guide
UIS-08TC
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UIS-08TC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitronics UIS-08TC

  • Page 1 Caution Use caution. ▪ All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. ▪ Please dispose of this product according to local and national standards and regulations.
  • Page 2 ▪ Do not allow debris to fall inside the unit during installation. ▪ Install at maximum distance from high-voltage cables and power equipment. Kit Contents ▪ 1 UIS-08TC module ▪ ▪ 4 I/O terminal blocks (2 black and 2 gray)
  • Page 3 UIS-08TC Technical Specifications The I/O Bus connectors provide the physical and electrical connection points between modules. The connector is shipped covered by a protective cover, protecting the connector from debris, damage, and ESD. The I/O Bus - Left (#4 in diagram) can be connected to either a CPU-for-Panel, a Uni-COM™...
  • Page 4 You can number modules for reference purposes. A set of 20 stickers is provided with every CPU-for-Panel; use these stickers to number the modules. ▪ The set contains numbered and blank stickers as shown in the figure to the left. ▪ Place them on the modules as shown in the figure to the right. Unitronics...
  • Page 5 Class I, Division 2, Groups A, B, C et D. Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D.
  • Page 6 4. Tighten enough to keep the wire from pulling free. UIS-08TC Connection Points All wiring diagrams and instructions in this document refer to the UIS-08TC connection points. These points are arranged in four groups of seven points as shown in the figure to the right.
  • Page 7 Connect the cable shield to the earth of the system - preferably to the metal cabinet chassis. Note that ➢ the shield must be connected only at one end of the cable; typically, earthing the shield at the UIS-08TC end performs better.
  • Page 8 UniStream™ Technical Specifications UniStream™ Uni-I/O™ Modules UIS-08TC This guide provides specifications for Unitronics’ Uni-I/O™ module UIS-08TC. This module comprises: • 8 Thermocouple inputs Uni-I/O modules are compatible with UniStream™ family of Programmable Logic Controllers. They may be either snapped onto the back of a UniStream™ HMI Panel next to a CPU-for-Panel to create an all-in-one HMI + PLC controller, or installed on a standard DIN Rail using a Local Expansion Adapter.
  • Page 9 UIS-08TC Technical Specifications Over-range: 1,768°C < T ≤ 1,800°C (3,214.4°F < T ≤ 3,272°F) Under-range: Thermocouple 200°C ≤ T ≤ 1,820°C 100°C ≤ T < 200°C type B (392°F ≤ T ≤ 3,308°F) (212°F ≤ T < 392°F) Over-range: 1,820°C < T ≤ 1,870°C (3,308°F <...
  • Page 10 A triple color LED. Indications are as follows: Color LED State Status Operating normally Green Slow blink Boot Rapid blink OS initialization Green/Red Slow blink Configuration mismatch Slow blink No IO exchange Rapid blink Communication error Orange Rapid Blink OS Upgrade Unitronics...
  • Page 11 UIS-08TC Technical Specifications Environmental Protection IP20, NEMA1 Operating -20°C to 55°C (-4°F to 131°F) temperature Storage temperature -30°C to 70°C (-22°F to 158°F) Relative Humidity 5% to 95% (non-condensing) (RH) Operating altitude 2,000 m (6,562 ft) Shock IEC 60068-2-27, 15G, 11ms duration Vibration IEC 60068-2-6, 5Hz to 8.4Hz, 3.5mm constant amplitude, 8.4Hz to 150Hz,...
  • Page 12 UniStream™ Side View Front View Unitronics...
  • Page 13 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.
