Unitronics UID-W1616R User Manual

Uni-I/O™ Wide
Modules
Uni-I/O™ Wide is a family of Input/Output modules that are compatible with the
UniStream™ control platform. Wide Modules are 1.5 times as wide as Uni-I/O™ modules,
and comprise more I/O points in less space.

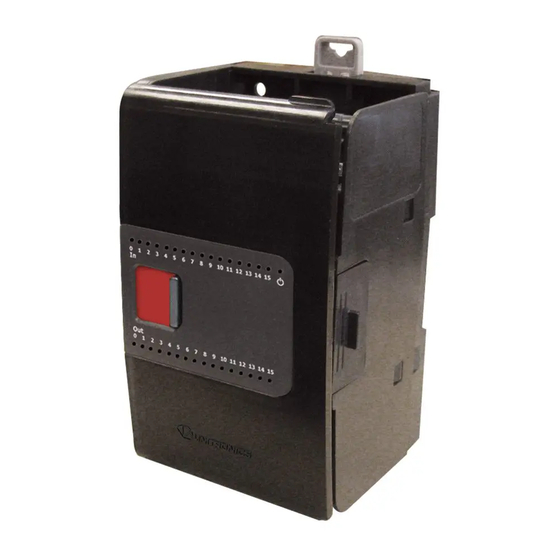

This guide provides basic installation information for UID-W1616R and UID-W1616T Uni-
I/O™ modules.
Technical specifications may be downloaded from the Unitronics website.
The UniStream™ platform
comprises CPU controllers, HMI
panels, and local I/O modules
that snap together to form an
all-in-one Programmable Logic
Controller (PLC).
Install Uni-I/O™ modules:
▪ Onto the back of any
UniStream™ HMI Panel
comprising a CPU-for-Panel.
▪ Onto a DIN-rail, using a
Local Expansion Kit.
The maximum number of Uni-I/O™ Wide modules that can be connected to a single CPU
controller is limited. For details, please refer to the specification sheets of the
UniStream™ CPU or any of the relevant Local Expansion Kits.
Before You Begin
Before installing the device, the installer must:
▪ Read and understand this document.
▪ Verify the Kit Contents.
Installation option requirements
If you are installing a Uni-I/O™ module onto:
▪ A UniStream™ HMI Panel; the Panel must comprise a CPU-for-Panel, installed according
to the CPU-for-Panel installation guide.
▪ A DIN-rail; you must use a Local Expansion Kit, available by separate order, to integrate
the Uni-I/O™ modules on the DIN-rail into a UniStream™ control system.
Alert Symbols and General Restrictions
When any of the following symbols appear, read the associated information carefully.
Symbol Meaning
Danger
Warning
Caution Caution
▪ All examples and diagrams are intended to aid understanding, and do not guarantee
operation. Unitronics accepts no responsibility for actual use of this product based on
these examples.
Unitronics
Description
The identified danger causes physical and property damage.
The identified danger could cause physical and property damage.
Use caution.
User Guide
UID-W1616R, UID-W1616T
