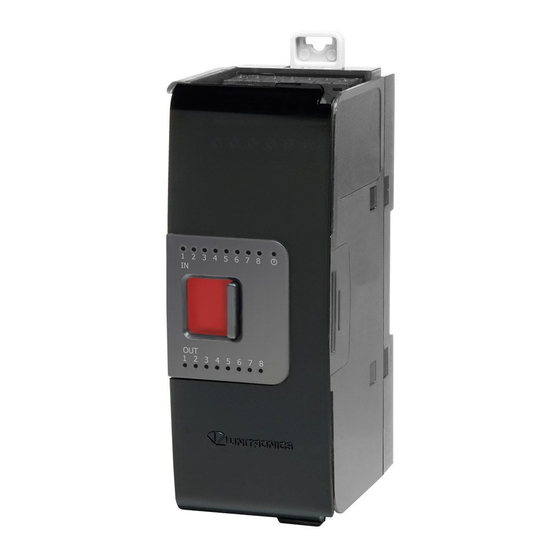

Uni-I/O™ Modules

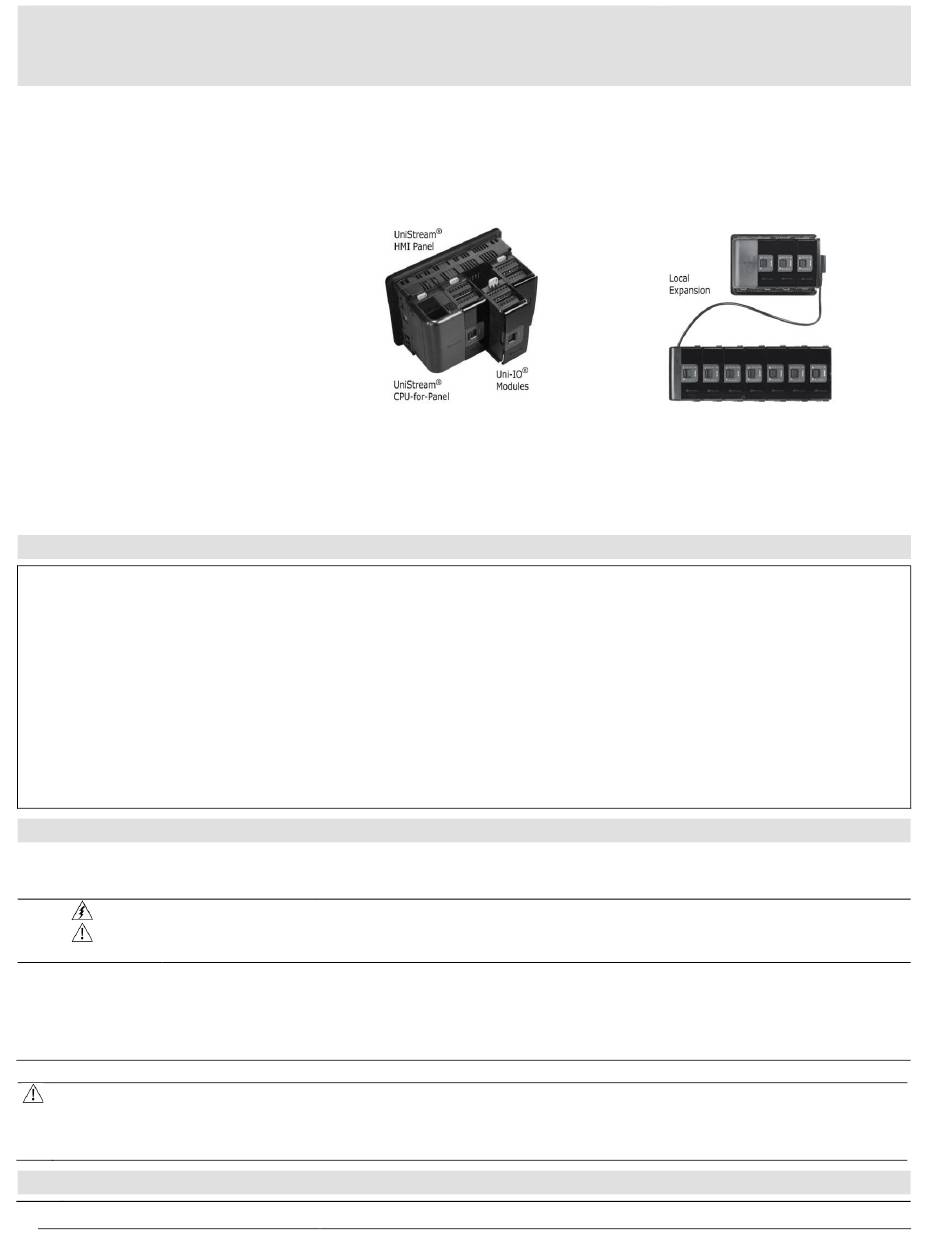

Uni-I/O™ is a family of Input/Output modules that are compatible with the UniStream
platform.
This guide provides basic installation information for the UIA-0800NH module.
Technical specifications may be downloaded from the Unitronics website.
The UniStream
®
platform comprises
CPU controllers, HMI panels, and local
I/O modules
that snap together to form an
all-in-one Programmable Logic
Controller (PLC).
Install Uni-I/O™ modules:
▪ Onto the back of any UniStream
HMI Panel comprising a CPU-for-
Panel.
▪ Onto a DIN-rail, using a
Local Expansion Kit.
The maximum number of Uni-I/O™ modules that can be connected to a single CPU controller is limited.
For details, please refer to the specification sheets of the UniStream
Expansion Kits.
Before You Begin
Before installing the device, the installer must:
▪ Read and understand this document.
▪ Verify the Kit Contents.
Installation option requirements
If you are installing a Uni-I/O™ module onto:
▪ A UniStream
®
HMI Panel; the Panel must comprise a CPU-for-Panel, installed according to the CPU-for-
Panel installation guide.
▪ A DIN-rail; you must use a Local Expansion Kit, available by separate order, to integrate the Uni-
I/O™ modules on the DIN-rail into a UniStream
Alert Symbols and General Restrictions
When any of the following symbols appear, read the associated information carefully.
Symbol
Meaning
Danger
Warning
Caution
Caution
▪ All examples and diagrams are intended to aid understanding, and do not guarantee operation.
Unitronics accepts no responsibility for actual use of this product based on these examples.
▪ Please dispose of this product according to local and national standards and regulations.
▪ This product should be installed only by qualified personnel.
▪ Failure to comply with appropriate safety guidelines can cause severe injury or property damage.
▪ Do not attempt to use this device with parameters that exceed permissible levels.
▪ Do not connect/disconnect the device when power is on.
Environmental Considerations
Unitronics
®
®
control system.
Description
The identified danger causes physical and property damage.
The identified danger could cause physical and property damage.
Use caution.
User Guide
UIA-0800NH
®
control
®
CPU or any of the relevant Local
1
Advertisement
Related Manuals for Unitronics UIA-0800NH
Summary of Contents for Unitronics UIA-0800NH
- Page 1 ▪ All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. ▪ Please dispose of this product according to local and national standards and regulations.
- Page 2 ▪ Do not allow debris to fall inside the unit during installation. ▪ Install at maximum distance from high-voltage cables and power equipment. Kit Contents ▪ 1 UIA-0800NH module ▪ 4 I/O terminal blocks (2 black and 2 gray) UIA-0800NH Diagram DIN-rail clips Provide physical support for CPU and modules.
- Page 3 On the Uni-I/O™ module, pull the top DIN-rail clip up and the bottom clip down. Open the door of the Uni-I/O™ and hold it with two fingers as shown in the figure on page 3; then pull it carefully from its place. Unitronics...
- Page 4 You can number modules for reference purposes. A set of 20 stickers is provided with every CPU-for- Panel; use these stickers to number the modules. ▪ The set contains numbered and blank stickers as shown in the figure to the left. ▪ Place them on the modules as shown in the figure to the right. Unitronics...
- Page 5 Class I, Division 2, Groups A, B, C et D. Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D.
- Page 6 4. Tighten enough to keep the wire from pulling free. UIA-0800NH Connection Points All wiring diagrams and instructions in this document refer to the UIA-0800NH connection points. These points are arranged in four groups of 7 points as shown in the figure to the right.
- Page 7 Ensure shield continuity when extending shielded cables. ➢ For detailed information, refer to the document System Wiring Guidelines, located in the Technical Library in the Unitronics’ website. Wiring the Analog Inputs ▪ The inputs are not isolated. ▪ Each input has its own common point (CM0 for I0, etc.).
- Page 8 UniStream ® Uni-I/O™ Module UIA-0800NH This guide provides specifications for Unitronics’ Uni-I/O™ module UIA-0800NH. This module comprises: • 8 analog inputs, 12 bit, supports HART protocol Uni-I/O modules are compatible with UniStream family of Programmable Logic Controllers. They may be either snapped onto the back of a UniStream HMI Panel next to a CPU-for-Panel to create an all- in-one HMI + PLC controller, or installed on a standard DIN Rail using a Local Expansion Adapter.
- Page 9 -30°C to 70°C (-22°F to 158°F) Relative Humidity 5% to 95% (non-condensing) (RH) Operating altitude 2,000 m (6,562 ft) Shock IEC 60068-2-27, 15G, 11ms duration Vibration IEC 60068-2-6, 5Hz to 8.4Hz, 3.5mm constant amplitude, 8.4Hz to 150Hz, 1G acceleration Unitronics...
- Page 10 UniStream™ Dimensions Weight 0.13 Kg (0.286 lb) Size Refer to the images below Top View Side View Front View Unitronics...
- Page 11 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.
