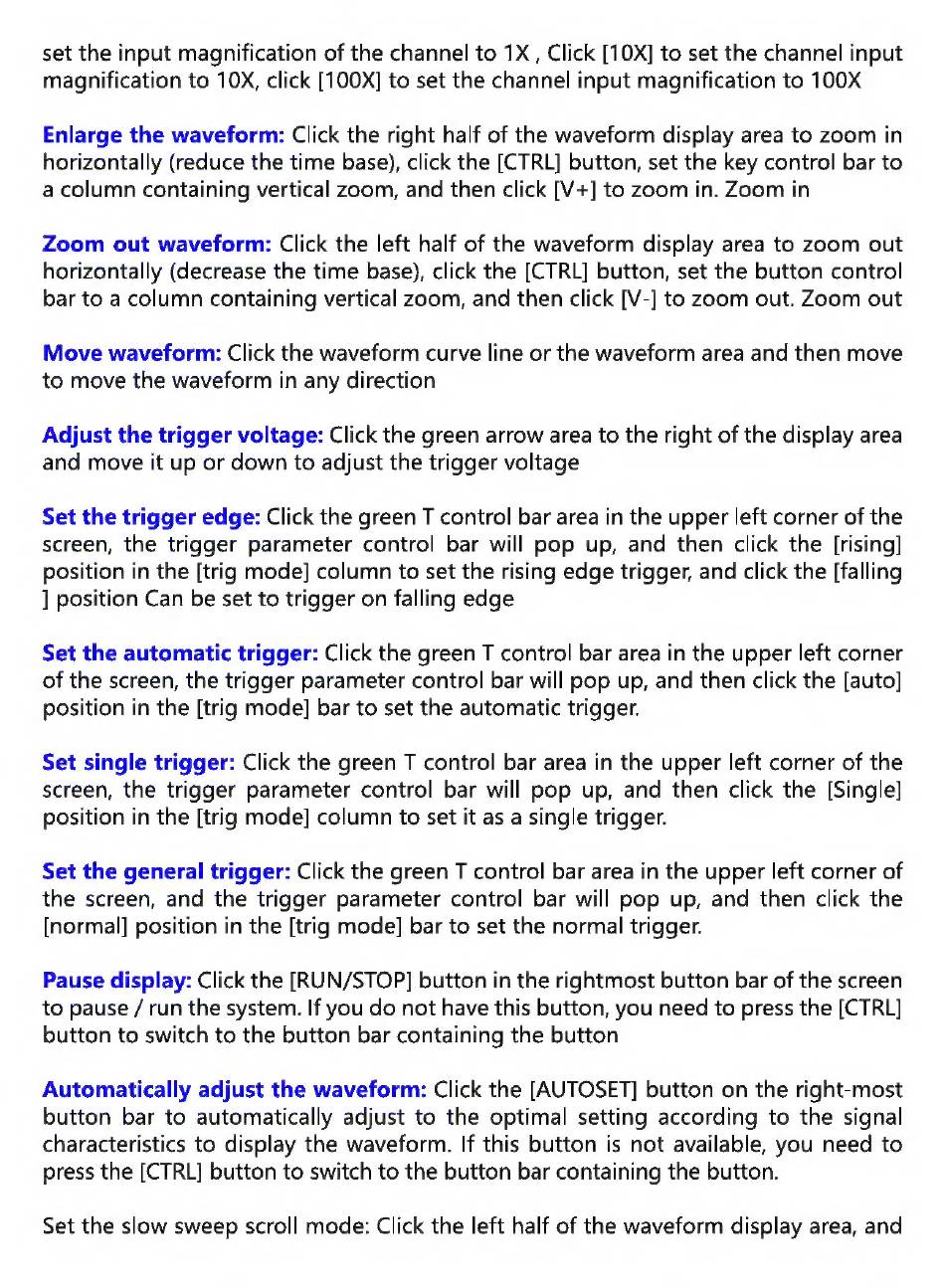

set the input magnification of the channel to 1X, Click [10X] to set the channel input
magnification to 10X, click [100X] to set the channel input magnification to 100X
Enlarge the waveform: Click the right half of the waveform display area to zoom in
horizontally (reduce the time base), click the [CTRL] button, set the key control bar to
a column containing vertical zoom, and then click [V+] to zoom in. Zoom in
Zoom out waveform: Click the left half of the waveform display area to zoom out
horizontally (decrease the time base), click the [CTRL] button, set the button control
bar to a column containing vertical zoom, and then click [V-] to zoom out. Zoom out
Move waveform: Click the waveform curve line or the waveform area and then move
to move the waveform in any direction
Adjust the trigger voltage: Click the green arrow area to the right of the display area
and move it up or down to adjust the trigger voltage
Set the trigger edge: Click the green T control bar area in the upper left corner of the
screen, the trigger parameter control bar will pop up, and then click the [rising]
position in the [trig mode] column to set the rising edge trigger, and click the [falling
] position Can be set to trigger on falling edge
Set the automatic trigger: Click the green T control bar area in the upper left corner
of the screen, the trigger parameter control bar will pop up, and then click the [auto]
position in the [trig mode] bar to set the automatic trigger.
Set single trigger: Click the green T control bar area in the upper left corner of the
screen, the trigger parameter control bar will pop up, and then click the [Single]
position in the [trig mode] column to set it as a single trigger.
Set the general trigger: Click the green T control bar area in the upper left corner of
the screen, and the trigger parameter control bar will pop up, and then click the
[normal] position in the [trig mode] bar to set the normal trigger.
Pause display: Click the [RUN/STOP] button in the rightmost button bar of the screen
to pause / run the system. If you do not have this button, you need to press the [CTRL]
button to switch to the button bar containing the button
Automatically adjust the waveform: Click the [AUTOSET] button on the right-most
button bar to automatically adjust to the optimal setting according to the signal
characteristics to display the waveform. If this button is not available, you need to
press the [CTRL] button to switch to the button bar containing the button.
Set the slow sweep scroll mode: Click the left half of the waveform display area, and
