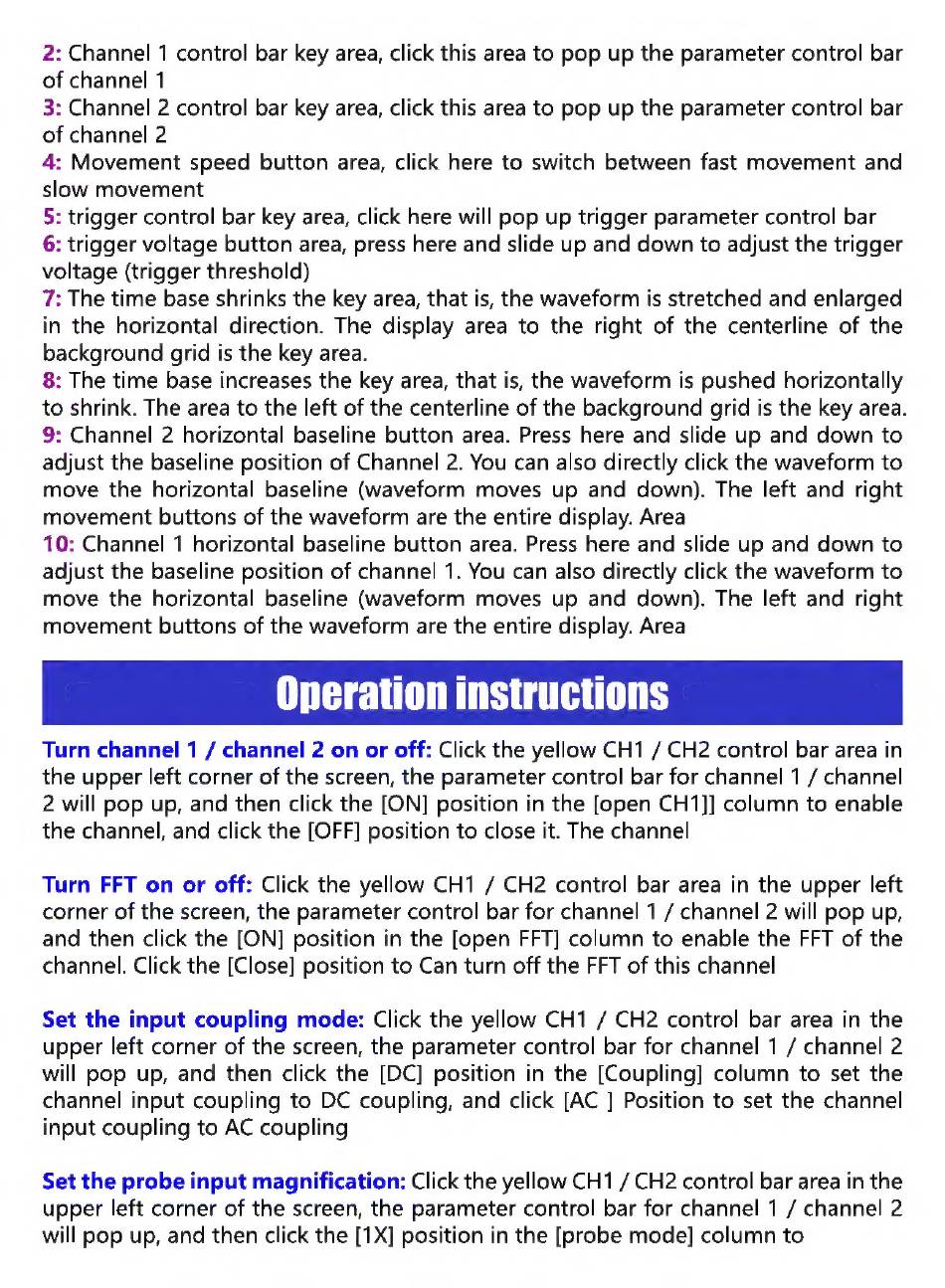

2: Channel 1 control bar key area, click this area to pop up the parameter control bar
of channel 1
3: Channel 2 control bar key area, click this area to pop up the parameter control bar
of channel 2
4: Movement speed button area, click here to switch between fast movement and
slow movement
5: trigger control bar key area, click here will pop up trigger parameter control bar
6: trigger voltage button area, press here and slide up and down to adjust the trigger
voltage (trigger threshold)
7: The time base shrinks the key area, that is, the waveform is stretched and enlarged
in the horizontal direction. The display area to the right of the centerline of the
background grid is the key area.
8: The time base increases the key area, that is, the waveform is pushed horizontally
to shrink. The area to the left of the centerline of the background grid is the key area.
9: Channel 2 horizontal baseline button area. Press here and slide up and down to
adjust the baseline position of Channel 2. You can also directly click the waveform to
move the horizontal baseline (waveform moves up and down). The left and right
movement buttons of the waveform are the entire display. Area
10: Channel 1 horizontal baseline button area. Press here and slide up and down to
adjust the baseline position of channel 1. You can also directly click the waveform to
move the horizontal baseline (waveform moves up and down). The left and right
movement buttons of the waveform are the entire display. Area
Operation instructions
Turn channel 1 / channel 2 on or off: Click the yellow CH1 / CH2 control bar area in
the upper left corner of the screen, the parameter control bar for channel 1 / channel
2 will pop up, and then click the [ON] position in the [open CH1]] column to enable
the channel, and click the [OFF] position to close it. The channel
Turn FFT on or off: Click the yellow CH1 / CH2 control bar area in the upper left
corner of the screen, the parameter control bar for channel 1 / channel 2 will pop up,
and then click the [ON] position in the [open FFT] column to enable the FFT of the
channel. Click the [Close] position to Can turn off the FFT of this channel
Set the input coupling mode: Click the yellow CH1 / CH2 control bar area in the
upper left corner of the screen, the parameter control bar for channel 1 / channel 2
will pop up, and then click the [DC] position in the [Coupling] column to set the
channel input coupling to DC coupling, and click [AC ] Position to set the channel
input coupling to AC coupling
Set the probe input magnification: Click the yellow CH1 / CH2 control bar area in the
upper left corner of the screen, the parameter control bar for channel 1 / channel 2
will pop up, and then click the [1X] position in the [probe mode] column to
