SIGNIFY GARDCO OptiForm Solar Manual page 7

Solar Solution
6
7
8
DETAIL DESCRIPTION
MARK
9
10
page www.lumec.com
Installation Instructions
S

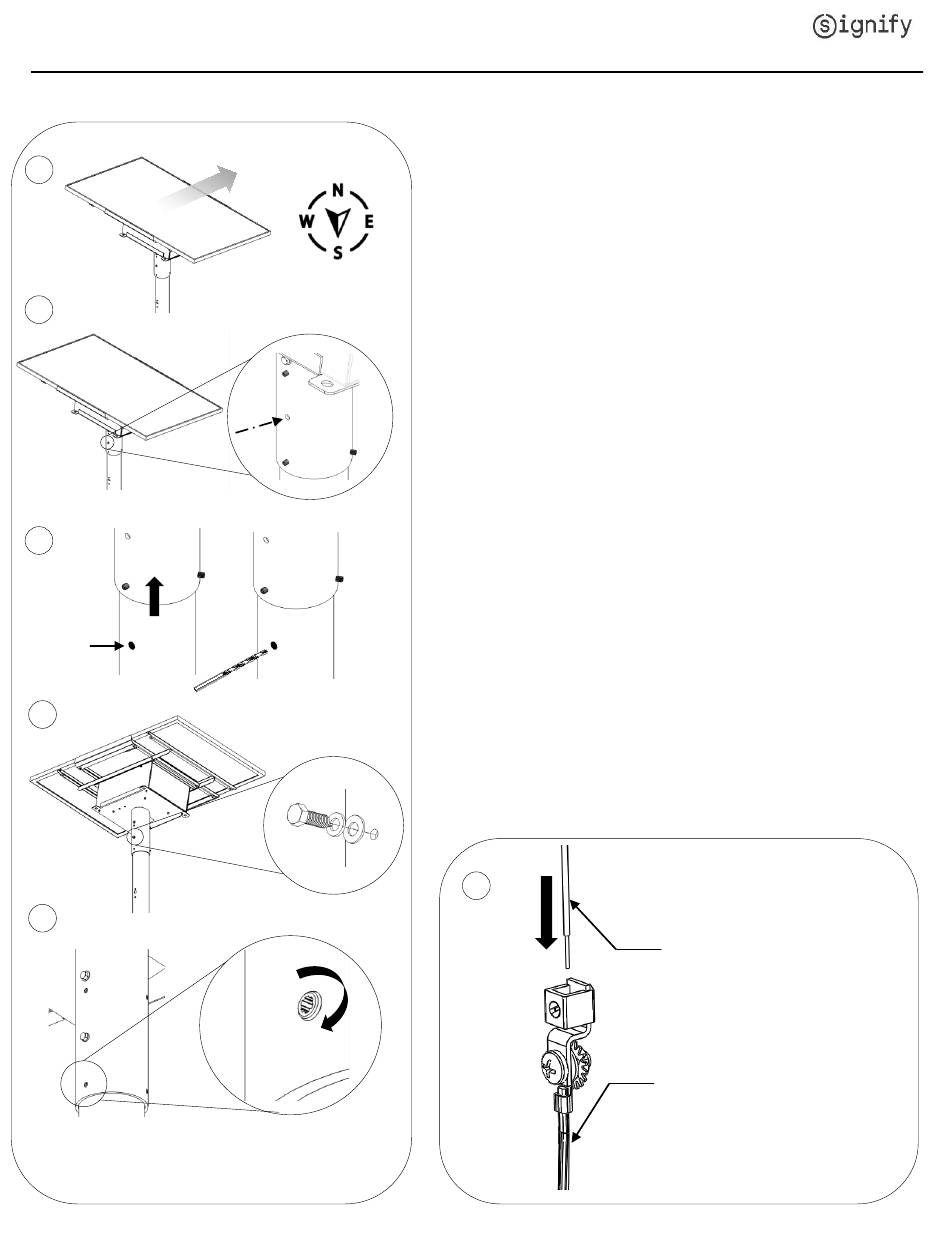

6. Using a compass, orient the face of the solar panel
towards the south.
7. Once the system is aligned in the desired orientation,
make a mark on the pole at the position of the locking
bolt.
8. Lift the solar system slightly to clear the mark and drill a
1/2" hole at the mark.
9. Install the solar system on the pole and secure it with the
locking bolt 3/8-16, 1'',lock washer & washer. Tighten the
bolt to the specified torque: 11.6 ft-lbs.
10. Tighten the set screws (6) 3/8-16, 1/2'' to the specified
torque: 18 ft-lbs.
11. Connect the main ground to the ground lug at the base of
the pole.
12. Contactor must provide and install Ground rod as per
National Electrical code (NEC) article 250.52 (A)(5) or the
local application regulation agency. Then, complete the
connection between the rod and the ground lug.
CAUTION: Never power up the product without ensuring
that it is safely grounded.
11
Main Ground
Ground Log
12NCs-Rx
