SIGNIFY GARDCO OptiForm Solar Manual page 3

Solar Solution
1
2
DETAIL DESCRIPTION
3
4
page www.lumec.com

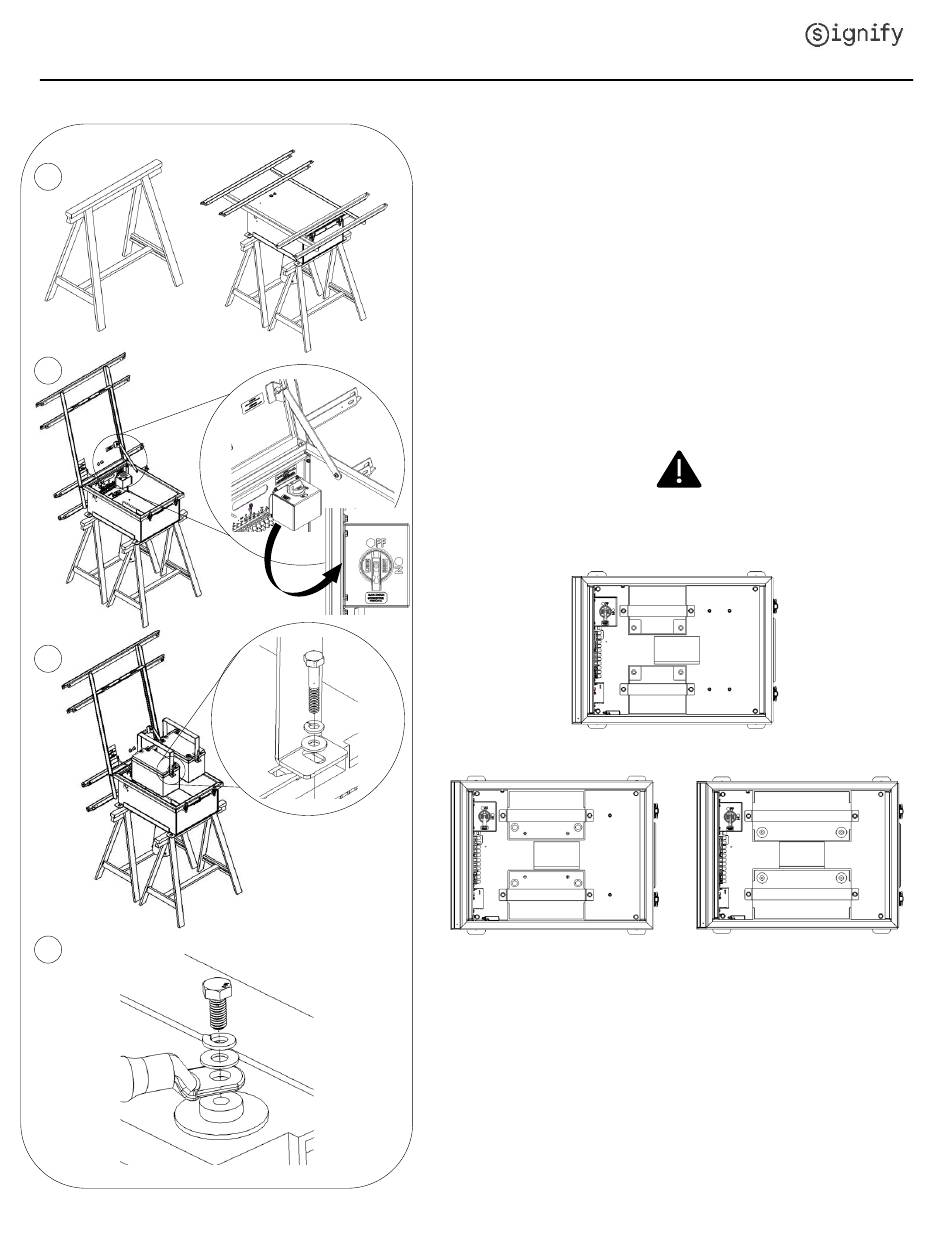

Installation Instructions
Battery Box & Solar Panel Assembly
CAUTION: Please handle batteries carefully to avoid damage.
(handles on some models)
1. Before starting the battery box assembly, provide a
suitable work surface to lay the battery box flat. Example:
use two trestles.
2. After laying the battery box down flat and stable, open the
door and secure it with the safety arm. Make sure the
main switch is on ''OFF'' before starting the assembly.
3. Position batteries as per show below & fix the batteries
with straps and hardware provided (4) 1/4-20 X 1.5'' SS
bolts,(4) lock washers, (4) flat washers Recommended
torque: 3.2 ft-lbs.
70Ah
+
-
NOTE: It is important to place the batteries so that
the poles face each other.
4. According to the electrical diagram, connect batteries
cables to battery M6 terminals (positive/negative) with (2)
M6 bolts, lock washers & washers. Recommended torque:
3.2 ft-lbs. Once connected, make sure the (2) positive
terminal covers protect the terminals to prevent short
circuit.
CAUTION Prevent over torque damage
Do not over torque nuts and bolts
40Ah
-
+
-
+
-
+
12NCs-Rx
100Ah
-
+
-
+
