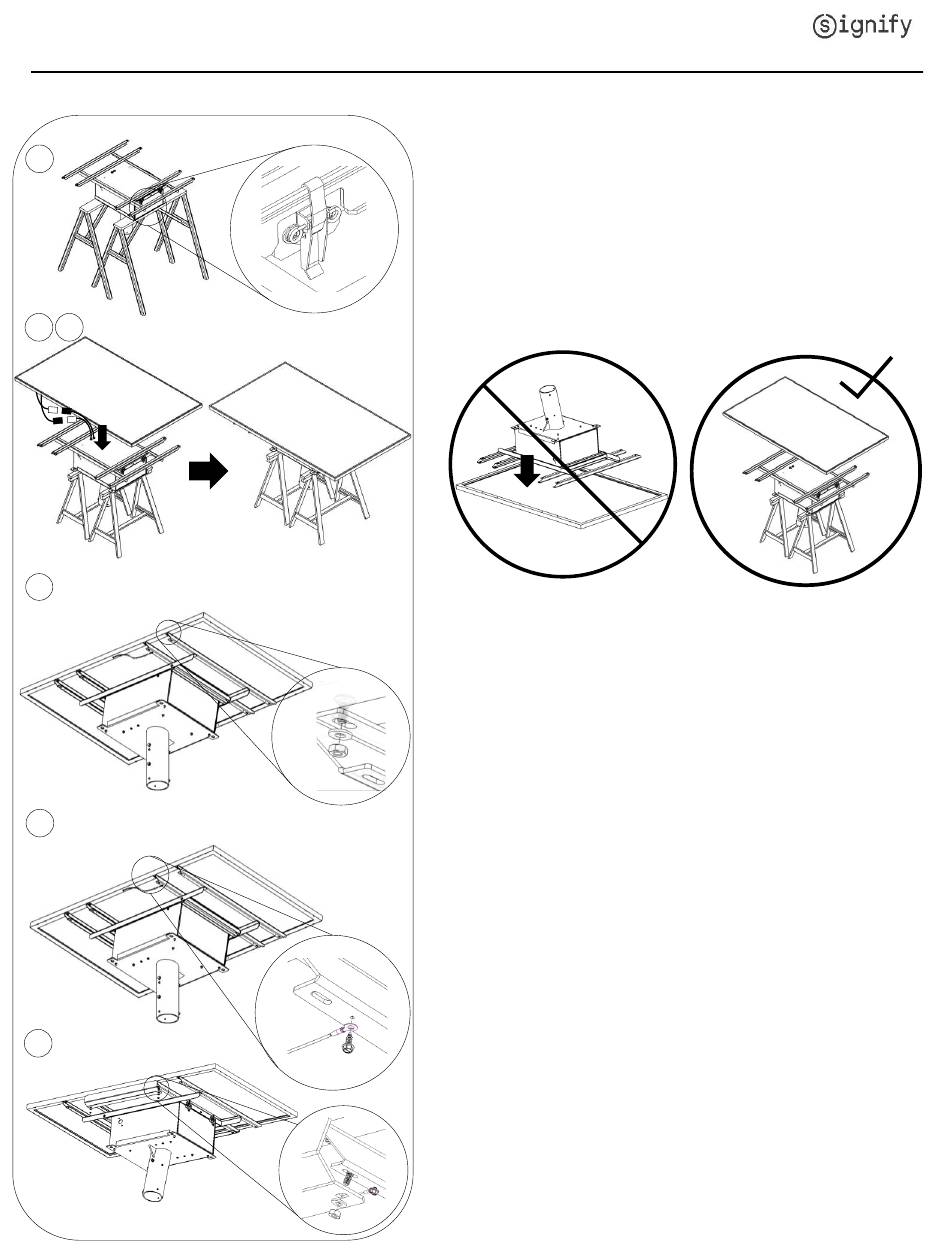

Installation Instructions
CAUTION: Do not attempt to install the solar system in
windy conditions.
IMPORTANT: The PV panel is fragile. Never install the solar
panel on the ground upside down, this could damage the
panel. Always handle the solar panel carefully.
NOTE: Remove protective film on PV panel frame before
installation.
5. Close the battery box cover using the 2 latches.
6. Connect the Solar panel cables (male and female) to the
battery box cables connectors (male and female) while
placing the panel on the battery box lid.
7. Secure the excess cable with nylon cable tie to solar panel
frame.
8. Secure solar panel to the frame using 1/4-20 X 5/8" ss
carriage bolt, washers & ss nylon insert lock nuts.
Recommended torque: 6.25 ft-lbs.
IMPORTANT: Reduce power tool speed when tightening
stainless steel nylon insert lock nuts to reduce friction and
prevent thread galling on the stainless steel bolt.
9. Fix the solar panel ground wire by screwing #8X1/2'' self-
tapping screw on ground wire terminal into the solar panel
frame hole.
10. Secure solar (2) panel protectors to the frame using (4)
1/4-20 X 5/8" ss carriage bolt, washers & ss nylon insert
lock nuts. Recommended torque: 6.25 ft-lbs.
