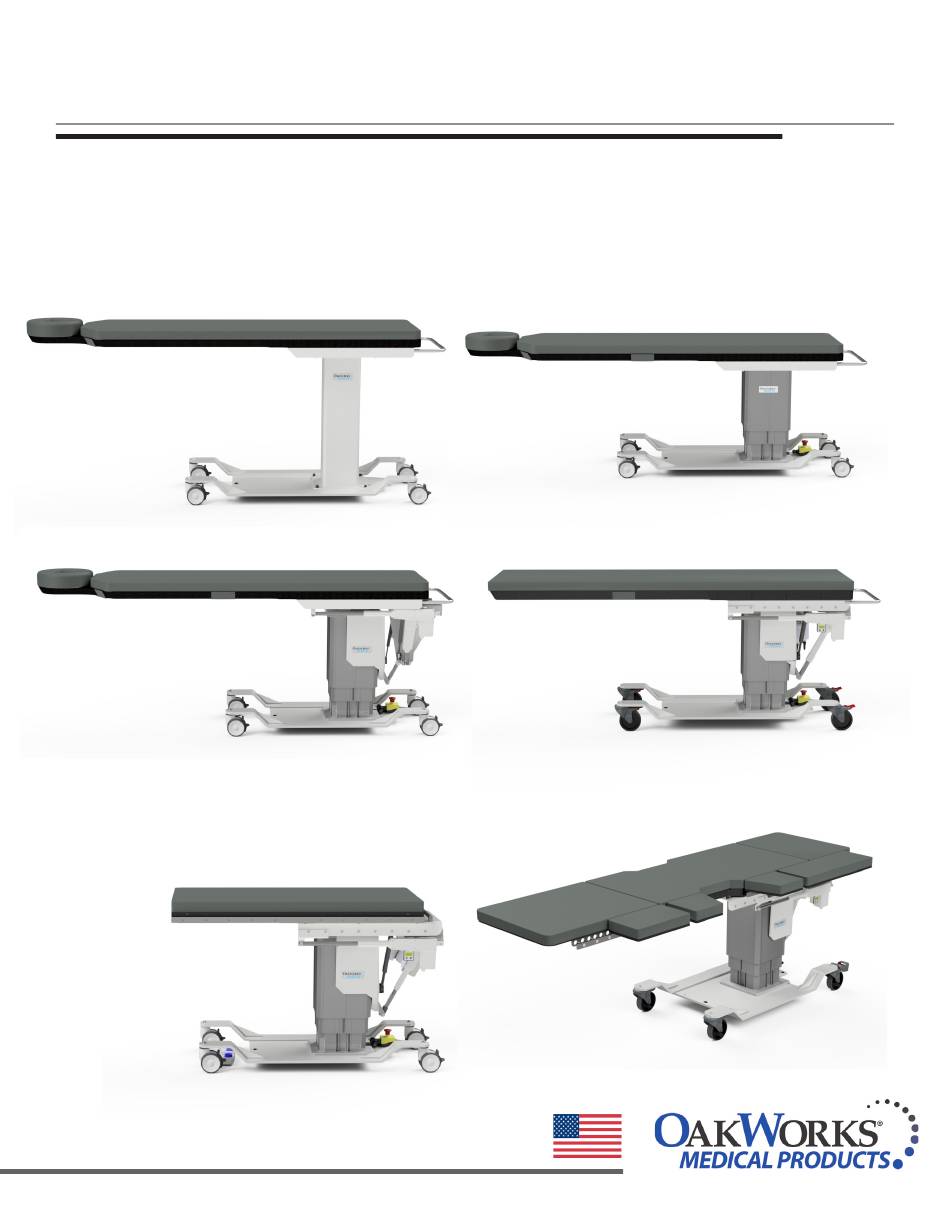

USER MANUAL
OAKWORKS
Imaging Tables
CFPMFXH
Integrated headrest top
Rectangular top
CFPM300
Integrated headrest top
CFPM400
Integrated headrest top
CFPM301
Integrated headrest top
CFPM401
Integrated headrest top
CFUR301
Urology Table
CFUR401
Urology Table
www.oakworksmed.com · 717.235.6807
®
CFPM100
Integrated headrest top
Rectangular top
CFPM300
Rectangular top
CFPM400
Rectangular top
CFPM301
Rectangular top
CFPMB301
Rectangular top - Bariatric Version
CFPM401
Rectangular top
CFLU401
Lithotripsy Table
made in the USA
with US & imported parts
Advertisement
Table of Contents
Related Manuals for OAKWORKS CFPMFXH
Summary of Contents for OAKWORKS CFPMFXH
- Page 1 USER MANUAL OAKWORKS ® Imaging Tables CFPMFXH Integrated headrest top CFPM100 Rectangular top Integrated headrest top Rectangular top CFPM300 CFPM300 Integrated headrest top Rectangular top CFPM400 CFPM400 Integrated headrest top Rectangular top CFPM301 CFPM301 Rectangular top Integrated headrest top CFPMB301...
- Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
-
Page 3: Table Of Contents
Spine Positioning System II ....................24 Fluoro Extender ......................24 Reference - Usable Imaging Area Diagrams CFPMFXH & CFPM 100 - Integrated Headrest & Rectangular Tops ......25-26 CFPM400, CFPM300, CFPM401 & CFPM301 - Integrated Headrest Top .......27 CFPM400, CFPM300, CFPM401, CFPM301 & CFPMB301 - Rectangular Top CFUR301 &... -
Page 4: Product Use Description
This symbol is used to indicate that the operator should consult the user manual. Sitting is prohibited in this area. C O N T R A I N D I C A T I O N S The Oakworks Imaging Tables should not be used with Imaging systems having intensifier screens ®... - Page 5 Be certain that the table is completely lowered prior to discharging an ambulatory patient. The patient may lose balance and fall. NOTE: The CFPMFXH is a fixed height table. It is recommended that all patients are assisted onto the table (physical assistance & step stools with side rails is recommended.) Patient must be secured with Safety Restraint Strap prior to using the tables.
- Page 6 Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use. 4. Keep the cord away from heated surfaces.
-
Page 7: Product Description & Photo
PRODUCT DESCRIPTION CFPMFXH 24” X 80” RECTANGULAR TOP Carbon Fiber Integrated Headrest Top with Removable Table Top Pad Hand Rail Integrated Face Rest with Crescent Face Pad Locking Casters STANDARD SPECIFICATIONS OPTIONS Fixed Height w/o pad 35.5” (90cm) 5” (13cm) Locking Casters Choice of Tabletop: 1”... -
Page 8: Cfpm100
PRODUCT DESCRIPTION CFPM100 24” X 80” RECTANGULAR TOP Carbon Fiber Integrated Headrest Top with Removable Table Top Pad Hand Rail Integrated Face Rest Electronic Lift Tower with Crescent Face Pad Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Height Motion w/o pad Powered 22”-40” (56-102cm) 5”... -
Page 9: Cfpm300
PRODUCT DESCRIPTION CFPM300 24” X 80” RECTANGULAR TOP Carbon Fiber Integrated Headrest Top with Removable Table Top Pad Hand Rail Integrated Face Rest Electronic Lift Tower with Crescent Face Pad Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 26”-43”... -
Page 10: Cfpm400
PRODUCT DESCRIPTION CFPM400 24” X 80” RECTANGULAR TOP Carbon Fiber Integrated Headrest Top with Removable Table Top Pad Hand Rail Integrated Face Rest with Crescent Face Pad Electronic Lift Tower Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 26”-43”... -
Page 11: Cfpm301
PRODUCT DESCRIPTION CFPM301 24” X 80” RECTANGULAR TOP Carbon Fiber Integrated Headrest Top with Removable Table Top Pad Hand Rail Integrated Face Rest with Crescent Face Pad Electronic Lift Tower Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 25”-43”... -
Page 12: Cfpmb301 - Bariatric
PRODUCT DESCRIPTION CFPMB301 - Bariatric 24” x 80” Bariatric Carbon Fiber Top with Removable Table Top Pad Hand Rail Electronic Lift Tower Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 26”-44” (66-112 cm) Height 5” (13cm) Locking Casters Range International Electric Configurations Motion 2... -
Page 13: Emergency Stop
PRODUCT DESCRIPTION CFPM401 24” X 80” RECTANGULAR TOP Carbon Fiber Integrated Headrest Top with Removable Table Top Pad Hand Rail Integrated Face Rest with Crescent Face Pad Electronic Lift Tower Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 26”-44”... -
Page 14: Cflu401 - Lithotripsy/Urology Top
PRODUCT DESCRIPTION CFLU401 - Lithotripsy/Urology Top Short Extension Carbon Fiber Top with Removable Table Top Pad Hand Rail (Under end) End Extension Emergency Stop T-rail (along each side) Locking Casters STANDARD SPECIFICATIONS Motion 1 w/o pad Powered 27”-45” (66-112cm) Height Range Table Weight 618 lbs. - Page 15 PRODUCT DESCRIPTION CFUR301 - Urology Top Urology Carbon Fiber Top with Removable Table Top Pad Hand Rail (At end) T-rail Electronic Lift Tower Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 25”-43” (64-109cm) Height Range 5” (13cm) Locking Casters Motion 2 Powered +15°/-11°...
- Page 16 PRODUCT DESCRIPTION CFUR401 - Urology Top Urology Carbon Fiber Top with Removable Table Top Pad Hand Rail (At end) T-rail Electronic Lift Tower Emergency Stop Locking Casters STANDARD SPECIFICATIONS OPTIONS Motion 1 w/o pad Powered 26”-44” (66-112cm) Height Range 5” (13cm) Locking Casters Motion 2 Powered +15°/-11°...
- Page 17 INSTALLATION The Imaging Tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible.
- Page 18 DIRECTIONS FOR USE F O O T C O N T R O L Used to control table Vertical Height, Trendelenburg, Longitudinal Motion, Lateral Tilt or Lateral Motion. Control functions dependent upon table’s features. Test each of the table’s functions prior to use with a patient. CAUTION Do not apply excessive force to the foot control as it may damage the control.
- Page 19 DIRECTIONS FOR USE H A N D C O N T R O L - T H R E E M O T I O N Used to control table Vertical Height, Trendelenburg, Lateral Tilt OR Vertical Height, Trendelenburg, Longitudinal Motion. Control functions dependent upon table’s features. Test each of the table’s functions prior to use with a patient.
- Page 20 DIRECTIONS FOR USE B U B B L E L E V E L S Bubble levels are installed on the handle end of the table to aid the operator in determining the hori- zontal plane. A N G L E I N D I C A T O R Standard on CFPM 301, CFPM301B, CFPM401, CFLU401, CFUR401 and CFUR301 Tables.
- Page 21 DIRECTIONS FOR USE R E M O V E / R E P L A C E T H E T A B L E T O P P A D CAUTION Make sure the top is not in motion when removing / replacing the table top pad. Remove Table Pad by pulling flaps at the ends &...
- Page 22 DIRECTIONS FOR USE L O C K I N G C A S T E R S U S E All four casters should be locked at all times during use with a patient. LOCKING THE CASTERS: UN-LOCKING THE CASTERS: 1.
- Page 23 W E I G H T C A P A C I T Y & P A T I E N T U S E The Oakworks tabletop is rated at 500 lb. (227 kg) load evenly distributed. (Bariatric table is ®...
- Page 24 DIRECTIONS FOR USE L A T E R A L E X T E N S I O N S - L I T H O T R I P S Y/U R O L O G Y & U R O L O G Y T O P S CAUTION Do not sit on any extensions.
- Page 25 DIRECTIONS FOR USE E N D E X T E N S I O N S - L I T H O T R I P S Y/U R O L O G Y & U R O L O G Y T O P S CAUTION Do not sit on any extensions.
- Page 26 Ensure that the lower part of the clamp is in the tabletop groove under the table top. Ensure the T-Rail Clamp is tight and can not move with pressure. 1. The clamp must be installed only on an Oakworks ®...
- Page 27 Injury can occur. The Oakworks ® Fluoro Extender is radiolucent and offers extra width only where you need it for greater positioning accuracy with optimum imaging. The Fluoro Extender is inserted under the table...
- Page 28 REFERENCE U S A B L E I M A G I N G A R E A - C F P M F X H & C F P M100 I N T E G R A T E D H E A D R E S T T O P S O N L Y CENTERED FOR A-P VIEW: OBLIQUE 30°...
- Page 29 REFERENCE U S A B L E I M A G I N G A R E A - C F P M F X H & C F P M100 R E C T A N G U L A R T O P S O N L Y CENTERED FOR A-P VIEW: OBLIQUE 30°...
- Page 30 REFERENCE U S A B L E I M A G I N G A R E A - C F P M400, C F P M300, C F P M401 & C F P M301 I N T E G R A T E D H E A D R E S T T O P S O N L Y CENTERED FOR A-P VIEW: OBLIQUE 30°...
- Page 31 REFERENCE U S A B L E I M A G I N G A R E A - C F P M400, C F P M300, C F P M401 & C F P M301 R E C T A N G U L A R T O P S O N L Y CENTERED FOR A-P VIEW: OBLIQUE 30°...
- Page 32 REFERENCE U S A B L E I M A G I N G A R E A - C F U R301 & C F U R 401 CENTERED FOP A-P VIEW: CENTERED FOR A-P VIEW: 47.0" [119.38cm] 23.3" 2.0"...
- Page 33 REFERENCE U S A B L E I M A G I N G A R E A - C F L U401 CENTERED FOP A-P VIEW: CENTERED FOR A-P VIEW: 47.0" [119.38cm] 23.3" 2.0" [59.06cm] [5.08cm] TYP 19.0" 23.0" [48.26cm] [58.42cm] OBLIQUE 30°...
-
Page 34: Cleaning & Disinfection / Inspections / Warranty Recommended Disinfectants / Cleaners
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disin- fecting an OAKWORKS ® table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. OAKWORKS ® recommends that the table be positioned in the flat position during the cleaning process. - Page 35 • Clean unusual buildup of dirt on the table and/or parts of the table not normally cleaned on a regular basis. • Check for tears or cracks in the upholstery. W A R R A N T Y View complete warranty details at www.oakworks.com...
-
Page 36: Unique Device Identification (Udi) Information
U N I Q U E D E V I C E I D E N T I F I C A T I O N (U D I) I N F O R M A T I O N CFPM400 Table Manufacturer: GTIN 00817463021325 Oakworks, Inc. 923 East Wellspring Road Manuf. date: 2016-10-26 New Freedom, PA, USA 17349 FL4636744 +1 717-235-6807 www.oakworks.com... - Page 37 SPECIFICATIONS PRODUCT SPECIFICATIONS NORTH AMERICA EUROPE Weight 359-452 lbs. 163-205 kg. Shipping Weight 452-544 lbs. 205-247 kg. Lifting Capacity 500 lbs. (750 lbs. Bariatric) 227 kg. (340 kg. Bariatric) Materials of Construction This product contains no latex. ALUMINUM EQUIVALENCE THICKNESS Non-Bariatric Tops 100 kVp, HVL of 3.6mm = 1.10 (1.35 max) 1.65”...
-
Page 38: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
SPECIFICATIONS Guidance and Manufacturer’s Declaration - Electromagnetic Emissions All Equipment and Systems (except CFPMFXH) The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. -
Page 39: Product Disposal
P R O D U C T D I S P O S A L Disposal of the OAKWORKS ® Imaging Tables must be compliant with the applicable regulations and requirements of the local state environmental protection agency, state health agency, Centers for Disease Control (CDC), Occupational Safety and Health Administration (OSHA), U.S. -
Page 40: Contact Information
USER MANUAL OAKWORKS ® Imaging Tables C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworksmed.com...
