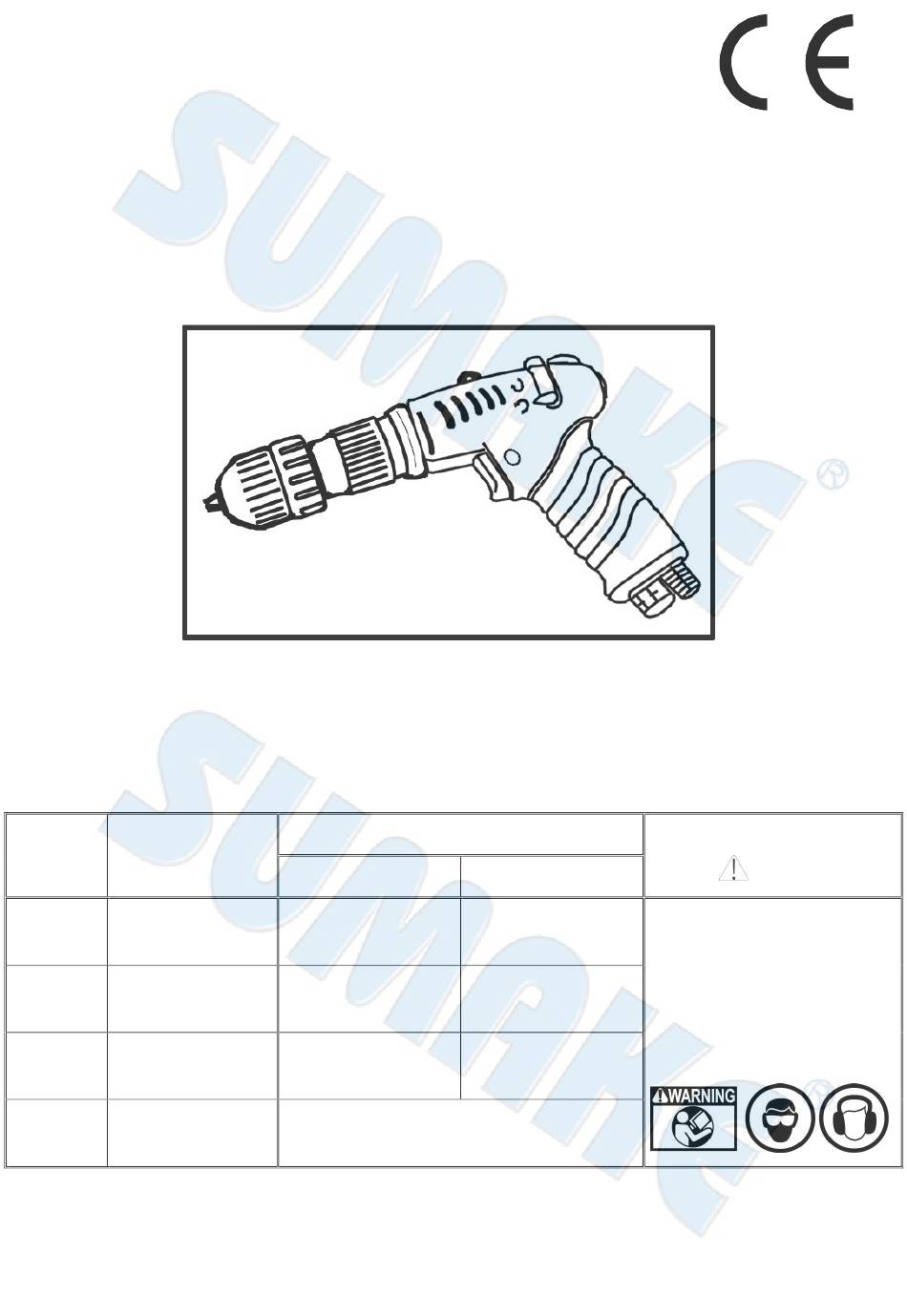

SUMAKE
Test result according to
Vibration
MODEL
EN ISO 28927-5
CCD48
No Load: 0.4 m/s2
CCD58
No Load: 0.1 m/s2
CCD458
No Load: 0.1 m/s2
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.

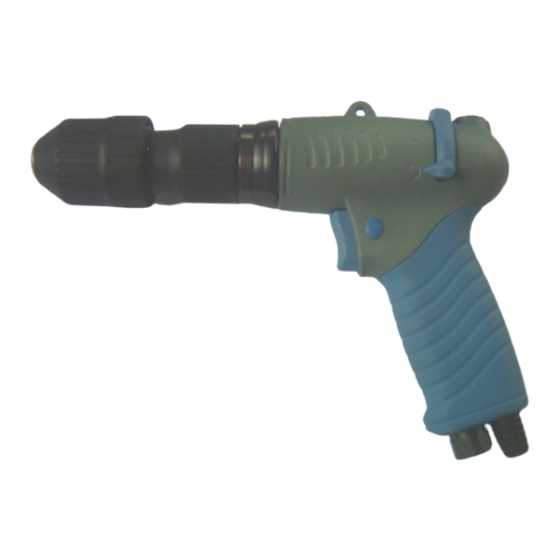

PNEUMATIC TOOLS
3 In 1 Pistol-Cushion Type
Air Drill / Screwdriver
EN ISO 11148-3:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 75.5 dB(A)
No Load: 75.6 dB(A)
No Load: 75.6 dB(A)
Sound power level
No Load: 86.5 dB(A)
No Load: 86.6 dB(A)
No Load: 86.6 dB(A)
Uncertainty K= 3dB
Safety Instructions
Warning
Read this manual and
1-
understand all safety
instructions before operation
the tool.
Wear an approved
2-
ear-protector and gloves while
.
operating tool
CCD48(58)(458)-S-2301H-MIF
Advertisement
Related Manuals for Sumake CCD48
Summary of Contents for Sumake CCD48
- Page 1 Wear an approved ear-protector and gloves while CCD458 operating tool No Load: 0.1 m/s2 No Load: 75.6 dB(A) No Load: 86.6 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CCD48(58)(458)-S-2301H-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 3 IN 1 PISTOL-CUSHION TYPE 3/8" AIR DRILL/SCREWDRIVER Model/ Serial No.： CCD48(58)(458) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 3.0-7.0 0.55 13.0 CCD39, CCD48, CCD58-Drilling Cap-10mm(3/8”), CCD458-Drilling Cap-13mm(1/2”) 1. Patent 3 in 1 feature- screw ,drill ,tapping. 2. Patent Motor: Output power is 30% more than other brand. 3. Outside- Adjust the torque rapidly: Turn right to increase and left to decrease.
- Page 5 CCD58 3 IN 1 PISTOL-CUSHION TYPE 3/8" AIR DRILL / SCREWDRIVER CCD58-P-1401A-MI...
-
Page 6: Parts List
CCD58 3 IN 1 PISTOL-CUSHION TYPE 3/8" AIR DRILL / SCREWDRIVER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5L2100 Pistol Housing (Green) 6N2020 C Ring 7Q2008 O Ring 1P2101 15T Plant Gear 2C2003 Blank Cap 1P3280 Fifth Gear Cage 7Q2006... - Page 7 DRILL Original instructions SUMAKE Industrial Co. Ltd.
- Page 8 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 9 Safety precautions for repetitive motions hazards 1. When using a drill to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body. 2. While using a drill, the operator should adopt a comfortable posture whilst maintaining a secure footing and avoiding awkward or off-balanced postures.
- Page 10 Specific safety instructions Warnings shall be given about any specific or unusual hazards associated with the use of the drill. Such warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet.
