SUMAKE

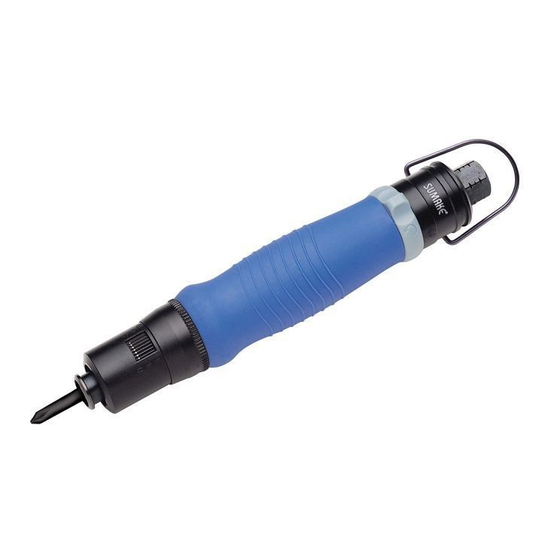

Full-Auto Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CP10
No Load: 0.4 m/s²
CP12
No Load: 0.9 m/s²
CP20
No Load: 0.9 m/s²
CP30
No Load: 0.9 m/s²
CP35
No Load: 0.9 m/s²
CP38
No Load: 0.9 m/s²
CP40
No Load: 0.9 m/s²
CP45
No Load: 1.1 m/s²
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 68 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 73 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 79 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
2-
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 84 dB(A)
CP10(12)(20)(30)(35)(38)(40)(45)-S-2111G-MIF
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before operation
the tool.
Wear an approved
ear-protector and gloves while
operating tool.
Advertisement
Related Manuals for Sumake CP12
Summary of Contents for Sumake CP12
- Page 1 No Load: 0.9 m/s² No Load: 75 dB(A) No Load: 86 dB(A) CP45 No Load: 1.1 m/s² No Load: 73 dB(A) No Load: 84 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CP10(12)(20)(30)(35)(38)(40)(45)-S-2111G-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER Model/ Serial No.：CP10(12)(20)(30)(35)(38)(40)(45) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 3: Air Supply
AIR SCREWDRIVER OPERATION MANUAL For safety use, Please Follow the instructions. The operation without your local regulations may cause serious injury. Read thoroughly and understand this instruction manual and keep this within reach for future reference. Torque indiction Ring inlet Bit Slide sleeve Silencer Rear Housing... - Page 4 CP20 FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER CP20-P-1108A1-MI...
-
Page 5: Parts List
CP20 FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5A3038 End Housing 2S2001 Air Inlet Bushing [PT] 7Q2017 Valve O-Ring 2S2001-A Air Inlet Bushing [PS] 6N2108 Spring 2S2003 Air Inlet Bushing [NPT] 6S2203 Valve 2S2103... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
