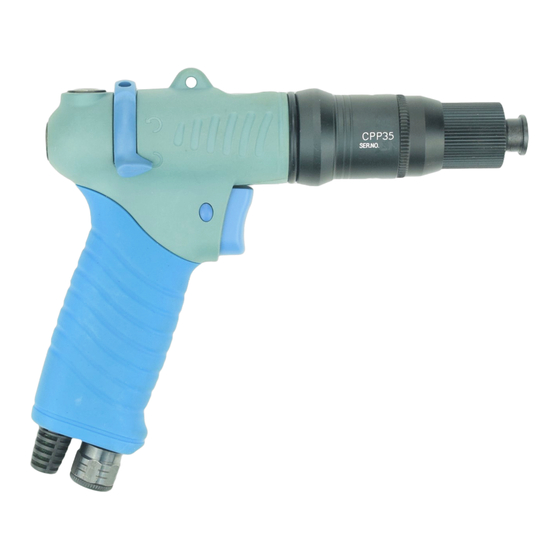

Pistol Handle Push Start- Shut Off

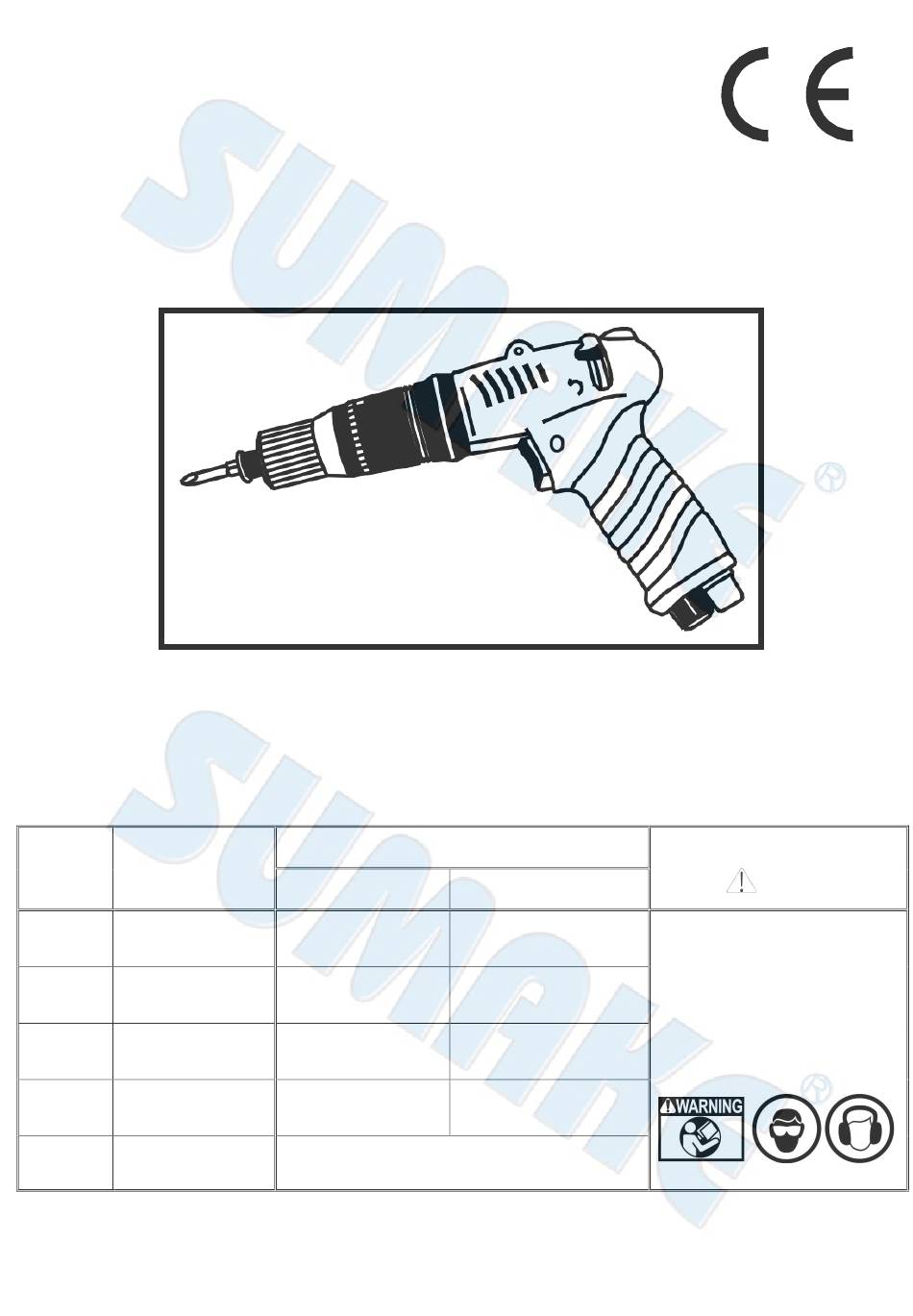

Test result according to
Vibration
MODEL
EN ISO 28927-2
CPP35
No Load: 1.0 m/s
CPP38
No Load: 1.0 m/s
CPP41
No Load: 1.0 m/s
CPP47
No Load: 1.0 m/s
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
Composite Screwdriver
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load:
2
73 dB(A)
No Load:
2
73 dB(A)
No Load:
2
73 dB(A)
No Load:
2
73 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 84
dB(A)
No Load: 84
dB(A)
2-
No Load: 84
dB(A)
No Load: 84
dB(A)
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before
operation the tool.
Wear an approved
ear-protector and gloves
while operating tool.
CPP35(38)(41)(47)-S-2301F-MIF
Advertisement
Related Manuals for Sumake CPP35
Summary of Contents for Sumake CPP35
- Page 1 73 dB(A) dB(A) ear-protector and gloves while operating tool. CPP47 No Load: No Load: 84 No Load: 1.0 m/s 73 dB(A) dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CPP35(38)(41)(47)-S-2301F-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： PISTOL HANDLE PUSH START- SHUT OFF COMPOSITE SCREWDRIVER Model/ Serial No.： CPP35(38)(41)(47) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 3: Air Supply
Torque Standard Fastening Capacity Speed Pressure hose bore Consumption range Deviation Machine Screw Dia. Kgf-cm r.p.m. Kg/cm³ m³/min Kgf-cm ±3 CPP35 2200 0.28 3-20 M2.2-M4.5 M1.7-M3.5 ±3 CPP38 1800 0.28 3-25 M2.2-M4.7 M1.7-M3.8 ±3 CPP41 1000 0.28 5-35 M2.8-M5.2 M2.2-M4.2 ±3... - Page 4 SUMAKE Operation Manual 20040414-CPP-1...
- Page 5 SUMAKE Operation Manual 20040414-CPP-2...
- Page 6 CPP41 PISTOL HANDLE PUSH START-SHUT OFF COMPOSITE SCREWDRIVER CPP41-P-2101A2-MI...
- Page 7 CPP41 PISTOL HANDLE PUSH START-SHUT OFF COMPOSITE SCREWDRIVER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2107 Pistol Housing (Green) 7S2112 Ball 2C2003-A Blank Cap 3S2222 End Clutch 7Q2008 O Ring 7S2102 Ball 7S2106 Screw 3S2231 Ball Race 7Q2007 O Ring 6N3100...
- Page 8 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 9 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 10 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 11 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
