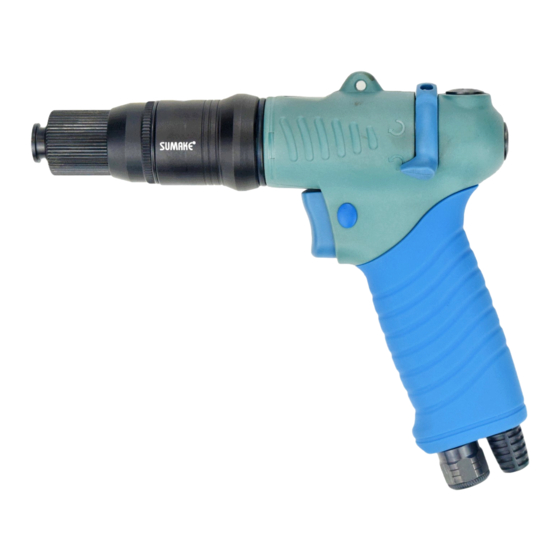

Pistol Handle Push Start- Shut Off

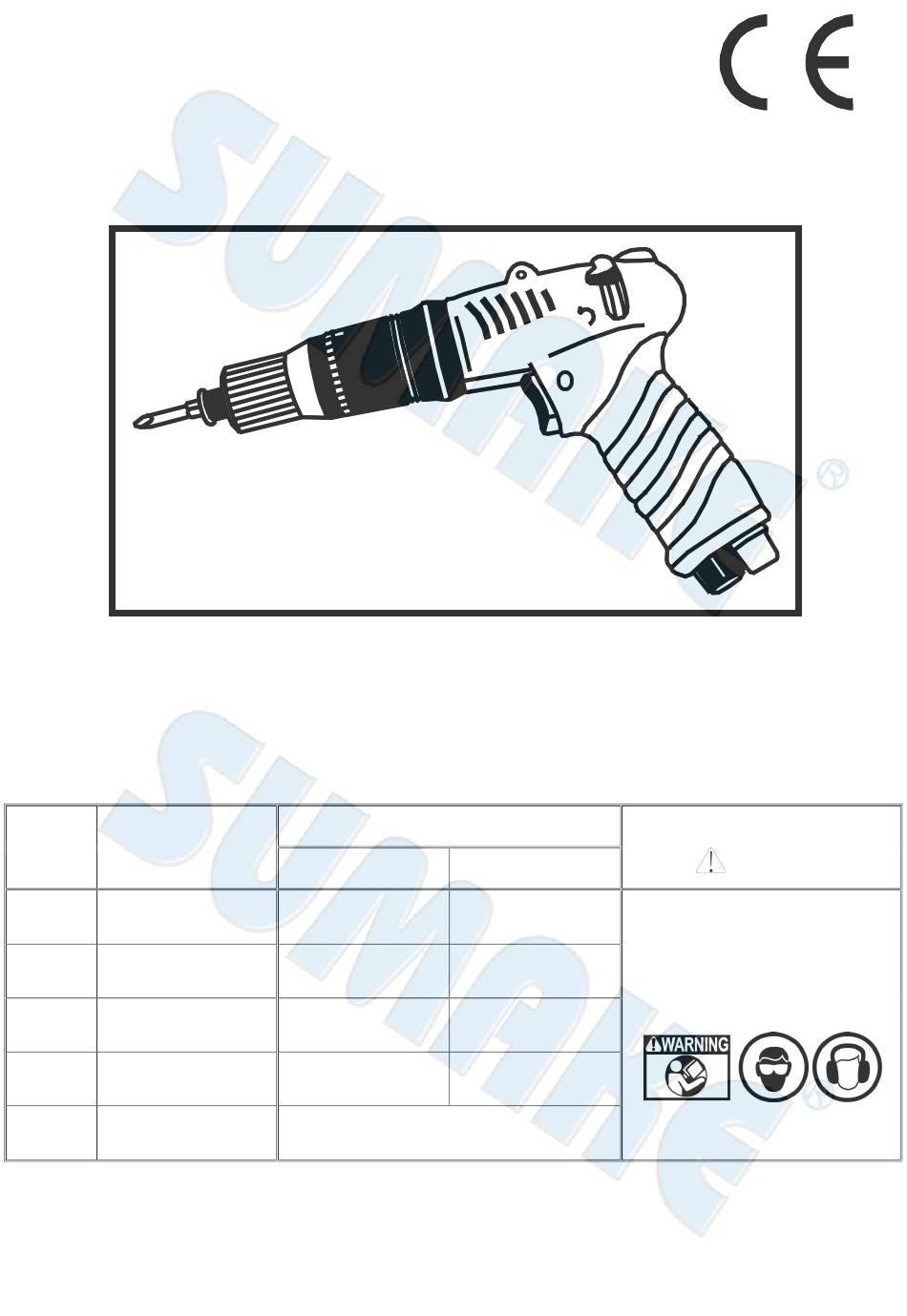

Test result according to
Vibration
MODEL
EN ISO 28927-2
No Load: 1.0 m/s 2
CBP35
No Load: 1.0 m/s 2
CBP38
No Load: 1.0 m/s 2
CBP41
No Load: 1.0 m/s 2
CBP47
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
Composite Screwdriver
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 73 dB(A)
No Load: 73 dB(A)
No Load: 73 dB(A)
No Load: 73 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 84 dB(A)
No Load: 84 dB(A)
2-
No Load: 84 dB(A)
No Load: 84 dB(A)
Safety Instructions
Warning
Read this manual and understand
all safety instructions before
operation the tool.
Wear an approved ear-protector
and gloves while operating tool.
CBP35(38)(41)(47)-S-2301G-MIF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake CBP35
Summary of Contents for Sumake CBP35
- Page 1 No Load: 73 dB(A) No Load: 84 dB(A) No Load: 1.0 m/s 2 CBP47 No Load: 73 dB(A) No Load: 84 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CBP35(38)(41)(47)-S-2301G-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：PISTOL TYPE PISTOL HANDLE AIR SHUT OFF COMPOSITE SCREWDRIVER Model/ Serial No.： CBP35(38)(41)(47) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 3: Air Supply
Torque Standard Fastening Capacity Speed Pressure hose bore Consumption range Deviation Machine Tapping Screw Dia. Screw Dia. r.p.m. Kg/cm³ m³/min Kgf-cm ±3 CBP35 2200 0.28 3-20 M2.2-M4.5 M1.7-M3.5 ±3 CBP38 1800 0.28 3-25 M2.2-M4.7 M1.7-M3.8 ±3 CBP41 1000 0.28 5-35 M2.8-M5.2... - Page 5 CBP41 PISTOL HANDLE AIR SHUT OFF COMPOSITE SCREWDRIVER CBP41-P-2212A3-MI...
-
Page 6: Parts List
CBP41 PISTOL HANDLE AIR SHUT OFF COMPOSITE SCREWDRIVER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2107 Pistol Housing (Green) 3S2231 Ball Race 2C2002-A Blank Cap 6N3100 C Ring 7Q2008 O Ring 3S7035 Anvil 7S2106-1 Screw 44-1 7Q2002 Regulate Screw 7S2156 Screw... - Page 7 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 8 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 9 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 10 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
