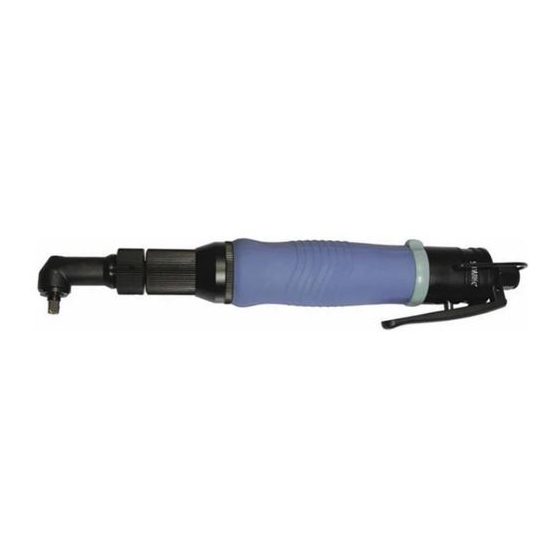

Shut Off Air Composite Wrench
3/8" Square Anvil (Angle Type-Lever Start)
Test result according to
Vibration
MODEL
EN ISO 28927-2
No Load: 0.8 m/s 2
CAW48A
No Load: 0.8 m/s 2
CAW50A
No Load: 1.0 m/s 2
CAW55
No Load: 0.9 m/s 2
CAW60
No Load: 0.9 m/s 2
CAW65
No Load: 0.9 m/s 2
CAW68
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 77 dB(A)
No Load: 77 dB(A)
No Load: 76 dB(A)
No Load: 77 dB(A)
No Load: 77 dB(A)
No Load: 77 dB(A)
Uncertainty K= 3dB
Sound power level
No Load: 88 dB(A)
1-
No Load: 88 dB(A)
No Load: 87 dB(A)
No Load: 88 dB(A)
2-
No Load: 88 dB(A)
No Load: 88 dB(A)

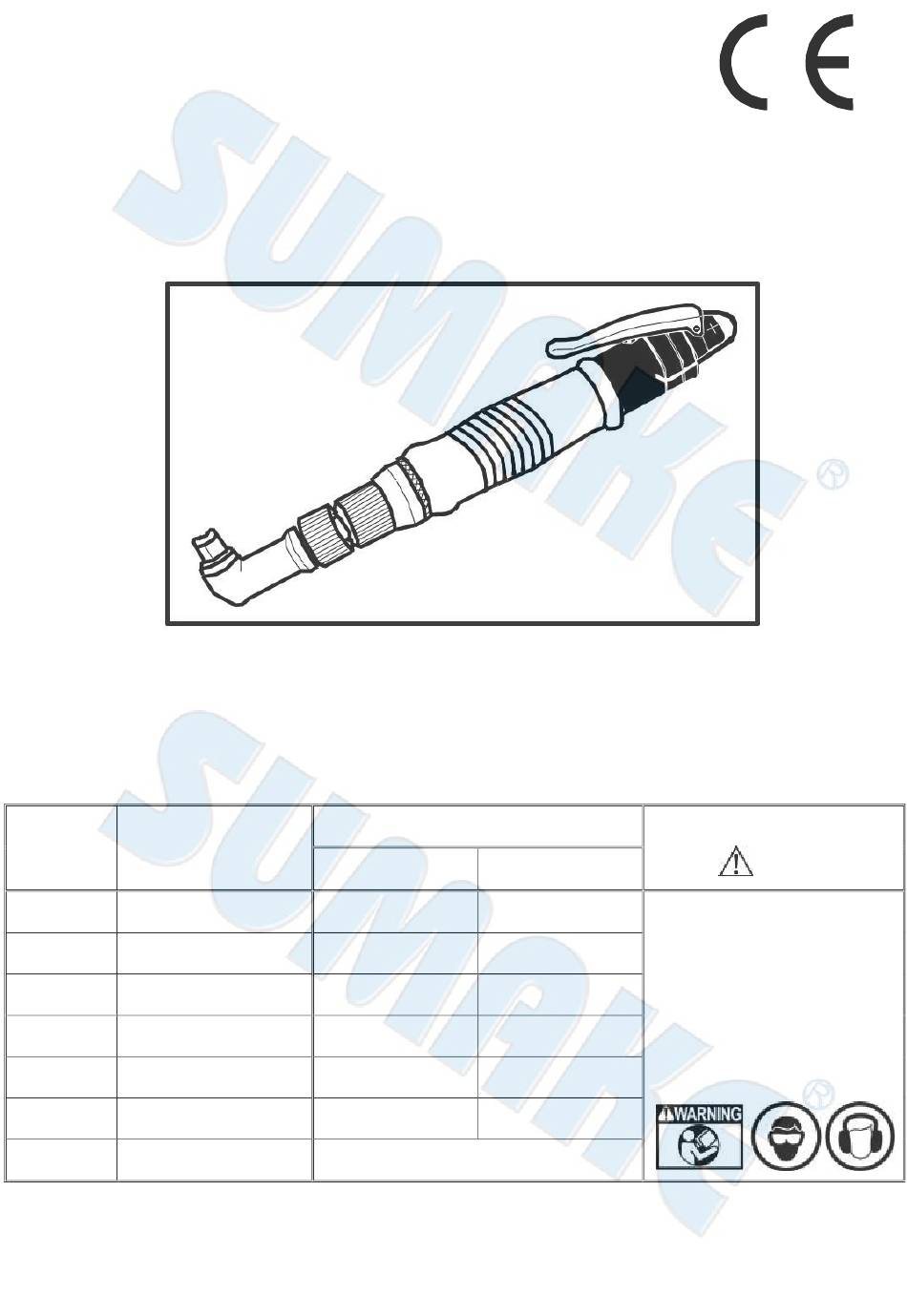

CAW48A(50A)(55)(60)(65)(68)-S-2309K-MIF
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before operation
the tool.
Wear an approved
ear-protector and gloves while
operating tool.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake CAW48A
Summary of Contents for Sumake CAW48A
- Page 1 No Load: 77 dB(A) No Load: 88 dB(A) operating tool. No Load: 0.9 m/s 2 CAW68 No Load: 77 dB(A) No Load: 88 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CAW48A(50A)(55)(60)(65)(68)-S-2309K-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： SHUT OFF AIR COMPOSITE WRENCH WITH 3/8" SQUARE ANVIL (ANGLE TYPE-LEVER START) Model/ Serial No.：... -
Page 3: Air Supply
±3 CAW38 1800 0.28 3-25 M2.2-M4.7 M1.7-M3.8 ±3 CAW40 1000 0.28 5-30 M2.8-M5.0 M2.3-M4.0 ±3 8-40 M3.3-M5.7 M2.7-M4.4 CAW45 ±3 CAW48A 1700 1100 0.55 5-45 ±3 M2.8-M5.8 M2.2-M4.7 CAW50A 1400 1100 0.55 7-50 ±3 M2.9-M6.0 M2.6-M4.9 CAW55 1000 1200 0.55 7-65 M2.9-M6.4 M2.6-M5.4... - Page 4 CAW65 SHUT OFF AIR COMPOSITE WRENCH 3/8" SQUARE ANVIL (ANGLE TYPE-LEVER START) CAW65-P-1204G-MI...
-
Page 5: Parts List
CAW65 SHUT OFF AIR COMPOSITE WRENCH 3/8" SQUARE ANVIL (ANGLE TYPE-LEVER START) PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5A6029 End Housing 7S2103 Ball 2S3010 Inner Bushing 6N2105 Spring 2S6001 Outer Bushing 2P3010 Silencer 7Q2011 Valve O-Ring 5A2002 Lever Set... - Page 6 IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
-
Page 9: Risk Of Injury
General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
