SUMAKE

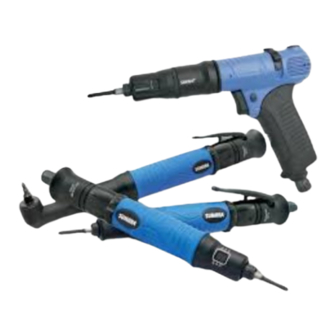

Full-Auto Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CP47
No Load: 1.1 m/s²
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
EN 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 73 dB(A)
Uncertainty K= 3dB
Sound power level
1- Read this manual and understand
No Load: 84 dB(A)
2- Wear an approved ear-protector
Safety Instructions
Warning
all safety instructions before
operation the tool.
and gloves while operating tool.
CP47-S-2111C-MIF
Advertisement
Related Manuals for Sumake CP47
Summary of Contents for Sumake CP47
- Page 1 No Load: 1.1 m/s² No Load: 73 dB(A) No Load: 84 dB(A) 2- Wear an approved ear-protector and gloves while operating tool. Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CP47-S-2111C-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER Model/ Serial No.：CP47 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 3: Air Supply
±3 CP38 1800 0.28 3-25 M2.2-M4.7 M1.7-M3.8 ±3 CP40 1000 0.28 5-30 M2.8-M5.0 M2.2-M4.0 ±3 CP45 8-40 M3.3-M5.7 M2.7-M4.4 ±3 CP47 0.55 5-45 M2.8-M5.8 M2.2-M4.7 ±3 CP48 1700 0.55 5-45 M2.8-M5.8 M2.2-M4.7 ±3 CP50 1400 0.55 7-50 M2.9-M6.0 M2.6-M4.9 ±3... - Page 4 CP47 FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER CP47-P-1905B-MI...
-
Page 5: Parts List
CP47 FULL-AUTO SHUT OFF AIR COMPOSITE SCREWDRIVER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5A6032 End Housing 6S2005 Operating Rod 7Q2011 Valve O-Ring 6N2104 Cone Spring 6N5006 Spring 2P3010 Silencer 6S6105 Valve 34-1 2Q5001 O Ring... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
