SUMAKE

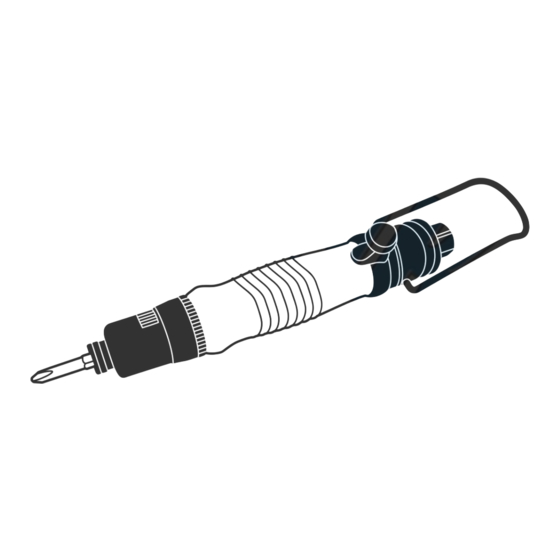

Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CB002
No Load: 1.1 m/s2
CB008
No Load: 1.1 m/s2
CB017
No Load: 1.2 m/s2
CB020
No Load: 1.2 m/s2
CB025
No Load: 1.3 m/s2
CB030
No Load: 1.2 m/s2
CB040
No Load: 1.4 m/s2
CB050
No Load: 1.4 m/s2
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Button Type)
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 71 dB(A)
No Load: 71 dB(A)
No Load: 73 dB(A)
No Load: 74 dB(A)
No Load: 73 dB(A)
No Load: 74 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
Uncertainty K= 3dB
Sound power level
No Load: 82 dB(A)
1-
No Load: 82 dB(A)
No Load: 84 dB(A)
No Load: 85 dB(A)
2-
No Load: 84 dB(A)
No Load: 84 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
CB002(08)(17)(20)(25)(30)(40)(50)-S-2301C-MIF
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before operation
the tool.
Wear an approved
ear-protector and gloves while
operating tool.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake CB002
Summary of Contents for Sumake CB002
- Page 1 No Load: 1.4 m/s2 No Load: 75 dB(A) No Load: 86 dB(A) CB050 No Load: 1.4 m/s2 No Load: 75 dB(A) No Load: 86 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CB002(08)(17)(20)(25)(30)(40)(50)-S-2301C-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： SHUT OFF AIR COMPOSITE SCREW DRIVER (BUTTON TYPE) Model/ Serial No.： CB002(08)(17)(20)(25)(30)(40)(50) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
- Page 4 CB040 SHUT OFF AIR COMPOSITE SCREWDRIVER (BUTTON TYPE) CB040-P-2112B-MI...
-
Page 5: Parts List
CB040 SHUT OFF AIR COMPOSITE SCREWDRIVER (BUTTON TYPE) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5A3131 End Housing 2S2091 Air Inlet Bushing [NPT] 6N2171 Spring 45-1 2Q5001 O Ring 1K2438 2nd Valve Pin 45-2 5N3102 Hook Plate 7Q2017 Valve O Ring 45-3... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
