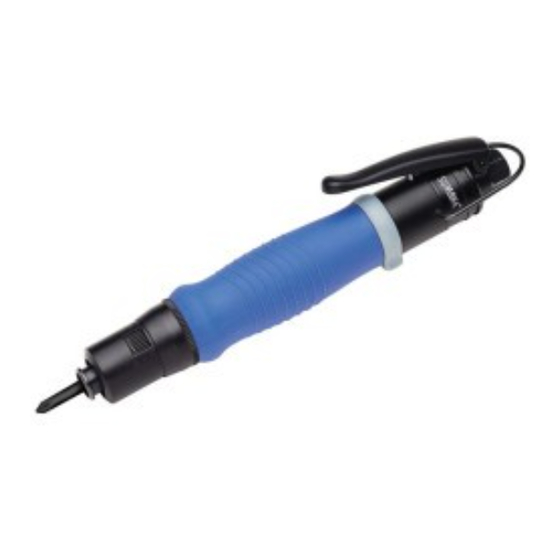

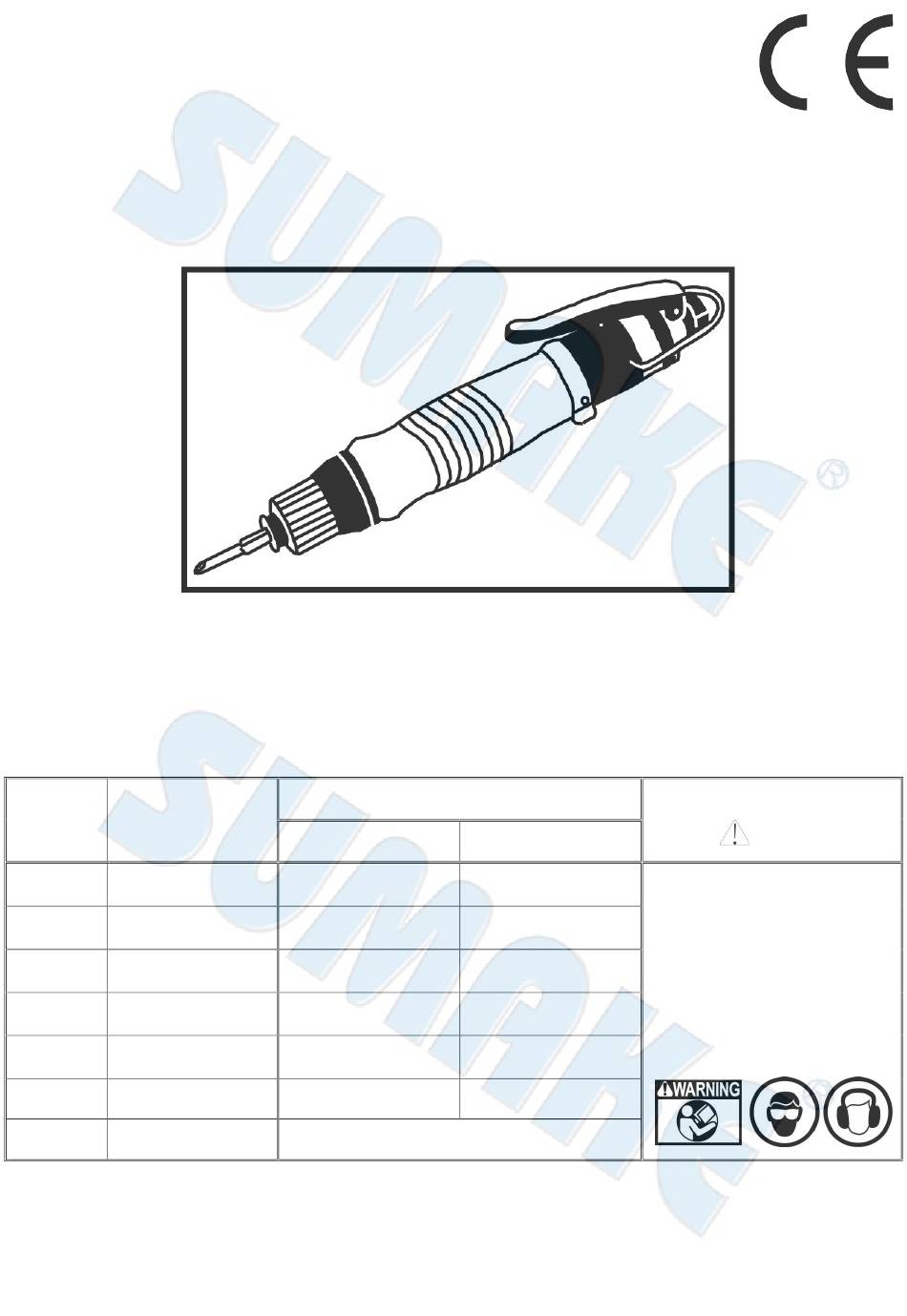

Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CL48
No Load: 0.8 m/s²
CL50
No Load: 0.8 m/s²
CL55
No Load: 1.0 m/s²
CL60
No Load: 0.9 m/s²
CL65
No Load: 0.9 m/s²
CL68
No Load: 0.9 m/s²
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
(Lever Start Type)
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 69 dB(A)
No Load: 69 dB(A)
No Load: 69 dB(A)
No Load: 69 dB(A)
No Load: 69 dB(A)
No Load: 77 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 80 dB(A)
No Load: 80 dB(A)
No Load: 80 dB(A)
2-
No Load: 80 dB(A)
No Load: 80 dB(A)
No Load: 88 dB(A)
CL48(50)(55)(60)(65)(68)-S-2211G-MIF
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before operation
the tool.
Wear an approved
ear-protector and gloves while
operating tool.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake CL48
Summary of Contents for Sumake CL48
- Page 1 No Load: 0.9 m/s² No Load: 69 dB(A) No Load: 80 dB(A) CL68 No Load: 0.9 m/s² No Load: 77 dB(A) No Load: 88 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CL48(50)(55)(60)(65)(68)-S-2211G-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： SHUT OFF AIR COMPOSITE SCREW DRIVER (LEVER START TYPE) Model/ Serial No.： CL48(50)(55)(60)(65)(68) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC and conforms to the following EN standard, ... -
Page 3: Air Supply
±3 CL38 1800 0.28 3-25 M2.2-M4.7 M2.2-M3.8 ±3 CL40 1000 0.28 5-30 M2.8-M5.0 M2.3-M4.0 ±3 CL45 8-40 M3.3-M5.7 M2.7-M4.4 ±3 CL48 1700 0.55 5-45 M2.8-M5.8 M2.2-M4.7 ±3 CL50 1400 0.55 7-50 M2.9-M6.0 M2.6-M4.9 ±3 CL55 1000 0.55 7-65 M2.9-M6.4 M2.6-M5.4 ±3... - Page 4 CL60 SHUT OFF AIR COMPOSITE SCREWDRIVER (LEVER START TYPE) CL60-P-2212A3-MI...
-
Page 5: Parts List
CL60 SHUT OFF AIR COMPOSITE SCREWDRIVER (LEVER START TYPE) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5A6029 End Housing 2P3010 Silencer 2S3010 Inner Bushing 5A2002 Lever Set 2S6001 Outer Bushing 5L6102 Lever 7Q2011 Valve O-Ring 7S2202 Roll pin 6N5006 Spring 2Q5001... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
