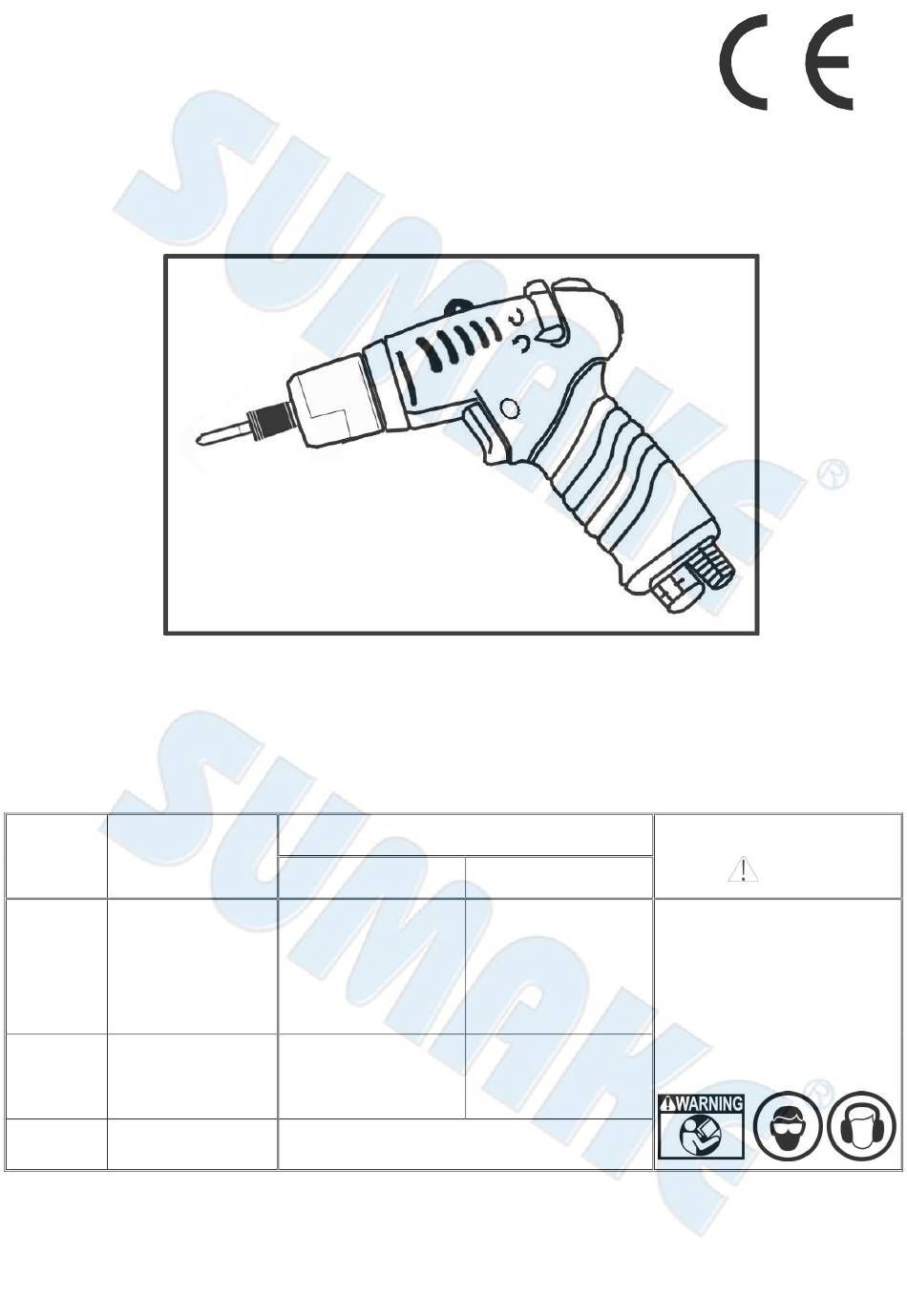

Pistol-Direct Driver Type Air Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
Load: 0.8 m/s 2
CDP48
Load: 0.1 m/s 2
CDP58
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
W/Air Flow
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 73.9 dB(A)
No Load: 75 dB(A)
Uncertainty K= 3dB
Sound power level
No Load: 84.9 dB(A)
No Load: 86 dB(A)
Safety Instructions
Warning
Read this manual and
1-
understand all safety
instructions before operation
the tool.
Wear an approved
2-
ear-protector and gloves
while operating tool
CDP48(58)-S-2111F-MIF
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake CDP48
Summary of Contents for Sumake CDP48
- Page 1 Wear an approved ear-protector and gloves No Load: 75 dB(A) No Load: 86 dB(A) while operating tool Load: 0.1 m/s 2 CDP58 Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CDP48(58)-S-2111F-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： PISTOL-DIRECT DRIVEN TYPE AIR SCREWDRIVER W/AIR FLOW Model/ Serial No.： CDP48(58) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... -
Page 3: Air Supply
Speed hose bore Consumption (Hard joint) r.p.m. m/min CDP39 1,600 0.58 0.28 CDP48 1,700 0.92 0.55 CDP58 0.92 0.55 13.0 OPERATIONS 1. Precision adjustment has been made around case, gear and rotating section. 2. Smooth change of valve reverse (right/left) button turn direction can be done. - Page 4 CDP58 PISTOL-DIRECT DRIVER TYPE AIR SCREWDRIVER CDP58-P-2205B3-MI...
-
Page 5: Parts List
CDP58 PISTOL-DIRECT DRIVER TYPE AIR SCREWDRIVER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5L2100 Pistol Housing (Green) 6N2020 C Ring 7Q2008 O Ring 1P2101 15T Plate Gear 2C2003 Blank Cap 1P3280 Fifth Gear Cage 7Q2007 O Ring 1G6090 14T Main Gear... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
