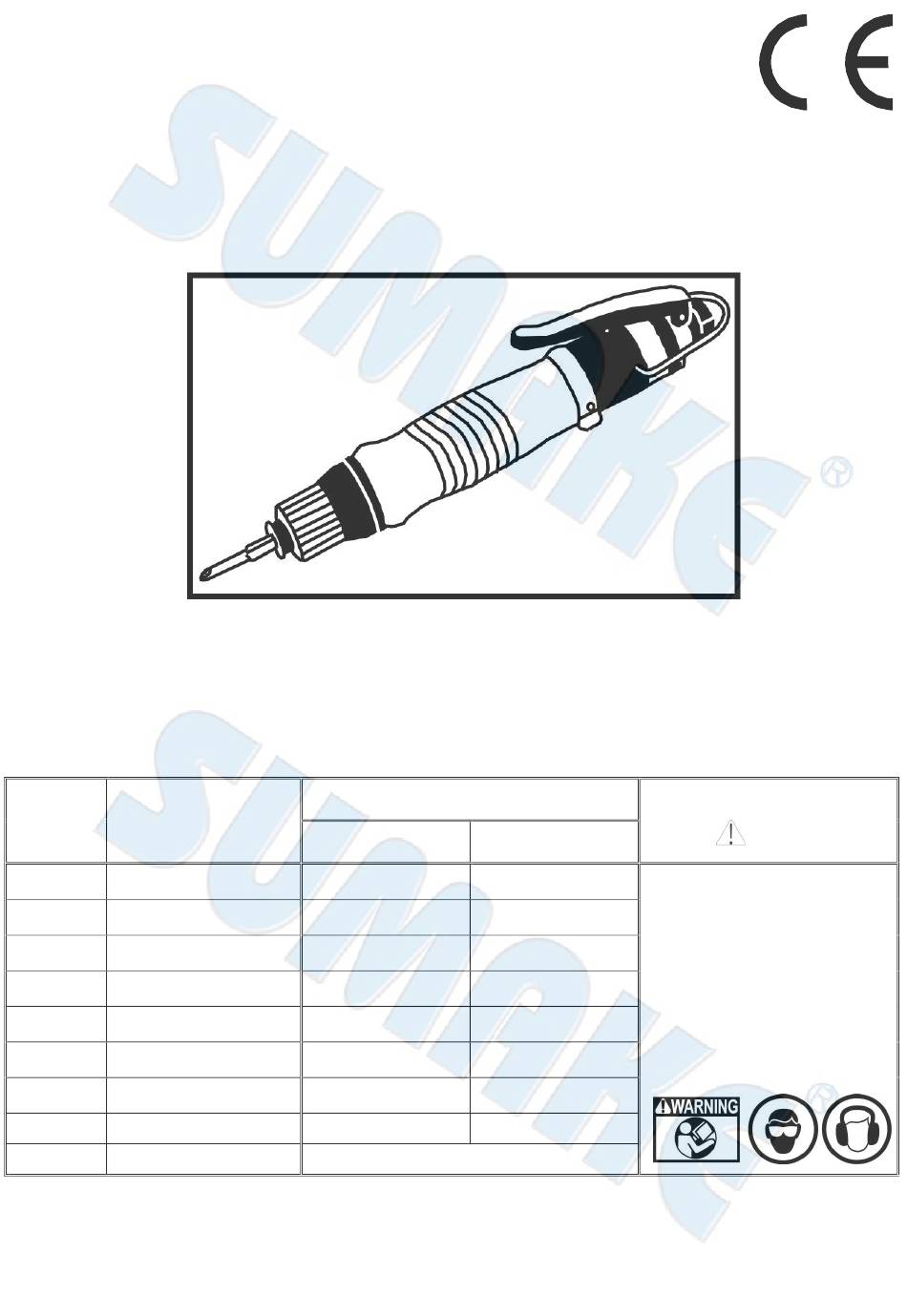

Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CL10
No Load: 0.4 m/s²
CL20
No Load: 0.9 m/s²
CL30
No Load: 0.9 m/s²
CL35
No Load: 0.9 m/s²
CL38
No Load: 0.9 m/s²
CL40
No Load: 0.9 m/s²
CL45
No Load: 1.1 m/s²
CL47
No Load: 1.1 m/s²
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
(Lever Start Type)
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 68 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 73 dB(A)
No Load: 73 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 79 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
2-
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 84 dB(A)
No Load: 84 dB(A)
CL10(20)(30)(35)(38)(40)(45)(47)-S-2111G-MIF
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before operation
the tool.
Wear an approved
ear-protector and gloves while
operating tool.
