SERIAL NUMBERS BEGINNING WITH MC

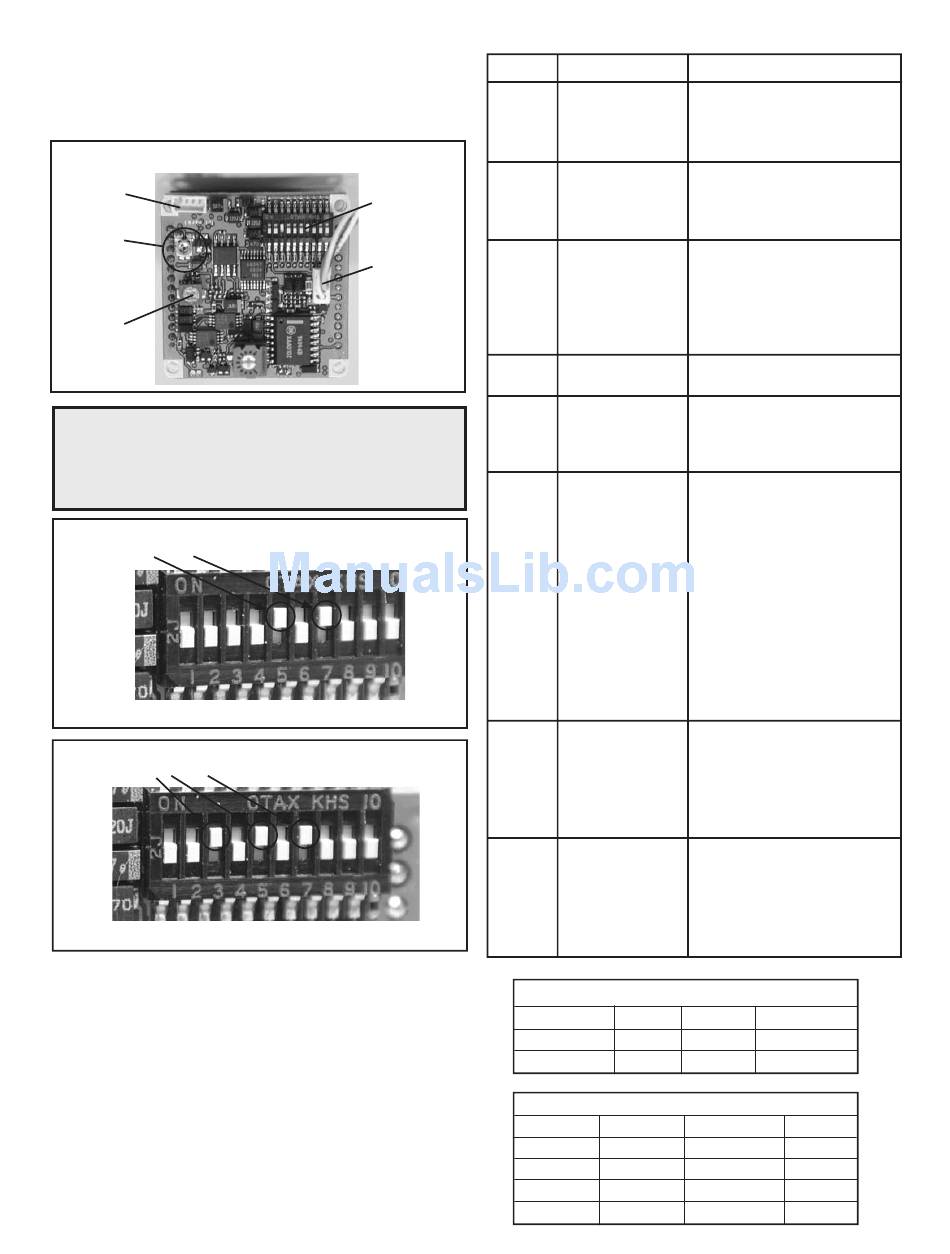

The operational settings for the camera are defi ned by ten dip
switches located on the PC Board (Figure 9). Moving the switches to
the on position will activate each setting. Factory defaults are pictured
below (Figure 10 and 11).
Hi-Res Color, Fixed and Vari-focal fi xed lenses
Factory
Use Only
Auto Iris
adjustment
screw
DO NOT
ADJUST
Figure 9
NOTE: Dip switches are factory pre-set for optimum performance.
In certain specifi c instances it may be necessary to adjust
one or more settings. Consult a qualifi ed technician before
making any adjustments. A Dip Switch settings chart is
available on the next page.
FACTORY DEFAULT FIXED AND FIXED VARI-FOCAL LENSES:
Dip Switches 5 and 7 on, all others off.
Figure 10
FACTORY DEFAULT AUTO IRIS LENSES:
Dip Switches 3, 5 and 7 on, all others off.
Figure 11
MC CAMERA DIP SWITCH SETTINGS CHART
SWITCH
1
2
Dip Switches
3
Connection to
Power Board
4
5
6
7
8
9
10
SHUTTER SPEED
Flickerless (1)
On
Off
GAIN
MIRIS (3)
On
On
On
On
- 3 -
SETTING DEFINITION
Flickerless Mode Setting this switch to "On" and
switch 3 (MIRIS) to "Off" will
help to reduce the fl icker in
fl uorescent lights
BLC (Back Light Helps prevent an object from
being washed out when the
Compensation)
object is directly in front of a
light source.
MIRIS (Manual/
When the switch is in the
on position the auto iris lens
Electronic Iris
controls the amount of light on
the chip. If in the off position
the light level is controlled
electronically.
GAMMA Helps balance the contrast in
the picture.
AGCMAX
Allows day/night cameras to
switch to b/w in low light conditions,
(auto/gain control)
also helps with low light conditions
in standard and hi-res cameras
(Automatic White Used to help improve the
color quality of the camera
Balance Control)
picture under different light-
AW1
ing conditions. The Fac-
tory Default is Switch 7 "ON",
AW2
switches 6 and 8 "OFF".
NOTE: ANY ADJUSTMENTS
AW3
TO THESE SETTINGS
SHOULD ONLY BE MADE
BY A QUALIFIED CCTV
TECHNICIAN
See examples below to help
with any adjustments.
AEREF
This sets the electronic
convergence level. In the "off"
position the level is set to 100
IRE; in the "on" position the
user can set the level. Not
used with auto Iris
With this switch in the "On"
AEME
position users can manually
adjust the shutter speed and
gain using other switches See
the tables below for specifi c
settings
BLC (2) MIRIS (3)
Off Off
On Off
AEREF (9) AGCMAX (5)
Off Off
On Off
Off On
On On
Shutter Speed
1/100 Sec.
1/60 Sec.
Gain
0dB
6dB
12dB
18dB
