© 2012, Moog Videolarm, Inc. All Rights Reserved
Q S D

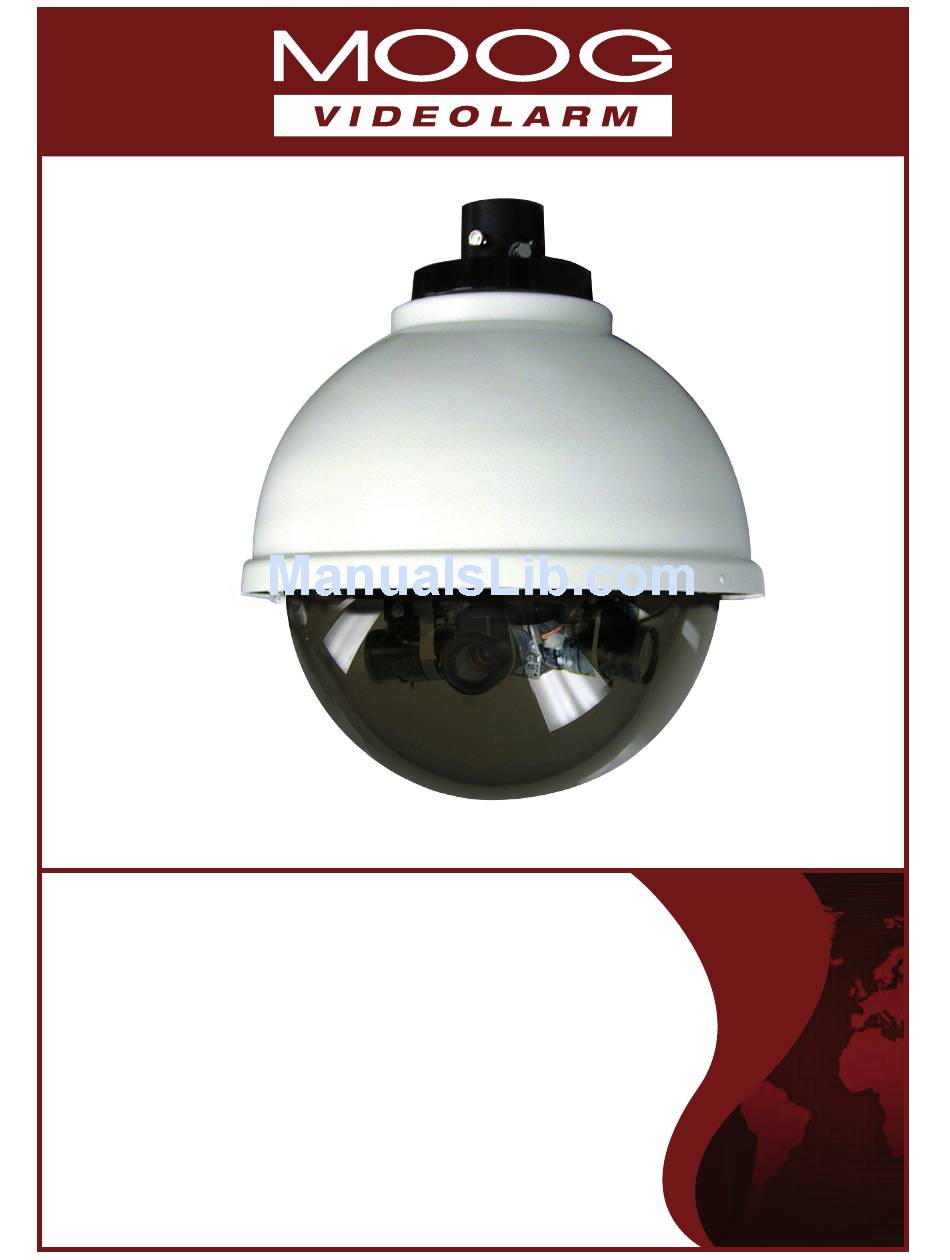

QView™ Series QSD 12" Outdoor Surveillance Dome
Installation and Operation Instructions for the following models:
QSDPT2-70NA5
Standard 12" outdoor, pendant mounted tinted dome with two (2) Day/Night
cameras, 7-50mm auto-iris lens
QSDPT4-70NA5
Standard 12" outdoor, pendant mounted tinted dome with four (4) Day/Night
cameras, 7-50mm auto-iris lens
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5409 Instruction Manual.
www.moogvideolarm.com
81-IN5362
10-15-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm QSD SERIES
Summary of Contents for Moog Videolarm QSD SERIES
- Page 1 © 2012, Moog Videolarm, Inc. All Rights Reserved Q S D QView™ Series QSD 12" Outdoor Surveillance Dome www.moogvideolarm.com Installation and Operation Instructions for the following models: QSDPT2-70NA5 Standard 12" outdoor, pendant mounted tinted dome with two (2) Day/Night cameras, 7-50mm auto-iris lens QSDPT4-70NA5 Standard 12" outdoor, pendant mounted tinted dome with four (4) Day/Night cameras, 7-50mm auto-iris lens 81-IN5362 Before attempting to connect or operate this product, please read these instructions completely. 10-15-2012 To be used with the 81-IN5409 Instruction Manual.
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
- Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Installing The Housing Assembly
Camera Power, BNC (2) screw-down connectors INSTALLING THE HOUSING ASSEMBLY NOTE: This unit is designed for operation in an upright position. PENDANT MOUNT Installing the QRH upside down may cause damage to the internal 1. This unit includes a 1½" NPT coupling for a standard 1½" NPT pipe. The QSD equipment, and will void the warranty. housing can be used with other brackets designed with 1½" male pipe threads, such as the Moog Videolarm WM20G wall mount bracket. 2. Attach the housing coupling (Figure 2). GENERAL INSTRUCTIONS: NOTE: Pipe threads should be clean and rust free. Use a sealer (such as Teflon™ tape or silicone sealer) on the threads. Tools Required: .100" Flat Head Screwdriver Phillips Head Screwdriver Toolhead driver (supplied) Be sure the bracket is properly and securely mounted to a supporting structure capable of rigidly holding the weight of the entire unit. -
Page 5: Cable And Power Guidelines
1. Mount the housing assembly to the mounting bracket and housing coupling. A safety cable is included with the housing to temporarily hold it while making wiring connections. 2. Clean the outside of the dome. Twist and Secure Figure 3 Wiring Color Code for Power POWER Camera Power (24Vac) Camera Power (24Vac) Orange Accessory Power (24Vac) Yellow Accessory Power (24Vac) Green CABLE AND POWER GUIDELINES CAMERAS VOLTAGE CURRENT POWER 1 24Vac/Vdc 102mA 2.5W This chart shows the proper current needed for power supplies for Q-View Series 2 24Vac/Vdc 210mA cameras. Use Class 2 Power only. Input voltage must be 24Vac / Vdc. 3 24Vac/Vdc 331mA 7.9W 4... - Page 6 24 13Ω 26Ω 52Ω 78Ω 108Ω 163Ω * Copper clad steel core, 95% braided shield NOTE: The above table is based on a "worst-case" power supply. Using a regulated or switching power supply can increase your cable distance. Moog Videolarm recommends using our PS24 power supply, or a CSA/UL listed Class 2 power supply. Maximum Length (feet/meters) 24V AC Wiring Distances The QRH is setup with (2) individual power inputs. 1. Accessory Power (yellow and green wire) The following are the recommended maximum distances for 24 VAC 2. Camera Power (red and orange) with a 10% voltage drop (10% is generally the maximum allowable voltage drop for AC powered devices).
- Page 7 CAMERA ADJUSTMENT CAMERA SETTINGS NOTE: To determine which camera is used in your unit, locate the serial number on the 1. Access the cameras by removing the dome. Loosen the locking screws on the lip of inside of the housing. Match the two letter prefix with the corresponding instructions the dome. DO NOT TAKE THESE SCREWS OUT. Once the screws are loosened, turn included here for adjustments. the dome counter clockwise until it stops, then pull the dome off. CAMERA FOCUSING (FOR EACH CAMERA) HIGH-RES BLACK & WHITE Fixed Lens: Loosen the set screw in the lens mount. Manually rotate the lens until a clear picture is achieved. Once the focus is set, retighten the set screw (Figure 5). FIXED AND FIXED VARI-FOCAL LENSES. There are no user adjustable settings on these units (Figure 6). Set screw BW Fixed and Vari-Focal Fixed lens Figure 5 Figure 6...
-
Page 8: Nvt Instructions
COMPLETION OF INSTALLATION HIGH-RES COLOR, FIXED LENS FIXED AND FIXED VARI-FOCAL LENSES. There are no user adjustable settings on 1. When the desired focus is achieved for each camera, adjust the segmented bracket these units (Figure 8) arms to the desired viewing angle. Once you've finished, put the dome back in place AUTO IRIS LENSES: The auto iris can be adjusted if needed. See the Troubleshooting and check to be sure none of the cameras touch the dome. If one or more do, readjust section for instructions. the arm(s) until they are clear of the dome. 2. Reattach the dome by putting it in place, turning clockwise until it locks, and then tightening the locking screws. Auto Iris adjustment NVT INSTRUCTIONS screw Figure 8 UNSHIELDED TWISTED PAIR VIDEO WIRING HIGH-RES COLOR & DAY/NIGHT w/AUTO-IRIS NOTE: The customer must purchase the Video Transceiver from NVT. Part numbers are: NOTE: This hi-res color camera uses a 1/4" chip and a 3-6mm auto iris lens. It is... - Page 9 Wiring Notes Wire — What to DO 1. DO use point-to-point Unshielded Twisted Pair wire, gauge 24 or thicker, stranded or solid, Category 2, 3, 4, or 5. 2. The video signal may co-exist in the same wire bundle as other video, telephone, data, control signals, or low-voltage power. It is also OK to run NVT video signals in or near electromagnetic fields (in accordance with National Electrical Code, local, or other local safety requirements). 3. DO measure the wire distance. Use only transceivers that are designed for that distance. 4. DO make sure the pair of wires carrying the video signal is sent as a twisted pair (e.g. the blue-white/white-blue wires twisted together as a pair), not a “split- pair” (e.g. blue-white conductor, part of one pair/orange-white conductor, part of another pair).
- Page 10 If the voltage is greater than 1/2 volt, use an amplified receiver, such as the NV-652R, NVT TROUBLESHOOTING NV-862R, or NV-1662R. If you are experiencing problems, attempt to simplify your setup. Test each cable Alternately, remove the ground at one end (usually at the camera end). Be sure that segment separately. For example, test the camera and monitor together without the floating the camera conforms to local/regional and National Electrical Codes. other equipment. Then add in the NVT transceivers, back-to-back. Test each segment of a long cable-run independently. Attempt to isolate the problem. 4. Check for crosstalk from a second video path. Disconnect all other video sources. Below are problems that may be encountered. If the suggestions below are not helpful, If the problem goes away, check for a split-pair or un-twisted wire. or the recommendations are not effective, please call NVT’s customer support. NVT customer support can be reached 8:00 AM to 5:30 PM PST at (800) 959-9870 or at FAINT STRIPES GLIDING UP OR DOWN THE SCREEN (+1) (650) 562-0600.
-
Page 11: Troubleshooting
COLOR & DAY/NIGHT AUTO-IRIS Auto Iris Video Signal Adjustment Monitor Screw (Ground Return) Video Shield Figure D Figure A Ground Loop IMPORTANT NOTE ON AUTO IRIS ADJUSTMENT: IMPORTANT NOTE: If you have removed the ground loop and the horizontal line still WHEN ADJUSTING, USE A SMALL, INSULATED SCREWDRIVER. The auto iris remains on screen call Moog Videolarm technical support for further information. adjustments are very sensitive. Use gentle pressure when turning. To adjust, turn either clock-wise or counter-clockwise no more than one degree at a time. Check the monitor after each turn to determine is the desired brightness and color have been obtained. When the adjustment is satisfactory, place a hand over the lens to block out all light. Quickly remove the hand to be sure the iris reacts. - Page 12 Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assured that Moog Videolarm stands behind its products by offering impressive 3 Year and 5 Year warranties, depending on the product purchased. See full warranty details at www.moogvideolarm.com/technical-support/warranty-plan/ Register Your Products Online Please take a few moments to register your purchase via the Online Product Registration Form at: www.moogvideolarm.com/technical-support/product-registration Register your recent Moog Videolarm purchase and benefit from the following: • Simple and Trouble-Free RMA process • Receive product updates, and special promotion • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
