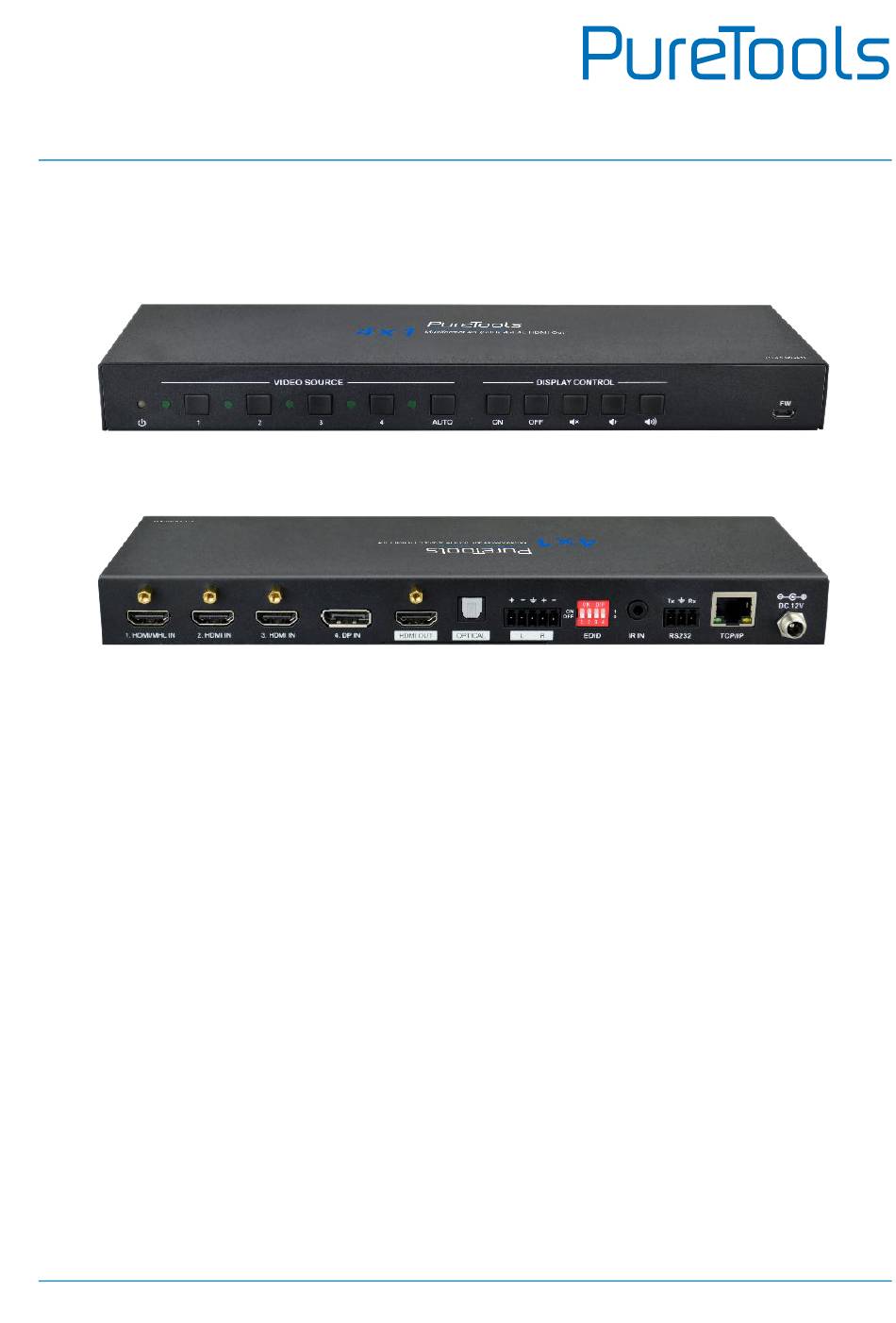

- Page 1 User Manual PT-PSW-41E User Manual 4x1 Multiformat Presentation Switcher 4K (60Hz 4:4:4), HDMI Out with HDCP 2.2 support Model PT-PSW-41E Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-PSW-41E Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-PSW-41E REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-41E complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-41E complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-PSW-41E SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-PSW-41E Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Specification ..........................3 3. Panel Description ........................5 3.1 Front Panel ......................... 5 3.2 Rear Panel .......................... 6 4. System Connection ........................7 4.1 Usage Precaution ...................... - Page 6 User Manual PT-PSW-41E 8. RS232 Control ........................... 22 8.1 RS232 Control Software ....................22 8.2 RS232 Command ......................24 8.2.1 Device Control ....................24 8.2.2 Source Switching ....................25 8.2.3 EDID Management ..................... 25 8.2.4 Audio Control ...................... 26 8.2.5 Display Control....................27 8.2.6 CEC Control ......................
-
Page 7: Product Introduction
User Manual PT-PSW-41E 1. Product Introduction Thanks for choosing the HDMI 2.0 4x1 Presentation Switcher. The switcher allows selection of four different sources (three HDMI inputs and one DisplayPort input), and will simultaneously switch the selected video to HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. -
Page 8: Package List
User Manual PT-PSW-41E 1.2 Package List 1x PT-PSW-41E HDMI 2.0 4x1 Presentation Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x IR Receiver 1x IR Remote 1x 3-pin Terminal Block 1x 5-pin Terminal Block ... -
Page 9: Specification
User Manual PT-PSW-41E 2. Specification Video Video Input (1) HDMI/MHL, (2) HDMI, (1) DP Video Input Connector (3) Type-A female HDMI, (1) DisplayPort HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit MHL Input Resolution Up to 1080P@60Hz DP Input Resolution... - Page 10 User Manual PT-PSW-41E Audio L-R Level Deviation < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) Frequency Response Deviation <± 0.5dB 20Hz ~ 20KHz Output Load Capability 1KΩ and higher (supports 10x paralleled 10KΩ loads) Stereo Channel Separation >70dB@1KHz...
-
Page 11: Panel Description
User Manual PT-PSW-41E 3. Panel Description 3.1 Front Panel ① Power LED: The LED illuminates red when the device is in standby, or illuminates green when the device is power on. ② VIDEO SOURCE: Press 1~4 button to select input source respectively, and its corresponding ... -
Page 12: Rear Panel
User Manual PT-PSW-41E 3.2 Rear Panel ① VIDEO SOURCE: Three type-A female HDMI input ports to connect HDMI video source. One DisplayPort input port to connect DisplayPort video source. ② HDMI OUT: Type-A female HDMI output port to connect video display. -
Page 13: System Connection
User Manual PT-PSW-41E 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 14: Button Control
User Manual PT-PSW-41E 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, the Auto Mode LED goes out. If need to change the input source, please directly press the 1, 2, 3 or 4 button, and the corresponding LED illuminates green immediately. -
Page 15: Display Control
User Manual PT-PSW-41E 5.3 Display Control The switcher supports CEC, and the DISPLAY CONTROL buttons on the front panel are designed for Display On/Off and volume adjustment. ON: Display On. OFF: Display Off. : Mute/unmute display audio. ... - Page 16 User Manual PT-PSW-41E Switch Status Video Resolution Audio Format 0000 (Default) EDID pass-through 0001 1920x1080@60Hz RGB 4:4:4 8bit Stereo Audio High Definition 0010 1920x1080@60Hz RGB 4:4:4 8bit Audio 0011 1920x1080@60Hz RGB 4:4:4 12bit Stereo Audio High Definition 0100 1920x1080@60Hz RGB 4:4:4 12bit...
-
Page 17: Ir Remote Control
User Manual PT-PSW-41E 6. IR Remote Control Connect the IR IN port to an IR receiver, the switcher can be controlled by the below IR remote. ① Enter or exit standby mode. ② Video input selection buttons (1~4) and AUTO mode button. -
Page 18: Gui Control
User Manual PT-PSW-41E 7. GUI Control The switcher also be controlled via TCP/IP, and the default IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.250.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in webpage:... -
Page 19: Switching Tab
User Manual PT-PSW-41E 7.1 Switching Tab Click the AUTO button to enable automatic switching mode. Click 1~4 button to select input source respectively. ... -
Page 20: Display Control Tab
User Manual PT-PSW-41E 7.2 Display Control Tab ON: Display On. OFF: Display Off. : Mute/unmute display audio. : Volume down display audio. : Volume up display audio. ... -
Page 21: Audio Tab
User Manual PT-PSW-41E 7.3 Audio Tab Turn on or turn off the digital audio output. Turn on or turn off the analog audio output. ... -
Page 22: Edid Tab
User Manual PT-PSW-41E 7.4 EDID Tab Before select EDID in this tab, please ensure the 4-pin DIP switch on the rear panel is on the “1111” position. User-defined EDID: There are four EDID values can be customized by the below ... -
Page 23: Rs232 Tab
User Manual PT-PSW-41E 7.5 RS232 Tab Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in this box to control the third-party device ... -
Page 24: Interface Tab
User Manual PT-PSW-41E 7.6 Interface Tab Modify the title bar label. Modify the button labels. ... -
Page 25: Access Tab
User Manual PT-PSW-41E 7.7 Access Tab Modify the login password. Lock or unlock the front panel buttons. ... -
Page 26: Network Tab
User Manual PT-PSW-41E 7.8 Network Tab Set Static IP or Dynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. ... -
Page 27: Gui Upgrade
User Manual PT-PSW-41E 7.9 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the update file and click Apply button, and then it will start upgrade process. -
Page 28: Rs232 Control
User Manual PT-PSW-41E 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending the RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC. - Page 29 User Manual PT-PSW-41E The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then the command is ready to be sent in command sending area.
-
Page 30: Rs232 Command
User Manual PT-PSW-41E 8.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Note: All commands not need to end with “<CR><LF>”. In the commands, “[”and “]” are symbols for easy reading and do not need to be ... -
Page 31: Source Switching
User Manual PT-PSW-41E 8.2.2 Source Switching Command Function Feedback Example Example: HDMI4. HDMI[x]. Switch to HDMI input [x]. x=1~4. Feedback: HDMI Out Switch To 04! HDMIA. Enable auto switching mode. HDMI Out Switch Auto Mode! HDMI Out Switch Manual HDMIM. -
Page 32: Audio Control
User Manual PT-PSW-41E User-define EDID There are four EDID values can be customized by sending the below command. Note: When send the below commands to configure EDID, the 4-pin EDID DIP switch on the rear panel must be in the “1111” status. -
Page 33: Display Control
User Manual PT-PSW-41E 8.2.5 Display Control Command Function Feedback Example Power on the display. CEC_TV_POWON! TVON. TVOFF. Power off the display. CEC_TV_POWOFF! TVVOL+. Increase the display audio. CEC_TV_VOLUP! Decrease the display audio. CEC_TV_VOLDOWN! TVVOL-. TVMUTE. Mute/unmute the display. CEC_TV_VOLMUTE/UNMUTE! 8.2.6 CEC Control If the input sources and display support CEC, they can be controlled by sending the below command to replace IR remote. - Page 34 User Manual PT-PSW-41E Command Description Example and Feedback CECI0104. CECI[port]04. RIGHT. CEC_IN_01_SEND_SUCCESS! CECI010A. CECI[port]0A. Enter main menu. CEC_IN_01_SEND_SUCCESS! CECI010D. CECI[port]0D. Exit menu. CEC_IN_01_SEND_SUCCESS! CECI0141. CECI[port]41. Volume up. CEC_IN_01_SEND_SUCCESS! CECI0142. CECI[port]42. Volume down. CEC_IN_01_SEND_SUCCESS! CECI0143. CECI[port]43. Mute CEC_IN_01_SEND_SUCCESS! CECI0144. CECI[port]44. Play.
-
Page 35: Third-Party Device Control
User Manual PT-PSW-41E Control the output display: Command Description Example and Feedback CECO0141. CECO[port]41. Volume up. CEC_OUT_01_SEND_SUCCESS! CECO0142. CECO[port]42. Volume down. CEC_OUT_01_SEND_SUCCESS! CECO0143. CECO[port]43. Mute CEC_OUT_01_SEND_SUCCESS! CECO016C. CECO[port]6C. Power off. CEC_OUT_01_SEND_SUCCESS! CECO016D. CEO[port]6D. Power on. CEC_OUT_01_SEND_SUCCESS! Note: The above CEC commands may not be used to control some kinds of display devices. -
Page 36: Panel Drawing
User Manual PT-PSW-41E Note: When send HEX command in this box, the “/+[B]:” and the end mark “.” must be converted to hexadecimal characters. For example, send the HEX command “F0 01 01 02 0A” to the third-party whose baud rate is 9600. The “/+[3]:” and the point “.” Is converted to “2F 2B 5B 33 5D 3A”... -
Page 37: Troubleshooting & Maintenance
User Manual PT-PSW-41E 10. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the connecting Try another high quality cable. cable Output image with snowflake Make sure the connection is Fail or loose connection good Check with oscilloscope or... -
Page 38: After-Sales Service
User Manual PT-PSW-41E 11. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 39 User Manual PT-PSW-41E...
- Page 40 User Manual PT-PSW-41E Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
